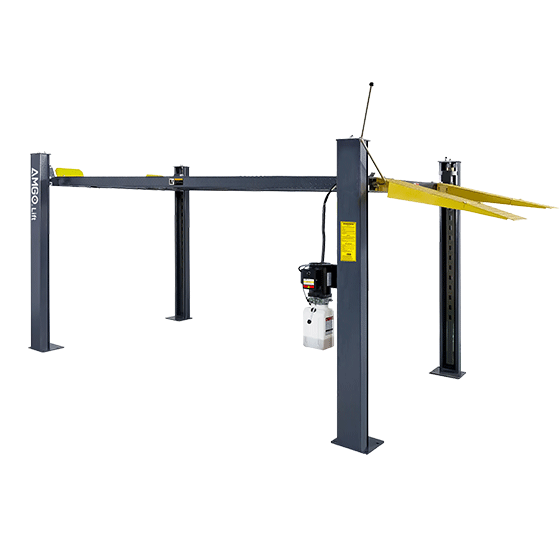

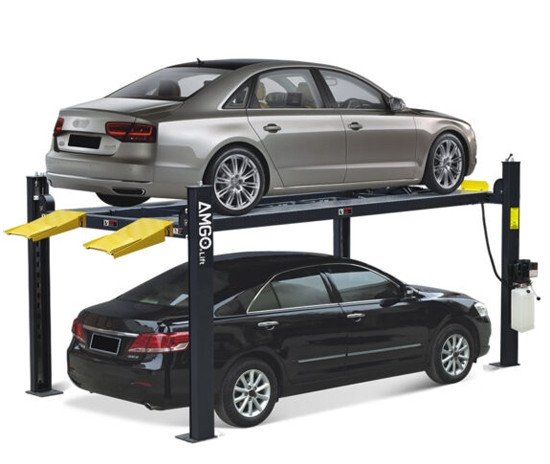

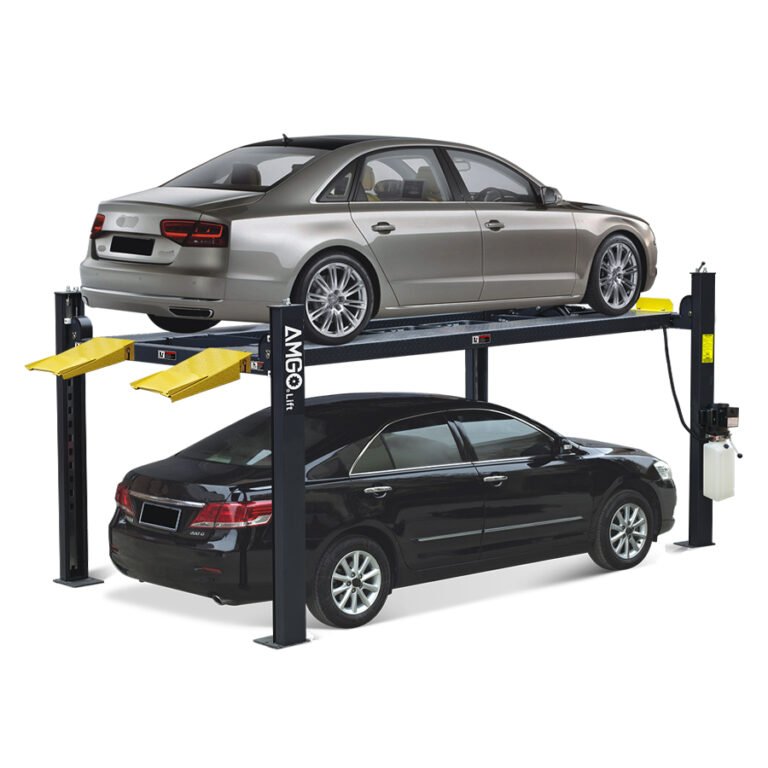

AMGO® Hydraulics 407-P Parking & Service 4 Post Car Lift 7,000 lbs

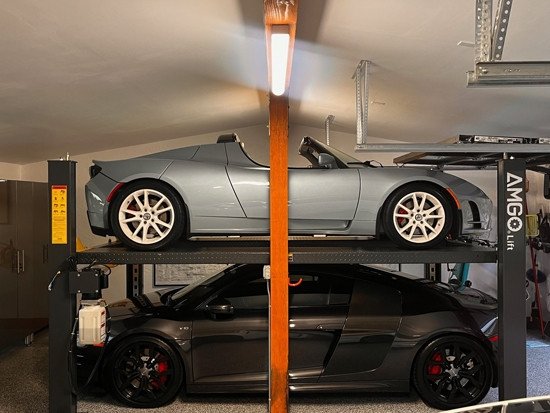

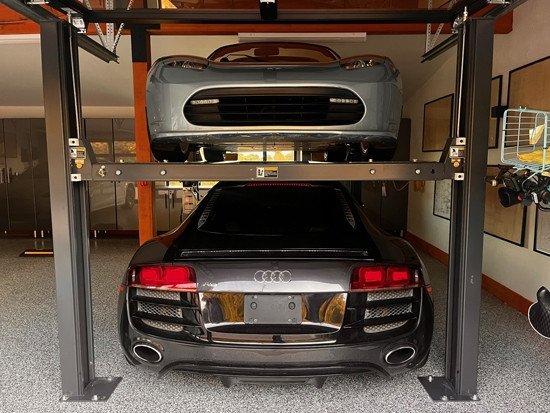

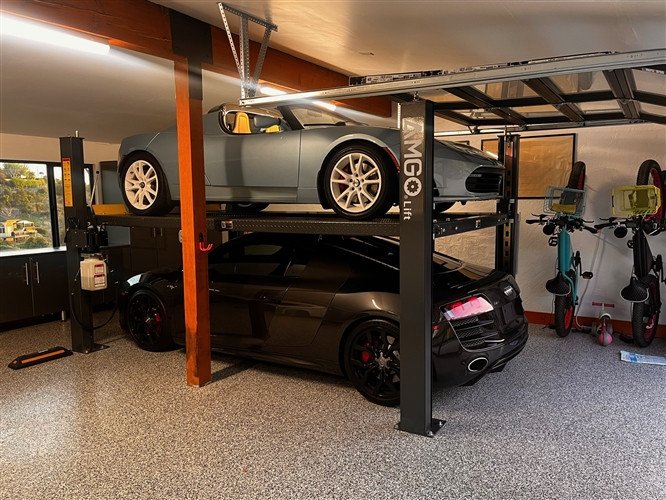

The AMGO® Hydraulics 407-P is a true space-saving powerhouse engineered for both parking and service applications. This 7,000 lbs capacity 4-post lift is the perfect solution for shops or home garages with limited floor space. Whether you're storing a second vehicle overhead or performing routine maintenance and repairs, the 407-P delivers professional-grade performance without the need for special foundation work or complicated installation procedures. With its 73 7/16" maximum lifting height and 77" drive-thru clearance, this lift provides exceptional access and versatility for light-duty vehicles.
Designed with AMGO's exclusive hidden safety lock system and a manual single-point release device, the 407-P allows operators to unlock all safety locks from one column simultaneously—saving time and enhancing safety. The lift features multiple safety locks in each column combined with automatic locks and redundant anti-fall devices, ensuring maximum protection. Its Double-S shaped columns increase structural strength while maintaining a compact footprint of just 94 7/8" overall width.
Key Features & Benefits

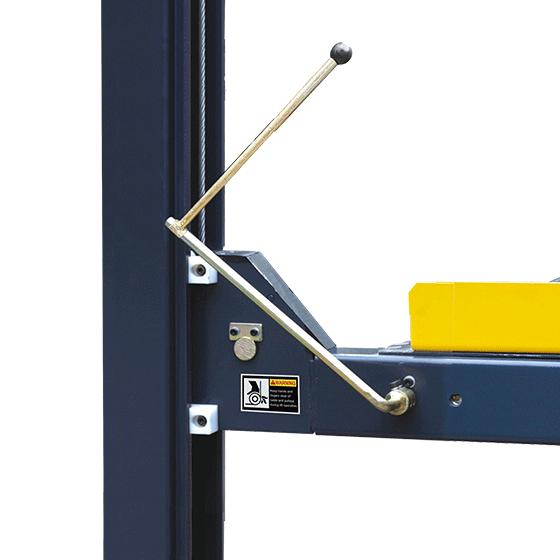

Hidden Lock System: AMGO's exclusive hidden locking device with manual single-point safety lock release provides unmatched convenience and safety. Unlock all columns simultaneously from one location.

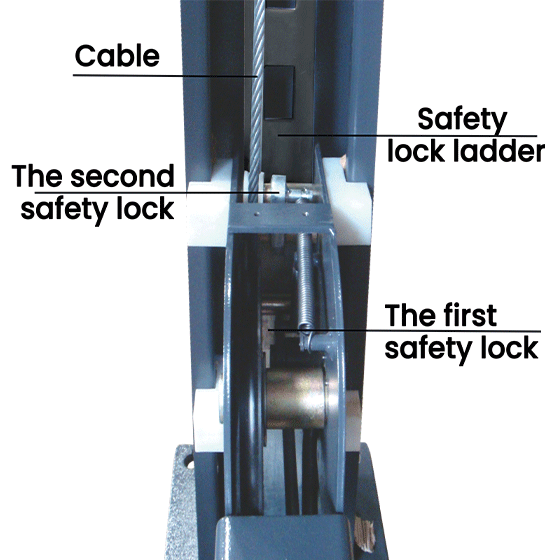

Commercial-Grade Safety: Commercial double safety locks with automatic engagement and redundant anti-fall devices deliver multiple layers of protection. The adjustable lock ladder accommodates various vehicle heights with precision.
Flexible Installation: The power side column can be installed at any corner, giving you complete flexibility to configure the lift for your specific garage layout. Optional caster kit ( #40801 ) allows the lift to be portable and easily repositioned.
Compact Yet Capable: With an overall length of 185 7/8" with ramps and 152" without ramps, the 407-P fits where larger lifts cannot. The 85 3/8" width between columns provides excellent access for working underneath vehicles.
Enhanced Structural Design: Double-S shaped columns maximize strength and rigidity while the non-slip platform ensures safe footing during operation. The lift's 4 15/16" minimum height accommodates low-profile vehicles with ease.
Performance Specifications Highlights
- 7,000 lbs lifting capacity perfect for light-duty vehicles including sedans, coupes, and compact SUVs
- 73 7/16" maximum lifting height with 69 1/2" max underneath height for excellent working clearance
- 77" drive-thru clearance provides ample room for vehicle entry and exit
- Fast lifting times: 83 seconds on 110V or just 31 seconds on optional 220V
- Power options: Standard 1.0HP 110V/60Hz (30 amp required) or optional 2.0HP 220V/60Hz for faster operation
- Compact footprint: 94 7/8" overall width with 85 3/8" width between columns
Optional Accessories Available
Enhance your 407-P lift with these optional accessories designed to increase versatility and convenience:
- #40801 Caster Kit Makes the lift portable and easy to reposition within your shop or garage
- #40806 Set of 4 Drip Trays Protects your vehicles and floor from oil and fluid drips
- #40808 Jack Tray Convenient storage for your floor jack and tools
Why Choose the AMGO® 407-P?
The AMGO® Hydraulics 407-P stands out as an ideal choice for automotive enthusiasts and professional shops alike. Its combination of 7,000 lbs capacity, compact dimensions, and advanced safety features makes it perfect for home garages where space is at a premium but performance cannot be compromised. The lift requires no special foundation or complex installation procedures—simply position it, level it, and you're ready to lift.
The flexible design philosophy extends throughout the 407-P. You can install the power side column at any corner to suit your garage layout. The optional caster kit transforms the lift into a portable unit that can be moved as your needs change. Whether you're using it for vehicle storage, oil changes, brake work, suspension repairs, or general maintenance, the 407-P provides the access and stability you need.
With a shipping weight of 1,543 lbs and straightforward assembly, the 407-P balances robust construction with manageable installation. The non-slip platform, adjustable lock ladder, and multiple safety locks in each column ensure that every lift is secure and stable. This is a lift built to AMGO's exacting standards, delivering commercial-grade reliability at an exceptional value.
Product Features
- 7,000 lbs. capacity, which is perfect for light-duty vehicles
- AMGO ETL certified power unit comes as standard
- High quality cylinder is designed and made to a high standard
- AMGO’s patented design concealed safety lock control device, with manual single-point lock release
- Aero standard cables are included as standard
- Double-S shaped columns are utilized to enhance strength
- Non-slip platforms come with foldable drive-in ramps as standard

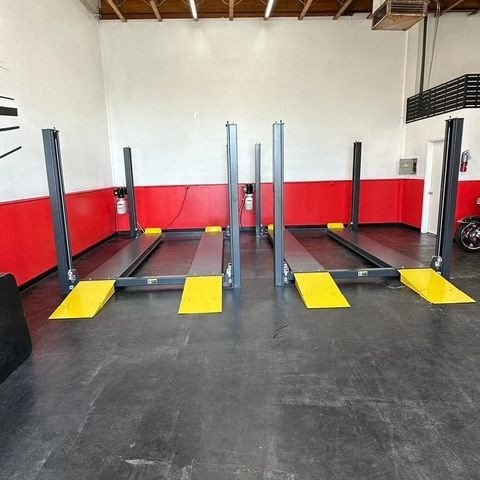

- Support back to back installation to minimize space occupancy
- Power side column can be installed at any corner
- Flexible Design:
- The power side column can be installed at any corner
- Designed to be portable, it can be easily moved by using the optional caster kit #40801
Optional Accessories Available – See Below in Add Ons
- # 40801 Caster Kit
- # 40802 90° Motor Installing Plate
- # 40806 Set of 4 Drip Trays
- # 40808 Jack Tray
Product Specifications
Specifications
407-P
Lifting Capacity
7,000 lbs
A Overall Length w/o Ramp
152 5/8"
A Overall Length w/Ramp
185 13/16"
B Outside Edge of Crossbeams
145 11/16"
C Overall Width
94 13/16"
D Width Between Columns
85 5/16"
E Max. Lifting Height
73 7/16"
E Max. Locking Height
72 11/16"
F Overall Height
82 7/8"
G Minimum Height
4 15/16"
H Max. Underneath Height
69 1/2"
H Max Lock Underneath Runway
66 3/4"
I Drive-Thru Clearance
77"
J Width Between Columns
37"
K Outside Edge of Runways
74 7/16"
Lifting Time
83S 110V / 31 S w/Optional 220V
Motor
2 HP 110V/ Optional 2.0HP 220V Single Phase
Gross Weight
1,430 lbs
Key Features
- Published product configuration: AMGO® Hydraulics 407-P Parking & Service 4 Post Car Lift 7,000 lbs The AMGO® Hydraulics 407-P is a true space-saving powerhouse engineered for both parking and service applications. This 7,000 lbs capacity 4-post lift is the perfect solution for shops or home garages with limited floor space. Whether you're storing a
- Exact manufacturer model or part number: 407-P-V001
- Cataloged for Lifts & Hoists: Car Lifts — Parking Lifts
- 2 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | AMGO Hydraulics |
|---|---|
| SKU | 407-P-V001 |
| MPN / Model | 407-P-V001 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Parking Lifts |
Compatibility & Ordering Notes
Use SKU / MPN 407-P-V001 as the primary ordering reference. Before purchase, match the equipment model, serial-number range, mounting or connection details, and any size or electrical requirements shown in the listing. Compatibility is not implied beyond the verified information above.
Manuals & Technical Resources
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
