Product Overview

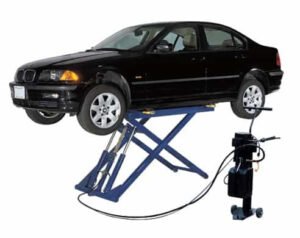

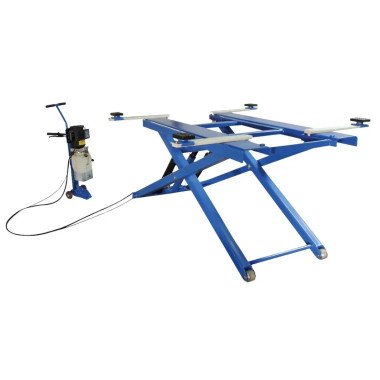

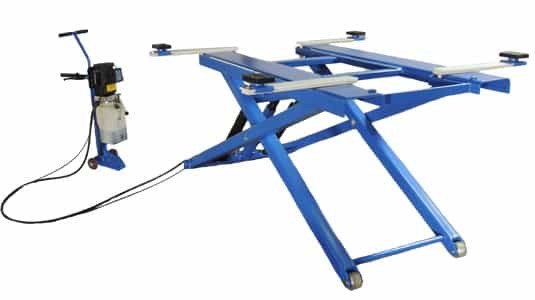

Auto Lift MR6K-48X 6,000 lb Capacity Mid-Rise Scissor Car Lift
The Auto Lift MR6K-48X is a professional-grade mid-rise scissor lift designed to deliver exceptional versatility and performance for busy automotive shops and home garages. With a robust 6,000 lb lifting capacity and an impressive 48-1/2" maximum lifting height, this portable lift handles cars, vans, and light-duty trucks with ease. Perfect for tire, wheel, and brake repairs, collision work, and new vehicle preparation, the MR6K-48X combines heavy-duty construction with portability and precision.
Featuring a new improved design with extended adjustable radius arms, the MR6K-48X offers an additional 5 inches per arm, increasing the overall pad length to an outstanding 81 inches maximum (expandable to 83 inches with extended adjustment). This enhanced range allows you to accommodate a wider variety of vehicles and lifting points with confidence. The twin hydraulic cylinders and scissor lift design ensure maximum strength and stability throughout the entire lift cycle, while the automatic safety locking mechanism provides peace of mind during service.
Key Advantages
- Extended Adjustable Radius Arms: New design with 5 inches more reach per arm, allowing pad lengths from 24" minimum to 81" maximum for superior vehicle compatibility
- Portable Trolley System: Built-in trolley supports the pump and allows you to easily move the lift around your shop or garage
- Twin Hydraulic Cylinders: Dual-cylinder design paired with a scissor lift structure delivers maximum strength, stability, and balanced lifting
- Fast Lift Speed: Full rise in just 40 seconds to keep your workflow moving efficiently
- Standard 110V Power: Operates on 110V – 15 Amp 1Ph for convenient plug-and-play installation in any standard garage outlet
Perfect for a Wide Range of Services
This mid-rise model is ideally suited for tire, wheel, and brake-related repairs, giving technicians full access to wheels and undercarriage components without the need for a full-height lift. It's also an excellent choice for collision repair work, where precise positioning and mobility are essential, and for new car preparation tasks that require quick, convenient access to the underside of vehicles.
The MR6K-48X features an adjustable overall width ranging from 39-5/8" to 57", allowing it to fit a variety of shop layouts and vehicle widths. With a minimum pad height of just 7 inches, it accommodates low-profile vehicles, while the 48-1/2" lifting height (expandable to 54" with optional drop-in height adapters) provides ample clearance for thorough inspections and repairs.
Optional Drop-in 5" Height Adapters Available:
Increase your lifting height to 54 inches with optional drop-in height adapters ( TP9-1039, set of 4, sold separately). Perfect for gaining extra clearance when working on larger vehicles or for specialized undercarriage access.
Optional TP9-1039 Drop-in 5" Height Adapters (set of 4)
Safety and Convenience Features
Safety is paramount in any lift operation. The Auto Lift MR6K-48X includes an automatic safety locking position that engages as the lift rises, securing the vehicle at multiple points throughout the lift range. The twin hydraulic cylinders ensure balanced, stable lifting, while the scissor design provides a solid, rigid platform once fully extended.
Rubber swivel pads are included to protect vehicle frames and lifting points, ensuring a secure, non-slip grip. The portable trolley system makes it easy to reposition the lift as needed, adding flexibility to your shop layout and workflow.
Specifications at a Glance
- Capacity: 6,000 lbs.
- Overall Length: 96-1/2"
- Overall Width: 39-5/8" – 57" (adjustable)
- Lifting Height: 48-1/2"
- Min. Pad Height: 7"
- Lifting Height with Adapters: 54"
- Lifting Speed: 40 seconds
- Pad Length: 24" min / 81" max
- Ship Weight: 920 lbs.
- Power: 110V – 15 Amp 1Ph
Product Features
- Heavy-Duty 6,000lb lifting capacity
- Extended sliding adjustable radius arms
- Portable trolley supports pump and moves lift
- Twin hydraulic cylinders and scissors lift design for maximum strength and stability
- Automatic safety locking position
- Optional drop in height adapters available
Rubber swivel pads included
Optional Drop-in 5" Height Adapters (set of 4) TP9-1039
Product Specifications
Specifications
MR6K-48
Capacity
6,000 lbs.
Overall Length
96-1/2”
Overall Width
39-5/8"- 57”
Lifting Height
48-1/2"
Min. Pad Height
7"
Lifting Height with Adapters
54"
Width Between Runways
N/A
Width of Runways
N/A
Lifting Speed
40 sec
Pad Length
24"min / 81” max
Ship Weight
920 lbs.
Power
110V – 15 Amp 1Ph
Key Features
- Published product configuration: Auto Lift MR6K-48X 6,000 lb Capacity Mid-Rise Scissor Car Lift The Auto Lift MR6K-48X is a professional-grade mid-rise scissor lift designed to deliver exceptional versatility and performance for busy automotive shops and home garages. With a robust 6,000 lb lifting capacity and an impressive 48-1/2" maximum lifting
- Exact manufacturer model or part number: AL-MR6K-48X
- Cataloged for Lifts & Hoists: Car Lifts — Specialty Lifts
- 2 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | Auto Lift |
|---|---|
| SKU | AL-MR6K-48X |
| MPN / Model | AL-MR6K-48X |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Specialty Lifts |
Before You Order
Confirm that model AL-MR6K-48X, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
