Product Overview

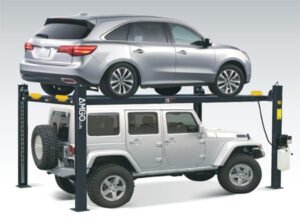

AMGO® Hydraulics 408-P Parking & Service 4 Post Car Lift 8,000 lbs
Maximum Space Efficiency Meets Professional Performance
The AMGO® Hydraulics 408-P is a true space-saving powerhouse designed for professionals and enthusiasts who demand commercial-grade performance without sacrificing valuable floor space. With an 8,000 lbs capacity, this four-post lift is ideal for light-duty vehicles and provides exceptional versatility for shops, commercial garages, and residential car ports with limited space.
Engineered for maximum efficiency, the 408-P requires no special foundation or complicated installation procedures. Its flexible design allows the power side column to be installed at any corner, adapting perfectly to your workspace layout. The lift's innovative features and robust construction make it one of the best commercial or private use lifts available today, delivering professional results whether you're running a busy service center or managing your personal collection.
What sets the AMGO 408-P apart is its combination of advanced safety features, structural integrity, and operational convenience. The exclusive hidden safety lock system with manual single-point release allows operators to unlock all safety locks from one column simultaneously, streamlining your workflow. The double-S shaped columns provide exceptional strength and stability, while the skid-proof diamond platform ensures tires stay securely in place during lifting operations.
Key Features & Advantages
- 8,000 lbs lifting capacity Perfect for cars, light trucks, and SUVs, making it ideal for diverse vehicle service needs
- AMGO exclusive hidden safety locks with manual single-point release device – Unlock all safety locks simultaneously from one column for faster, more convenient operation
- Double-S shaped column design Enhanced structural strength and stability for maximum safety and long-term durability
- Skid-proof diamond platform Provides superior traction to keep tires securely positioned throughout the lift cycle
- Flexible power column placement Install the power side column at any corner to perfectly fit your workspace configuration
Advanced Safety & Design Features
Hidden Lock System
The AMGO 408-P features an innovative hidden locking device with a manual single-point safety lock release mechanism. This exclusive design provides superior safety while simplifying operation – operators can release all safety locks from a single location, eliminating the need to walk around the lift and manually unlock each column individually.

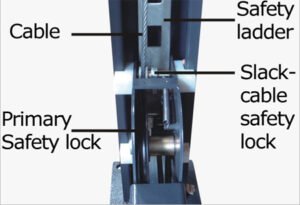

Commercial Double Safety Locks
Equipped with commercial-grade double safety locks, the 408-P provides additional layers of protection for every lift operation. These robust locks engage automatically at multiple height positions, ensuring the vehicle remains securely elevated even in the unlikely event of hydraulic pressure loss.
Versatile Power Unit Installation
The lift includes a 90° installation plate for mounting the power unit at the side of a column ( Kit # 40802 ), offering even more flexibility in configuring the lift to match your specific workspace requirements and workflow preferences.
Portable Design Option

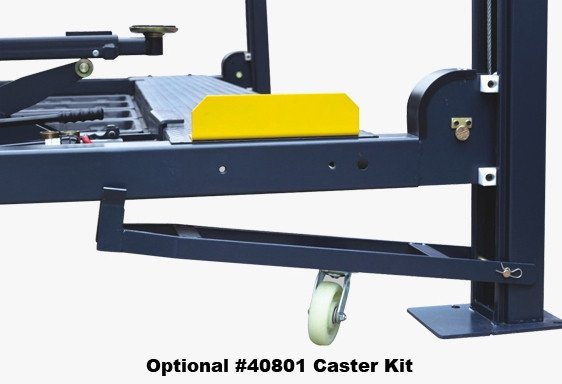

Designed with portability in mind, the 408-P can be easily relocated using the optional Caster Kit (# 40801). This feature is particularly valuable for shops that need to reconfigure their workspace or for users who want the flexibility to move the lift between locations.
Compact Dimensions, Full-Size Performance
Despite its space-saving footprint, the AMGO 408-P delivers professional lifting performance. With a maximum lifting height of 73¾" and a minimum height of just 5 11/16", this lift accommodates a wide range of vehicles while providing excellent underneath clearance for comprehensive service work. The 96" width between columns and 81 ⅝" drive-thru clearance ensure compatibility with most vehicles in its weight class.
The overall length with ramp is 207" (173¼" without ramp), making it one of the most compact four-post lifts in its capacity range. The 102 1/2" overall width allows installation in garages and bays where larger lifts simply won't fit, opening up professional lifting capabilities for previously space-constrained locations.
Power & Performance Specifications
The 408-P comes standard with a 1.0HP 110V/60Hz motor (30 amp circuit required) with a lifting time of 98 seconds. For faster operation, an optional 2.0HP 220V/60Hz motor is available, reducing lifting time to just 40 seconds. This flexibility allows you to configure the lift to match your existing electrical infrastructure or upgrade to higher-speed operation as needed.
With a shipping weight of 1,560 lbs, the AMGO 408-P is substantial enough to provide rock-solid stability during operation, yet manageable for installation and potential relocation.
Optional Accessories for Enhanced Functionality
Customize your AMGO 408-P with professionally designed accessories to maximize versatility and convenience:
- # 40801 Caster Kit Transform your lift into a portable unit that can be easily repositioned
- # 40806 Set of 4 Drip Trays Protect your floor and contain fluids during service operations
- # 40808 Jack Tray Convenient storage for your floor jack and service equipment
Product Features
- 8,000 lbs. capacity, which is perfect for light-duty vehicles
- AMGO ETL certified power unit comes as standard
- High quality cylinder is designed and made to a high standard
- AMGO’s patented design concealed safety lock control device, with manual single-point lock release
- Aero standard cables are included as standard
- Double-S shaped columns are utilized to enhance strength

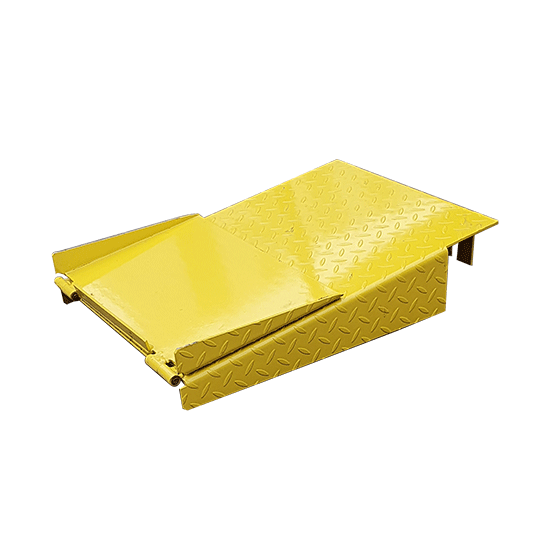

- Non-slip platforms come with foldable drive-in ramps as standard
- Support back to back installation to minimize space occupancy
- Power side column can be installed at any corner
- Extremely high lifting is suitable to park taller vehicles
- Pull rope comes as standard
Optional Accessories Available – See Below in Add Ons
- # 40801 Caster Kit
- # 40802 90° Motor Installing Plate
- # 40806 Set of 4 Drip Trays
- # 40808 Jack Tray
Product Specifications
Specifications
408-P
408-HP
Lifting Capacity
8,000 lbs
A Overall Length w/Ramp
208 1/16"
A Overall Length w/o Ramp
174 5/8"
B Outside Edge of Crossbeams
167 5/8"
C Overall Width
102 1/2"
D Width Between Columns
92 13/16"
E Max Lifting Height
73 11/16"
87 11/16"
E Max Lock Height
70 15/16"
84 15/16"
F Overall Height
82 7/8"
96 5/8"
G Minimum Height
5 11/16"
H Max. Underneath Height
69"
82 15/16"
H Max. Lock Underneath Runway
66 1/4"
80 3/16"
I Drive-Thru Clearance
81 5/8" (2074mm)
J Width Between Runways
37"
K Outside Edge of Runways
74 7/16"
Lifting Time
98s(110V) / 40s(220V)
98s(110V) / 46s(220V)
Motor
1.0HP 110V/60Hz – 30 amp Required / Optional 2.0HP 220V/60Hz
Shipping Weight
1,563 lbs
1,669 lbs
Key Features
- Published product configuration: AMGO® Hydraulics 408-P Parking & Service 4 Post Car Lift 8,000 lbs Maximum Space Efficiency Meets Professional Performance The AMGO® Hydraulics 408-P is a true space-saving powerhouse designed for professionals and enthusiasts who demand commercial-grade performance without sacrificing valuable floor space. With an
- Exact manufacturer model or part number: 408-P-V001
- Cataloged for Lifts & Hoists: Car Lifts — Parking Lifts
- 2 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | AMGO Hydraulics |
|---|---|
| SKU | 408-P-V001 |
| MPN / Model | 408-P-V001 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Parking Lifts |
Compatibility & Ordering Notes
Use SKU / MPN 408-P-V001 as the primary ordering reference. Before purchase, match the equipment model, serial-number range, mounting or connection details, and any size or electrical requirements shown in the listing. Compatibility is not implied beyond the verified information above.
