BendPak HD-9STX Narrow Width Car Lift 9,000 lb. Capacity – New Gray

Product Overview

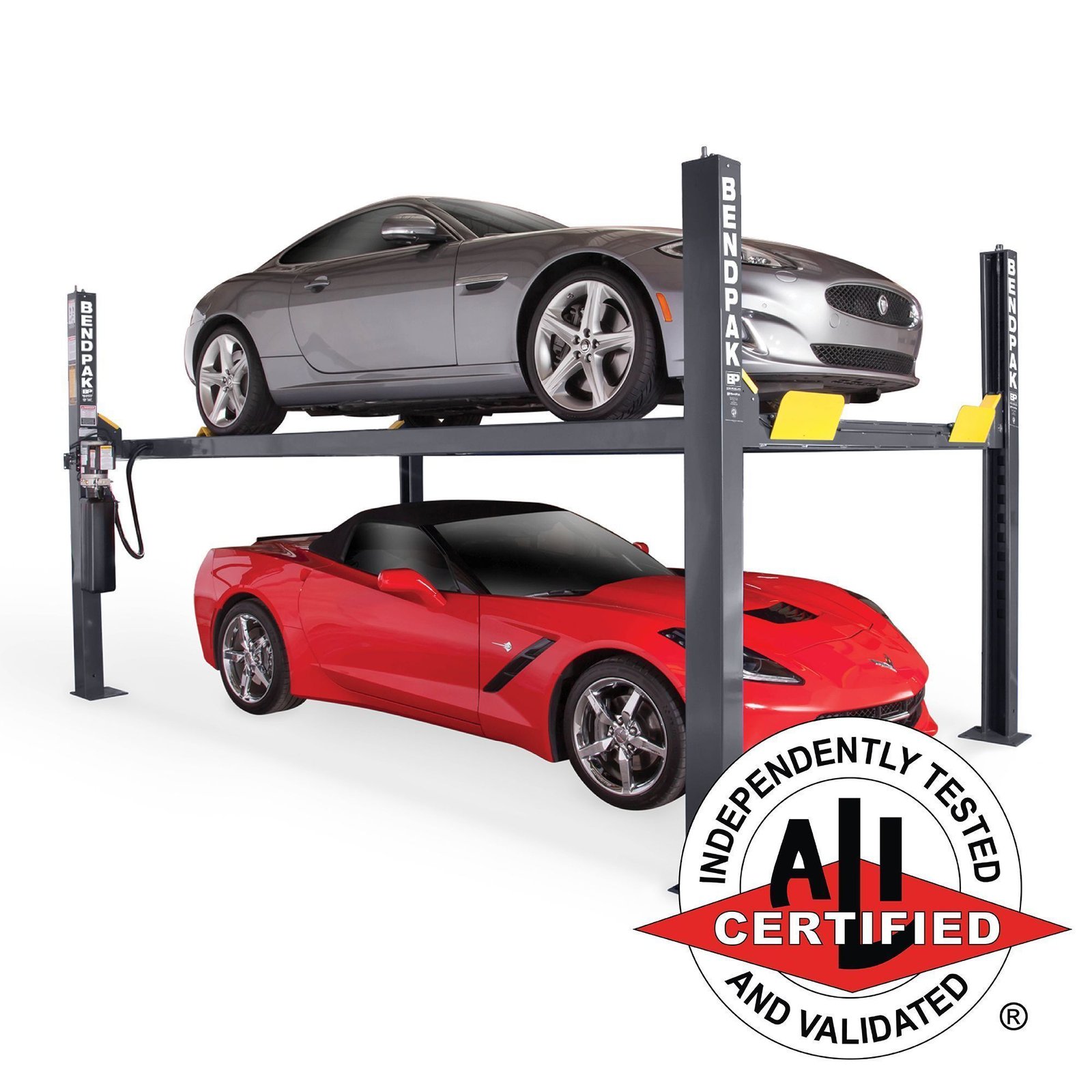

BendPak HD-9STX Narrow Width Car Lift — 9,000 lb. Capacity, New Gray

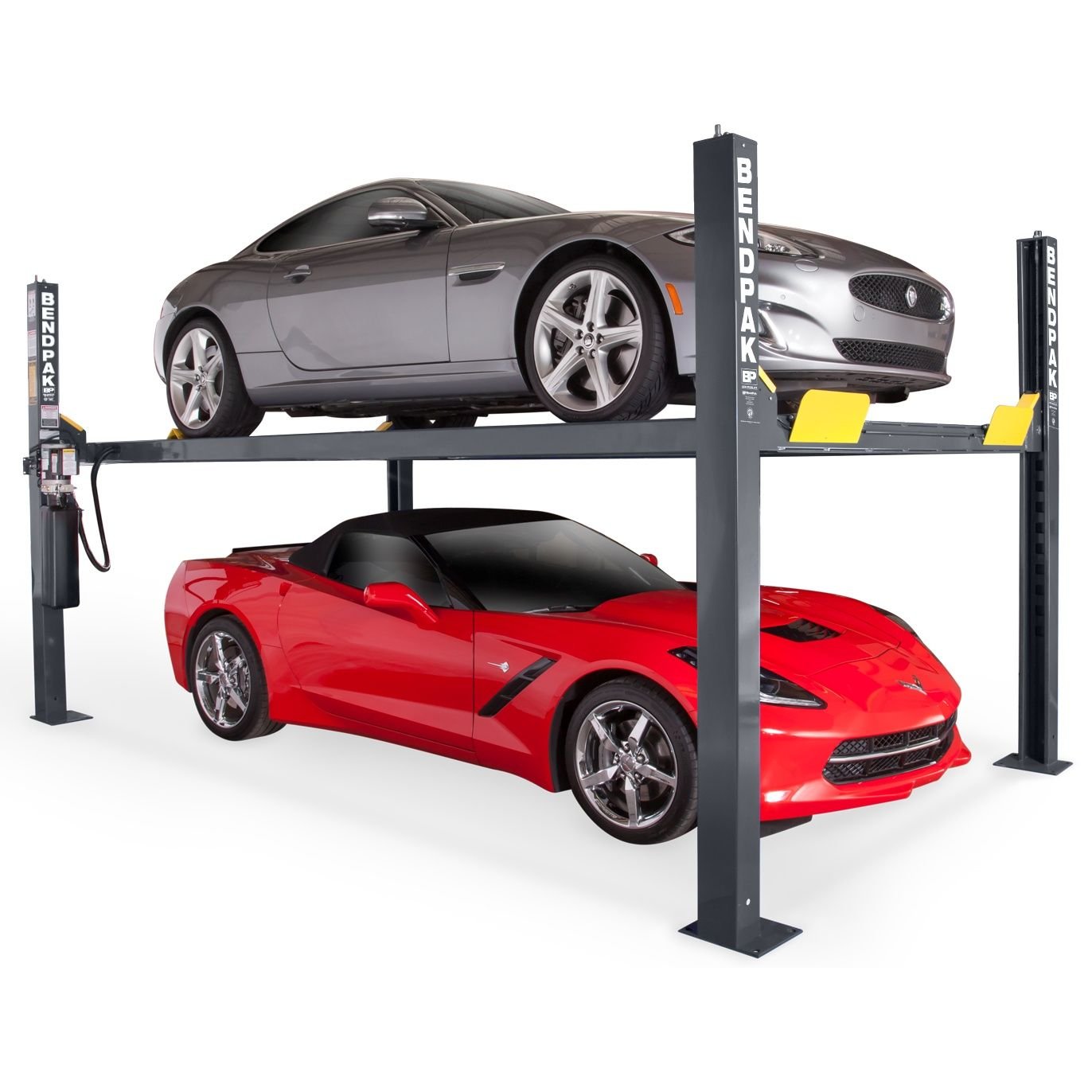

The BendPak HD-9STX is a 9,000-lb. capacity, CE Approved and Certified narrow-width, extra-tall four-post car lift engineered for serious vehicle storage, service, and parking in residential garages or commercial facilities. Featuring a high-rise design with an impressive 82" maximum rise and 86.5" maximum lifting height, this lift maximizes vertical space—perfect for owners with standard 8-foot or taller ceilings looking to reclaim valuable floor area.

Unlike typical "hobby lifts," the HD-9STX is packed with commercial-grade features and built to the exacting standards BendPak is known for—backed by over 40 years of experience and a reputation for quality, durability, and innovation. This narrow-width freestanding design requires no special foundation, installs easily, and can even be fitted with optional casters for portability. Whether you're storing ATVs, snowmobiles, jet skis, golf carts, boats, or vehicles for detailing, or using it as a robust service lift in a space-conscious shop, the HD-9STX delivers unmatched versatility and reliability.

Perfect for Storage, Parking, and Service

The space-saving design of the 9,000-lb. capacity HD-9STX is ideal for vehicle storage in residential garages or commercial buildings. It also happens to make a great service lift for smaller shops who still want to do big business. No special foundation is required and installation is straightforward. Optional casters enable you to roll the lift outside or wherever best suits your needs. About the size of a typical parking space, this lift truly maximizes valuable floor area.

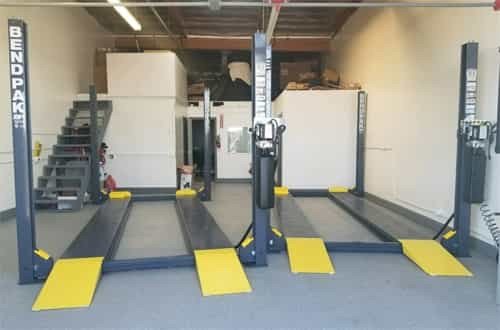

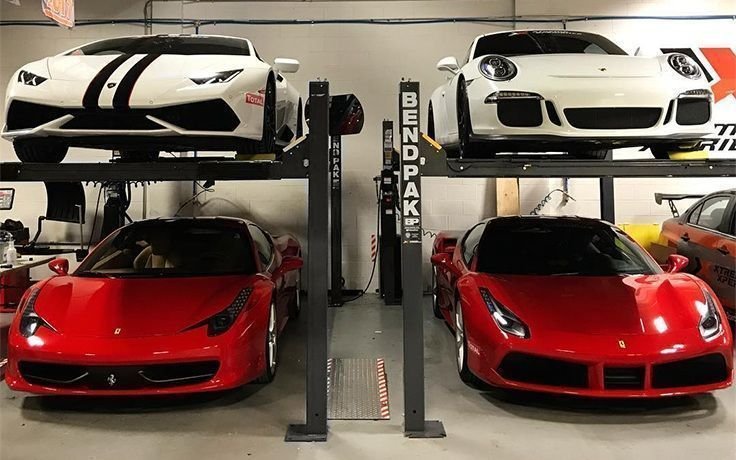

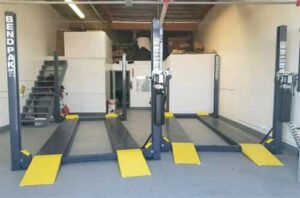

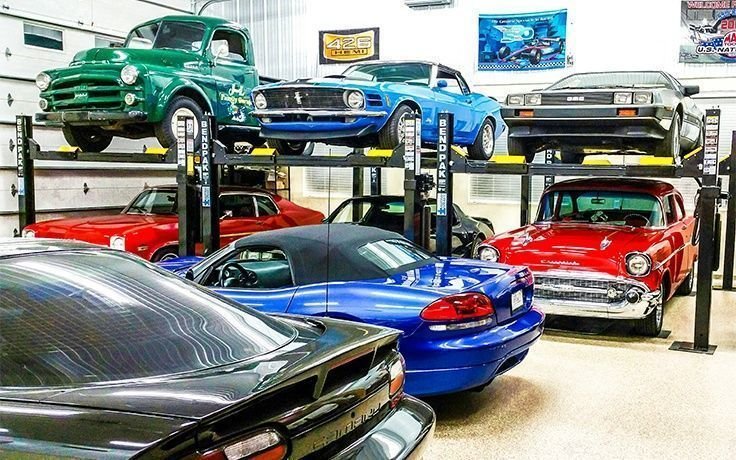

Use the HD-9STX for detailing; storing ATVs, snowmobiles, jet skis, golf carts, boats or just about anything else that needs to be off the ground. You can finally make use of that wasted vertical space above your car. If you've got at least a standard 8-foot ceiling, this lift will work for you. The narrow-width design with 89.75" width between columns and 100.25" overall width accommodates narrow and standard vehicles alike, while the high-rise configuration gives you the extra height you need.

Don't make the mistake of calling the HD-9STX a "hobby lift." Our expert engineers have packed this model with features that were previously only found on commercial-grade designs. Plus, it's a BendPak, so you know it's backed by over 40 years of experience and a reputation that carries just as much weight as our lifts. We're proud to have these HD-Series lifts in our lineup, and you'll be proud to have one in your shop or garage.

The HD-9STX is the narrow-width, high-rise version of this lift. If you are looking for a standard-width model, consider the HD-9XW.

Dependable Design & Built for the Long Haul

Dependable design: Four heavy-duty, high-quality, stainless steel lifting cables (rated at 14,400 lbs. each a combined rating of 640% of maximum lifting capacity ) and a single hydraulic cylinder mounted underneath the runway make this lift the most durable, maintenance-free lifting system on the market. All lifting cables, airlines, safety latches, and sheaves are fully enclosed within the lift structure for a clean, integrated look and maximum protection.

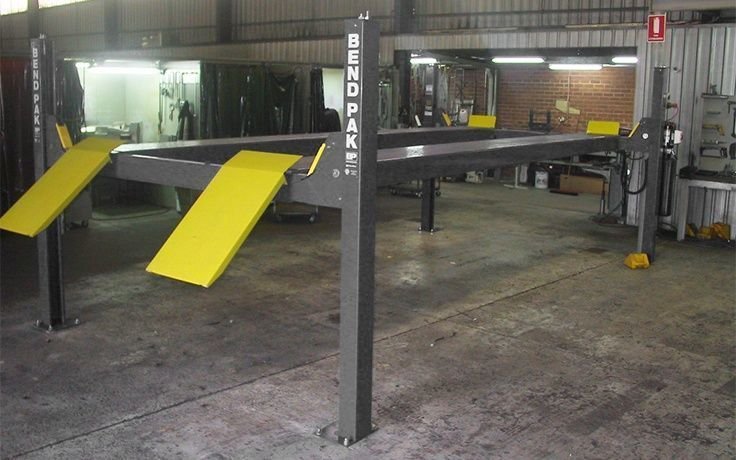

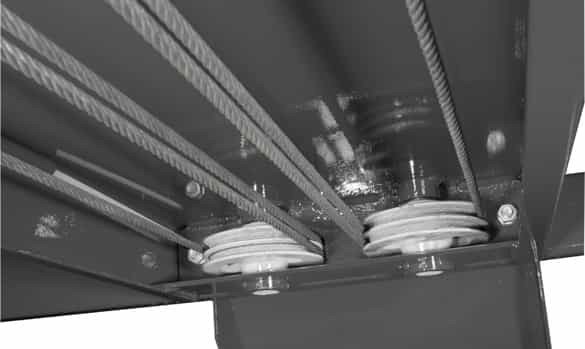

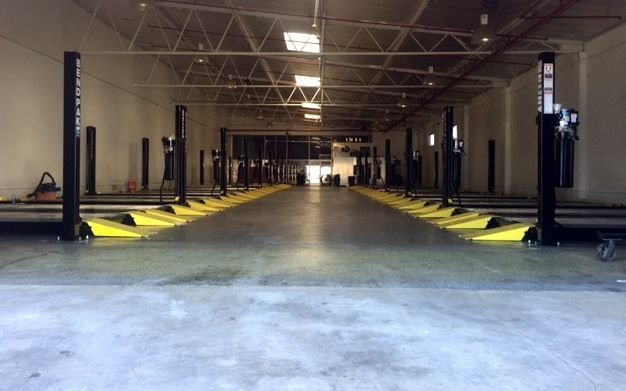

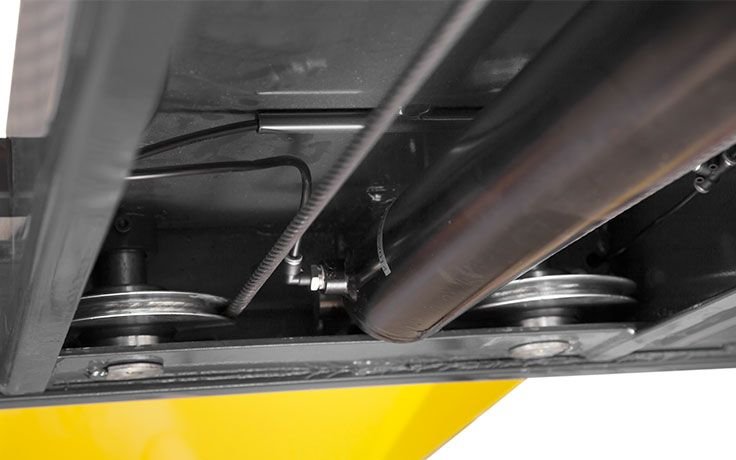

Dual-hub cable sheaves: Reduce stress and fatigue on the axles, sheaves, and cables. We insist on using dual-hub cable sheaves, even if they cost us more to make. When you buy BendPak, we throw in peace of mind as a free gift. Oversized self-lubricating cable rollers and rugged 1-1/4" roller axles further enhance durability.

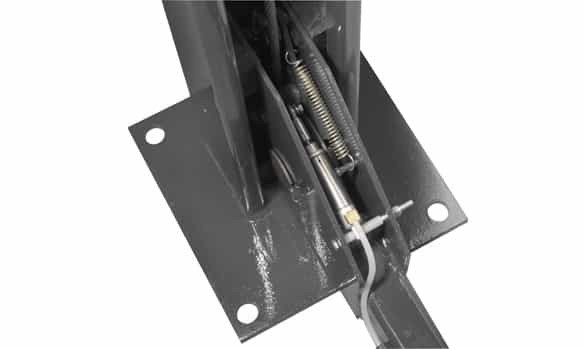

Multi-position safety locks: The HD-9STX is equipped with 15 locking positions (lock spacing every 4 inches ) for variable-height parking and service. A convenient push-button pneumatic safety lock control releases all four independent safety locks simultaneously. Automatic safety locks engage continuously as the lift is raised, and a secondary independent backup slack-cable safety latch system acts as a failsafe in the unlikely event of cable failure.

Heavy-duty aircraft cable: Each lift is supplied with 4 high-quality stainless steel lifting cables rated at 14,400 lbs. each. The combined rating of these cables is 640% of the maximum lifting capacity of the entire lift! Features heavy-duty 3/8" aircraft cable for ultimate strength and reliability. And we make sure it looks tidy too—all lifting cables are fully enclosed within the lift structure itself.

Electric / hydraulic power system: We incorporate maintenance-free electric hydraulic power systems into each lift for ultimate dependability, and all controls are conveniently located within close reach. The customizable power unit location gives you installation flexibility to match your shop layout. Motor is 220 VAC / 60 Hz / 1Ph, and the system operates at a whisper-quiet 45 dB.

Large base plates: 10" x 12" base plates provide a solid foundation for the HD-9STX, ensuring stability and longevity.

Single hydraulic cylinder: Each lift is equipped with a single hydraulic cylinder, hidden away under the runway for minimum exposure and maximum reliable performance. Our industrial-grade hydraulic cylinders feature a single-piece, pilot fitted, machined steel piston, wrapped with specially designed, pressure loaded U-cup piston seals, backups, and wear bands to virtually eliminate fluid bypass. The micro-smooth chrome-rod is machined from high-yield, ground and polished C-1045/50 micro-alloy steel and plated to a minimum of.001" diametrically, to ensure superior cylinder operation and life. The superior-design high durometer, mechanically-loaded rod seals make rod leakage a thing of the past while a specially formulated abrasion-resistant urethane rod wiper provides exclusion protection. The welded cylinder body is made from robust steel tubing produced to exceed ASTM specifications. This combination of superb base material and superior processing ensures that the cylinders remain straight, smooth and last a very long time. An integrated flow restrictor provides a controlled descent in the case of an unexpected hose rupture.

Durable Powder-Coat Finish & Precision Engineering

Durable powder-coat finish: All HD-Series lifts feature a durable powder-coat finish in New Gray that gives the metal a high-quality, extremely durable finish which can withstand even the harshest environmental or chemical conditions. Unlike other companies that claim to powder coat, we take pride in our meticulous 10-step process. First, all parts are visually inspected before being sandblasted. Afterwards, the parts are washed in our 5-stage phosphate tanks that can accommodate parts up to 25' long. Once cleaned, they're immediately dried to avoid rust production, and then outgassed. Outgassing pre-bakes the parts in a curing oven, reducing the possibility of blemishes that may be hiding in the pores of the metal. If not properly outgassed, imperfections in the metal may bubble during the curing process and most likely will cause chips in the powder. After the parts are washed and outgassed, any surfaces and/or threaded holes that need to be masked or plugged are done so with high-temperature masking tape and silicone plugs. Next, the parts are given a quick thinner wipe to remove any light debris or fingerprints, before being hung on an electrostatically grounded conveyor line. The powder is finally applied using an electrostatic spray gun. The powder "sticks" to the surface in a fashion similar to how dust sticks to a television screen. Once the parts are powder coated, the carts are rolled into our curing oven and baked at 400°F for 45 minutes.

Internal anti-sway slider blocks in each column provide smooth, stable lifting with no lateral movement. Adjustable lock ladders give you the flexibility to fine-tune lock engagement for different vehicle configurations.

Runways feature non-skid surface for safe loading and unloading, and include a rail-kit for optional accessories such as drip trays, rolling jacks, and solid decks. Removable approach ramps provide additional drive-under clearance when needed, and the longer approach ramps are specifically designed to help when loading low ground clearance vehicles. It's the little bit that makes a big difference. Optional drive-thru ramps are also available for added versatility.

Key Performance Highlights

• 9,000-lb. lifting capacity (4,082 kg) with 4,500 lbs. max per axle

• 82" maximum rise (2,083 mm) and 86.5" maximum lifting height (2,197 mm) for extra-tall clearance

• 15 locking positions every 4 inches for precise variable-height parking and service

• Narrow-width design: 100.25" overall width, 89.75" width between columns, perfect for smaller shop or garage footprints

• Fast operation: time to full rise in just 50 seconds

• CE Approved and Certified meets or exceeds European Standard EN 1493

• Freestanding design no floor anchors or special foundation required

• Optional adjustable limit microswitch, drip trays, solid deck, drive-thru ramps, and 4,500-lb. air/hydraulic rolling jacks (Model RBJ-4500)

Four Models to Choose From

Take your pick. You're currently looking at the narrow-width, high-rise HD-9STX. The HD-9 is the standard-width model, the HD-9ST is the narrow model, and the HD-9XW is the standard-width, high-rise model. Each model in the HD-9 Series shares the same 9,000-lb. capacity and legendary BendPak build quality, so you can choose the configuration that best fits your space and application.

Optional Accessories to Expand Capability

Enhance the versatility of your HD-9STX with optional accessories designed to maximize your investment:

• Optional drip trays (BendPak 5700301 Plastic Drip Trays): Light-weight, cost-effective solution to catch harmful fluids and protect your vehicles and garage flooring. Features 56 articulated catches and gutters to restrain fluid from sloshing. Impact-resistant polypropylene construction is rugged, light, and reversible to accommodate runways positioned wide or narrow. Sold in sets of two. Black color hides stains.

• Optional solid deck: Increase storage capacity by converting the lift into a solid platform for stacking smaller items or creating a full upper level.

• Optional 4,500-lb. air/hydraulic rolling jacks (Model RBJ-4500): Perfect for wheel service and additional lifting support.

• Optional drive-thru ramps: Create a seamless drive-through configuration for loading vehicles end-to-end.

• Optional adjustable limit microswitch: Fine-tune lift height limits for specific applications..

Optional Pair Drip Trays — BendPak 5700301 Plastic Drip Trays fit BendPak's HD-7 and HD-9 Series Lifts (Set of 2). Polypropylene drip trays from BendPak are a perfect, cost-effective solution to a messy problem. A reversible design allows them to accommodate BendPak four-post lifts with the runways positioned either wide or narrow. These drip trays are an essential four-post lift accessory, especially if you have a vehicle that leaks. These affordable, impact-resistant polypropylene drip trays are rugged and light, and help solve the common problem of potentially harmful drips. Each tray comes with 56 articulated catches and gutters to restrain the fluid from sloshing out. So all that oil, coolant and other muck stays neatly contained within individual compartments, even when carried or bumped. A smart, black color hides the appearance of stains and blemishes.

Important Installation & Compliance Information

Air Supply Requirement: An air supply ( minimum: 30 psi / 3 CFM ) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

Product Features

• 9,000-lb. maximum lifting capacity

• CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493

• Freestanding design

• Narrow-width

• High-rise

• Perfect for parking, storage and service

• Runways accommodate narrow and standard vehicles

• Runways include rail-kit for optional accessories

• Electric / hydraulic power system

• Single hydraulic cylinder mounted underneath runway

• Fully enclosed lifting cables, safety locks and sheaves

• Internal anti-sway slider blocks in each column

• Oversized self-lubricating cable rollers

• Features heavy-duty 3/8" aircraft cable

• Rugged 1-1/4" roller axles

• Multi-position safety locks in each column

• Adjustable lock ladders

• Runways feature non-skid surface

• Push-button pneumatic safety release

• Independent backup slack-cable safety latches

• Customizable power unit location

• Removable approach ramps for additional drive-under clearance

• Longer approach ramps for low-ground clearance vehicles

• Optional Adjustable Limit Microswitch

• Optional drive-thru ramps available

• Optional drip trays available

• Optional solid deck available to increase storage capacity

• Optional 4,500-lb. air / hydraulic rolling jacks available (Model RBJ-4500)

Optional Pair Drip Trays

BendPak 5700301 Plastic Drip Trays fits BendPak's HD-7 and HD-9 Series Lifts (Set of 2)

A light-weight, cost-effective solution to drips, these drip trays will catch harmful fluids and keep them in one place to protect your vehicles and garage flooring. Sold in sets of two.

Polypropylene drip trays from BendPak are a perfect, cost-effective solution to a messy problem. A reversible design allows them to accommodate BendPak four-post lifts with the runways positioned either wide or narrow. These drip trays are an essential four-post lift accessory, especially if you have a vehicle that leaks. These affordable, impact-resistant polypropylene drip trays are rugged and light, and help solve the common problem of potentially harmful drips.

Each tray comes with 56 articulated catches and gutters to restrain the fluid from sloshing out. So all that oil, coolant and other muck stays neatly contained within individual compartments, even when carried or bumped. A smart, black color hides the appearance of stains and blemishes.

Product Specifications

Model

HD-9ST
HD-9STX

Style

Narrow Width
Narrow / High Lift

Capacity

Lifting Capacity: (*)

9,000 lbs. (4,082 kg)

*Max Capacity / Front Axle

4,500 lbs. (2,041 kg)

*Max Capacity / Rear Axle

4,500 lbs. (2,041 kg)

Rise

A Min. Runway Height

4.5" (114 mm)

B Max. Rise

70" (1,778 mm)
82" (2,083 mm)

C Max. Lifting Height

74.5" (1,892 mm)
86.5" (2,197 mm)

Time to Full Rise

45 seconds
50 seconds

Outside Dimensions

D Overall Width

100.25" (2,546 mm)

E Outside Length

174" (4,420 mm)
198" (5,029 mm)

F Overall Length

200" (5,080 mm)
224" (5,690 mm)

G Height of Columns

88" (2,235 mm)
100" (2,540 mm)

Inside Dimensions

H Width Between Columns

89.75" (2,280 mm)

I Drive-Thru Clearance

76.5" (1,943 mm)

Runways

J Runway Width

19" (483 mm)

K Length of Runways

164" (4,166 mm)
188" (4,775 mm)

L Width Between Runways

37.5" (953 mm)

M Runway Centerline

56.5" (1,435 mm)

N Outside Edge of Runways

75.5" (1,918 mm)

Minimum Wheelbase

Rated Capacity

115" (2,921 mm)
135" (3,429 mm)

75% Capacity

100" (2,540 mm)
115" (2,921 mm)

50% Capacity

85" (2,159 mm)
95" (2,413 mm)

25% Capacity

70" (1,778 mm)
80" (2,032 mm)

Locking

Locking Positions

12
15

Lock Spacing

Every 4" (102 mm)

Power Unit

Motor

220 VAC / 60 Hz / 1Ph

Noise

45 dB

Shipping

Weight

1,630 lbs. (739.4 kg)
1,782-lbs. (808.3 kg)

Dimensions

180" x 22" x 40"
(4,572 x 559 x 1,016 mm)
190" x 22" x 35"
(4,826 x 559 x 889 mm)

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

Key Features

• Published product configuration: BendPak HD-9STX Narrow Width Car Lift — 9,000 lb. Capacity, New Gray The BendPak HD-9STX is a 9,000-lb. capacity, CE Approved and Certified narrow-width, extra-tall four-post car lift engineered for serious vehicle storage, service, and parking in residential garages or commercial facilities. Featuring a high-rise
• Exact manufacturer model or part number: 5175862-V001
• Cataloged for Lifts & Hoists: Car Lifts — Parking Lifts
• 4 product manual or technical documents linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model 5175862-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
