BendPak HD-9ST Narrow Width 4 Post Car Lift 9,000 lb. – New Gray

Product Overview

BendPak HD-9ST Narrow Width Four Post Car Lift – 9,000 lb. Capacity

The BendPak HD-9ST is a game-changer for anyone who needs a professional-grade 9,000-lb. capacity four-post lift but doesn't have the luxury of a sprawling commercial bay. Engineered with a narrow-width design, the HD-9ST is ideal for residential garages, smaller service shops, and car collectors who demand maximum utility from limited floor space. This is not a compromise lift—it's a full-featured, ALI-certified machine designed to handle serious work, safe vehicle storage, and even parking solutions.

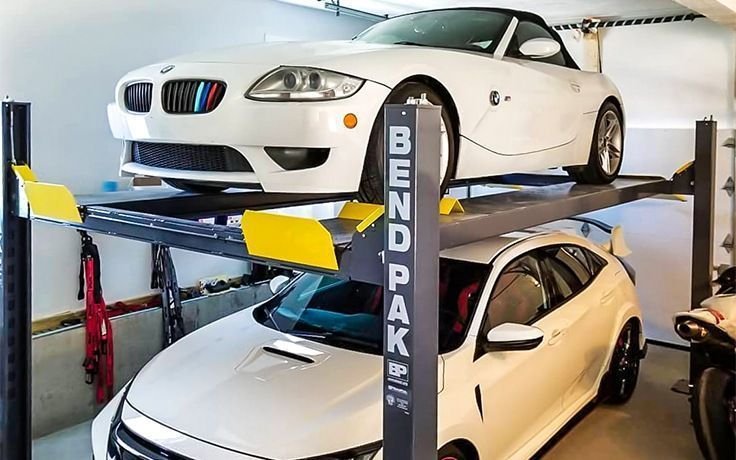

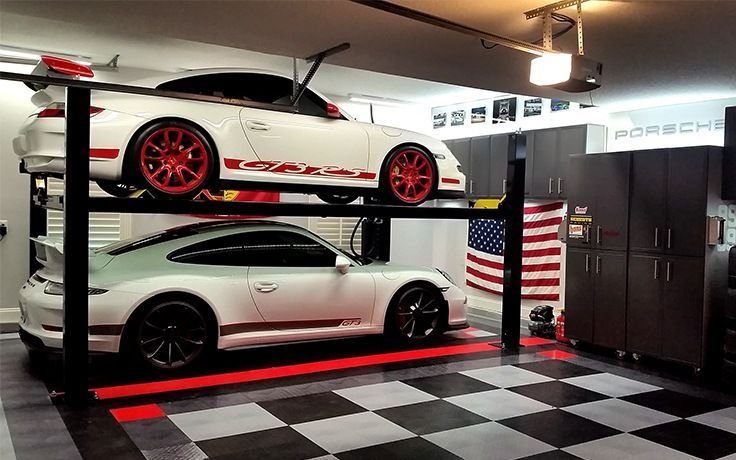

Whether you're stacking vehicles for storage, performing undercarriage service, or simply need to reclaim your valuable garage floor space, the HD-9ST delivers. It requires no special foundation, installs quickly, and is sized about the same as a typical parking space. With standard 8-foot ceilings, this lift opens up your shop or garage's vertical space, letting you park one vehicle below and another above—or lift a car high enough to work comfortably underneath. Optional casters even let you roll the lift outdoors or relocate it as your space needs evolve.

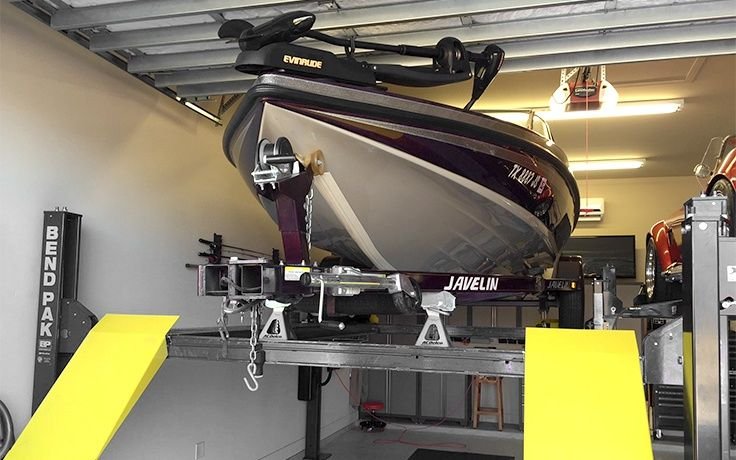

Beyond cars, the HD-9ST handles ATVs, snowmobiles, jet skis, golf carts, boats, and more making it a versatile solution for anyone with toys that need safe, off-the-ground storage. But don't be fooled by the modest footprint: this lift is packed with commercial-grade features, from heavy-duty 3/8" aircraft-quality cables and a single hydraulic cylinder hidden beneath the runway to multi-position pneumatic safety locks and independent slack-cable backup latches. Backed by over 40 years of BendPak engineering excellence, the HD-9ST proves that space-saving design doesn't mean sacrificing strength, safety, or longevity.

Watch the HD-9ST in Action

Key Highlights

• 9,000-lb. lifting capacity with 4,500 lbs. per axle handles most cars, trucks, and recreational vehicles with ease

• Narrow width design (100.25" overall width) maximizes floor space without sacrificing performance, perfect for tight garages and smaller shops

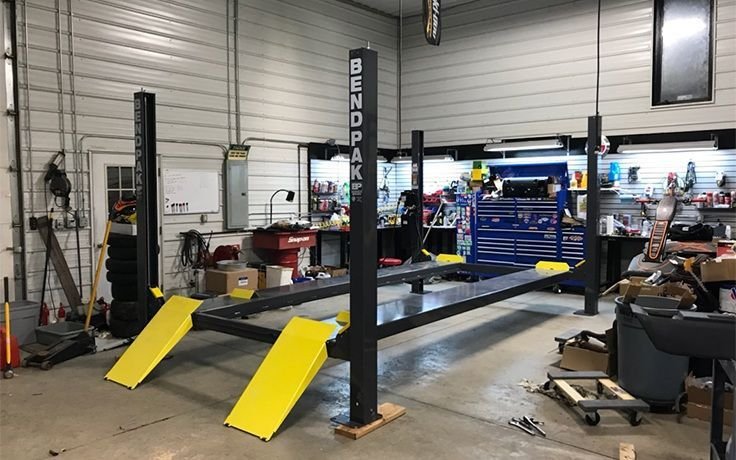

• Freestanding installation no concrete anchoring required; optional casters allow for portability

• Electric/hydraulic power system with a single hydraulic cylinder concealed under the runway – clean, reliable, maintenance-free operation

• Multi-position pneumatic safety locks (12 positions, every 4") with push-button release and independent slack-cable backup latches for redundant safety

• 70" maximum rise with 74.5" lifting height reach full height in just 45 seconds

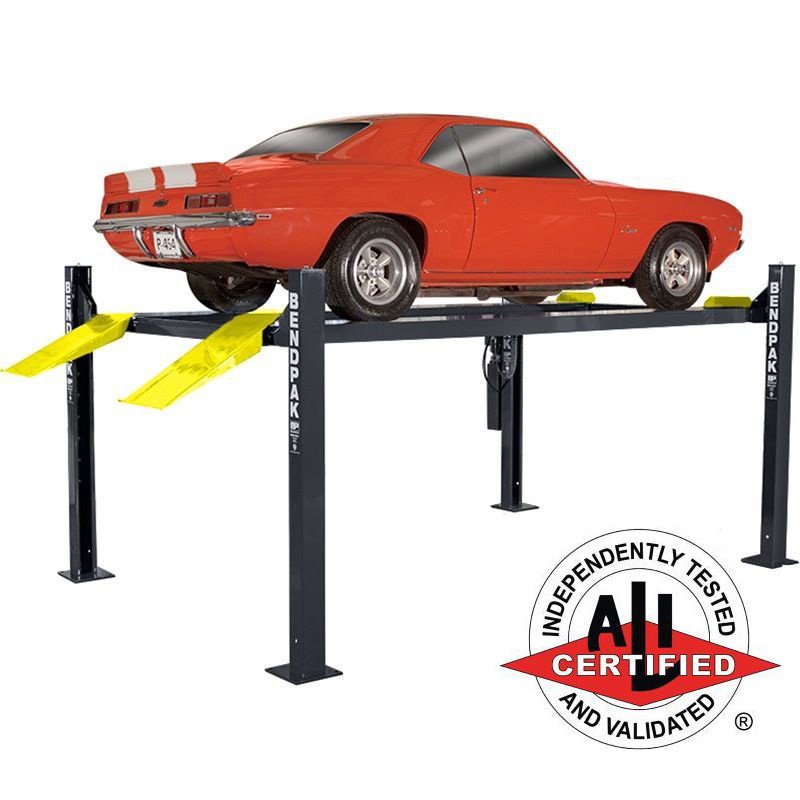

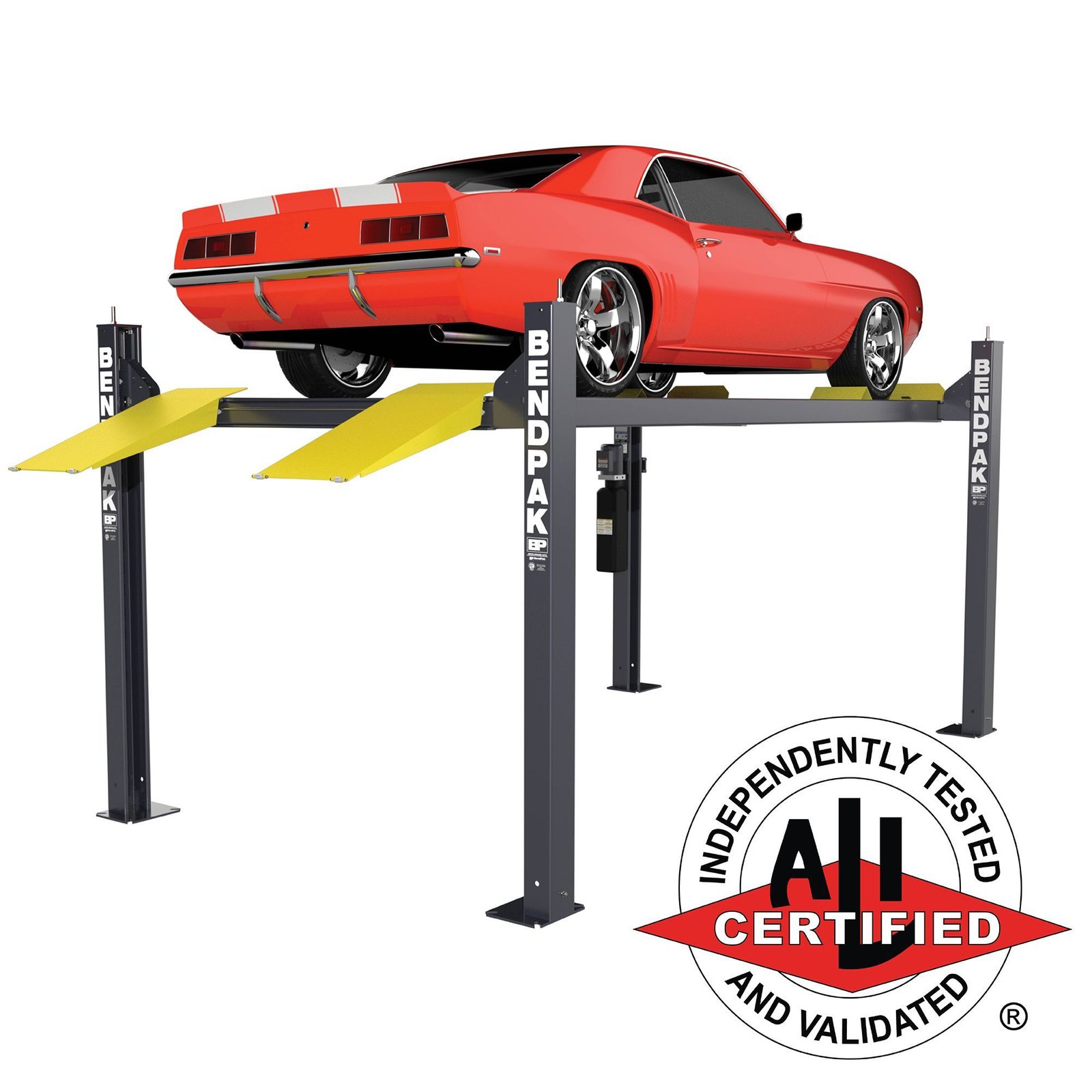

• ETL Approved and ALI-certified meets rigorous industry safety and quality standards

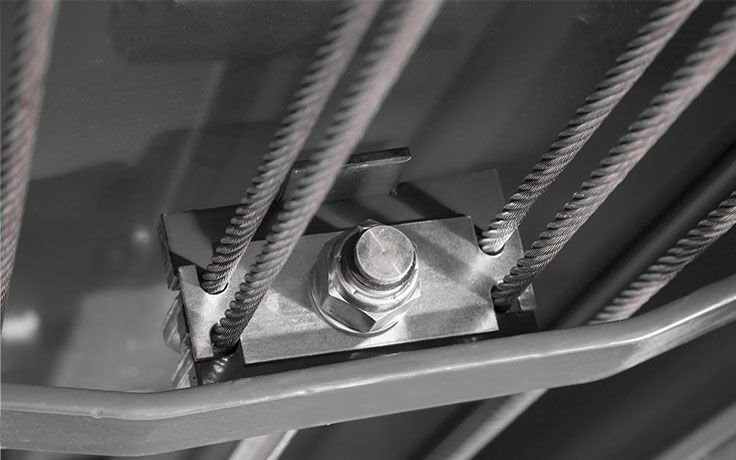

• Fully enclosed lifting cables, safety locks, and sheaves integrated design protects critical components and keeps your workspace clean

Dependable, Commercial-Grade Engineering

Dependable design: Four heavy-duty, high-quality stainless steel lifting cables (rated at 14,400 lbs. each that's 640% of the lift's maximum capacity ) and a single hydraulic cylinder mounted underneath the runway create the most durable, maintenance-free lifting system on the market. All lifting cables are fully enclosed within the lift structure for safety and a clean appearance.

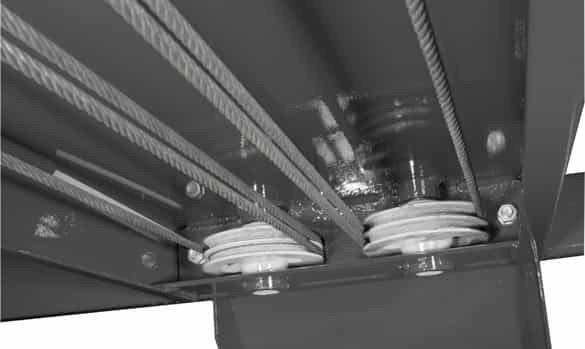

Dual-hub cable sheaves: BendPak insists on using dual-hub cable sheaves to reduce stress and fatigue on axles, sheaves, and cables—even though they cost more to manufacture. When you buy BendPak, peace of mind comes standard.

Multi-level locking positions: The HD-9ST is equipped with 12 adjustable height locking positions (one every 4 inches ) for variable-height parking and service flexibility. A convenient push-button pneumatic safety lock control releases all four independent safety locks simultaneously, making operation fast, easy, and safe.

Heavy-duty aircraft cable: Each lift uses four high-quality stainless steel lifting cables, each rated at 14,400 lbs. The combined strength of these cables is more than six times the lift's rated capacity, ensuring unmatched reliability and longevity.

Electric/hydraulic power system: BendPak incorporates maintenance-free electric hydraulic power systems into each lift for ultimate dependability. All controls are conveniently located within close reach for smooth, intuitive operation.

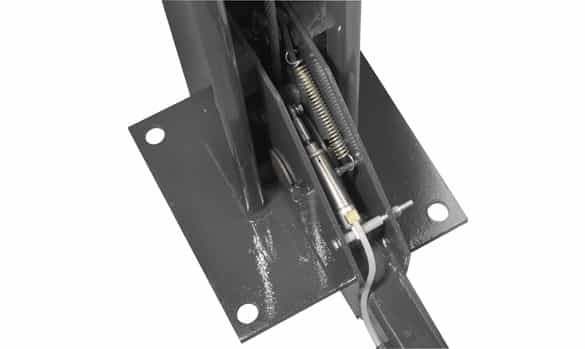

Large base plates: 10" x 12" steel base plates provide a solid, stable foundation for the HD-9ST, ensuring rock-solid performance even at maximum capacity.

Single hydraulic cylinder: Each lift is equipped with a single industrial-grade hydraulic cylinder, hidden away under the runway for minimum exposure and maximum reliable performance. Our cylinders feature a single-piece, pilot-fitted, machined steel piston wrapped with specially designed, pressure-loaded U-cup piston seals, backups, and wear bands to virtually eliminate fluid bypass. The micro-smooth chrome rod is machined from high-yield, ground and polished C-1045/50 micro-alloy steel, plated to a minimum of.001" diametrically, ensuring superior operation and life. High-durometer, mechanically loaded rod seals make rod leakage a thing of the past, while a specially formulated abrasion-resistant urethane rod wiper provides exclusion protection. The welded cylinder body is made from robust steel tubing produced to exceed ASTM specifications, ensuring the cylinders remain straight, smooth, and durable for decades. An integrated flow restrictor provides controlled descent in the case of an unexpected hose rupture.

Durable Powder-Coat Finish

All HD-Series lifts feature a durable powder-coat finish that gives the metal a high-quality, extremely durable surface capable of withstanding even the harshest environmental or chemical conditions. Unlike other companies that claim to powder coat, BendPak takes pride in a meticulous 10-step finishing process. First, all parts are visually inspected before being sandblasted. Afterwards, parts are washed in BendPak's 5-stage phosphate tanks (which can accommodate parts up to 25 feet long). Once cleaned, they're immediately dried to avoid rust, then outgassed. Outgassing pre-bakes parts in a curing oven, reducing the possibility of blemishes hiding in the metal's pores. If not properly outgassed, imperfections may bubble during curing and cause chips in the powder. After washing and outgassing, any surfaces or threaded holes that need protection are masked or plugged with high-temperature tape and silicone plugs. Next, parts receive a quick thinner wipe to remove light debris or fingerprints before being hung on an electrostatically grounded conveyor line. The powder is applied using an electrostatic spray gun the powder "sticks" to the surface much like dust sticks to a television screen. Once powder coated, carts are rolled into BendPak's curing oven and baked at 400°F for 45 minutes. The result? A finish that looks great and lasts for years.

Smart Design Features

Four models to choose from: You're currently looking at the narrow-width, standard-rise HD-9ST. Also available: the HD-9 (standard width), the HD-9STX (tall and narrow), and the HD-9XW (standard-width, tall model). Choose the configuration that best fits your ceiling height and floor space.

Integrated design: Lifting cables, airlines, safety latches, and sheaves are all fully enclosed within the lift structure, protecting critical components from damage and keeping your workspace tidy.

Longer approach ramps: The included approach ramps are designed a little longer to help when loading low ground clearance vehicles. It's a small detail that makes a big difference when you're driving a lowered sports car or performance vehicle onto the lift.

Automatic safety locks: Aircraft-quality stainless steel and aluminum pneumatic cylinders release all four locks simultaneously with the simple push of a button. The spring-loaded safety locks automatically engage continuously as the lift is raised. For added safety, a secondary lock system acts as a slack-cable device to engage in the unlikely event of cable failure—redundant protection you can count on.

Runways accommodate narrow and standard vehicles: The 19" wide runways with 37.5" spacing between runways accommodate a wide variety of vehicle widths, from compact cars to full-size trucks. Runways also include a rail-kit for optional accessories, giving you flexibility to add jacks, drip trays, and other productivity-enhancing tools.

Non-skid runway surface: Runways feature a non-skid surface for secure footing and confident vehicle loading.

Removable approach ramps: The approach ramps are removable for additional drive-under clearance when needed.

Customizable power unit location: The power unit location can be customized to suit your shop layout, giving you installation flexibility.

Internal anti-sway slider blocks: Each column features internal anti-sway slider blocks to minimize lateral movement and ensure smooth, stable lifting.

Oversized self-lubricating cable rollers: The lift uses oversized self-lubricating cable rollers on rugged 1-1/4" roller axles for smooth, quiet operation and long service life.

Optional Accessories

Optional drip trays available: Keep your vehicles and floors clean with optional BendPak 5700301 Plastic Drip Trays, designed to fit the HD-7 and HD-9 Series lifts (sold in sets of two).

Optional drive-thru ramps: Add optional drive-thru ramps to enable full vehicle pass-through for additional flexibility.

Optional solid deck: Upgrade to an optional solid deck to increase storage capacity and prevent items from falling through the runways.

Optional rolling jacks: Add optional 4,500-lb. air/hydraulic rolling jacks (Model RJ-45) for safe, convenient jacking of individual wheels while the vehicle is on the lift.

Optional Add-On Alignment Kit (# 5210142 – Available While Supplies Last):
This Alignment Kit is designed to fit all standard 9K, 12K, and 14K four-post lifts with minimum 19" wide runways. This wheel alignment kit provides the necessary rear slip plates, turnplate pockets, and commercial-grade turnplates to convert your standard four-post lift into an economical solution for performing two- and four-wheel alignments.

Alignment Kit Includes:

• Fits 9K – 14K runway lifts that are a minimum of 19" wide

• Bolt-on ramp piece for both the front turn plates & back slip plates

• Turn plates

Optional Drip Trays – BendPak 5700301

BendPak 5700301 Plastic Drip Trays fit BendPak's HD-7 and HD-9 Series Lifts (Set of 2). A light-weight, cost-effective solution to drips, these drip trays will catch harmful fluids and keep them in one place to protect your vehicles and garage flooring. Sold in sets of two.

Polypropylene drip trays from BendPak are a perfect, cost-effective solution to a messy problem. A reversible design allows them to accommodate BendPak four-post lifts with the runways positioned either wide or narrow. These drip trays are an essential four-post lift accessory, especially if you have a vehicle that leaks. These affordable, impact-resistant polypropylene drip trays are rugged and light, and help solve the common problem of potentially harmful drips.

Each tray comes with 56 articulated catches and gutters to restrain the fluid from sloshing out. So all that oil, coolant, and other muck stays neatly contained within individual compartments, even when carried or bumped. A smart, black color hides the appearance of stains and blemishes.

WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit.

Product Features

• 9,000-lb. maximum lifting capacity

• Two different ramp lengths to choose from

• Narrow width for space efficiency

• Freestanding design

• Perfect for parking, storage and service

• Runways accommodate narrow and standard vehicles

• Runways include rail-kit for optional accessories

• Electric / hydraulic power system

• Single hydraulic cylinder mounted underneath runway

• Fully enclosed lifting cables, safety locks and sheaves

• Internal anti-sway slider blocks in each column

• Oversized self-lubricating cable rollers

• Features heavy-duty 3/8" aircraft cable

• Rugged 1-1/4" roller axles

• Multi-position safety locks in each column

• Adjustable lock ladders

• Runways feature non-skid surface

• Push-button pneumatic safety release

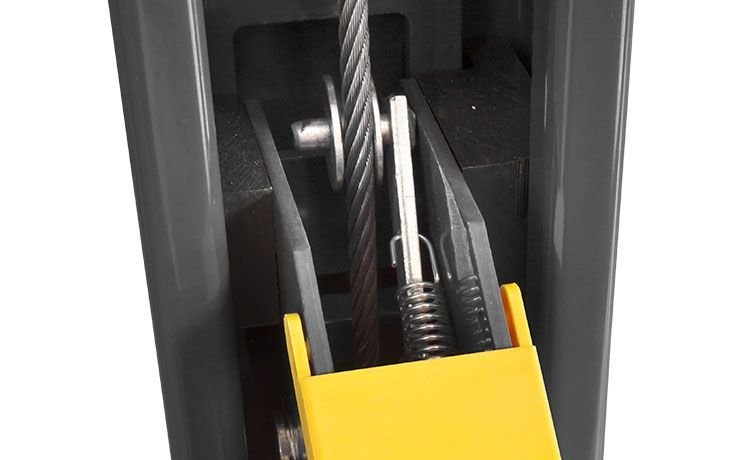

• Independent backup slack-cable safety latches

• Customizable power unit location

• Removable approach ramps for additional drive-under clearance

• Longer approach ramps for low-ground clearance vehicles

• Optional drive-thru ramps available

• Optional drip trays available

• Optional solid deck available to increase storage capacity

• Optional 4,500-lb. air / hydraulic rolling jacks available (Model RJ-45)

• ETL Approved

Optional # 5210142 Add-On Alignment Kit – Available While Supplies Last

This Alignment Kit is designed to fit all standard 9K, 12K, and 14K four‐post lifts with minimum 19” wide runways. This wheel alignment kit provides the necessary rear slip plates, turnplate pockets and commercial‐grade turnplates to convert your standard four‐post lift into an economical solution for performing two and four‐wheel alignments.

Kit Includes

• Fits 9K – 14K Runway Lifts that are a minimum of 19” wide

• Bolt on ramp piece for both the front turn plates & back slip plates

• Turn plates

Product Specifications

Model

HD-9ST
HD-9STX

Style

Narrow Width
Narrow / High Lift

Capacity

Lifting Capacity: (*)

9,000 lbs. (4,082 kg)

*Max Capacity / Front Axle

4,500 lbs. (2,041 kg)

*Max Capacity / Rear Axle

4,500 lbs. (2,041 kg)

Rise

A Min. Runway Height

4.5" (114 mm)

B Max. Rise

70" (1,778 mm)
82" (2,083 mm)

C Max. Lifting Height

74.5" (1,892 mm)
86.5" (2,197 mm)

Time to Full Rise

45 seconds
50 seconds

Outside Dimensions

D Overall Width

100.25" (2,546 mm)

E Outside Length

174" (4,420 mm)
198" (5,029 mm)

F Overall Length

200" (5,080 mm)
224" (5,690 mm)

G Height of Columns

88" (2,235 mm)
100" (2,540 mm)

Inside Dimensions

H Width Between Columns

89.75" (2,280 mm)

I Drive-Thru Clearance

76.5" (1,943 mm)

Runways

J Runway Width

19" (483 mm)

K Length of Runways

164" (4,166 mm)
188" (4,775 mm)

L Width Between Runways

37.5" (953 mm)

M Runway Centerline

56.5" (1,435 mm)

N Outside Edge of Runways

75.5" (1,918 mm)

Minimum Wheelbase

Rated Capacity

115" (2,921 mm)
135" (3,429 mm)

75% Capacity

100" (2,540 mm)
115" (2,921 mm)

50% Capacity

85" (2,159 mm)
95" (2,413 mm)

25% Capacity

70" (1,778 mm)
80" (2,032 mm)

Locking

Locking Positions

12
15

Lock Spacing

Every 4" (102 mm)

Power Unit

Motor

220 VAC / 60 Hz / 1Ph

Noise

45 dB

Shipping

Weight

1,630 lbs. (739.4 kg)
1,782-lbs. (808.3 kg)

Dimensions

180" x 22" x 40"
(4,572 x 559 x 1,016 mm)
190" x 22" x 35"
(4,826 x 559 x 889 mm)

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

Key Features

• Published product configuration: BendPak HD-9ST Narrow Width Four Post Car Lift – 9,000 lb. Capacity The BendPak HD-9ST is a game-changer for anyone who needs a professional-grade 9,000-lb. capacity four-post lift but doesn't have the luxury of a sprawling commercial bay. Engineered with a narrow-width design, the HD-9ST is ideal for residential
• Exact manufacturer model or part number: 5175860-V001
• Cataloged for Lifts & Hoists: Car Lifts — Parking Lifts
• 4 product manual or technical documents linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model 5175860-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
