Product Overview

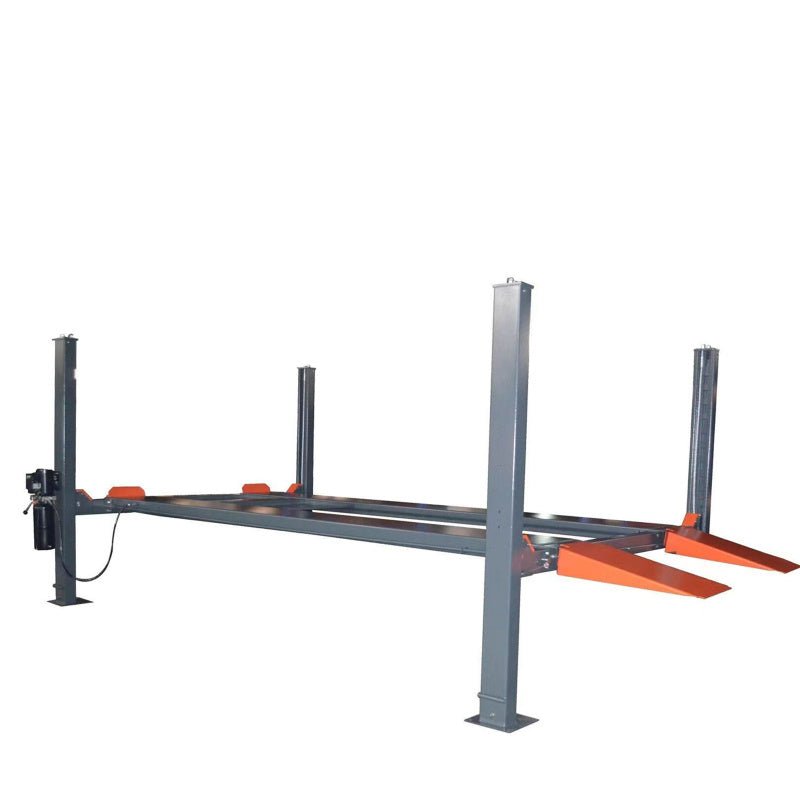

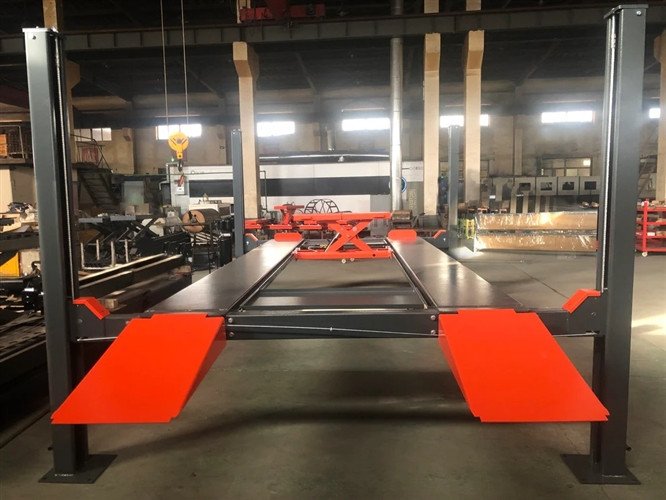

Katool KT-4H110 4 Post Car Lift 11,000 lbs
Professional-Grade Storage & Service Solution
The Katool KT-4H110 four-post car lift delivers exceptional versatility and value for automotive professionals and serious enthusiasts. With an 11,000 lb. lifting capacity, this CE Approved and Certified lift handles a wide range of vehicles from sedans to light trucks with confidence. Engineered to meet rigorous 115% dynamic loading and 150% static loading capacity standards, the KT-4H110 combines safety-critical features with convenient operation—all powered by standard 110V single-phase power.
Whether you're performing routine maintenance, undercarriage inspections, or long-term vehicle storage, this lift provides the access and reliability you need. The 84.25" maximum lifting height gives you ample working room, while 14 locking positions ensure you can set the platform at the perfect height for any task. Fast operation 83 seconds up, 40 seconds down keeps your workflow efficient, and the single point manual safety lock release makes adjustments simple and secure.
Video Overview
Safety-First Engineering
The KT-4H110 is built with multiple layers of safety protection. Four mechanical locking devices provide primary security, while a secondary lock system acts as a slack-cable device to engage automatically in the unlikely event of cable failure. This redundant safety architecture gives you peace of mind during every lift cycle.
Non-skid coated platforms and adjustable safety lock ladders ensure secure vehicle positioning and operator safety. The power side column can be installed at both sides, front or rear, allowing you to configure the lift to match your shop layout and workflow preferences.
Complete and Ready to Work

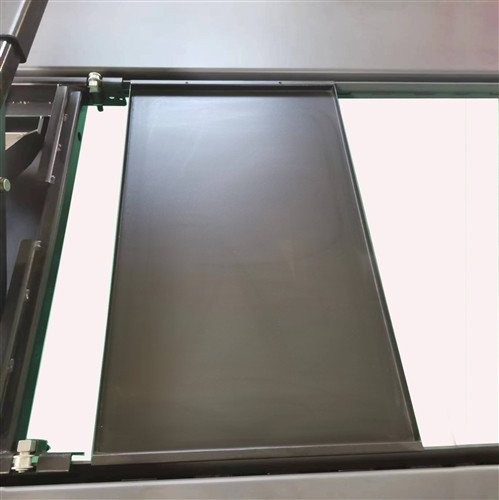

Your KT-4H110 includes essential accessories to get you working right away: three drip trays keep your work area clean during fluid changes and maintenance, while a jack tray provides convenient storage for your lifting equipment. The lift's high-quality hydraulic system is designed for reliable performance with standard 110V/60HZ/1PH power (220V option available).
With a minimum runway height of just 6.2 inches, the KT-4H110 accommodates low-clearance vehicles with ease. The 126" overall width and 229.73" overall length (with ramps) fit comfortably in most garage spaces, while the 112.81" inside column clearance provides generous room for vehicle positioning.
Optional Accessories Available
Enhance your lift's functionality with an optional caster kit for easy repositioning around your shop, and optional rolling jacks for flexible lifting solutions. (Rolling jacks and casters sold separately.)
Key Highlights
- 11,000 lb. capacity handles a wide range of vehicles from cars to light trucks
- CE Approved and Certified meets rigorous 115% dynamic and 150% static load testing standards
- 84.25" maximum lifting height with 14 locking positions for precise work positioning
- Single point manual safety lock release easy, secure height adjustments
- Dual safety systems four mechanical locks plus secondary slack-cable protection
- Standard 110V single-phase power no special electrical requirements
- Includes 3 drip trays and jack tray complete package ready for professional use
⚠ IMPORTANT INSTALLATION REQUIREMENT
Concrete thickness must be at least 3.93" (100 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.
California Prop 65 Warning: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to
Product Features
- 11,000 lb. Capacity
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested
- Single Point Manual Safety Lock Release
- Four mechanical locking devices, a secondary lock system acts as a slack-cable device to engage in the unlikely event of cable failure
- Power side column can be installed at both sides, front or rear
- Non-skid coated platforms and adjustable safety lock ladders
- Optional caster kit for moving the lift around, and optional rolling jacks. *Rolling jacks and casters can be purchased separately but are not included. *
- Comes with drip trays and a jack tray
- High-quality hydraulic system with 110V/60HZ/1PH or 220V/60HZ/1PH (Optional))
Includes
- 3 Drip Trays
- Jack Tray

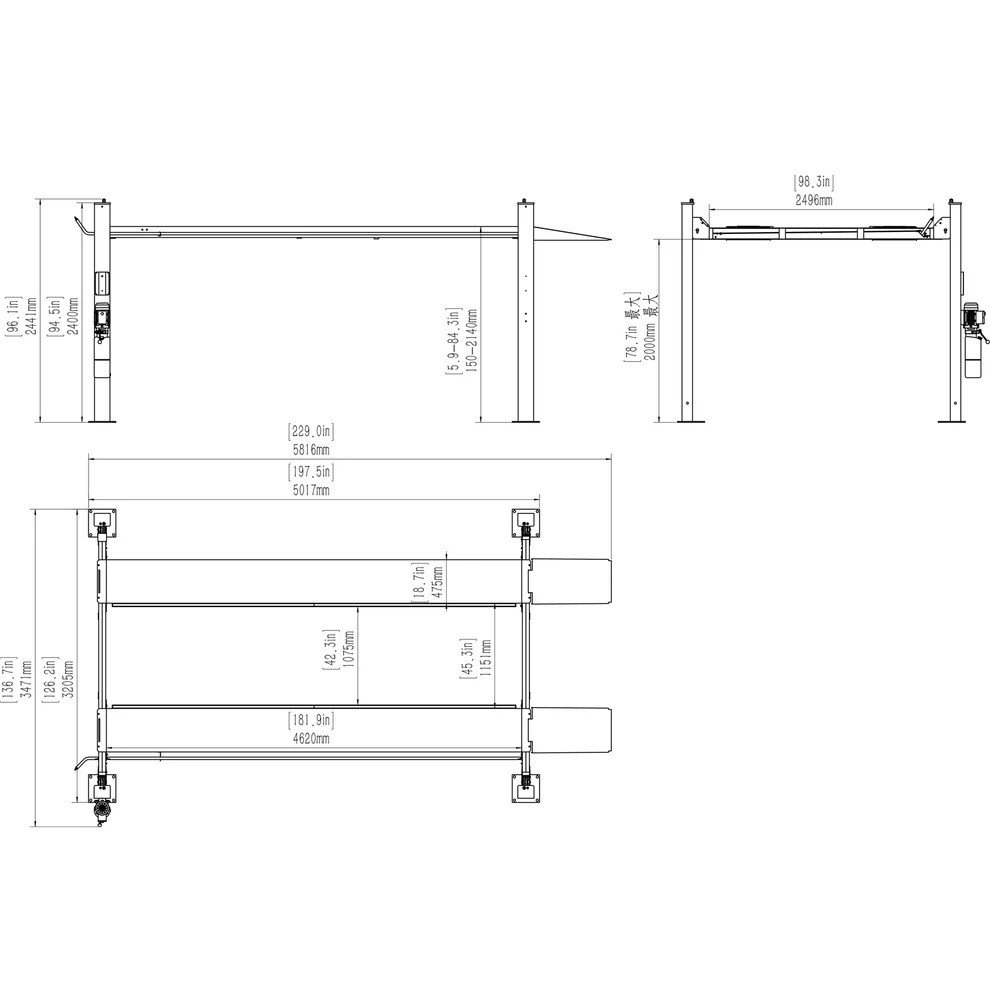

Product Specifications
Specifications
KT-4H110
Lifting Capacity
11,000 lbs.
Max. Lifting Height
84.25" / 2140mm
Height of Posts
94.88" / 2410mm
Overall Width
126" / 3200mm
Overall Length w/Ramps
229.73" / 5835mm
Outside Column
124.8" / 3170mm
Inside Column
112.81" / 2865mm
Min. Runway Height
6.2" / 157mm
Lifting Time
83s Up / 40s Down
Locking Positions
14
Motor
110VAC / 60HZ / 1PH
Net Weight
2,116 lbs / 960KG
*Concrete thickness must be at least 3.93” (100 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
Key Features
- Published product configuration: Katool KT-4H110 4 Post Car Lift 11,000 lbs Professional-Grade Storage & Service Solution The Katool KT-4H110 four-post car lift delivers exceptional versatility and value for automotive professionals and serious enthusiasts. With an 11,000 lb. lifting capacity, this CE Approved and Certified lift handles a wide range
- Exact manufacturer model or part number: KT-4H110-V001
- Cataloged for Lifts & Hoists: Car Lifts — Parking Lifts
- 1 product manual or technical document linked below
- Condition: New
Product Specifications
| Brand | Katool |
|---|---|
| SKU | KT-4H110-V001 |
| MPN / Model | KT-4H110-V001 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Parking Lifts |
Before You Order
Confirm that model KT-4H110-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Manuals & Technical Resources
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
