Product Overview

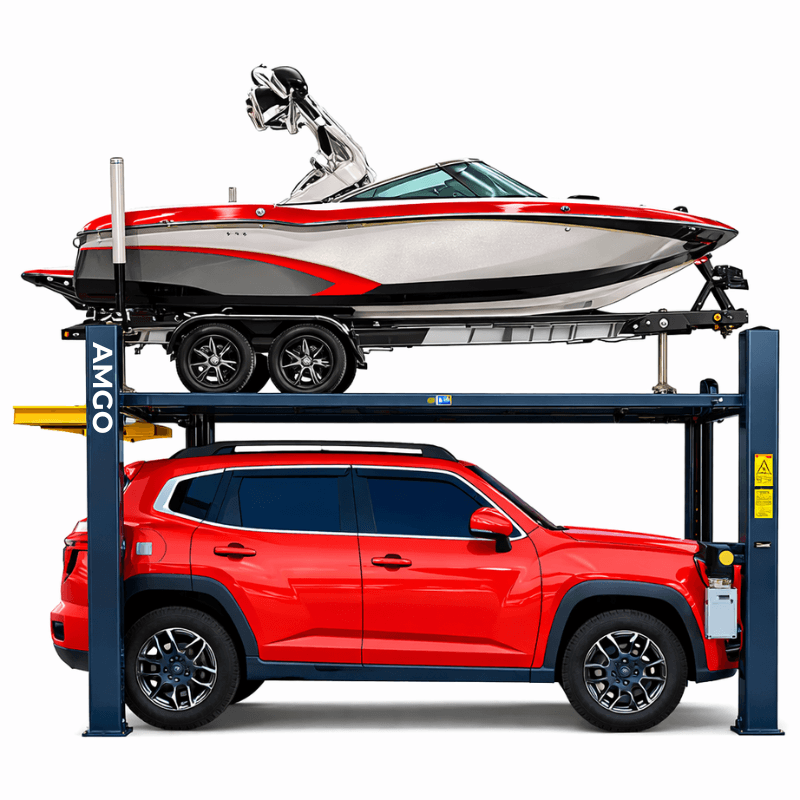

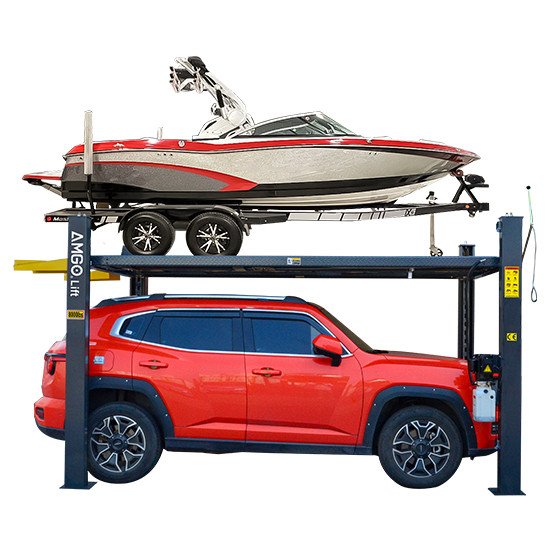

AMGO® Hydraulics 408-HPX 8,000 lbs Boat Storage 4 Post Lift w/Wide Drive-Thru

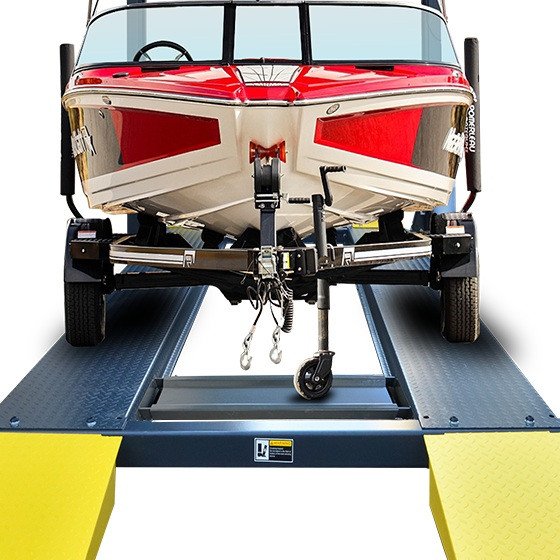

Simpler than ever, the 408-HPX transforms the way you store recreational boats, featuring two width settings and over 110" of drive-in clearance to easily accommodate a wide range of trailers.
The lift features an 8,000 lb. lifting capacity and AMGO’s proprietary concealed lock-control system with a manual single-point release, eliminating the need for an air source. It is equipped with dual safety mechanisms, including primary safety locks and cable-slack protection, along with integrated non-skid diamond platforms for added stability. Designed for flexibility, the power unit can be mounted at any corner, while the two-width platform settings accommodate a variety of trailers. Standard foldable drive-in ramps are included, and the unit is ETL certified for safety and performance.
WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to
Product Features
- 8,000lbs Lifting capacity

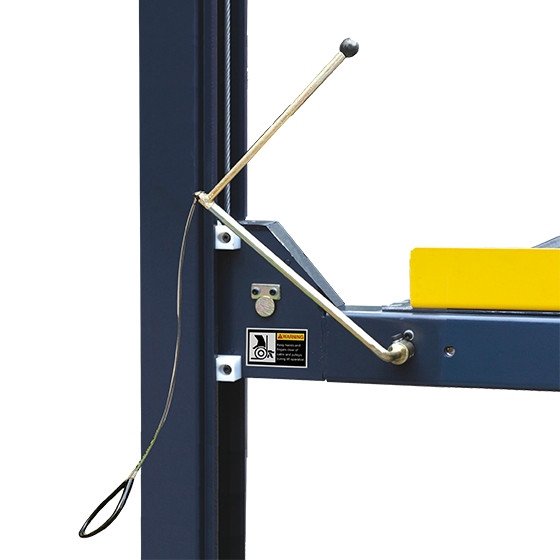

- AMGO’s proprietary concealed lock-control device with a manual single-point release (no air source required)
- Dual safety mechanisms with primary safety locks and cable-slack protection
- Integrated non-skid diamond platforms
- Flexible installation with the power unit mountable at any corner
- Two-widths setting platforms accommodates various trailers

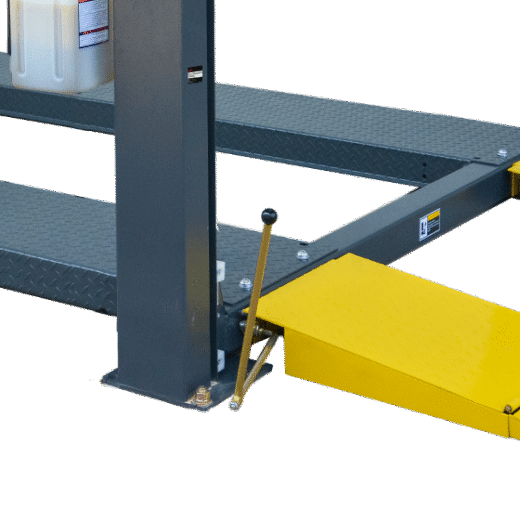

- Standard foldable drive-in ramps
- ETL certified Power unit
Product Specifications
Specifications
408-HPX
Lifting Capacity
8,000 lbs
A Overall Length w/Ramp
222 1/8"
B Overall Length w/o Ramp
188 9/16"
C Overall Width
131 7/8"
D Width Between Columns
122 3/16"
E Max Lifting Height
87 11/16"
E Max Lock Height
84 15/16"
F Overall Height
96 5/8"
G Minimum Height
5 11/16"
H Max. Underneath Height
82 15/16"
H Max. Lock Underneath Height
80 3/16"
I Drive-Thru Clearance
111"
J Width Between Runways
46 1/2" – 66 3/8"
K Outside Edge of Runways
83 7/8" – 103 3/4"
Lifting Time
46s
Motor
2.0HP, 220V/60Hz
Shipping Weight
1,585 lbs
Key Features
- Published product configuration: AMGO® Hydraulics 408-HPX 8,000 lbs Boat Storage 4 Post Lift w/Wide Drive-Thru Simpler than ever, the 408-HPX transforms the way you store recreational boats, featuring two width settings and over 110" of drive-in clearance to easily accommodate a wide range of trailers. The lift features an 8,000 lb. lifting capacity
- Exact manufacturer model or part number: 408-HPX
- Cataloged for Lifts & Hoists: Car Lifts — Parking Lifts
- 3 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | AMGO Hydraulics |
|---|---|
| SKU | 408-HPX |
| MPN / Model | 408-HPX |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Parking Lifts |
Before You Order
Confirm that model 408-HPX, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Manuals & Technical Resources
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
