Product Overview

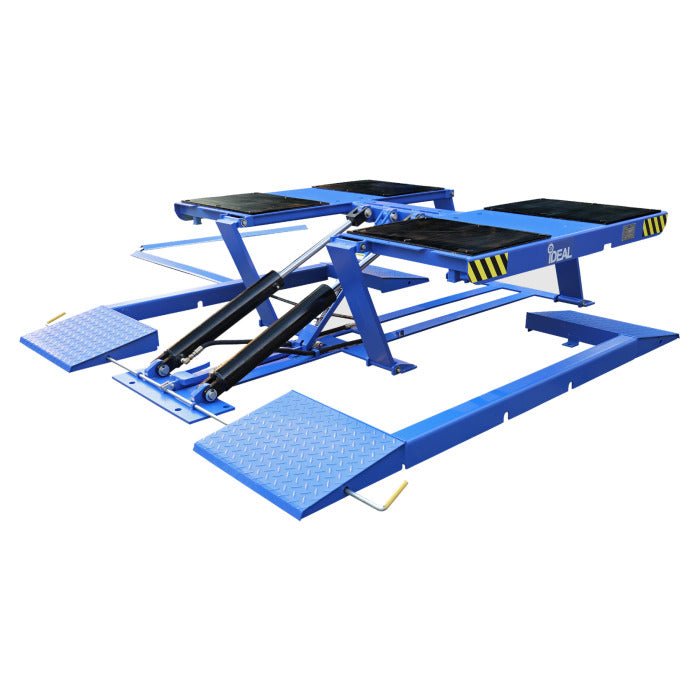

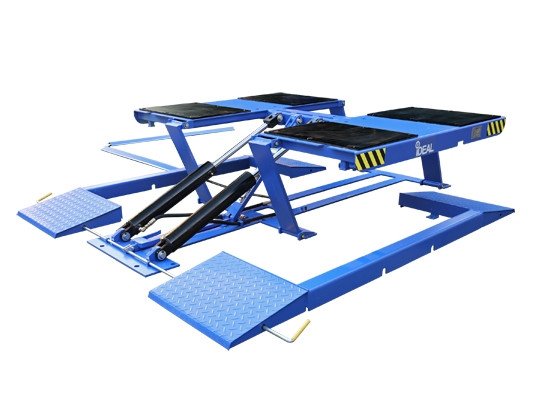

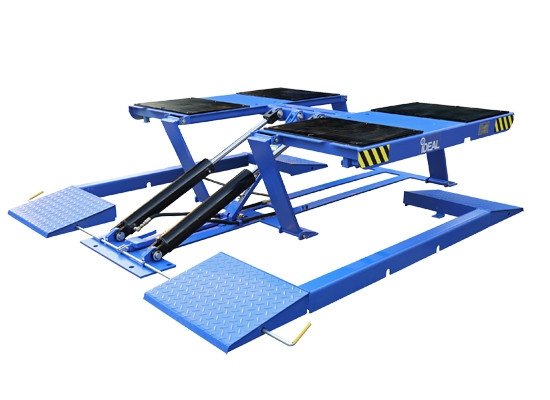

iDeal Lift LR-10K-TLPAD Commercial Low-Rise Pad Lift
The iDeal LR-10K-TLPAD is a 10,000 lb. capacity commercial low-rise pad lift engineered for high-performance vehicle service. Designed specifically for express tire and wheel service, this commercial-grade frame contact lift handles a wide range of vehicles including cars, SUVs, vans, and light trucks. Whether you're running a high-volume tire shop, quick lube center, or full-service auto repair facility, this lift delivers the durability, speed, and versatility needed to maximize productivity and profitability.

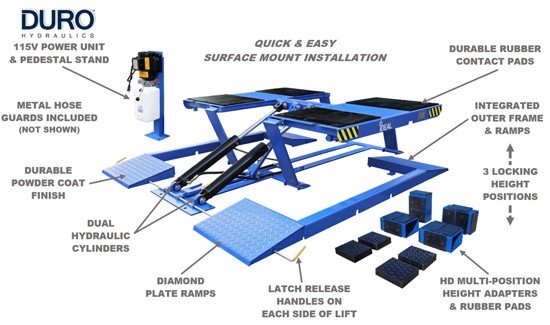

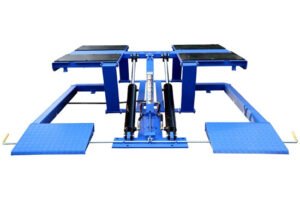

Featuring a robust surface mount installation configuration, the LR-10K-TLPAD eliminates the need for in-ground installation, saving time and cost during setup. The integrated outer frame with diamond plate ramps provides drive-on and drive-off clearance for wide-body vehicles, while the dual hydraulic lift cylinders ensure smooth, balanced lifting across the entire platform. Advanced safety features include three locking height positions with dual latch release handles conveniently located on each side of the lift, giving technicians flexibility and peace of mind during service operations.
Unmatched Versatility & Shop Layout Flexibility

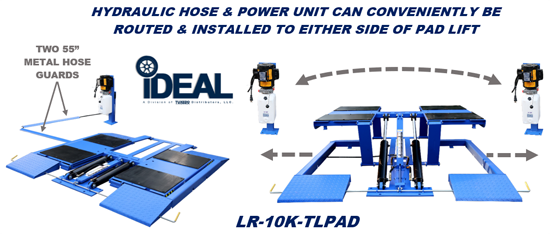

The versatility of the pad lift design allows vehicles to be driven onto the lift in either direction, making bay positioning and workflow optimization effortless. You can position the hose and power unit to either side of the pad lift, ensuring the best fit for your shop or garage layout. This bidirectional drive-on capability also speeds up vehicle throughput during busy service hours.
The lift accommodates a wide variety of vehicle types, including uni-body vehicles, thanks to the included HD multi-position height adapters and 1.5" rubber pads (4ea). The large 51-1/4" x 24" platform pads provide generous contact area, while the 15" platform forward movement allows precise positioning under the vehicle's frame. The overall 70-3/4" platform outer width accommodates wide-stance vehicles with ease.
Powerful, Reliable Lifting System

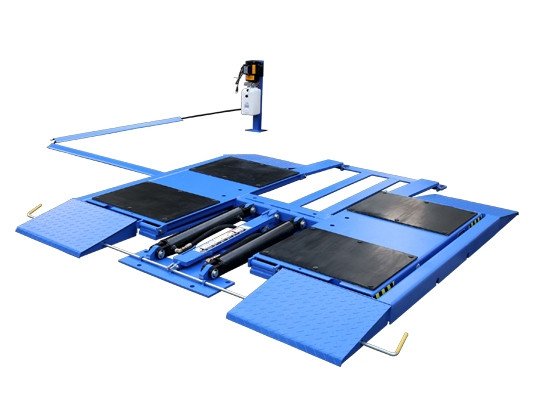

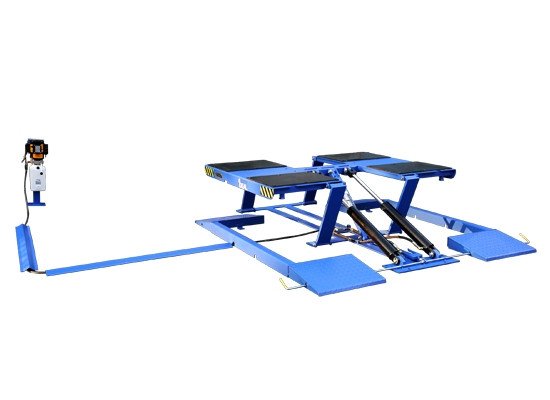

Easy lift operation is provided by a high-quality DURO electric/hydraulic power unit mounted on a convenient power unit pedestal stand. The standard 115V / 1 Phase / 20 Amp power configuration offers a 60-second lift speed, perfect for most shop environments. For operations demanding faster cycle times, an optional 220V DURO power unit is available, reducing lift speed to just 36 seconds approximately 40% faster than the standard unit. This upgrade can significantly boost throughput during peak service hours.

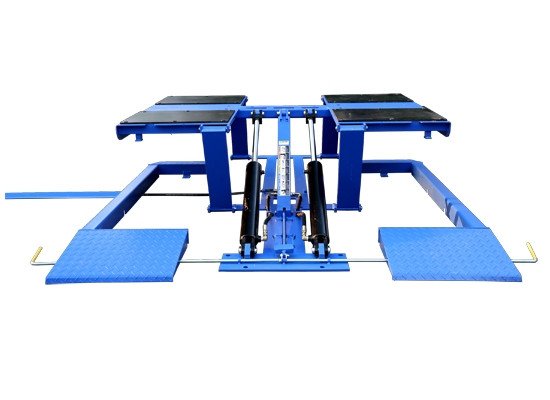

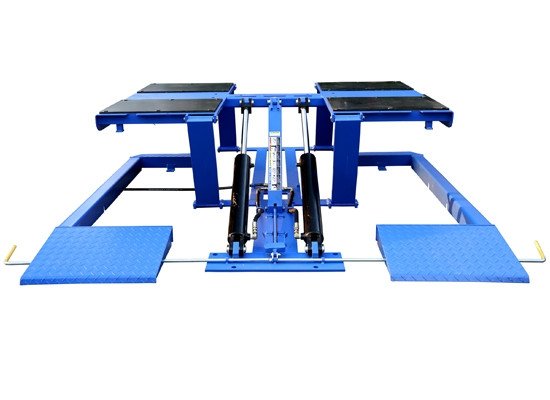

The lift's dual hydraulic cylinders deliver smooth, even lifting and balanced load distribution across the platform. Maximum rise height reaches 22-1/2", with a minimum lift height of just 4-1/4", offering excellent clearance for low-profile vehicles. When paired with the tall adapter option, the lift can reach a maximum height of 30-3/4", providing additional undercarriage access for larger vehicles or more extensive service work.
Safety, Durability & Long-Term Performance
Safety and longevity are paramount in the LR-10K-TLPAD's design. The lift includes durable rubber platform contact pads that protect vehicle frames and reduce slippage. Diamond plate ramps provide sure footing for vehicles during drive-on and drive-off, while the integrated outer frame adds structural rigidity and stability.
Latch release handles are strategically positioned on each side of the lift for easy, ambidextrous operation. The lift locks at three height positions (13.5", 17.25", and 21.5"), giving technicians the flexibility to work at the most comfortable and efficient height for the job. Protective metal hose covers (55"L, 2ea) shield hydraulic lines from shop traffic and accidental damage, extending the lift's operational life.
A durable powder coat finish protects all metal surfaces from corrosion, chemicals, and everyday shop wear, ensuring the lift maintains its professional appearance and structural integrity for years of heavy use. With an overall footprint of 91" L x 88-5/8" W and a shipping weight of 1,262 lbs., this is a substantial, shop-grade piece of equipment built to withstand the demands of commercial automotive service.
Key Highlights
- 10,000 lbs. capacity handles cars, SUVs, vans, and light trucks with confidence
- Surface mount installation no in-ground work required, faster setup and lower installation cost
- Integrated outer frame with diamond plate ramps allows drive-on/drive-off clearance for wide vehicles
- Three locking height positions (13.5", 17.25", 21.5") with dual latch release handles on each side
- Optional 220V power unit reduces lift speed to 36 seconds for 40% faster operation
Included Standard Accessories
Every iDeal LR-10K-TLPAD comes complete with essential accessories to get your shop up and running:
- Power unit pedestal stand keeps the power unit secure and accessible
- Metal hose covers (2ea, 55"L) protect hydraulic lines from damage
- HD multi-position height adapters (4ea) lift uni-body and frame vehicles safely
- 1.5" rubber pads (4ea) provide additional lift point cushioning and grip
Note: Corded drill not included. 115V/20A electrical service required (220V optional).
Upgrade to 220V for Faster Service

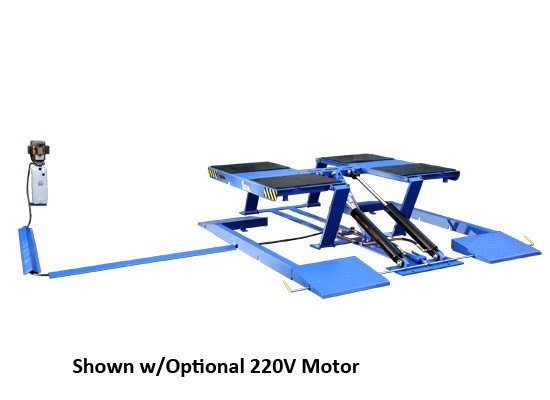

Optional 220V DURO Power Unit Available
- Provides 40% faster speed of rise at just 36 seconds
- Electrical plug not provided – requires direct electrical service to breaker
- Ideal for high-volume shops where every second counts
All specifications and features are subject to change without notice. Please refer to the Product Specifications and Product Features tabs for the most current and complete information.
“`
Product Features
- 10,000 Lbs Capacity
- Low Rise, Commercial Grade Pad Lift
- Ideal For Express Tire & Wheel Service
- Surface Mount Install Configuration
- Integrated Outer Frame & Ramps Provide Drive-On & Off Clearance For Wide Vehicles
- Latch Release Handles On Each Side Of Lift
- Dual Hydraulic Lift Cylinders
- Diamond Plate Ramps
- Durable Rubber Platform Contact Pads
- 3 Locking Height Positions
- Metal Hose Covers 55"L (2ea)
- Standard (4ea) Hd Multi-Position Height Adapters & (4ea) 1.5" Rubber Pads
- Power Unit Pedestal Stand
- Durable Powder Coat Finish
- Optional 220v Power Unit For Increased Lift Speed
Standard Accessories
- Power Unit Pedestal Stand
- (2ea) Metal Hose Covers 55"L
- (4ea) Hd Multi-Position Height Adapters
- (4ea) 1.5" Rubber Pads
Optional Duro 220V Power Unit Available
- On Average, provides 40% Faster Speed of Rise at 36S
- Electrical Plug not provided
- Requires Electrical Service to Breaker
Product Specifications
Specifications
LR-10K-TLPAD
Capacity
10,000 lbs.
Overall Length
91"
Overall Width
88-5/8"
Max Rise Height
22-1/2"
Max Lift Height w/ Tall Adapter
30-3/4"
Min Lift Height
4-1/4"
Platform Pad Length
51-1/4"
Platform Pad Width
24"
Platform Outer Width
70-3/4"
Platform Forward Movement
15"
Platform Locking Heights
13.5", 17.25", & 21.5"
Lift Speed 115V / Optional 220V
60 / 36 Seconds
Power (Corded Drill Not Included)
115V / 1 Phase / 20 Amp
Shipping Weight
1,262 lbs.
Key Features
- Published product configuration: iDeal Lift LR-10K-TLPAD Commercial Low-Rise Pad Lift The iDeal LR-10K-TLPAD is a 10,000 lb. capacity commercial low-rise pad lift engineered for high-performance vehicle service. Designed specifically for express tire and wheel service, this commercial-grade frame contact lift handles a wide range of vehicles including
- Exact manufacturer model or part number: LR-10K-TLPAD-V001
- Cataloged for Lifts & Hoists: Car Lifts — Specialty Lifts
- 2 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | iDeal Lift |
|---|---|
| SKU | LR-10K-TLPAD-V001 |
| MPN / Model | LR-10K-TLPAD-V001 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Specialty Lifts |
Before You Order
Confirm that model LR-10K-TLPAD-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
