Product Overview
BendPak LR-60 Low-Rise Specialty Car Lift 6,000 lb. – New Gray
Experience the ultimate in compact lifting convenience with the BendPak LR-60. This professional-grade low-rise specialty lift combines 6,000-lb. lifting capacity with an incredibly space-efficient design that fits easily into narrower bays without sacrificing performance. Powered by an electric/hydraulic system and featuring multi-position safety locks, rubber lifting blocks, a dropped crossbar for enhanced clearance, and a heavy-duty steel channel frame, the LR-60 transforms your service capabilities while maximizing your valuable floor space.
When versatility and productivity are non-negotiable, BendPak delivers. The LR-60 is engineered for quick service on today's passenger cars and light trucks, offering wide rubber pads ideal for wheel service and auto-body repair across a surprisingly diverse range of vehicles. This simple, safe, and rugged low-rise lift handles mighty 6,000-lb. loads with ease, reaching a maximum lift height of 23 inches in just 35 seconds. With the included 1.5-inch blocks, you can achieve 24.5 inches of lift height, or add optional 3-inch blocks to reach 26 inches for even greater working clearance.
The included solid rubber lift blocks position easily at a variety of pick-up points on both unibody and frame-contact undercarriages, giving you the adaptability to service multiple vehicle types. The LR-60's ultra-low profile design—just 3.5 inches when fully lowered—accommodates vehicles with minimal ground clearance, making it the ideal solution for modern cars and light trucks. With an overall length of 82 inches and width of 70.5 inches, this lift fits where others can't. Always verify your vehicle specifications, including ground clearance and overall height, against the specification tables to ensure compatibility before purchase.
Why the BendPak LR-60 Stands Out
- 6,000-lb. lifting capacity handles passenger cars and light trucks with confidence
- Ultra-low 3.5-inch collapsed height accommodates most vehicles with ease
- Fast 35-second rise time boosts efficiency with quick vehicle lifting
- Three locking positions plus full rise flexible working heights for any service need
- Dropped crossbar design provides enhanced drive-over clearance for low-profile vehicles
Unmatched Build Quality and Engineering
Low-profile design
A remarkably low 3.5-inch collapsed height accommodates most modern vehicles, including those with minimal ground clearance. This ensures you can service a wide variety of cars and light trucks without limitations.
Single-point safety release
The single-point safety release system combined with dead-man style operation controls makes the LR-60 exceptionally easy to operate while ensuring safe, controlled lifting every time.
Dropped crossbar for superior clearance
A specially formed crossbar is dropped in the center, providing critical added clearance for vehicle drive-over. This innovative design feature allows easier positioning and accommodates a broader range of vehicle undercarriages.
Rugged steel channel frame
Heavy lifting demands a rock-solid foundation. The LR-60 features a heavy-duty steel channel frame engineered to withstand the rigors of daily professional use while maintaining precision alignment and stability.
Industrial-grade hydraulic cylinder
At the heart of the LR-60 is an integrated single hydraulic cylinder featuring a one-piece, pilot-fitted, machined steel piston wrapped with specially designed, pressure-loaded U-cup piston seals, backups, and wear bands that virtually eliminate fluid bypass. The micro-smooth chrome rod is machined from high-yield, ground and polished C-1045/50 micro-alloy steel and plated to a minimum of.001" diametrically, ensuring superior cylinder operation and longevity. Superior-design, high-durometer, mechanically-loaded rod seals eliminate rod leakage, while a specially formulated abrasion-resistant urethane rod wiper provides exceptional exclusion protection. The welded cylinder body is constructed from robust steel tubing produced to exceed ASTM specifications, combining superb base material with superior processing to ensure cylinders remain straight, smooth, and deliver years of reliable service.
Durable powder-coat finish in New Gray
Every BendPak LR-60 features a durable powder-coat finish in sleek New Gray, delivering a high-quality, extremely durable surface that withstands even the harshest environmental or chemical conditions. Unlike other manufacturers, BendPak takes pride in a meticulous 10-step powder coating process. First, all parts are visually inspected before being sandblasted. Next, parts are washed in a 5-stage phosphate system accommodating components up to 25 feet long. Once cleaned, parts are immediately dried to prevent rust, then outgassed. Outgassing pre-bakes parts in a curing oven, reducing the possibility of blemishes hiding in the metal's pores that could bubble during curing and cause chips. After washing and outgassing, surfaces and threaded holes requiring protection are masked with high-temperature tape and silicone plugs. Parts receive a quick thinner wipe to remove light debris or fingerprints before being hung on an electrostatically grounded conveyor line. Powder is applied using an electrostatic spray gun, adhering to the surface similar to how dust sticks to a television screen. Finally, coated parts are rolled into a curing oven and baked at 400°F for 45 minutes, creating a finish that looks professional and lasts.

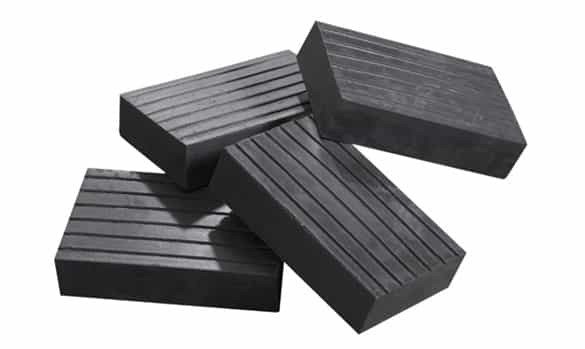

Solid rubber lift blocks included
While other manufacturers charge extra for these essential adapters, BendPak includes solid rubber lift blocks standard with every LR-60. These blocks enable flexible positioning at various pick-up points on unibody and frame-contact undercarriages.
Comprehensive documentation
Every LR-60 comes complete with detailed installation and maintenance instructions, graphic safety decals, maintenance decals, a vehicle lifting point guide, and a safety instruction placard to train personnel on proper safety procedures and maintenance guidelines.
BendPak Quality: Engineered to Outperform
Always bet on BendPak for increased durability, safety, and productivity. You won't find comparable quality or value anywhere else BendPak consistently bests the competition with superior engineering, premium materials, and an unwavering commitment to excellence. Every lift is designed and built to exceed expectations, delivering professional-grade performance day after day.
Need the same great compact lifting power with added portability? Check out the LR-60P, the portable version of this exceptional low-rise lift.
Product Features
- 6,000-lb. lifting capacity
- Electric / hydraulic power system
- Multi-position safety locks
- Rubber lifting blocks included
- Dropped cross bar for added clearance
- Heavy-duty steel channel frame
Product Specifications
Model
LR-60
LR-60P
Style
Low Rise
Low Rise Portable
Capacity
Lifting Capacity:
6,000 lbs. (2,722 kg)
Rise
Max Lifting Height
23" (584 mm)
Max Lift Height + 1.5" blocks
24.5" (622 mm)
Max Lift Height + Optional 3" Blocks
26" (661 mm)
Time to Full Rise
35 seconds
Outside Dimensions
Overall Pad Length
53" (1,346 mm)
Overall Width
70.5" (1,791 mm)
Overall Length
82" (2,083 mm)
Lowered Height
3.5" (89 mm)
4" (102 mm)
Lift Pad Dimension
18" x 52" (457 mm x 2,591 mm)
Locking Heights
Fully Lowered
3.5" (89 mm)
1st Lock
14.75" (375 mm)
2nd Lock
20.25" (514 mm)
3rd Lock
23.75" (603 mm)
Full Rise
25" (635 mm)
Power Unit
Motor
110 VAC / 50-60 Hz / 1 Ph
Shipping
Weight
940 lbs. (426 kg)
974-lbs. (442 kg)
Dimensions
73" x 84" x 20"
(1,854 mm x 2,133 mm x 508 mm)
Key Features
- Published product configuration: BendPak LR-60 Low-Rise Specialty Car Lift 6,000 lb. – New Gray Experience the ultimate in compact lifting convenience with the BendPak LR-60. This professional-grade low-rise specialty lift combines 6,000-lb. lifting capacity with an incredibly space-efficient design that fits easily into narrower bays without
- Exact manufacturer model or part number: 5175729
- Cataloged for Lifts & Hoists: Car Lifts — Specialty Lifts
- 4 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | BendPak |
|---|---|
| SKU | 5175729 |
| MPN / Model | 5175729 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Specialty Lifts |
Before You Order
Confirm that model 5175729, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
