Product Overview

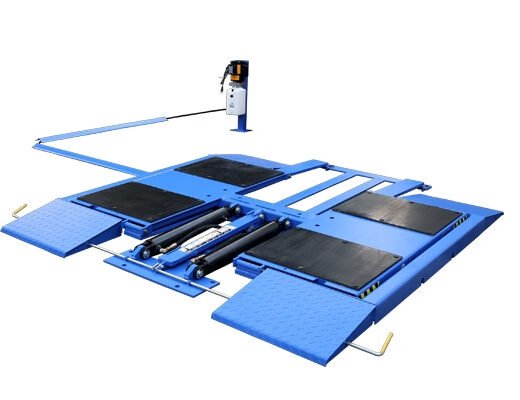

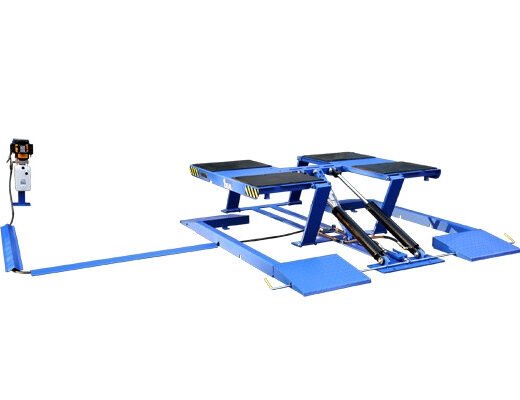

AMGO® Hydraulics MRL09 Mid-Rise Scissor Lift 9,000 lbs.
The AMGO® Hydraulics MRL09 is a professional-grade mid-rise scissor lift engineered for versatility and durability. With a robust 9,000 lbs (4,000 kg) lifting capacity and 47 1/4" maximum lifting height, this lift delivers exceptional access for maintenance, repair, and inspection work. Designed to accommodate vehicles with varying wheelbases and chassis heights, the MRL09 features an innovative adjustable lift platform length and two-stage drive-in ramps that make it ideal for everything from standard cars to ultra-low chassis performance vehicles. Whether you're looking for a flush mount or surface mount installation, this lift's flexible structure design adapts to your shop's specific requirements.
Engineered for Performance and Safety
The MRL09 mid-rise scissor lift is built with a hydraulic locking system that ensures secure, stable positioning at any height during your service work. The lift's dual hydraulic synchronization system guarantees smooth, balanced lifting and lowering operations, while the 24V safety voltage control system adds an extra layer of protection for your operators and equipment. The lifting scissors are constructed from thickened steel for enhanced strength and longevity, providing the structural integrity needed for demanding professional use day after day.
The double entrance drive-in ramps are specifically designed to accommodate vehicles with lower ground clearance, featuring a two-stage ramp configuration with a first stage height of just 2 3/8" and a minimum overall height of only 5 5/16". This thoughtful design allows you to service sports cars, lowered vehicles, and other specialty automobiles that would be challenging or impossible with traditional lift systems. The width between runways measures 29 1/2", providing ample clearance for comfortable access to undercarriage components.
Key Advantages of the MRL09
- Flexible Installation Options: Choose between flush mount or surface mount configurations to perfectly match your shop layout and floor conditions
- Adjustable Platform Length: Runway length adjusts from 61 7/16" to 77 3/16", accommodating vehicles with different wheelbases without compromising stability
- Fast Lifting Performance: Reaches full height in just 29 seconds, maximizing shop productivity and minimizing customer wait times
- ETL Certified Power Unit: Standard ETL certification ensures the 2.0HP, 220V/60Hz single-phase motor meets rigorous safety and performance standards
- Comprehensive Warranty Protection: Backed by the AMGO global 5-3-2 warranty policy for long-term peace of mind
Complete Package Includes
The MRL09 arrives ready for installation with everything you need to get operational quickly. Your lift includes a dedicated power unit stand for secure motor mounting, along with 1 1/2" and 3" height rubber pads to provide stable contact points for various vehicle types and protect vehicle frames during lifting operations. With an overall length of 156 11/16" (with ramps) and an overall width of 76 3/4", the lift maintains a compact footprint while delivering full professional capability.
California Residents:
WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to
Product Features
- 9,000lbs(4000kg) capacity
- Low profile design with a minimum height 2 3/8", accommodates ultra-low chassis vehicles
- Dual two-stage drive in ramps, provide easy double entrance
- Dual hydraulic synchronization & hydraulic locking system
- No need of extra air source
- Extendable platforms are applicable with different wheelbases
- Standard ETL certificated power unit
Includes
- Power Unit Stand
- 1 1/2" & 3" Height Rubber Pads
Product Specifications

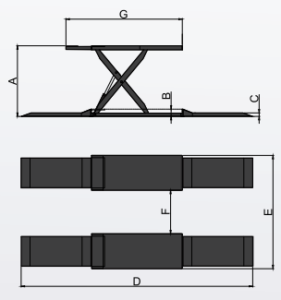

Specifications
MRL09
Lifting Capacity
9,000 lbs
A Max Lifting Height
47 1/4"
B Minimum Height
5 5/16"
C First Stage Ramp Height
2 3/8"
D Overall Length w/Ramps
156 11/16"
E Overall Width
76 3/4"
F Width Between Runways
61 7/16" – 77 3/16"
H Width Between Runways
29 Sec
Lifting Time
30 Sec
Motor
2.0HP, 220V/60Hz, Single Phase
Gross Weight
1,821 lbs
Key Features
- Published product configuration: AMGO® Hydraulics MRL09 Mid-Rise Scissor Lift 9,000 lbs. The AMGO® Hydraulics MRL09 is a professional-grade mid-rise scissor lift engineered for versatility and durability. With a robust 9,000 lbs (4,000 kg) lifting capacity and 47 1/4" maximum lifting height, this lift delivers exceptional access for maintenance
- Exact manufacturer model or part number: MRL09
- Cataloged for Lifts & Hoists: Car Lifts — Specialty Lifts
- 2 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | AMGO Hydraulics |
|---|---|
| SKU | MRL09 |
| MPN / Model | MRL09 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Specialty Lifts |
Before You Order
Confirm that model MRL09, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Manuals & Technical Resources
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
