Product Overview

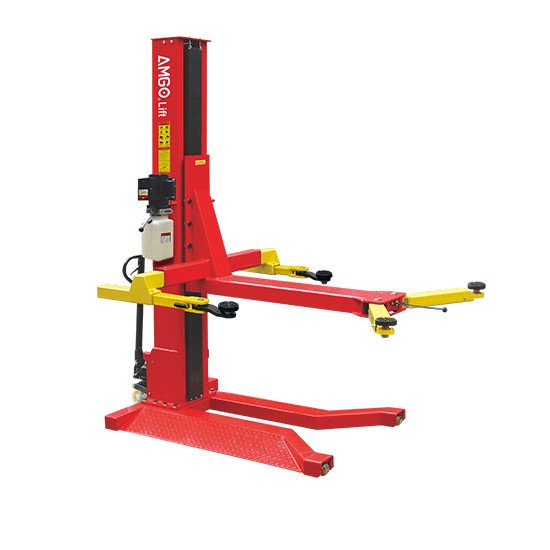

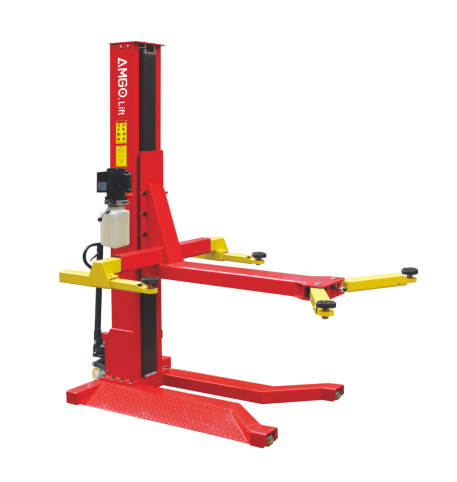

AMGO® Hydraulics SML-7 7,000 lb. Portable Single Column Lift
Supersedes the SML-6
Overview
The AMGO® Hydraulics SML-7 is the ultimate portable single post lift solution for professional shops and home enthusiasts who demand full lifting power without sacrificing valuable floor space. With a robust 7,000 lb lifting capacity, this mobile column lift gives you the flexibility to position the lift exactly where you need it, then move it out of the way when the job is done.
Unlike traditional in-ground lifts that require permanent installation, the SML-7 features a pallet jack-style mobility system that allows you to roll the lift freely around your workspace. Whether you're rotating between multiple bays, working in a home garage with limited space, or need walk-under access for thorough undercarriage work, this portable lift delivers professional performance with unmatched convenience.
Built with high-quality hydraulic components and engineered safety features, the SML-7 provides reliable, safe lifting for a wide range of vehicles. The adjustable two-stage telescoping arms adapt to different wheelbases and vehicle configurations, while the precision-engineered lifting mechanism ensures smooth, controlled operation every time. From oil changes and brake work to exhaust repairs and suspension service, this lift handles it all with professional-grade stability.
Key Advantages
- 7,000 lb capacity handles trucks, SUVs, vans, and passenger vehicles with ease

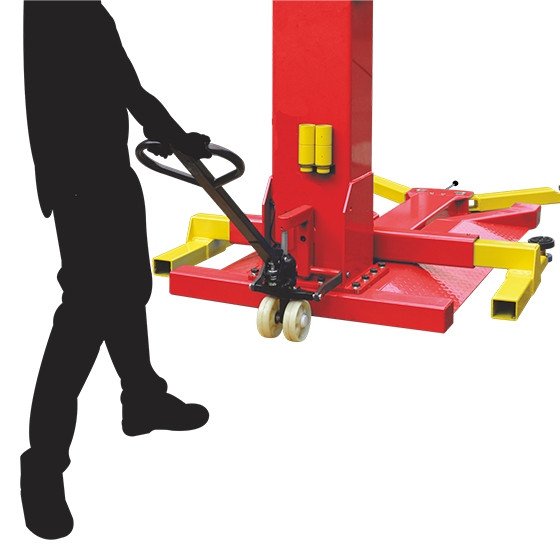

- Portable roller system with pallet jack-style mobility — position the lift anywhere in your shop and move it when not in use
- Walk-under clearance provides full access to the undercarriage for comprehensive inspection and repair work
- Dual motor options: 1 HP 110V (30 amp required) or 2 HP 220V choose the power supply that fits your shop
- Fast lifting speed: 84 seconds at 110V or 38 seconds at 220V for efficient workflow

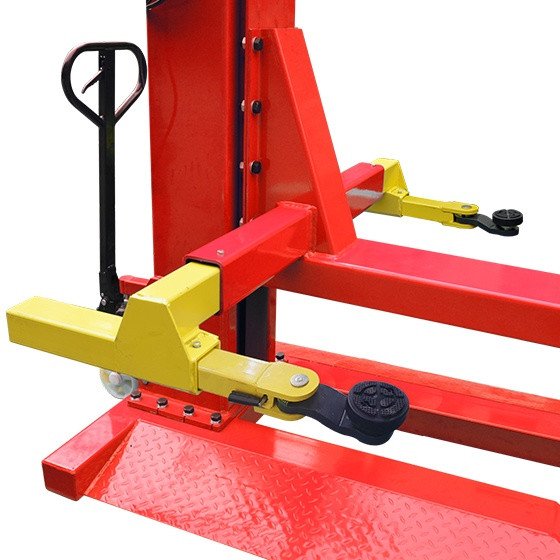

- Adjustable two-stage arms with easy-release locking handles for versatile vehicle positioning

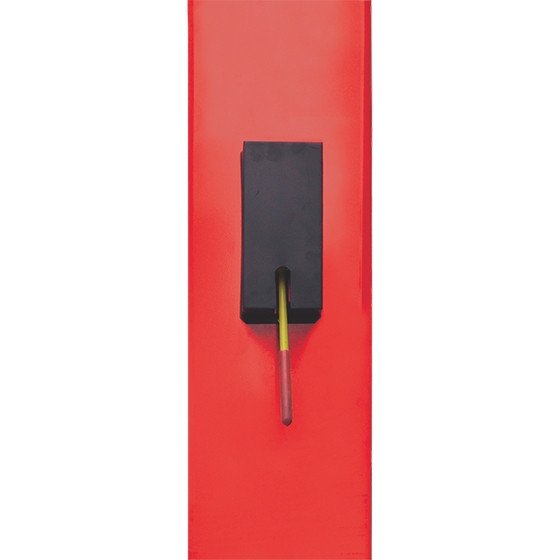

- Manual safety release with double lock system for secure, controlled lowering
- Self-lubricating UHMW polyethylene sliders and bronze bushings ensure smooth, long-lasting operation
- Chain protection cover and dust cloth shield for extended component life and a clean, professional appearance
Built for Portability and Performance
The engineering behind the SML-7 focuses on delivering maximum lifting capability in a truly mobile package. The integrated portable roller device transforms this heavy-duty lift into a maneuverable tool that you can reposition as needed. The compact footprint just 90 3/8 inches wide fits through standard shop doorways and works in tight spaces, while the 109 7/16-inch overall height provides clearance for most shop ceilings.
Safety is engineered into every component. The arm locking device features intuitive release handles that allow the operator to adjust arm positions quickly and safely. A manually locking release safety device controls the double locks, preventing accidental lowering and ensuring vehicles remain secure at any height. The chain protection cover prevents chain slippage, while high-quality screw and insert rubber pads protect vehicle frames and lifting points.
With a lifting height range of 71 7/8 inches to 77 1/8 inches and a minimum pad height of just 3 5/16 inches, the SML-7 accommodates low-profile vehicles while still providing ample working clearance underneath. The high-quality cylinders and power units are manufactured to exacting standards, ensuring reliable performance shift after shift, year after year.
Perfect for Professional Shops and Home Garages
Whether you're running a busy repair facility or maintaining your own vehicles at home, the SML-7 offers professional-grade lifting in a space-conscious design. Professional shops appreciate the ability to move the lift between work bays or store it away when floor space is needed for other tasks. Home enthusiasts gain a full-capacity lift that doesn't require costly in-ground installation or permanent commitment of garage space.
The elegant design, complete with a protective dust cloth covering, gives the AMGO® SML-7 a clean, professional appearance that enhances any workspace. At 1,942 lbs (800.88 kg) gross weight, the unit is substantial enough for stability during operation while remaining manageable for repositioning with the built-in roller system.
California Residents:
WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to
Product Features
- 7,000 lb lifting capacity
- Portable design with wheels make it easy to move the lift around

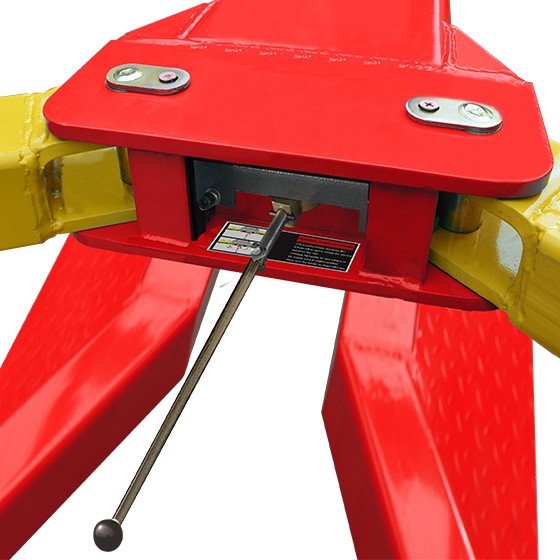

- AMGO's patented arm lock release system allows a seamless, one-handed release operation
- Patented, easily adjustable AMGO bionic arms for precise positioning at lifting points
- Drop-in screw-type rubber pad with 2" pin diameter
- Self-lubricating UHMW polyethylene sliders and bronze bushings

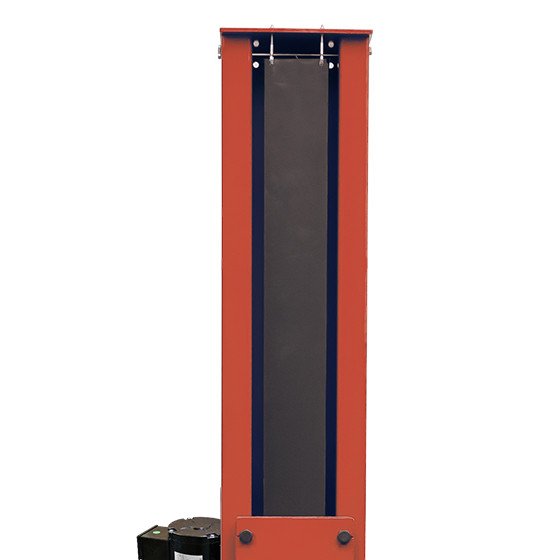

- Fabric chain cover protects the cylinder and provides a nice, clean appearance

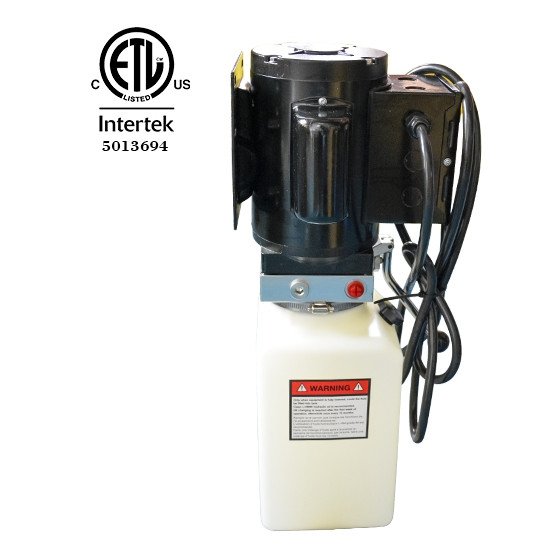

- AMGO ETL certified power unit
Includes

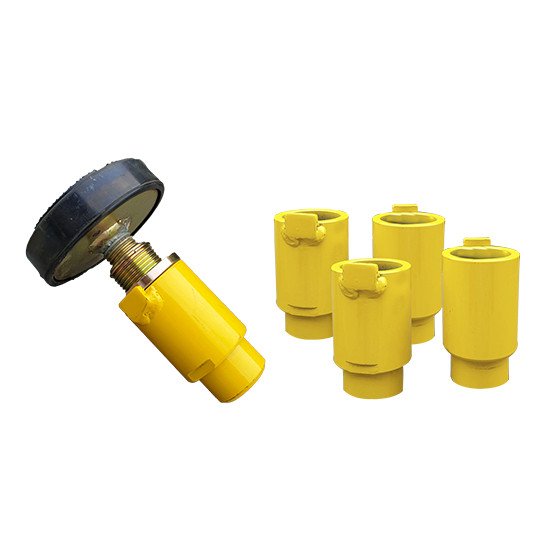

- Drop-in screw-type rubber pads
- Set of 3" extension adapters
Supersedes the SML-6
Product Specifications
Specifications
SML-7
Lifting Capacity
7,000 lbs
A Max. Lifting Height w/o Adapters
70 13/16" ~ 72 3/4"
A Max. Lifting Height w/Adapters
72 3/4" ~ 75 11/16
A Max. Lock Height w/o Adapters
67 7/16" ~ 69 3/8"
A Max. Lock Height w/ Adapters
70 7/16" ~ 72 3/8"
B Overall Height
109 7/16"
C Overall Width
90 3/8"
D Minimum Pad Height
3 5/16"
Lifting Time
84 S (110V) / 38 S (220V)
Motor
1 HP,110V/60Hz,single phase – 30 amp Required
2 HP,220V/60Hz,single phase
Gross Weight
1,942 lbs
Key Features
- Published product configuration: AMGO® Hydraulics SML-7 7,000 lb. Portable Single Column Lift Supersedes the SML-6 Overview The AMGO® Hydraulics SML-7 is the ultimate portable single post lift solution for professional shops and home enthusiasts who demand full lifting power without sacrificing valuable floor space. With a robust 7,000 lb lifting
- Exact manufacturer model or part number: SML-7-V001
- Cataloged for Lifts & Hoists: Car Lifts — Specialty Lifts
- 2 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | AMGO Hydraulics |
|---|---|
| SKU | SML-7-V001 |
| MPN / Model | SML-7-V001 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Specialty Lifts |
Before You Order
Confirm that model SML-7-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
