Product Overview
Atlas® BP-10000 Floor Baseplate 2 Post Car Lift 10,000 lbs
Important: Cylinder Bleeding Procedure Required
(This must be performed immediately after installation)

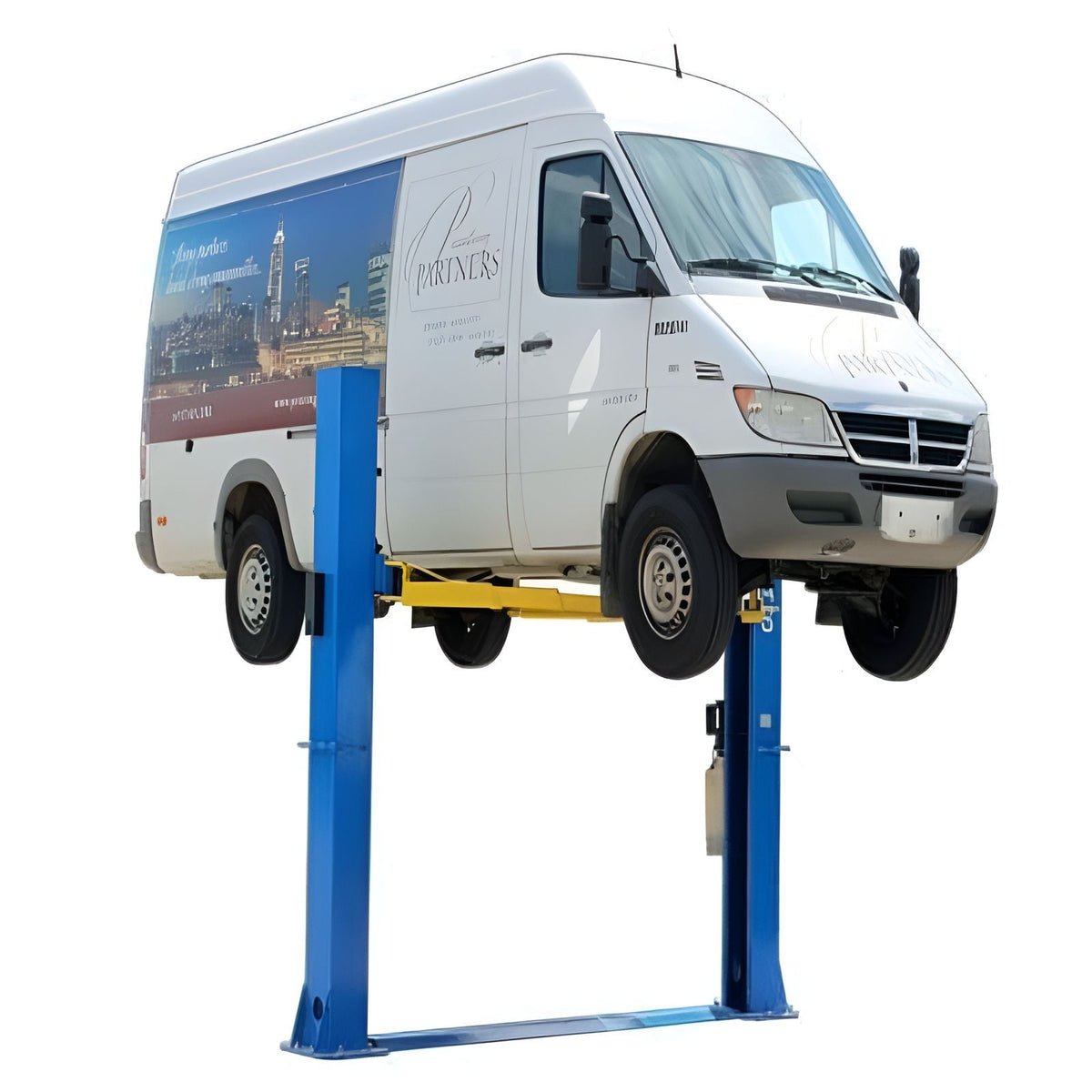

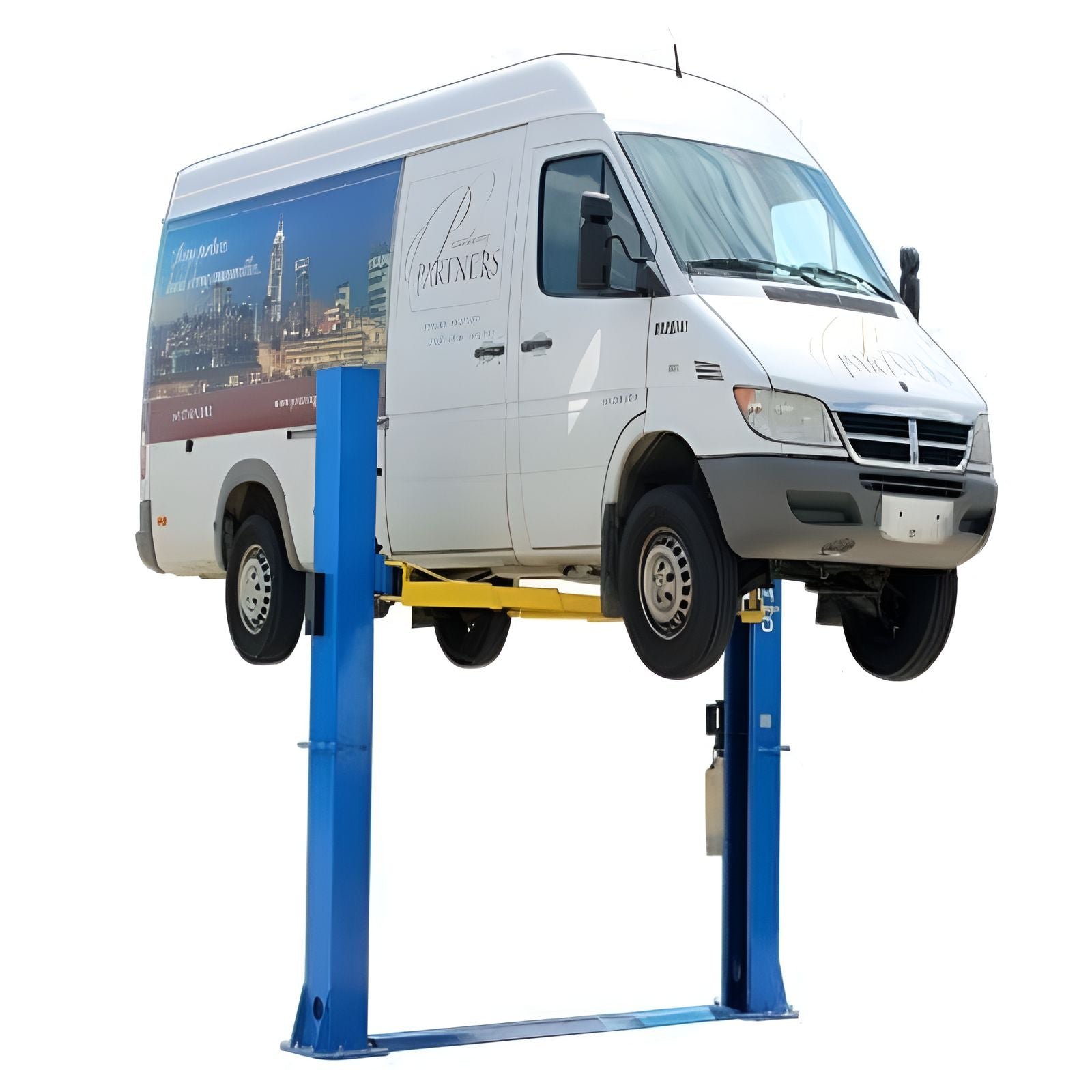

The Atlas® BP-10000 commercial-grade two-post floor baseplate lift is engineered specifically for shops that need to lift heavy vehicles in facilities with limited overhead clearance. With a 10,000 lb capacity and a compact overall height of just 111 7/8" (9' 3 7/8"), this lift delivers professional-grade performance even in garages with low ceilings. Whether you're working on a one-ton dually pickup or a compact SMART car, the BP-10000 provides the strength, stability, and versatility your shop demands.
Built on a floor baseplate design, the BP-10000 offers exceptional stability without requiring overhead beams or complex mounting systems. The oversized columns feature welded support gussets that add extra strength and rigidity, ensuring safe and reliable operation even at maximum capacity. With dual hydraulic chain-drive cylinders manufactured to ANSI standards and a convenient single-point lock release system, this lift combines safety, ease of use, and professional performance in one robust package.
Key Advantages

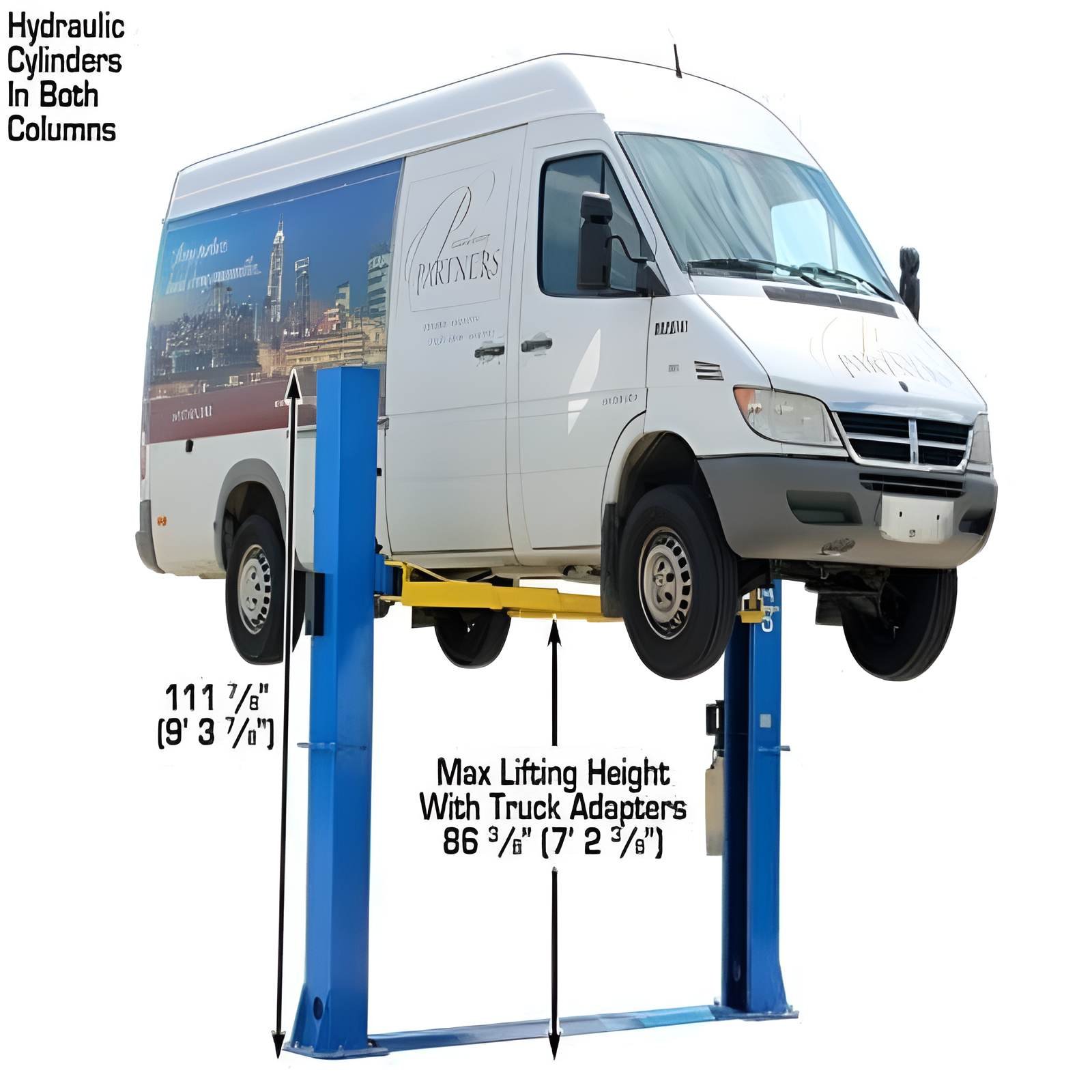

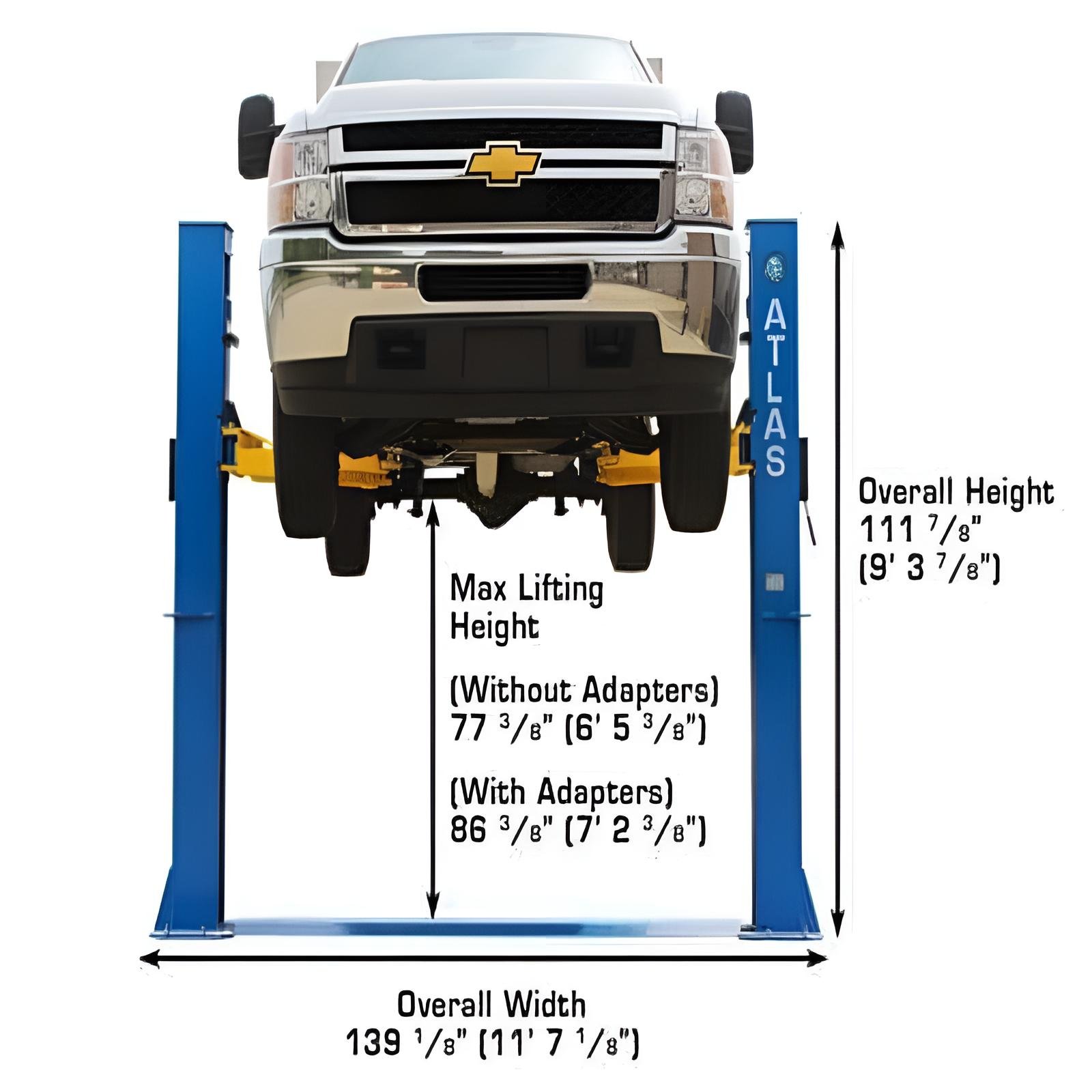

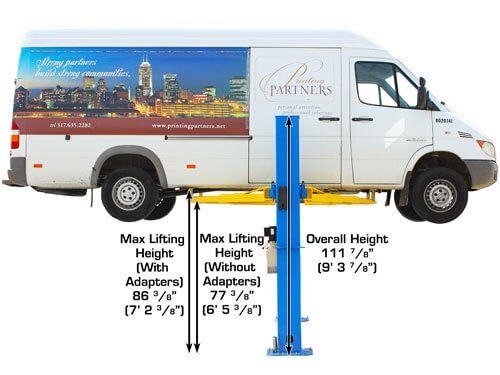

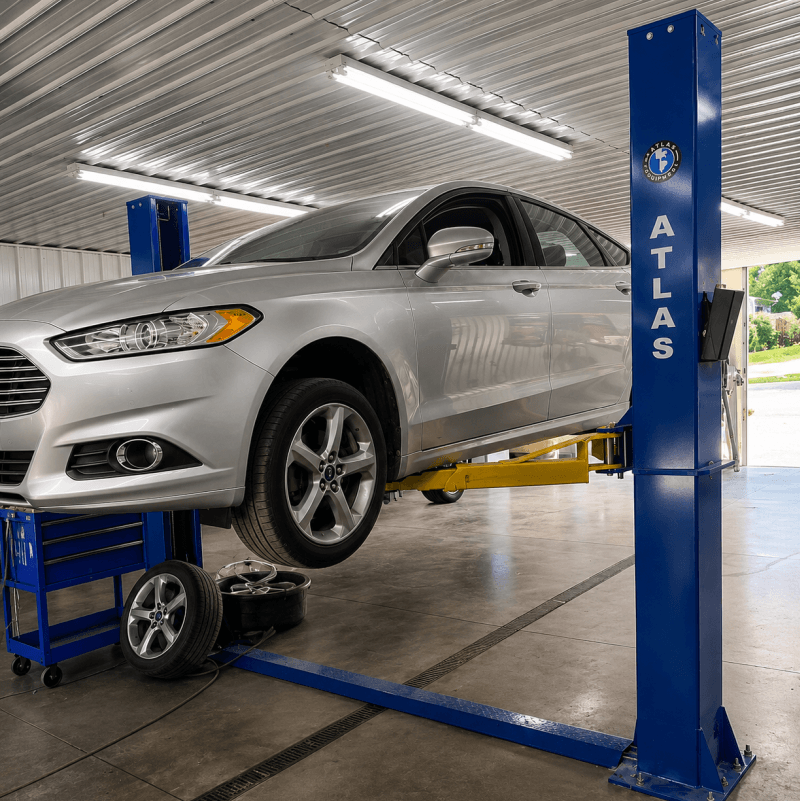

- Optimized for Low-Ceiling Shops: With an overall height of only 111 7/8", the BP-10000 fits perfectly in garages with 11-foot ceilings while still delivering impressive max lift heights of 86 3/8" with adapters and 77 3/8" without.
- Heavy-Duty Construction: Features 6mm-thick steel columns measuring 9 1/2" x 11" with middle welded support gussets for unmatched strength and stability during demanding lifts.
- Super-Symmetric Arms: Adjustable arms provide maximum flexibility for positioning and accommodate a wide range of vehicle sizes and configurations, from compact cars to full-size trucks.

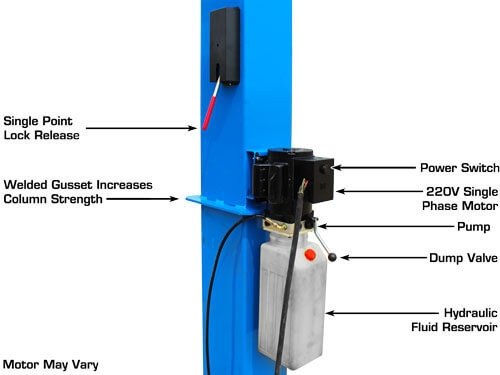

- Single-Point Lock Release: Engage or disengage both columns simultaneously with one simple action, streamlining operation and enhancing safety during vehicle lowering.
- Includes Free 12-Piece Truck Adapter Set: Comes complete with four each of 2", 3", and 6" adapters, giving you immediate versatility to handle trucks, SUVs, and specialty vehicles right out of the box.
Professional-Grade Features
The Atlas BP-10000 is packed with features designed to deliver reliable, safe, and efficient vehicle lifting for professional technicians and serious DIYers alike:

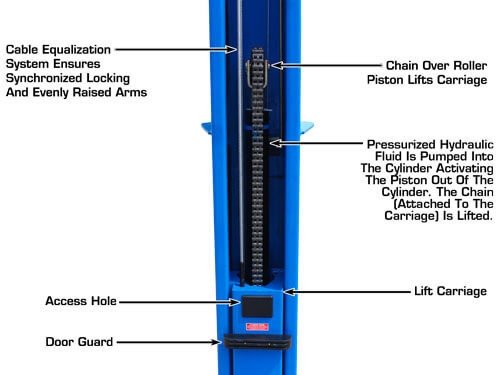

- Dual Hydraulic Chain-Drive Cylinders: Built to ANSI standards, ensuring consistent, balanced lifting and long-term reliability.
- Automatic Arm Restraints: Provide added security by locking arms in position during vehicle service, preventing accidental movement.
- Durable Powder Coat Finish: Professional-grade coating resists scratches, chemicals, and daily shop wear for years of great looks and protection.

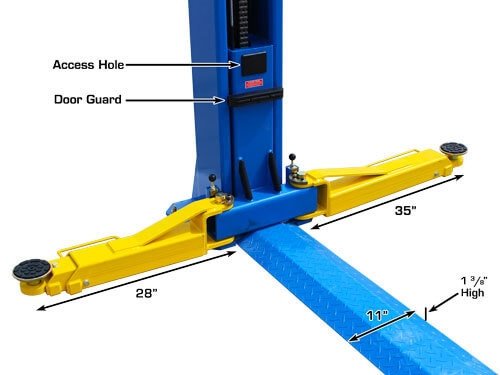

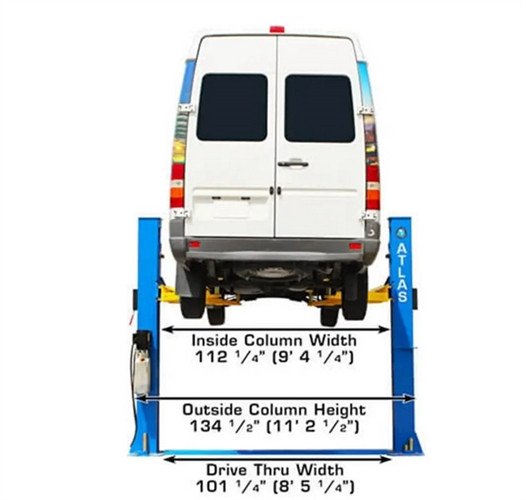

- Generous Drive-Thru Clearance: 101 1/4" drive-thru width offers ample space for positioning vehicles and maneuvering in your workspace.
- Low Minimum Arm Height: Arms adjust down to just 4 inches, making it easy to get under low-profile sports cars and specialty vehicles.
- Standard Electrical Requirements: Operates on 220V single-phase power with a 30-amp breaker, making installation straightforward in most professional or home garage settings.
Built for Stability and Strength
The floor baseplate design of the BP-10000 provides exceptional stability directly from the shop floor. Each column features a 17 1/2" x 21 1/2" base that distributes weight evenly and anchors securely to your concrete slab. The lift requires a minimum of 4 inches of concrete with 3,000 PSI for safe and proper installation.

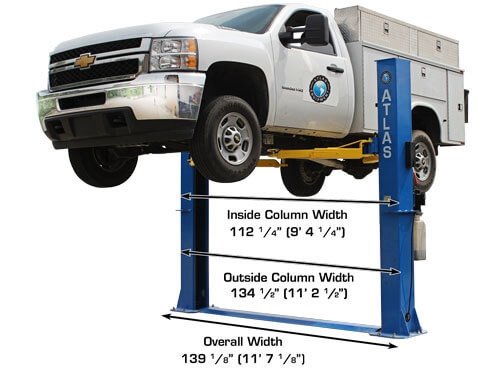

With an inside column clearance of 112 1/4" and an outside column-to-outside column width of 134 1/2", the BP-10000 accommodates a wide variety of vehicle wheelbases. The 1.5-inch arm hole and adapter peg size ensures compatibility with included and aftermarket adapters, giving you the flexibility to service everything from passenger cars to heavy-duty trucks.
What's Included
Your Atlas BP-10000 lift comes ready to handle a wide range of vehicles right from day one:

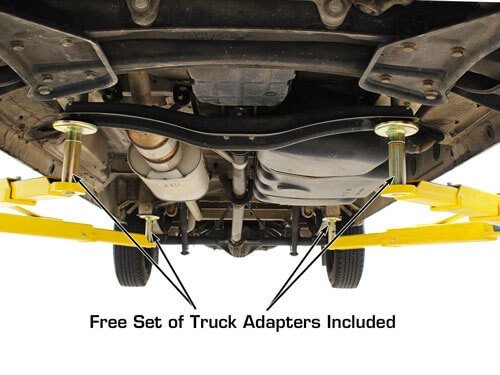

- Free 12-Piece Truck Adapter Set: Includes four 2" adapters, four 3" adapters, and four 6" adapters for maximum versatility
- Automatic Arm Restraints for enhanced safety
- Single-Point Lock Release mechanism for convenient operation
- Dual Hydraulic Cylinders with chain-drive system
- Professional Installation Manual with detailed instructions and diagrams
Oil Not Included:
This lift requires 3-5 gallons of AW32 or AW46 hydraulic oil (not included). Be sure to have the appropriate oil on hand before installation.
Product Features
- 10,000 lb. Capacity
- Super-Symmetric Arms
- Dual Hydraulic Chain-Drive Cylinders Made On ANSI Standard
- Single-Point Lock Release Allows Both Columns To Be Disengaged Simultaneously
- Base Plate Design
- Welded Support Gussets Increase Column Strength.
- Automatic Arm Restraints
- Powder Coat Finish
- Free 12 Piece Truck Adapter Set
Includes
- 4 Each – 2", 3", & 6" Adapters
Product Specifications
Specifications
BP-10000
Capacity
10,000 lbs
Lifting Time
N/A
Overall Height
111 7/8" (9' 3 7/8")
Overall Floor Width
139 1/8" (11' 7 1/8")
Outside Column To Outside Column
134 1/2" (11' 2 1/2")
Max Lift Height w/Adapters
86 3/8" (7' 2 3/8")
Max Lift Height w/o Adapters
77 3/8" (6' 5 3/8")
Minimum Arm Height
4"
Inside Column
112 1/4" (9' 4 1/4")
Drive Thru
101 1/4" (8' 5 1/4")
Column Size
9 1/2" x 11"
Column Thickness of Steel
6mm
Base of Lift
17 1/2" x 21 1/2"
Arm Hole/Adapter Peg Size
1.5”
Motor/Electrical Requirement
220V single (1) phase / 30 amp breaker is required.
Oil Requirement
3-5 Gallons AW32/AW46 (NOT INCLUDED)
Weight
1,640 LB.
Requires a minimum of 4" of concrete with 3000 psi
Key Features
- Published product configuration: Atlas® BP-10000 Floor Baseplate 2 Post Car Lift 10,000 lbs Important: Cylinder Bleeding Procedure Required (This must be performed immediately after installation) The Atlas® BP-10000 commercial-grade two-post floor baseplate lift is engineered specifically for shops that need to lift heavy vehicles in facilities with
- Exact manufacturer model or part number: ATTD-BP10000X
- Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
- 1 product manual or technical document linked below
- Condition: New
Product Specifications
| Brand | Atlas Automotive Equipment |
|---|---|
| SKU | ATTD-BP10000X |
| MPN / Model | ATTD-BP10000X |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 2 Post Lifts |
Before You Order
Confirm that model ATTD-BP10000X, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
