QuickJack™ 8000TLX Extended-Length Portable Truck & SUV Lift Bundle

Product Overview

QuickJack™ 8000TLX Extended-Length Portable Truck & SUV Lift Bundle

Complete Heavy-Duty Lifting Solution for Trucks & SUVs

The QuickJack 8000TLX Bundle is the ultimate all-in-one lifting package for professionals and enthusiasts working with long-wheelbase trucks, SUVs, and larger vehicles. This comprehensive bundle combines QuickJack's most powerful and longest portable lift with essential accessories for expanded vehicle compatibility, extra lift height, and smart storage solutions. Whether you're running a busy shop or maintaining a fleet at home, this bundle gives you unmatched strength, versatility, and convenience in a single ready-to-go package.

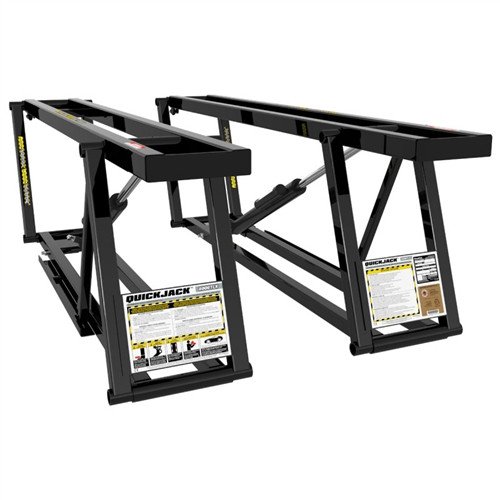

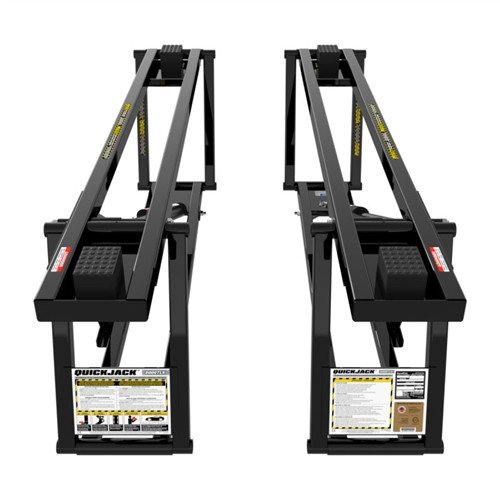

At the heart of this bundle is the 8000TLX Extended-Length Portable Lift QuickJack's flagship model engineered specifically for heavy-duty applications. With an 8,000-lb. lifting capacity and a 76-inch frame length, the 8000TLX handles vehicles with wider lift points and extended chassis requirements with ease. It lifts to a full 24.5 inches of clearance while maintaining rock-solid stability thanks to structural reinforcements, improved weld geometry, and a redesigned hydraulic system that ensures perfectly synchronized frame movement. Despite its substantial power, the 8000TLX collapses to just 3.5 inches, making it remarkably portable and easy to store or transport between job sites.

But this isn't just a lift—it's a complete system. The Wall Hangers Set frees up valuable floor space with powder-coated, laser-cut steel hangers that mount directly into garage studs for secure vertical storage. The SUV & Truck Adapter Kit adds essential extra height for lifted trucks and high-clearance vehicles, extending your total lift point height to approximately 27 inches using stackable polyurethane blocks and durable steel adapters. Together, these accessories transform the 8000TLX into a truly versatile workhorse, ready for oil changes, suspension overhauls, underbody maintenance, and everything in between.

What Makes the 8000TLX Bundle Stand Out?

• Factory Preassembled Hydraulics: Each 8000TLX ships with its hydraulic system fully assembled at the factory, saving you time during setup and ensuring flawless performance right out of the box. No guesswork, fewer steps—just faster lifting.

• Automatic Safety Locks: Dual-position mechanical safety locks engage automatically at both mid-rise and full-rise positions. Simply flip the lock bar to release for smooth, controlled descent—critical peace of mind when working under heavy vehicles.

• Extended Power & Clearance: Built for long-wheelbase vehicles, the 8000TLX features a 76-inch frame and a 66-inch maximum lift point spread, making it the ideal portable lift for large SUVs, trucks, and specialty sedans with extended chassis requirements.

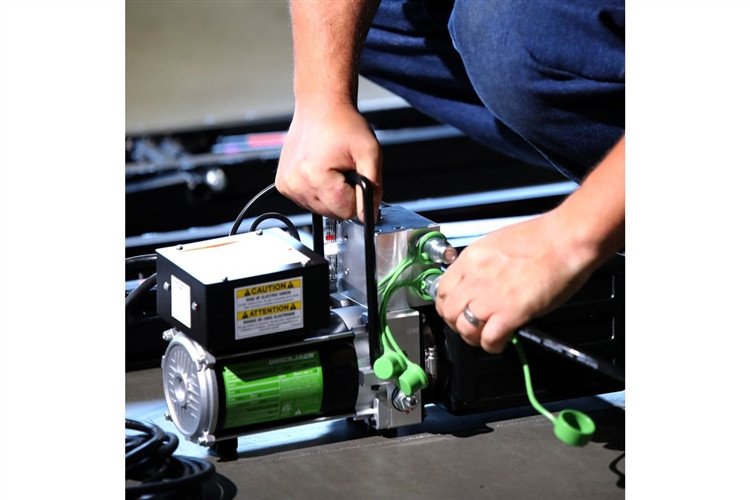

• Upgraded Hydraulic System: The reengineered hydraulic power unit includes a pressure-compensated flow divider and independent shut-off solenoids to ensure both frames rise and lower in perfect sync—essential for heavier vehicles and enhanced safety during operation.

• Stronger Frame, Greater Stability: Thicker cross members, improved weld geometry, and enhanced pivot joints resist flex under heavy loads, giving you greater confidence when lifting heavier or longer vehicles.

Wall Hangers Set – Free Up Your Floor Space

Keep your workspace clean and organized with QuickJack's Wall Hangers Set. These durable, powder-coated black hangers feature solid-steel construction with a laser-cut QuickJack logo and are rated at 150% above maximum load for added safety. They mount directly into wall studs for secure vertical storage, allowing you to reclaim valuable floor space when your lift isn't in use. Universal fit for all QuickJack models. Sold as a set of two.

SUV & Truck Adapter Kit – Extended Height for High-Clearance Vehicles

Gain the extra clearance you need for lifted trucks and high-ground-clearance SUVs with the SUV & Truck Adapter Kit. This kit includes durable steel adapters and stackable polyurethane blocks that raise your lift point height to accommodate vehicles with greater ground clearance. The adapters increase overall lifting height to approximately 27 inches, making them perfect for oil changes, suspension work, and underbody maintenance on larger vehicles. Simple installation onto QuickJack lift trays—no complicated setup required.

Key Features & Performance Highlights

• 8,000 lbs. Capacity: Handles the heaviest trucks, SUVs, and long-wheelbase vehicles with confidence.

• Fast & Easy Set-Up: Factory preassembled hydraulics mean you'll be lifting faster with fewer steps.

• Portable Lifting System: QuickJack can go anywhere and is easily stowed in a vehicle or transported between locations.

• One-Handed Pendant Operation: Simple pendant control lets you operate the lift with one hand, keeping your other hand free for guiding frames or handling tasks.

• Compact Footprint, Extended Utility: Despite its reach and capacity, the 8000TLX still lowers to a 3.5-inch profile and rolls easily on built-in urethane wheels.

• 30-Second Full Rise: Time is money—the 8000TLX lifts your vehicle to full height in just 30 seconds.

• 110V / 60Hz Power: Standard electrical outlet compatibility for convenient operation anywhere.

Complete Bundle Benefits

• Bundled Savings: Save versus purchasing components separately—get everything you need in one package.

• Complete Solution: Lift, store, and service heavier vehicles with one ready-to-go system.

• Ideal for Multiple Applications: Perfect for fleet maintenance, professional shops, and home garages with trucks and SUVs.

• QuickJack Quality: Industry-leading innovation, durability, and safety in one comprehensive package.

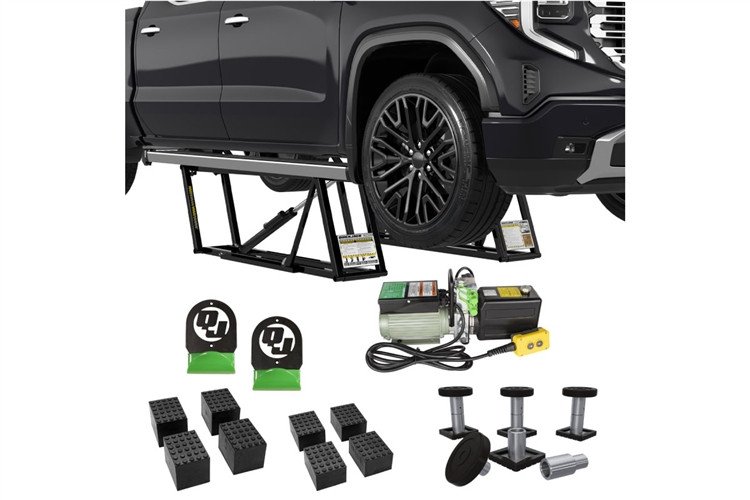

What's Included in This Bundle

Box 1 – Left Frame Assembly

• 8000TLX Left Frame Assembly

• Short hydraulic hoses

• Frame-positioning handles

Box 2 – Right Frame Assembly

• 8000TLX Right Frame Assembly

• Short hydraulic hoses

• Frame-positioning handles

Box 3 – Power Unit & Accessories

• Hydraulic power unit with control pendant

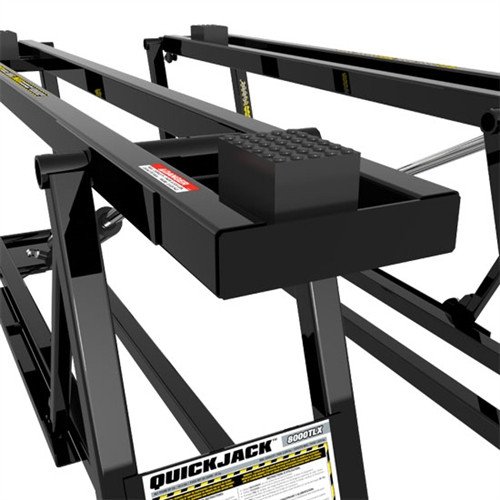

• 4x Medium rubber lift blocks (2")

• 4x Tall rubber lift blocks (3")

• 2x Long hydraulic hoses

• Setup and instruction manual

• ALI-certified manuals: "Lifting It Right" Safety Manual, Lifting Points Quick Reference Guide, and Safety Tips Cards

Box 4 – Wall Hanger Set

• 2x Wall Hanger Set (powder-coated black steel, laser-cut QuickJack logo)

Box 5 – SUV & Truck Adapter Kit

• 12-piece Truck Adapter Set (steel adapters and stackable polyurethane blocks)

Requirements for Operation

• 3 liters of Automatic Transmission Fluid (required for hydraulic system)

• Air source to inflate air cylinders up to 50 PSI

• Assembly tools (standard tools for setup)

Note: All hydraulic hose fittings come pre-assembled from the factory for quick, hassle-free setup.

Product Features

• 8,000 lbs Capacity

• Fast & easy set-up

• Portable lifting system makes vehicle maintenance on and off the track convenient and lightning fast

• QuickJack can go anywhere and is easily stowed in the trunk or back seat of most cars

• Factory preassembled hydraulics

• Each 8000TLX ships with its hydraulic system preassembled at the factory, saving time during setup and ensuring flawless performance right out of the box. You’ll be lifting faster with fewer steps and no guesswork.

• Automatic safety locks

• The 8000TLX includes dual-position automatic safety locks that engage securely as the frames lift. Locks automatically slide into place at both mid-rise and full-rise positions, and a simple flip of the lock bar releases them for smooth, controlled descent.

• Extended-length power & clearance

• Built for long-wheelbase vehicles, the 8000TLX features a 76-inch frame and 66-inch max lift point spread. With an 8,000-lb. capacity and 24.5-inch lift height, it’s the ideal portable lift for large SUVs, trucks, and specialty sedans with extended chassis requirements.

• Upgraded hydraulic system

• Our reengineered hydraulic power unit includes a pressure-compensated flow divider and independent shut-off solenoids to ensure both frames rise and lower in perfect sync—critical for heavier vehicles and added safety during operation.

• Stronger frame, greater stability

• The 8000TLX is built with thicker cross members, improved weld geometry, and enhanced pivot joints that resist flex under heavy load. These structural upgrades give you greater confidence, especially when lifting heavier or longer vehicles.

• One-handed pendant operation

• The simple pendant control lets you operate the lift with one hand, keeping your other hand free for guiding the frames or handling basic tasks. QuickJack lifts with the push of a button—no bending, cranking, or manual intervention.

• Compact footprint, extended utility

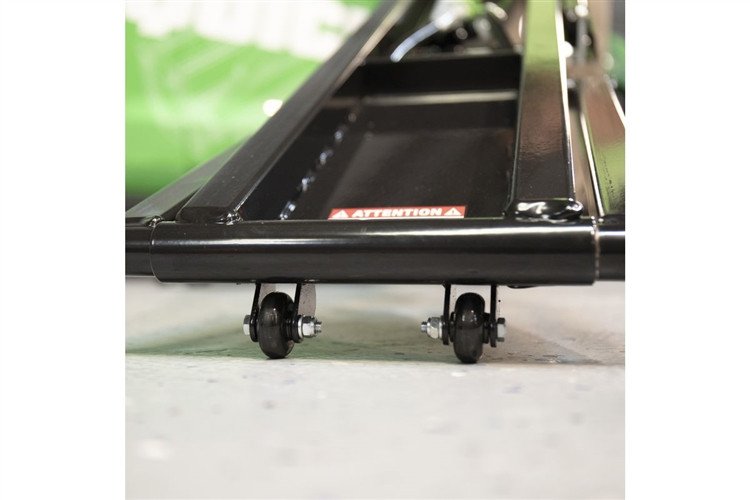

• Despite its reach and capacity, the 8000TLX still lowers to a 3.5-inch profile and rolls easily on built-in urethane wheels. It’s the perfect mobile solution for shops or home garages where versatility and space matter.

Wall Hangers

• Sold in sets of two

• Powder-coated black finish

• Universal fit for all QuickJack models

• Rated 150% above maximum load for added safety

• Solid-steel construction with laser-cut QuickJack logo

• Mounts directly into wall studs for vertical storage

SUV & Truck Adapter Kit

• Raises lift point height to accommodate high-clearance vehicles

• Durable steel adapters and polyurethane stackable blocks

• Increases overall lifting height to approximately 27"

• Perfect for SUVs, light trucks, and lifted vehicles

• Simple installation onto QuickJack lift trays

Bundle Benefits

• Bundled savings vs. purchasing components separately

• Complete solution for lifting, storing, and servicing heavier vehicles

• Ideal for fleet maintenance, shops, and home garages with trucks and SUVs

• QuickJack quality, innovation, and safety in one ready-to-go package

Includes

• Box 1

• 8000TLX Left Frame Assembly

• 1x Short hydraulic hoses

• 1x Frame-positioning handles

• Box 2

• 8000TLX Right Frame Assembly

• 1x Short hydraulic hoses

• 1x Frame-positioning handles

• Box 3

• 1x Hydraulic power unit with control

• 4x Medium rubber lift blocks (2")

• 4x Tall rubber lift blocks (3")

• 2x Long hydraulic hoses

• Setup and instruction manual

• ALI-certified manuals: "Lifting It Right" Safety Manual, Lifting Points Quick Reference Guide, and Safety Tips Cards

• Box 4

• 2x Wall Hanger Set

• Box 5

• 12-pc Truck Adapter Set

Requirements

• 3 liters of Automatic Transmission Fluid

• Air source to inflate air cylinders up to 50 PSI

• Assembly tools

Note: all hydraulic hose fittings come pre-assembled from the factory.

Product Specifications

Model

8000TL
8000TLX

Capacity

Lifting Capacity

8,000 lbs. (3,175 kg)

Lowered Height

A With 2" block

4" (102 mm)
3.5" (89 mm)

Lifting Height

B With 2" Block

21.5" (546 mm)
21" (521 mm)

C With 3" Block

22.5" (572 mm)
22" (546 mm)

D Max. Height

24.5" (622 mm)
24" (616 mm)

E With adapters

24.25" (610 mm)
24" (597 mm)

F With adapters + pin

27" (686 mm)
26.75" (673 mm)

Lift Point Spread

G Maximum

60" (1,524 mm)
66" (1,676 mm)

H Minimum

37" (940 mm)
43" (1,092 mm)

Power

Voltage / Hz

110V / 60Hz

Frame Dimensions (ea.)

I Width

12.5" (318 mm)

J Length

70.75" (1,797 mm)
76" (1,930 mm)

Frame Weight

100 lbs. (45 kg)
103 lbs. (77 kg)

Other Specs

Time to Full Rise

30 seconds

Power Unit Weight

15 lbs. (7 kg)

Shipping

Shipping Dimensions (ea. frame)

73.75" L x 16.75" W x 6.25" H
(1,869 x 425 x 155 mm)
79.5" L x 15.25" W x 5" H
(2,015 x 385 x 129 mm)

Total Shipping Weight

280 lbs. (127 kg)
250 lbs. (113 kg)

Specifications
Truck Adapter Set

Overall Height
7.2" (183 mm)

Pad Height
1" (25 mm)

Pin Height
2.8" (71 mm)

Base Height/td>
3.4" (76 mm)

Shipping

Shipping Dimensions
10" x 10" x 6" (254 x 254 x 152 mm)

Shipping Weight/td>
32 lbs (15 kg)

Specifications
Wall Hangers

Width
4.75" (121 mm)

Height
6.75" (172 mm)

Depth
2.5" (57 mm)

Weight ea.
1 lbs (0.5 kg)

Shipping Weight
3 lbs (1.4 kg)

Key Features

• Published product configuration: QuickJack™ 8000TLX Extended-Length Portable Truck & SUV Lift Bundle Complete Heavy-Duty Lifting Solution for Trucks & SUVs The QuickJack 8000TLX Bundle is the ultimate all-in-one lifting package for professionals and enthusiasts working with long-wheelbase trucks, SUVs, and larger vehicles. This comprehensive bundle
• Exact manufacturer model or part number: 5176113
• Cataloged for Lifts & Hoists: Car Lifts — Specialty Lifts
• Condition: New

Product Specifications

Before You Order

Confirm that model 5176113, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
