Challenger EV1020 ALI Inground Car Lift 10,000 lb. Capacity

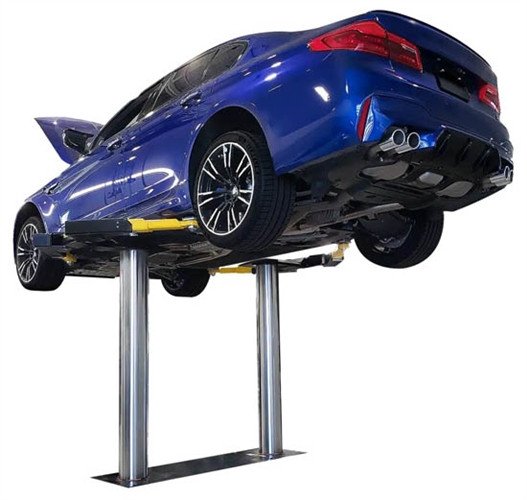

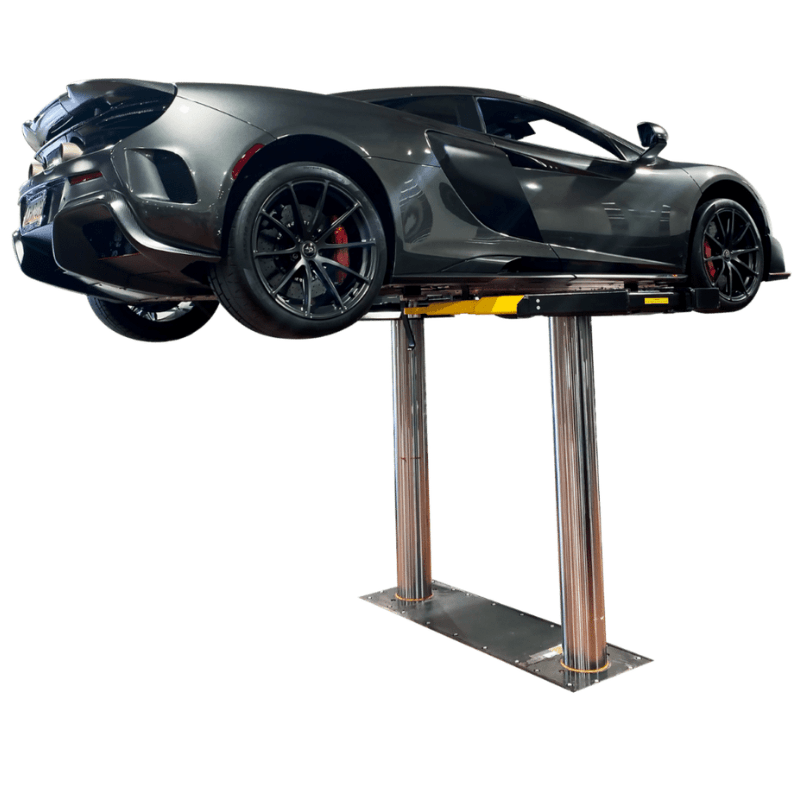

The Challenger EV1020 EnviroLift™ represents the pinnacle of inground lift technology, combining 10,000 lb. capacity with superior arm sweep, increased rise height, and the widest drive-thru clearance in the industry. Engineered for professional service facilities that demand reliability, versatility, and efficiency, the EV1020 allows shops to service more vehicles in less space compared to traditional surface lifts—maximizing both productivity and revenue potential.
Featuring 8-1/2" diameter chrome pistons with over 50% more bearing contact surface than competitors, the EV1020 delivers exceptional stability under load and repeatable performance. Enhanced raised wipers at top and bottom provide superior grease retention while minimizing contamination, ensuring long-term reliability. The chrome non-breathing ram style cylinder design extends lift life, while the 3-stage front and 3-stage rear arms provide the flexibility to reach lift points on a wide range of cars and trucks, from compact sedans to full-size pickups.

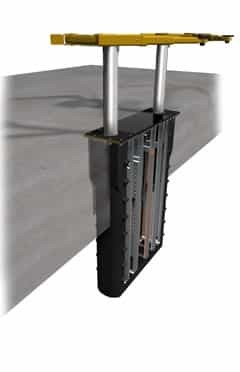

The EV1020's fully-contained, sealed recycled polymer cassette tub eliminates the risk of hydraulic fluid seeping into the ground—protecting your investment and the environment with no EPA concerns. The open, cassette-style design creates a professional showroom appearance, while the generous 87" drive-thru clearance accommodates wider vehicles, reduces tire damage, and makes drive-on positioning fast and easy.
Increased Rise Height for Greater Productivity
The EV1020 now features a NEW increased rise height, giving technicians more under-car clearance and improving ergonomics. The stroke height has been increased from 68" to 72", while the rise height has grown from 74" to 78". This additional clearance allows technicians to work at comfortable, ergonomic heights—reducing fatigue, increasing productivity, and improving overall shop efficiency.

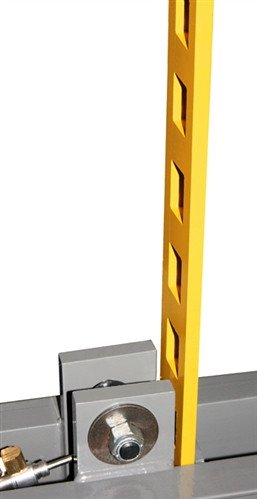

The mechanical lock engages every 3 inches, providing flexible working heights so technicians can position vehicles at the optimal level for any service task. Combined with premium double telescoping screw pads that adjust to multiple heights, the need for adapters is minimized, streamlining service procedures and saving valuable time.
Important Power Unit & Control Configuration Information

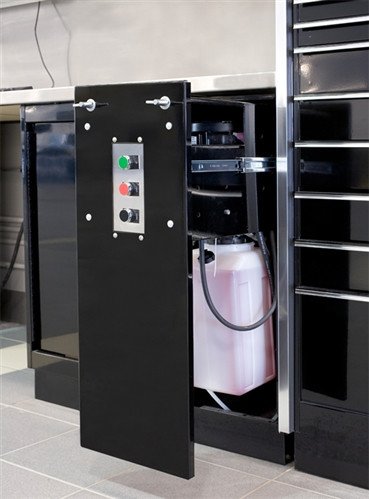

Integrating the Powerunit & Controls Under the Bench
Due to the recent move to the DLH power units on the EW and EV Series inground lifts, the configuration for the cabinet door for bench mount levered controls will change. Please ensure that when using BML controls with ingrounds, the configuration change is noted.
NOTE: The BMC configuration will not change.
Configuration Manuals:
BMC Configuration
Bench Mount Lever (BML-DLH)
Key Performance Advantages
- 10,000 lb. capacity handles a wide range of passenger vehicles and light trucks
- 72" stroke height and 78" rise height provide exceptional under-car clearance

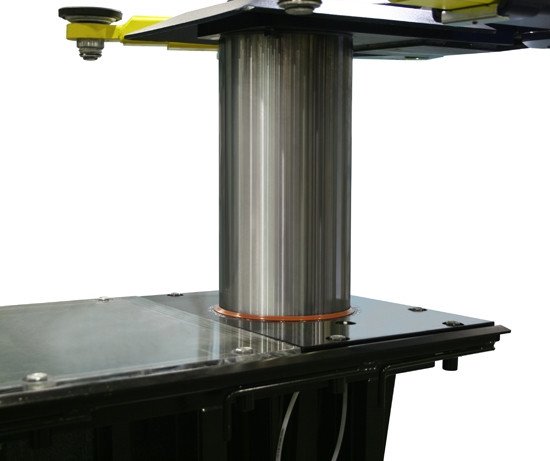

- 8-1/2" diameter chrome pistons deliver superior stability and load distribution

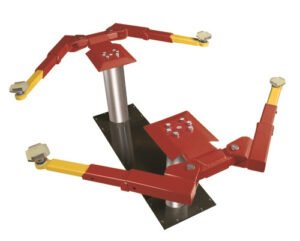

- 3-stage front and 3-stage rear arms maximize reach and adaptability for diverse vehicle types

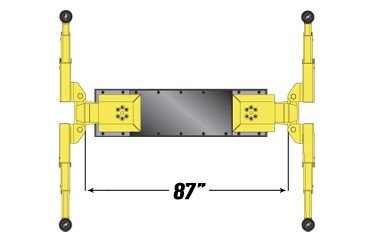

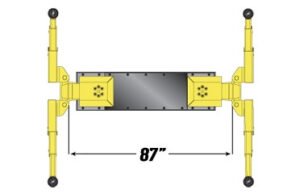

- 87" drive-thru clearance the widest in the industry—for easier vehicle positioning and reduced tire damage
- Stainless steel air lock release cylinder offers corrosion resistance and long-term durability
- Quick Cycle™ models available to reduce vehicle travel time by 30 percent
- Premium powder coat finish on bolsters and arms ensures long-lasting durability
The EV1020 is also available with a drive-on style pad (XP9) to aid in quick vehicle spotting—perfect for express bays and high-volume shops that demand speed and efficiency.
Environmental Protection & Professional Appearance

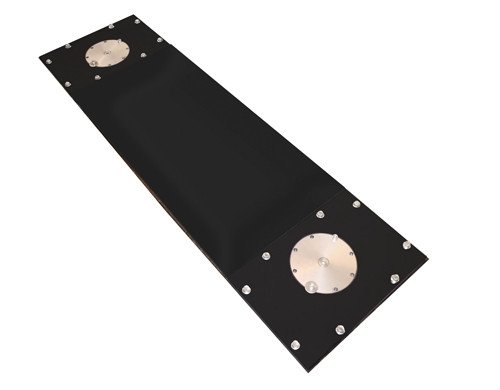

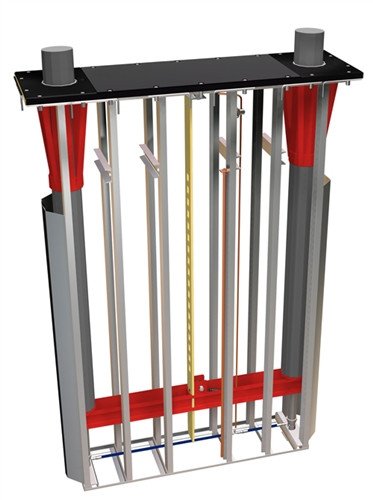

The fully-contained, sealed recycled polymer cassette tub on the EV1020 eliminates the risk of hydraulic fluid leaking into the ground, protecting the environment and ensuring compliance with EPA regulations. Made from recycled plastic, the cassette design reflects Challenger's commitment to sustainability without compromising performance.
The open cassette-style design also creates a clean, professional showroom appearance—ideal for shops that want to project a modern, high-quality image to customers. The aesthetically pleasing look complements any facility while maintaining the rugged durability expected from Challenger lifts.
Enhanced Bearing Design for Long-Term Reliability
The EV1020 features enhanced raised wipers at both the top and bottom of the bearing, providing better grease retention and minimizing contamination from entering the bearings. This design improvement extends bearing life and reduces maintenance requirements. Combined with long bearing contact surfaces, the lift provides increased stability and smooth, consistent operation over years of heavy use.
The chrome non-breathing ram style cylinder further contributes to longevity by preventing contaminants from entering the hydraulic system, ensuring reliable performance in demanding shop environments.
Operational Specifications
The EV1020 is powered by a 2HP motor with 208v-230v single phase power requirement and a 30A circuit. The lift features a 38-second speed of rise for efficient operation, and requires 90-120 psi air pressure for the pneumatic lock release system.
The lift requires a ceiling height of 12 feet plus the height of the tallest vehicle to be serviced. The 97" overall width and 87" drive-thru clearance provide ample room for maneuvering, while the arm reach adjusts from a minimum of 19-5/8" to a maximum of 42-1/8", offering unmatched flexibility for positioning vehicles of varying sizes and wheelbases.
Each arm is rated for 2,500 lbs. capacity, and the screw pad height adjusts from 3-7/8" to 6-1/8" to accommodate different lift point requirements.
Premium Finish & Customization Options
The EV1020 features a premium powder coat finish on bolsters and arms, providing exceptional durability and resistance to shop chemicals, wear, and corrosion. Challenger also offers a wide range of upgrades to further customize your fleet, allowing you to tailor the lift to your specific operational needs and preferences.
Video Overview
Drop Ship Only
Product Features
- 10,000 lb. lift capacity
- New increased rise height, giving technicians more under car clearance.
- Increased the stroke height from 68" to 72"
- Increased rise height from 74" to 78"
- 3-stage front and 3-stage rear arms provide access to the lift points of a wide range of cars and trucks, maximizing revenue potential
- Also available with a drive-on style pad (XP9) to aid in quick vehicle spotting for express bays
- 8 1/2” diameter chrome pistons provide greater stability under load
- Chrome non-breathing ram style cylinder provides for longer lift life
- Enhanced raised wiper at top and bottom of bearing provides better grease retention and minimizes contaminates from entering into bearings
- Long bearing contact provides increased stability
- Mechanical lock engages every 3″ allowing ergonomic working height for technicians to increase productivity and minimize fatigue
- Stainless steel air lock release cylinder promotes longer working life with its corrosion resistant design
- Fully-contained and sealed recycled polymer cassette tub eliminates risk of hydraulic fluid seeping into the ground

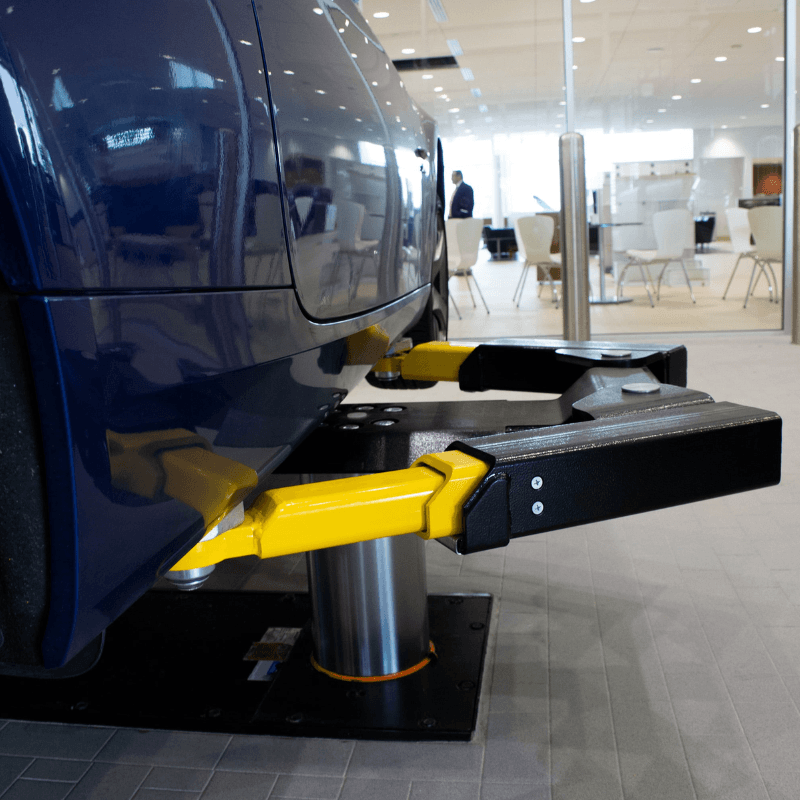

- Premium double telescoping screw pads adjust to multiple heights minimizing the need for adapters
- 87″ drive-thru accommodates wider vehicles, minimizes tire damage and provides for easy drive-on
- Quick Cycle™ models reduce vehicle travel time by 30 percent
- Wide range of upgrades to further customize your fleet
- Premium powder coat finish on bolsters and arms provides long-lasting durability
Product Specifications
Specifications
EV1020
Car Lift Capacity
10,000 lbs. (4536kg)
Stroke Height
72"
Rise Height
78"
Width Overall
97" (2794mm)
C Drive-Thru Clearance
87" (2210mm)
Arm Reach – Min
19-5/8"
(498mm)
Arm Reach – Max
42-1/8" (1070mm)
Screw Pad Height
3-7/8" – 6 1/8"
Plunger Diameter
8-1/2"
Capacity (Per Arm)
2500 lbs. (1134kg)
Arm Configuration
3-Stage Front & Rear
Motor
2HP
Voltage (Single Phase Std.)
208v-230v / 30A
Speed of Rise
38 seconds
Air Required
90-120 psi
Ceiling Height Required for EV1020 car lifts
12 Feet plus height of tallest vehicle
4" thick, reinforced, free from cracks/seams, 3500+ psi & cured 28+ days
Key Features
- Published product configuration: Challenger EV1020 ALI Inground Car Lift 10,000 lb. Capacity The Challenger EV1020 EnviroLift™ represents the pinnacle of inground lift technology, combining 10,000 lb. capacity with superior arm sweep, increased rise height, and the widest drive-thru clearance in the industry. Engineered for professional service
- Exact manufacturer model or part number: EV1020-V001
- Cataloged for Lifts & Hoists: Car Lifts — Specialty Lifts
- 2 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | Challenger |
|---|---|
| SKU | EV1020-V001 |
| MPN / Model | EV1020-V001 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Specialty Lifts |
Before You Order
Confirm that model EV1020-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
