Product Overview

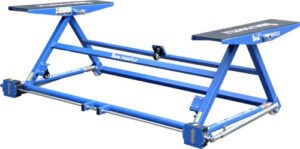

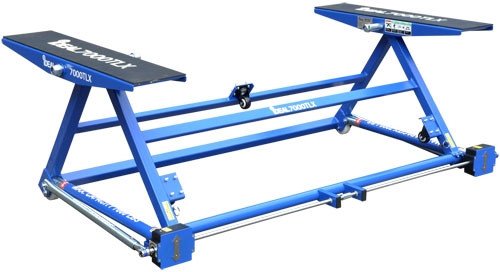

iDeal Lift 7000TLX Low-Rise, Portable & Storable Tilt Lift
The iDeal 7000TLX (TLX-7000) is one of the most economical, unique, versatile, and convenient vehicle lifting solutions available in today's market. This low-profile, lightweight, portable scissor lift features an impressive 7,000 lb. capacity and is specifically designed for unibody passenger vehicles and small sport utility vehicles. Perfect for residential garages, auto service shops, autobody repair centers, car dealerships, and detailing facilities, the 7000TLX combines professional-grade performance with exceptional portability and storage convenience.

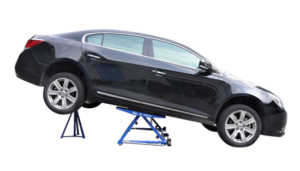

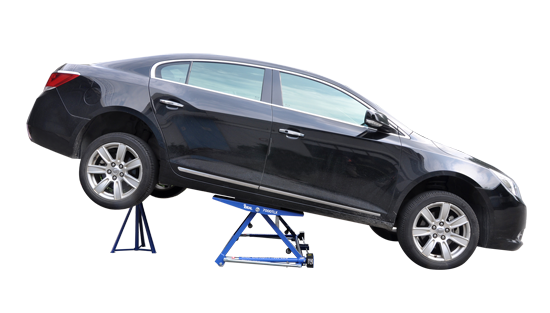

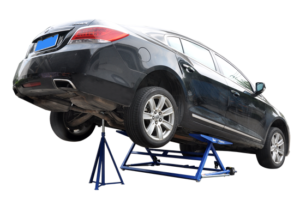

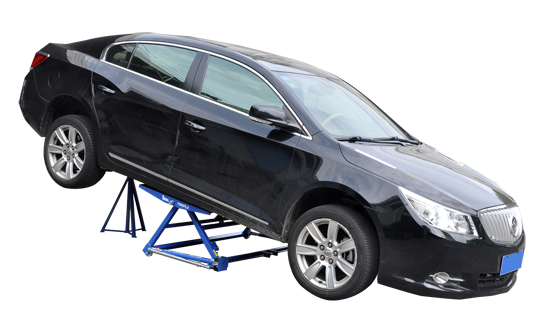

Equipped with twin dual-action precision gear drive mechanisms, the 7000TLX is powered by the torque supplied from a standard electric handheld drill no hydraulics required. The exclusive dual independent safety lock bars and pins provide unmatched versatility, allowing for full operation from either side of the lift. This innovative design not only enhances safety but also improves workflow efficiency. The unique vehicle 'lift & tilt' operation provides exceptional accessibility to the vehicle's undercarriage, while the compact design allows the lift to be quickly and conveniently stored out of the way when not in use, freeing up valuable workspace.
Key Advantages of the 7000TLX
- Frees up space in your garage, shop, or work area with its storable design
- Adds inspection and service capabilities for professional repair shops
- Allows for comfortable work height and complete undercarriage access
- Safely lifts and tilts unibody vehicles with frame rail widths from 48" to 61"
- Weather resistant construction suitable for both indoor and outdoor use

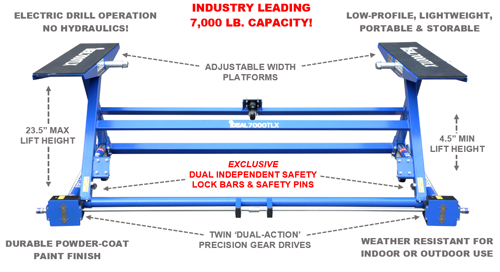

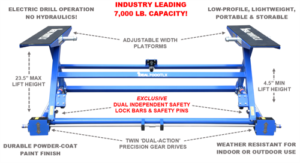

Standout Features
- 7,000 lb. lifting capacity with fast 30 to 40 second lift speed
- Handheld electric drill operation (power drill not included) – no hydraulics to maintain

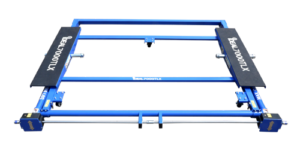

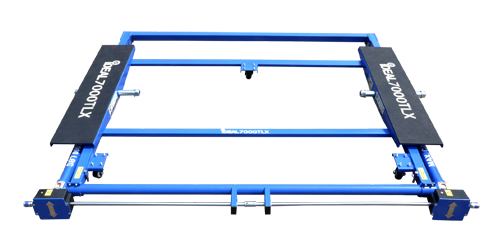

- Low-profile design with a minimum height of just 4-1/2" and maximum lift height of 22-1/2" (23-1/2" with risers)
- Adjustable width platforms accommodate a wide range of vehicle sizes
- Durable powder-coat paint finish provides long-lasting protection

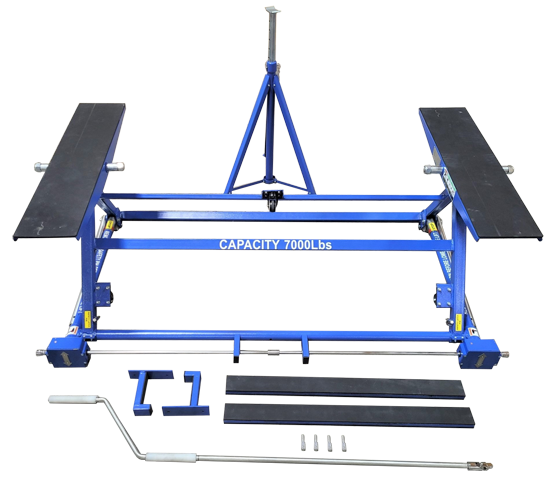

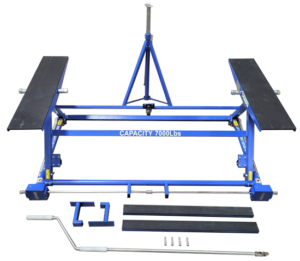

Included Standard Accessories
The iDeal 7000TLX comes complete with a comprehensive set of accessories to get you working immediately:

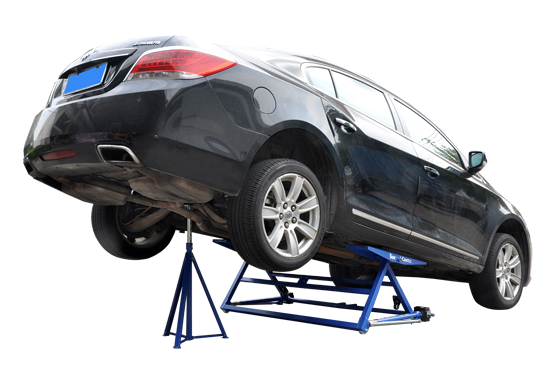

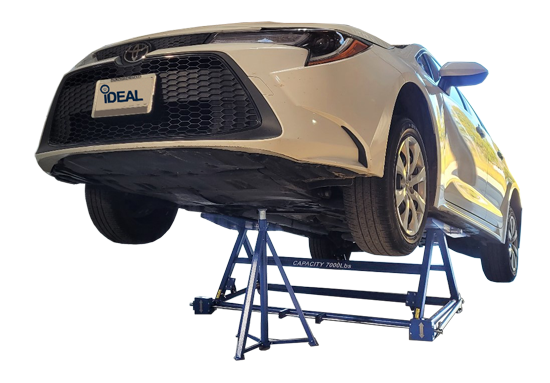

- Jack Stand for added safety and support
- Platform Risers to extend maximum lift height
- Drill-Drive Adapters for quick connection to your power drill

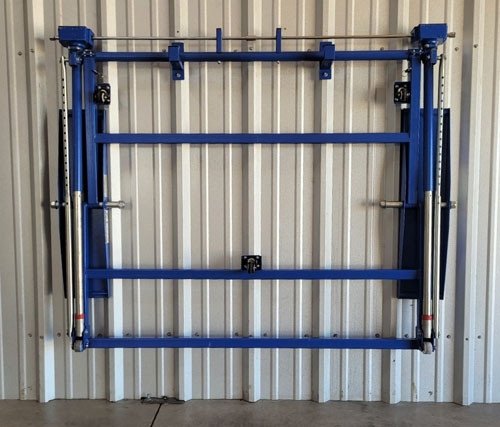

- Wall Mount Brackets for convenient vertical storage
- Manual Handle with Socket Adapter for manual operation if needed
Optional Floor Rail Kit Available

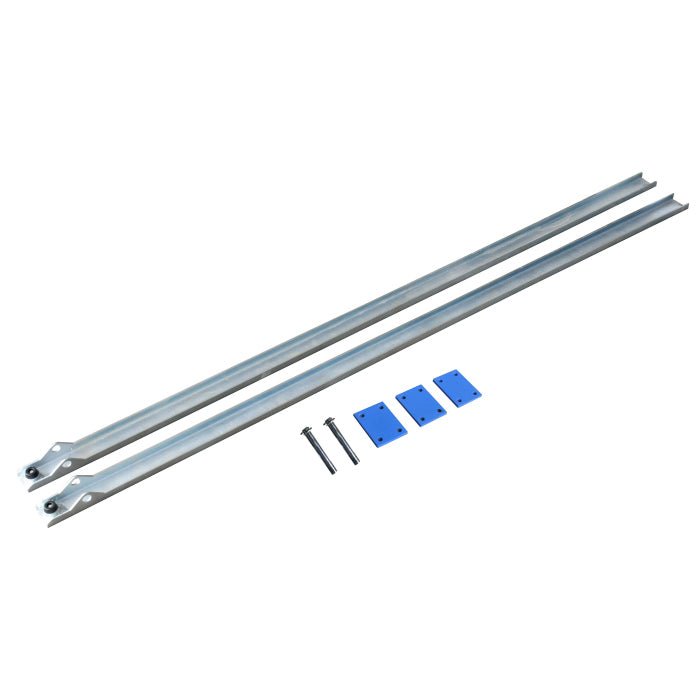

The optional TLX-7000-FLRAILKIT is recommended for use on insufficient floor surfaces such as uneven or rough floors. It also helps reduce wheel travel marks on polished or epoxy-coated floors, protecting your investment in premium flooring.
Product Features
- 7,000 lb lifting capacity
- Handheld electric drill operation (Power Drill Not Included). No Hydraulics
- Low-Profile, Lightweight, Portable & Storable
- Exclusive dual independent safety lock bars & pins allow for full operation from either side of lift
- Twin 'Dual-Action' Precision Gear Drives
- Adjustable Width Platforms
- Easy to Use & Maintain
- Durable Powder-Coat Paint Finish
- Weather Resistant for Indoor & Outdoor Use
Benefits
- Frees up space in your garage, shop or work area
- Adds inspection & service capabilities for repair shops
- Allows for comfortable work height & undercarriage access
- Safety lifts & tilts unibody vehicles with 48" to 61" frame rail widths
Standard Accessories
- Jack Stand
- Platform Risers
- Low-Profile, Lightweight, Portable & Storable
- Drill-Drive Adapters
- Wall Mount Brackets
- Manual Handle w/Socket Adapter
Optional TLX-7000-FLRAILKIT Available
Required for insufficient floor surfaces, such as uneven or rough floors. Also reduces lift’s wheel
travel marks for polished or epoxied type floors.
Product Specifications
Specifications
7000TLX
Capacity
7,000 lbs.
Overall Length
51-3/4”
Overall Width
64-3/8"
Max Lift Height
22-1/2" -23-1/2" w/ Risers
Min Height
4-1/2"
Platform Length & Width
31-1/2" – 7-1/4"
Outside/ Platform Widths
59-1/4" – 63-3/4"
Inside/ Platform Widths
44-1/2" – 49-1/4"
Lift Speed
30 to 40 seconds
Power (Corded Drill Not Included)
120VAC 1/2", 10Amp
Lift Ship
111 lbs.
Ship Weight
214 lbs.
Key Features
- Published product configuration: iDeal Lift 7000TLX Low-Rise, Portable & Storable Tilt Lift The iDeal 7000TLX (TLX-7000) is one of the most economical, unique, versatile, and convenient vehicle lifting solutions available in today's market. This low-profile, lightweight, portable scissor lift features an impressive 7,000 lb. capacity and is
- Exact manufacturer model or part number: TLX-7000
- Cataloged for Lifts & Hoists: Car Lifts — Specialty Lifts
- 1 product manual or technical document linked below
- Condition: New
Product Specifications
| Brand | iDeal Lift |
|---|---|
| SKU | TLX-7000 |
| MPN / Model | TLX-7000 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Specialty Lifts |
Before You Order
Confirm that model TLX-7000, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
