Product Overview

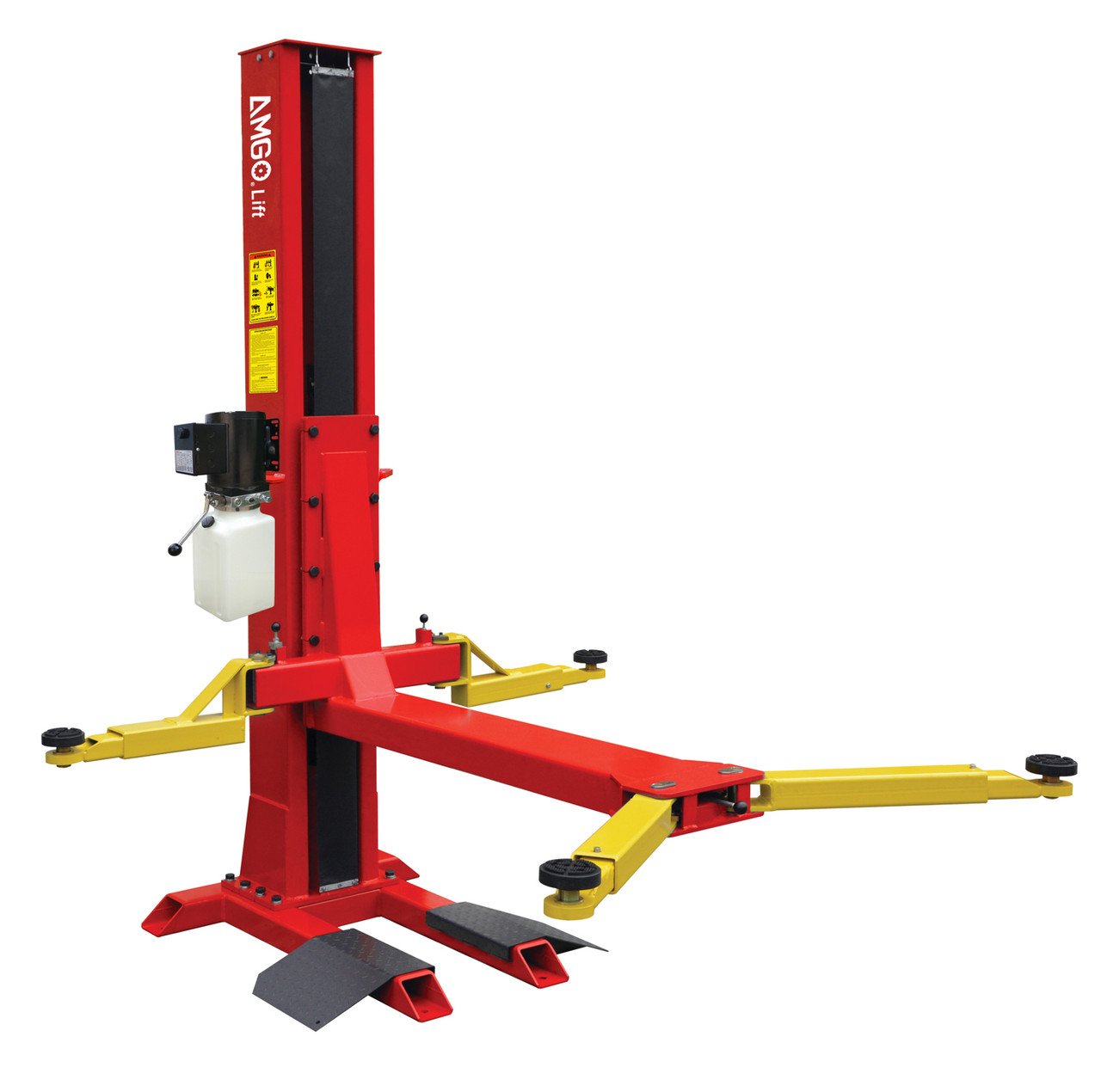

AMGO® Hydraulics SL-7 7,000 lb. Single Column Car Lift
Supersedes the SL-6
Maximum Lifting Power in Minimal Space
When you need to quickly lift a vehicle but space is at an absolute premium, the AMGO SL-7 Single Column Car Lift delivers professional-grade performance in one of the most compact footprints available. With a robust 7,000 lb lifting capacity and an overall width of just 80 inches, this permanently affixed single post lift is engineered for commercial service shops, home garages, specialty auto studios, and any facility where every square foot counts.
The SL-7 is AMGO's newly designed evolution of their proven single post platform, superseding the popular SL-6 model with enhanced features and refined engineering. From the tempered steel plate construction that ensures rock-solid stability to the high-strength gear rack and self-lubricating components, every element is designed for durability, safety, and decades of reliable service. Whether you're performing routine maintenance, tire changes, or undercarriage inspections, the SL-7 provides quick access and unmatched convenience without sacrificing your valuable workspace.
This lift includes adjustable, portable ramps with free installation, making it ready to go right out of the box. The dual voltage motor options 1 HP 110V or 2 HP 220V provide flexibility to match your shop's electrical setup, with lifting times as fast as 38 seconds on 220V. A manually locking release safety device controls the double lock system for confident, secure operation at any height, while the minimum pad height of just 3 5/16" accommodates low-profile vehicles with ease.
Key Highlights
- 7,000 lb capacity handles a wide range of vehicles—from sedans to light trucks
- Compact 84 1/2" width fits where two-post and four-post lifts cannot
- Dual voltage options: 1 HP 110V (84 sec lift) or 2 HP 220V (32 sec lift)
- Adjustable lifting height from 70 13/16" to 75 11/16" for versatile working clearance
- Self-lubricating UHMW polyethylene sliders and bronze bushings reduce maintenance
- Chain protection cover and dust cloth for elegant appearance and long component life
- Screw and insert rubber pads plus arm locking device with easy-release handles
Engineered for Reliability and Safety
AMGO Hydraulics manufactures its power units and cylinders to exacting standards, ensuring consistent, trouble-free operation even under daily commercial use. The tempered steel plate design makes the SL-7 steadier and safer to use than competing models, while the high-strength gear rack and precision locking mechanisms provide peace of mind with every lift cycle.
The lift's dust cloth protection shields the chain from contaminants and contributes to the SL-7's sleek, professional appearance. The chain protection cover prevents chain slippage, and the arm locking device features easy-to-release handles for quick, safe adjustments. With a gross weight of 1,488 lbs and an overall height of 109 7/16 inches, the SL-7 is permanently affixed for maximum stability without taking over your shop floor.
This is the lift of choice when you must balance performance, safety, and space efficiency—a solution trusted by professionals and serious DIY enthusiasts alike who demand the very best from their equipment.
Perfect for Any Space-Conscious Shop
Whether you're outfitting a compact home garage, adding capacity to an existing commercial bay, or setting up a specialty service area, the AMGO SL-7 delivers the lifting power you need without the sprawling footprint of traditional lifts. Its single-column design maximizes floor space, allowing you to work comfortably around the vehicle while maintaining full access to the undercarriage.

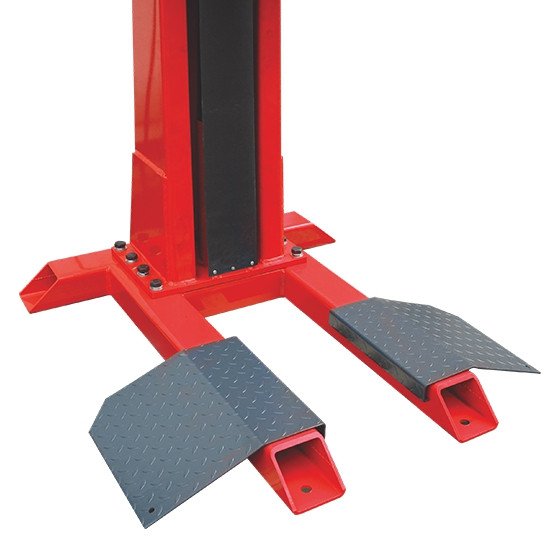

The included adjustable, portable ramps mean you can position vehicles precisely, and the screw and insert rubber pads protect vehicle frames and lift points. With the flexibility of 110V or 220V power and lift times tailored to your workflow, the SL-7 adapts to your needs rather than forcing you to adapt to it.
Upgrade to the SL-7 and experience why AMGO Hydraulics is a trusted name in automotive lifting solutions. This is more than a lift—it's a long-term investment in productivity, safety, and shop efficiency.
Ready to Maximize Your Shop Space?
Order the AMGO SL-7 Single Column Car Lift today and get the professional-grade lifting power you need in the compact footprint your shop demands.
California Residents:
WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to
Product Features
- 7,000 lb lifting capacity

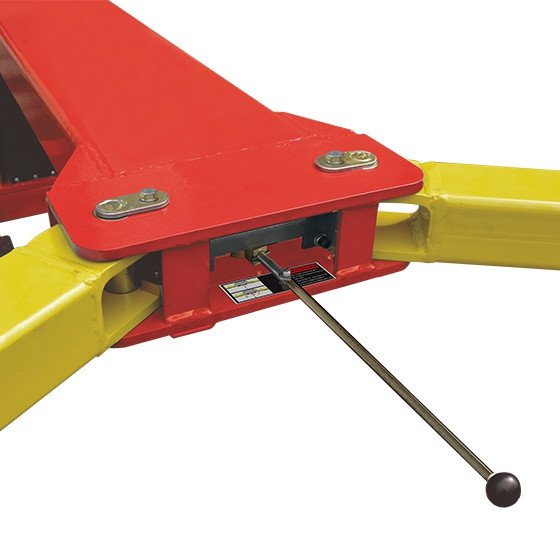

- AMGO’s proprietary arm lock release system features a smooth, single-handed release operation
- Double-lock safety system

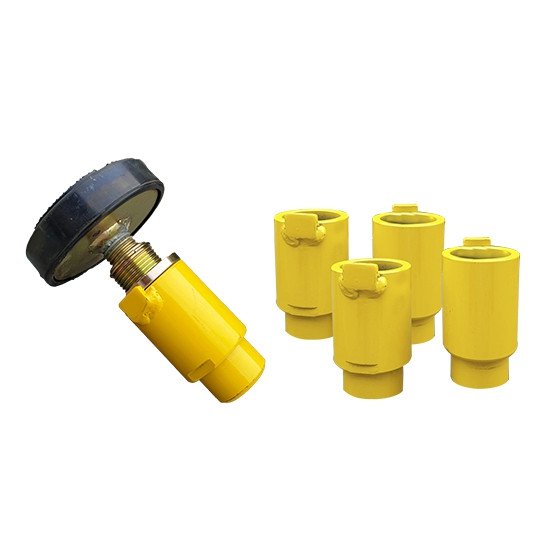

- Drop-in screw-type rubber pad with 2" pin diameter
- Comes with 3" extension adapters
- Self-lubricating UHMW polyethylene sliders and bronze bushings

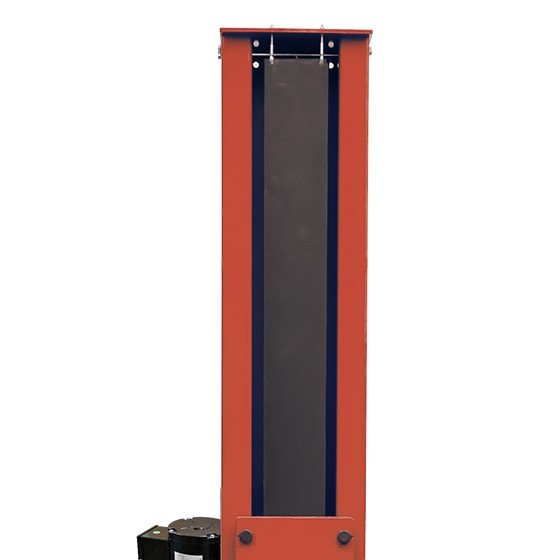

- Fabric chain cover protects the cylinder and provides a nice, clean appearance

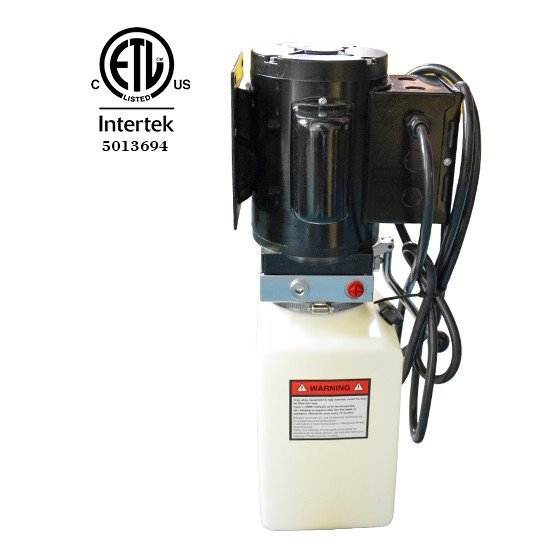

- AMGO ETL certified power unit
Includes
- Drop-in screw-type rubber pads
- Set of 3" extension adapters
Product Specifications
Specifications
SL-7
Lifting Capacity
7,000 lbs
A Max. Lifting Height w/o Adapters
70 13/16" ~ 72 3/4"
A Max. Lifting Height w/Adapters
72 3/4" ~ 75 11/16
A Max. Lock Height w/o Adapters
67 7/16" ~ 69 3/8"
A Max. Lock Height w/ Adapters
70 7/16" ~ 72 3/8"
B Overall Height
109 7/16"
C Overall Width
84 1/2"
D Minimum Pad Height
3 5/16"
Lifting Time
84 S (110V) / 38 S (220V)
Motor
1 HP,110V/60Hz,single phase – 30 amp Required
2 HP,220V/60Hz,single phase
Gross Weight
1,488 lbs
Key Features
- Published product configuration: AMGO® Hydraulics SL-7 7,000 lb. Single Column Car Lift Supersedes the SL-6 Maximum Lifting Power in Minimal Space When you need to quickly lift a vehicle but space is at an absolute premium, the AMGO SL-7 Single Column Car Lift delivers professional-grade performance in one of the most compact footprints available
- Exact manufacturer model or part number: SL-7-V001
- Cataloged for Lifts & Hoists: Car Lifts — Specialty Lifts
- 2 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | AMGO Hydraulics |
|---|---|
| SKU | SL-7-V001 |
| MPN / Model | SL-7-V001 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Specialty Lifts |
Before You Order
Confirm that model SL-7-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Manuals & Technical Resources
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
