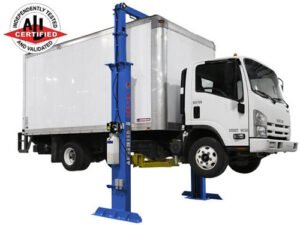

Atlas® Platinum PVL15 ALI Certified 2 Post Lift 15,000 lbs

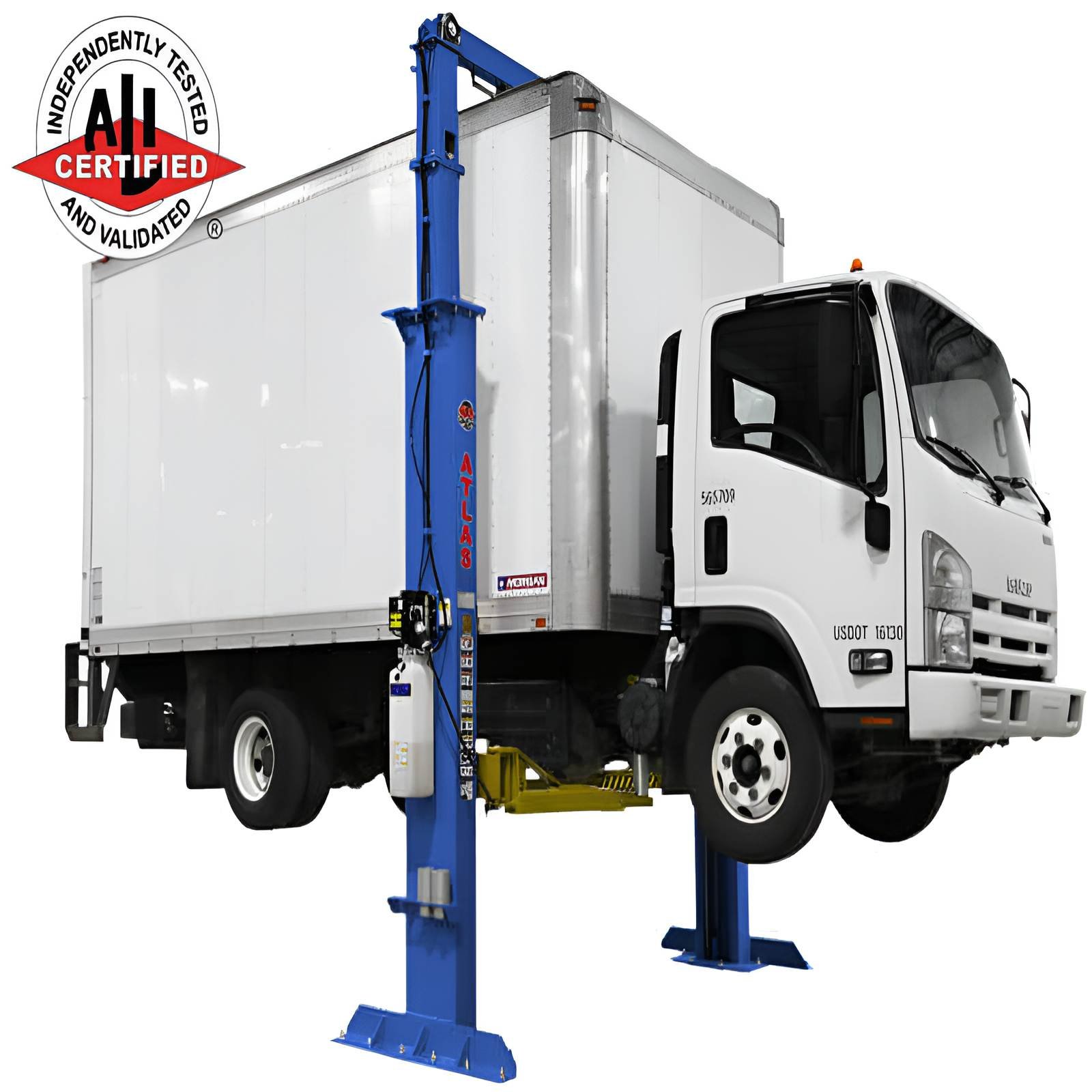

When your shop demands heavy-duty lifting capacity for both long wheelbase trucks and passenger vehicles, the Atlas® Platinum PVL15 delivers professional-grade performance with ALI CERTIFIED reliability. This 15,000 lb capacity commercial overhead two-post lift stands out with its extra tall 174 1/2" overall height and extra wide 148" floor width, providing the versatility your operation needs for a diverse vehicle lineup. Built with dual direct-drive hydraulic cylinders, symmetric arms, and a professional-grade arm lock restraint system, the PVL15 combines exceptional strength with precision engineering.
Powered by the premium ALLY Hydraulic AL2300 Power Unit, this lift benefits from advanced engineering that minimizes heat generation and maintains constant torque throughout the lifting cycle. MET Laboratories Inc. certified for electrical compliance in both the United States and Canada, the AL2300 features extra heavy-duty armatures and enhanced motor windings with increased silver metal content in wires and connections—delivering superior reliability and backed by an industry-leading two-year limited warranty.
.
Extra Tall, Extra Wide, Extra Capable

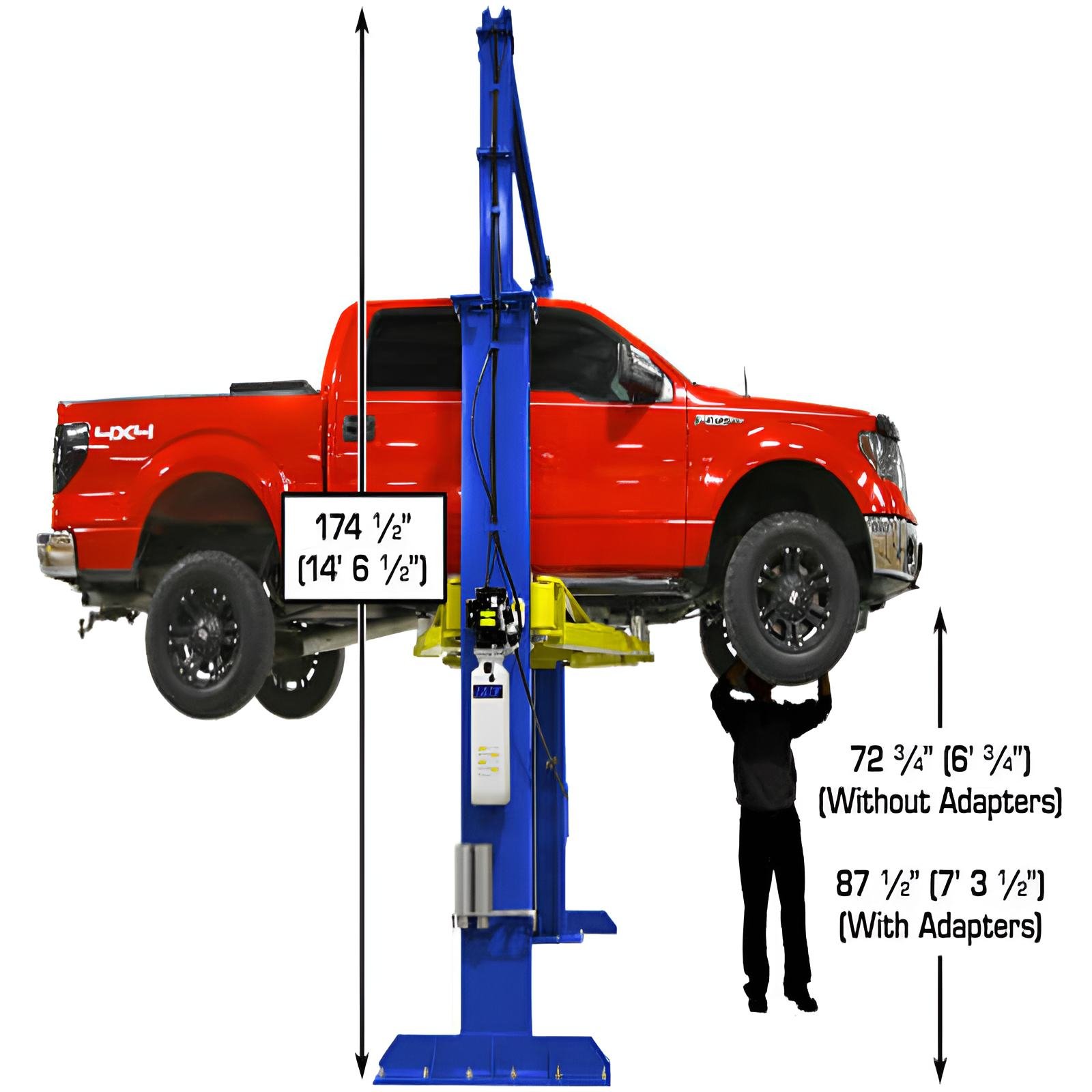

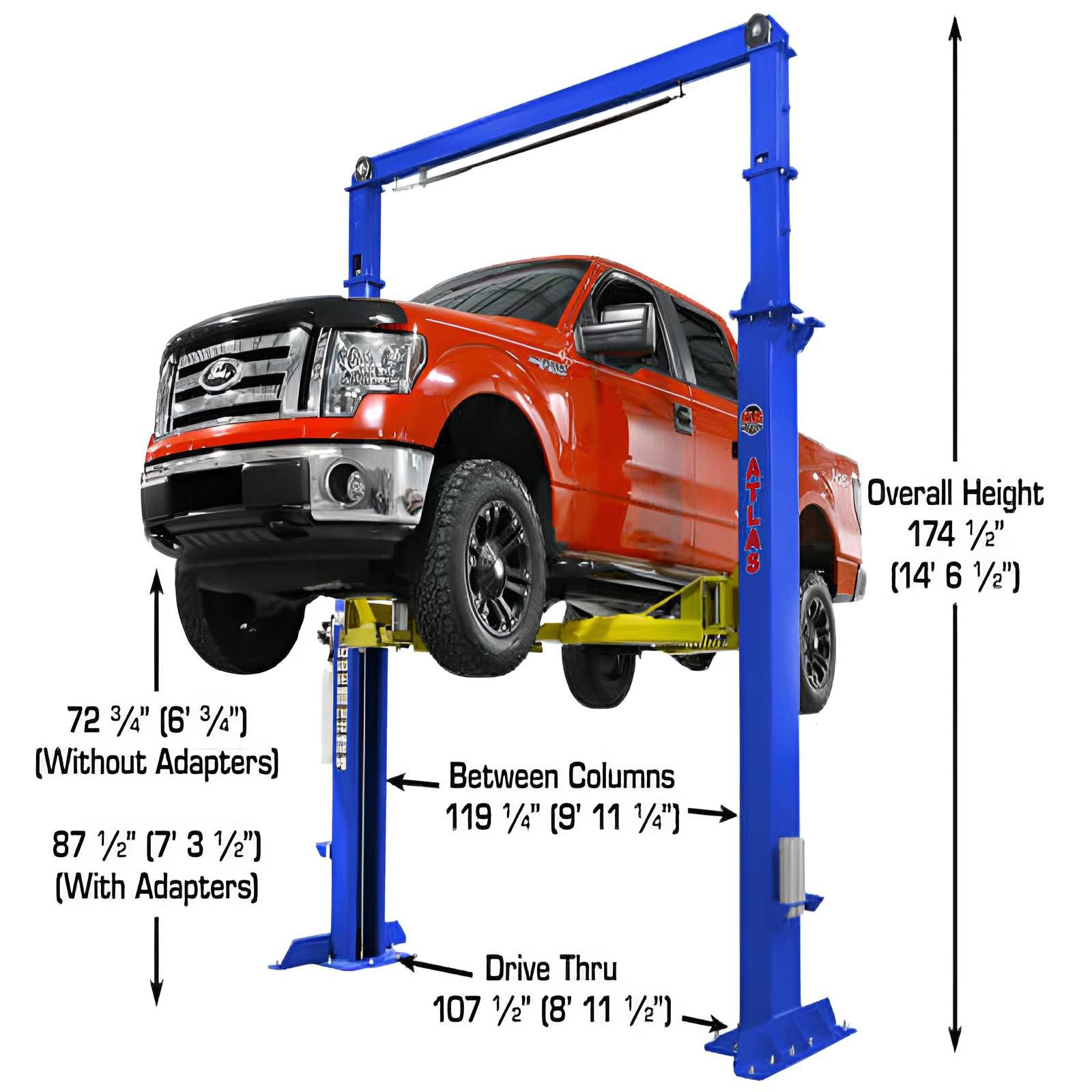

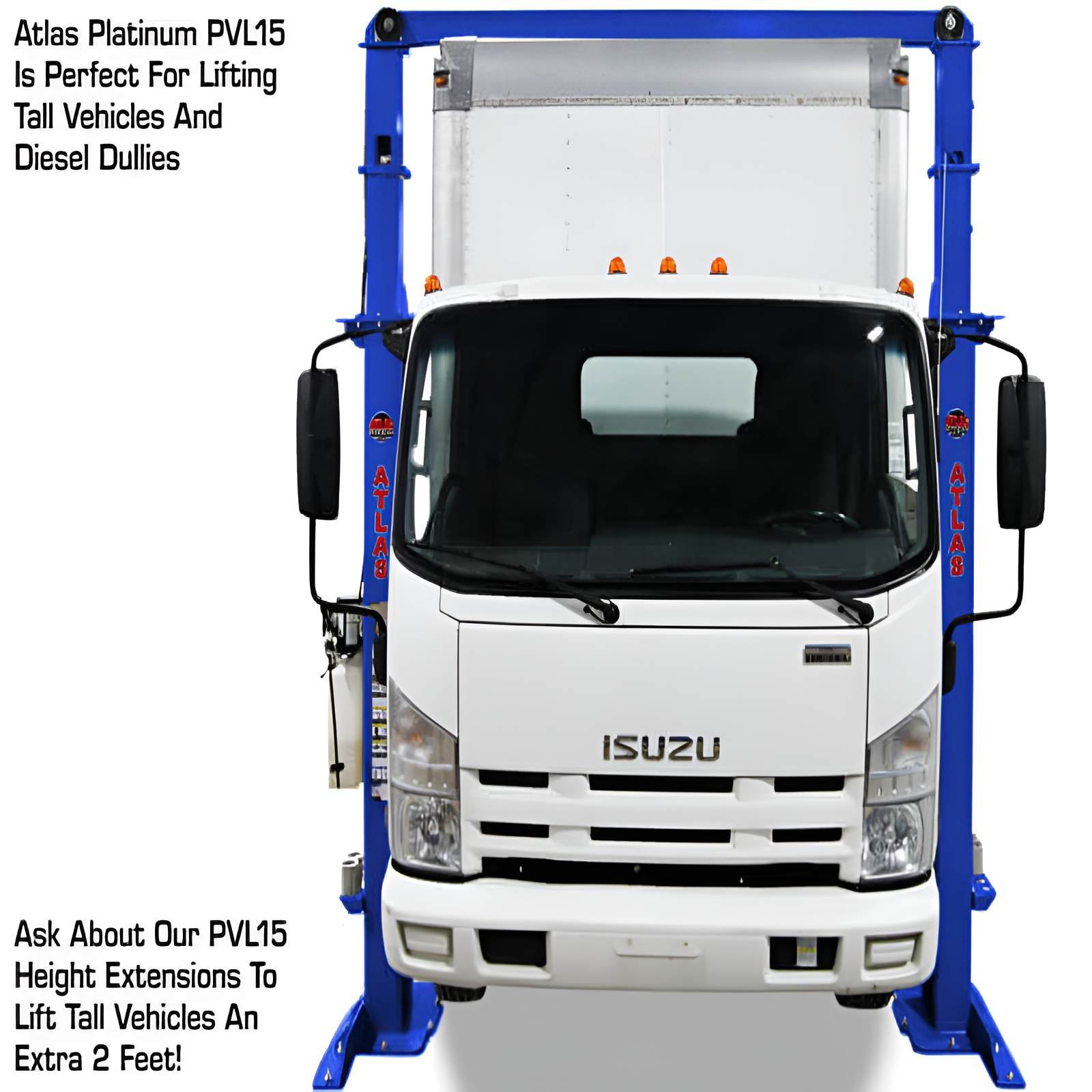

The Atlas Platinum PVL15 is engineered for shops that need maximum versatility. With an overall height of 174 1/2" (14' 6 1/2"), this lift can be further extended by an additional 2 feet with the optional Height Extension Kit, making it ideal for accommodating taller trucks and commercial vehicles. The 135" outside column-to-column clearance and 107 1/2" drive-thru clearance provide ample room for a wide variety of vehicles, while the maximum lift height with truck adapters reaches 87 1/2", giving technicians excellent working clearance underneath even the largest pickups and SUVs.

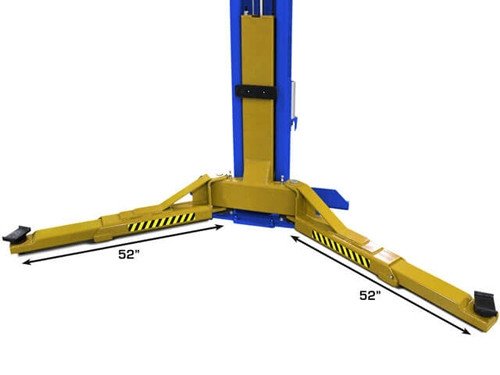

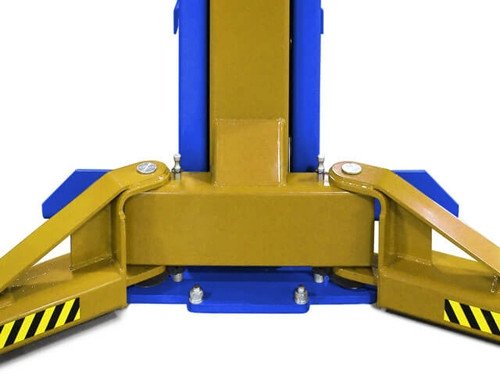

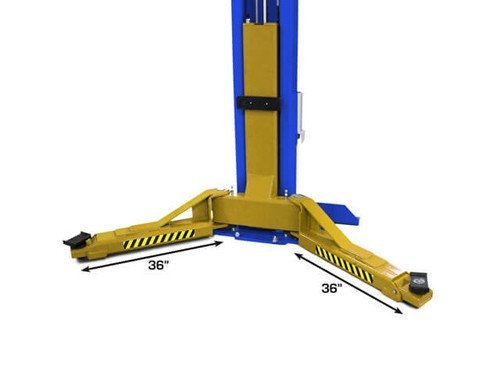

The lift's symmetric arm design paired with padded carriages ensures secure, damage-free lifting, while the professional-grade arm lock restraint system provides multiple locking positions for enhanced safety. Heavy-duty 3/8" equalization cables ensure smooth, balanced operation, and the dual direct-drive hydraulic cylinders deliver powerful, consistent performance with an 80-second lifting time. The minimum arm height of just 6 inches allows for easy positioning under low-profile vehicles.
Complete Package, Ready to Work
The PVL15 arrives ready for installation with everything you need. A complete 8-piece truck adapter set and 4 screw-up frame adapters are included free, giving you the flexibility to lift trucks, SUVs, and passenger cars right out of the box. Four 5-inch and four 10-inch adapter extensions provide additional height options for various frame configurations. All necessary mounting hardware is included, streamlining your installation process.
The lift requires 220V single-phase power with a 30 amp breaker and operates on 3-5 gallons of AW32/AW46 hydraulic oil (not included). The robust 8" x 14 1/2" columns provide exceptional structural strength, and with a unit weight of 2,600 lbs, the PVL15 is built to withstand the rigors of daily commercial use.
Key Advantages at a Glance
- 15,000 lb capacity handles heavy-duty trucks and commercial vehicles with confidence
- Extra tall 174 1/2" height with optional 2-foot extension available – perfect for lifted trucks and tall commercial vehicles
- Premium ALLY AL2300 Power Unit with MET Laboratories certification superior reliability backed by a two-year limited warranty
- Free 8-piece truck adapter set and screw-up frame adapters – complete versatility included
- ALI CERTIFIED and commercial-grade construction – meets the highest industry safety standards
Premium Power Unit Engineering

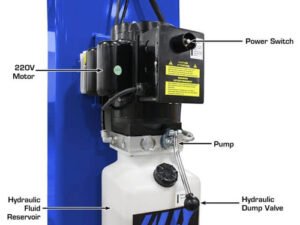

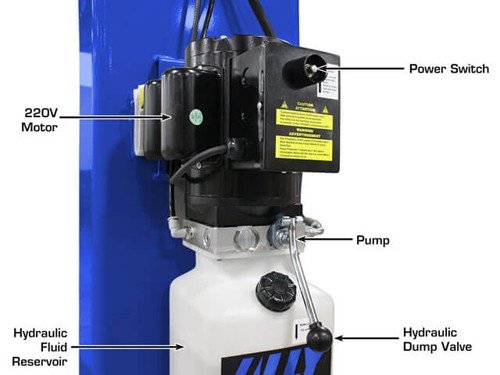

At the heart of the Atlas Platinum PVL15 is the advanced ALLY AL2300 Power Unit a testament to superior hydraulic engineering. This premium unit distinguishes itself with extra heavy-duty armatures and enhanced motor windings that feature increased silver metal content in the wires and connections. This advanced construction dramatically reduces heat generation during operation, allowing the power unit to maintain constant torque throughout the entire lifting process. The result is smoother, more reliable performance and extended component life. View detailed AL2300 power unit specs and parts list.
Certified by MET Laboratories Inc. for electrical compliance in the United States and Canada, the AL2300 meets rigorous safety and performance standards. This certification, combined with the power unit's robust construction and backed by an industry-leading two-year limited warranty, gives you confidence in your investment for years to come.
Product Features
- 15,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Extra Tall & Extra Wide
- Overall Height 174 1/2" (14' 6 1/2")
- Padded Carriages
- Symmetric Arms
- Professional Grade Arm Lock Restraint System
- Dual Direct-Drive Hydraulic Cylinders
- Free 8 Piece Truck Adapter Set and 4 Screw-Up Frame Adapters

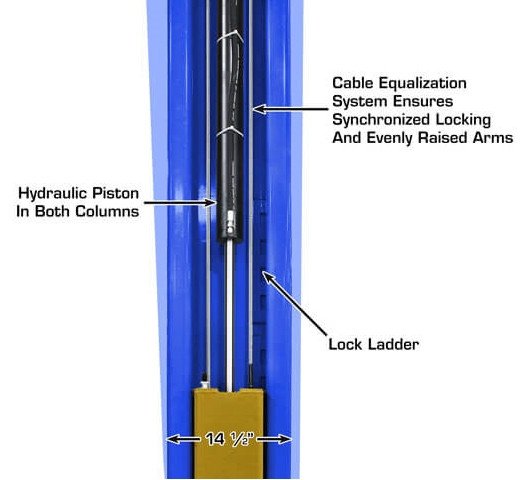

- Heavy Duty 3/8" Equalization Cables
- Mounting Hardware Included
- Premium ALLY AL2300 Power Unit View Power Unit Specs
Includes
- Truck Adapter Set
- Mounting Hardware

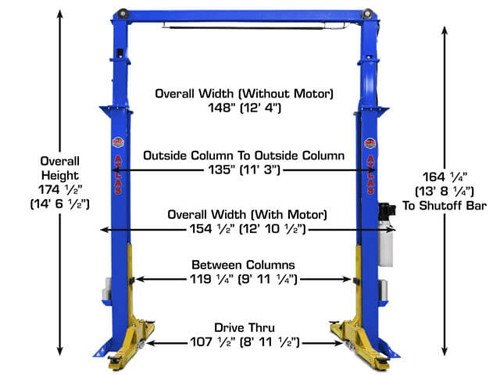

Product Specifications
Specifications
PVL15-EXT
Capacity
15,000 lbs
Overall Height
174 1/2" (14' 6 1/2")
Overall Floor Width
148" (12' 4")
Outside Column to Outside Column
135" (11' 3")
Max Lift Height w/Truck Adapters
87 1/2" (7' 3 1/2")
Max Lift Height w/o Truck Adapters
72 3/4" (6' 3/4")
Minimum Arm Height
6"
Inside Columns
119 1/4" (9' 11 1/4")
Drive Thru
107 1/2" (8' 11 1/2")
Column Size
8" x 14 1/2"
Lifting Time
80S
Adapter Heights
4 ea 5" & 10"
Oil Requirement
3-5 Gallons AW32/AW46 (NOT INCLUDED)
Motor/Electrical Requirement
220V single (1) phase / 30 amp breaker is required.
Weight
2,600 lbs
Key Features
- Published product configuration: Atlas® Platinum PVL15 ALI Certified 2 Post Lift 15,000 lbs When your shop demands heavy-duty lifting capacity for both long wheelbase trucks and passenger vehicles, the Atlas® Platinum PVL15 delivers professional-grade performance with ALI CERTIFIED reliability. This 15,000 lb capacity commercial overhead two-post lift
- Exact manufacturer model or part number: AP-PVL15
- Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
- 1 product manual or technical document linked below
- Condition: New
Product Specifications
| Brand | Atlas Platinum |
|---|---|
| SKU | AP-PVL15 |
| MPN / Model | AP-PVL15 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 2 Post Lifts |
Before You Order
Confirm that model AP-PVL15, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
