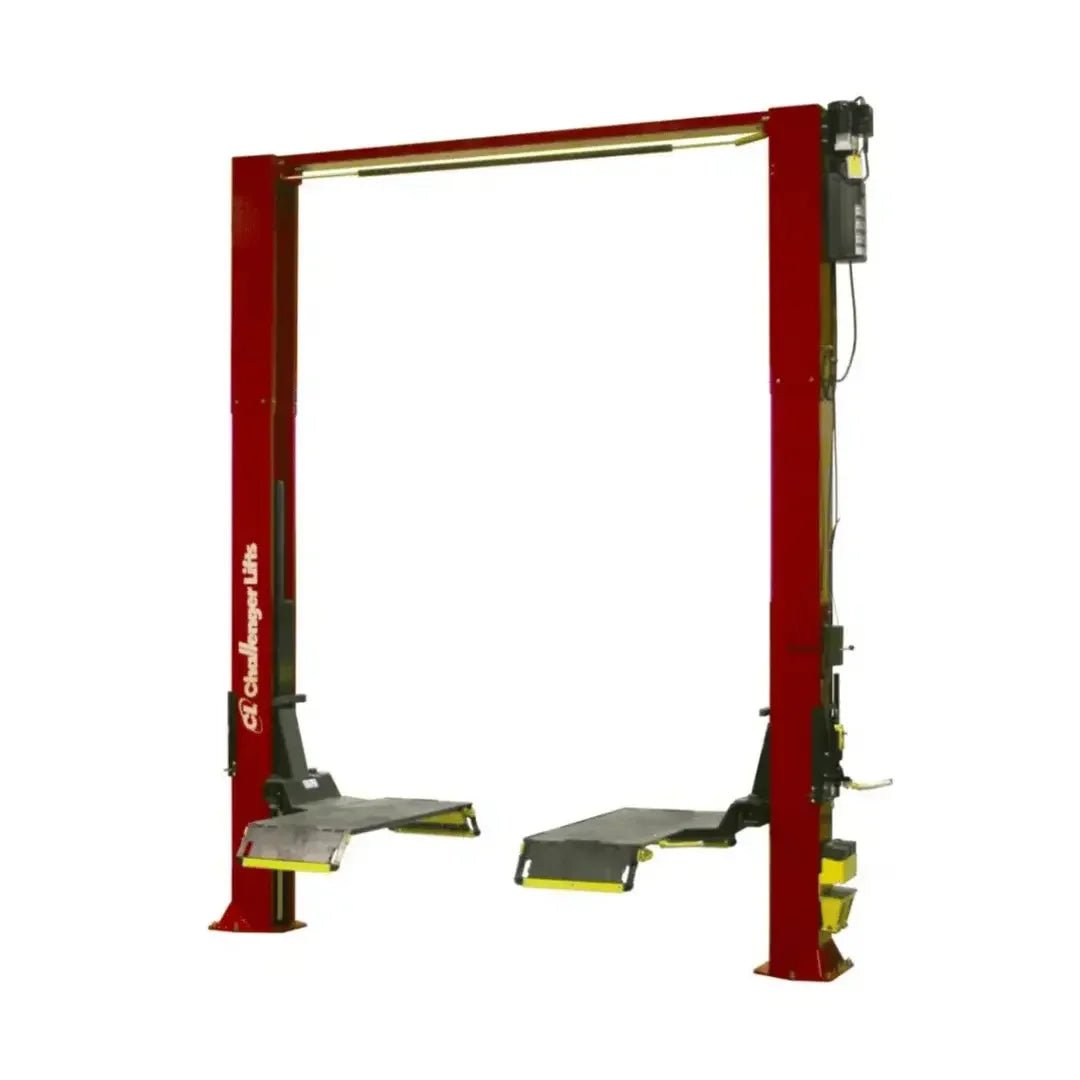

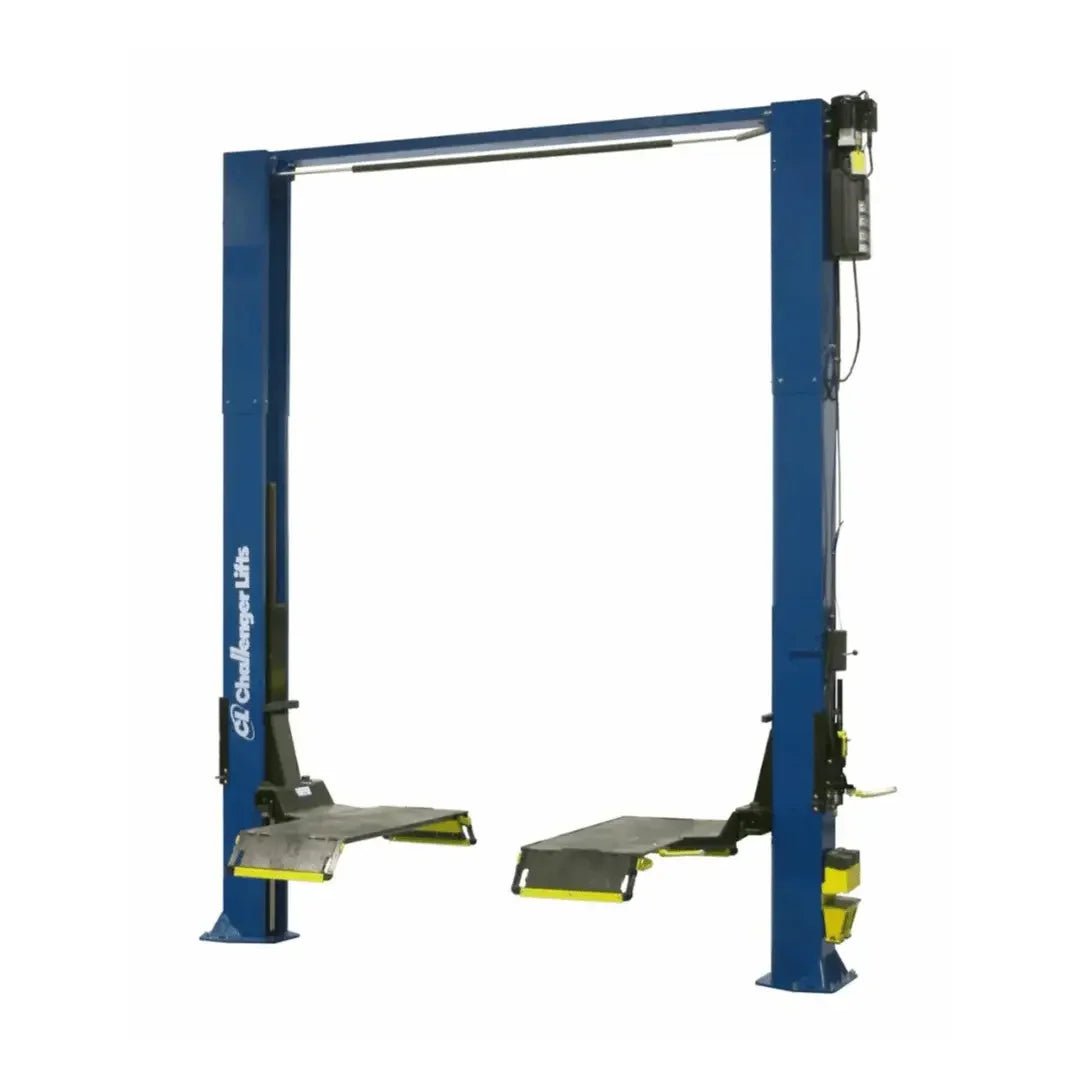

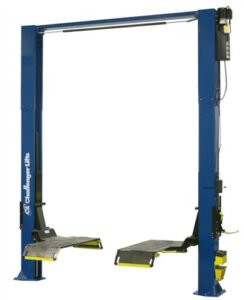

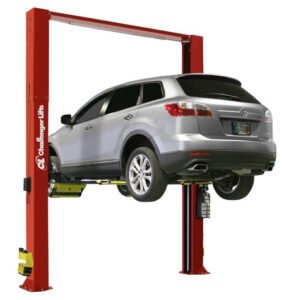

Challenger CL10A-XP9-DPC Series ALI Adjustable 9K 2 Post Lift w/Dual Pendant Power Controls

Product Overview

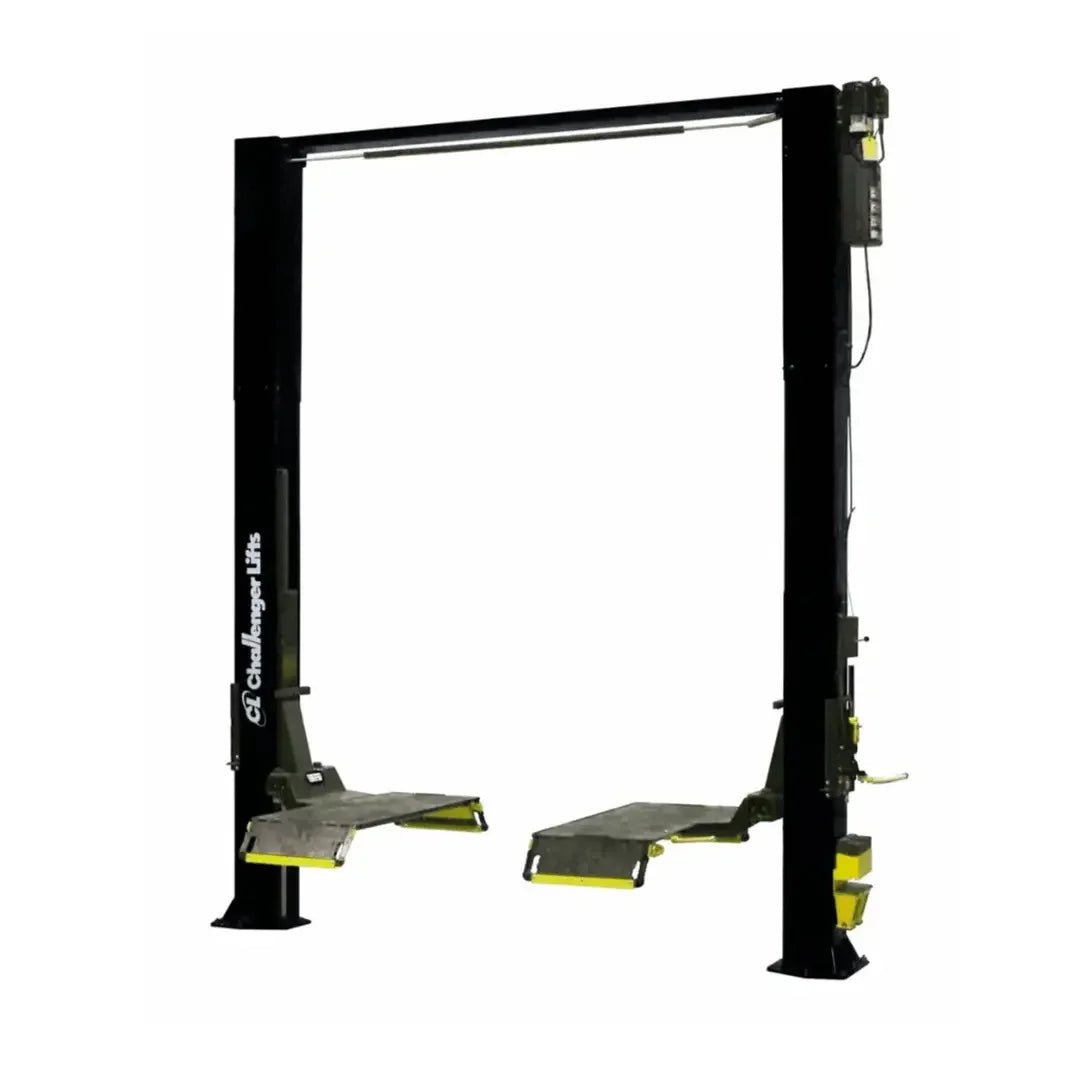

Challenger CL10A-XP9-DPC Series ALI Adjustable 9K 2 Post Lift w/Dual Pendant Power Controls

The Challenger CL10A-XP9-DPC Series is a game-changer for high-volume express service bays demanding speed, safety, and versatility. This ALI Certified 9,000 lb. capacity 2-post lift features an innovative drive-on express service pad designed for lightning-fast, accurate vehicle spotting on the first try—eliminating guesswork and boosting shop productivity. Engineered with dual pendant power controls that remain within easy reach, the CL10A-XP9-DPC offers technicians an unobstructed view of lifting points, allowing for precise micro-adjustments during vehicle positioning.

Built to adapt to your shop environment, the CL10A-XP9-DPC offers adjustable width configurations ranging from 11' 6.5" to 11' 11" and multiple column height options to fit 12-foot minimum ceiling heights or spaces requiring 2-foot or 3-foot column extensions. This flexibility, combined with the lift's proven durability, fully gusseted base plate design, and premium powder coat finish, makes the CL10A-XP9-DPC Series the ideal choice for service professionals seeking a reliable, long-lasting lifting solution that expands service capabilities and delivers the fastest return on investment.

Drive-On Express Pad: Built for Speed and Precision

The CL10A-XP9-DPC Series comes equipped with the CLXP9 Low Profile Express Service Pad, a feature that radically transforms vehicle positioning in busy express service environments. This drive-on style pad enables accurate, first-try spotting—boosting productivity and eliminating the frustration and wasted time that comes with repeated positioning attempts.

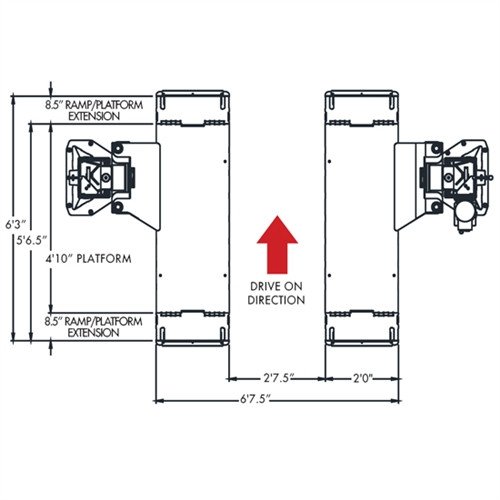

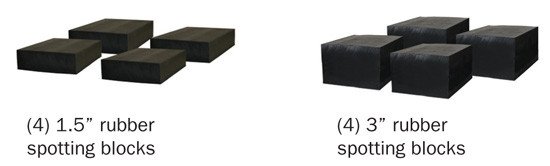

Each CLXP9 drive-on pad system includes (4) 1.5-inch rubber spotting blocks, (4) 3-inch rubber spotting blocks, and (2) spotting block storage caddies for organized, efficient tool management. The 2.25-inch platform height and 24-inch platform width provide stable, low-profile contact points, while platform length options of 58", 66.5", or 75" accommodate a wide range of vehicle wheelbases.

With a 31.5-inch width between platforms and a generous 90-inch drive-thru clearance, the CL10A-XP9-DPC gives technicians ample working space under and around the vehicle. This drive-on design is purpose-built to meet the demands of modern express service bays, where every second counts.

Dual Pendant Power Controls: Maximum Operator Convenience

The dual pendant power control system on the CL10A-XP9-DPC is engineered to keep technicians in command at all times. With control pendants positioned at both columns, operators always have easy access to lift functions, even during critical spotting maneuvers.

• Always Within Reach: Dual pendant controls remain accessible when small spotting adjustments matter most, expediting vehicle positioning by providing an unobstructed view to lifting points.

• OSHA Compliant Safety: Keyed lockout safety button locks out power to the lift, meeting OSHA compliance standards and preventing unauthorized use.

• Up Power Button: Raises the lift smoothly and reliably.

• Down Power Button / Dual Single-Point Mechanical Lock Release: Lowers the lift from either column with the convenience of a dual single-point mechanical lock release system, providing unmatched operator flexibility and safety.

This intuitive, dual-point control architecture allows technicians to operate the lift from the most convenient position, reducing downtime and enhancing workflow efficiency in high-volume service environments.

Premium Engineering and Durability Features

Challenger didn't cut corners when designing the CL10A-XP9-DPC. This lift is built to withstand the rigors of daily shop use, with heavy-duty components engineered for long-term reliability:

• Oversized 5" Diameter Pulley and Heavy-Duty 5/16" Cable: Reduces stress on the equalization system and significantly increases cable life, minimizing maintenance costs.

• 48" Elongated Carriage Design: Increases lift life and provides superior load distribution for enhanced stability.

• Fully Gusseted Base Plate Design: Increases column rigidity and structural integrity, ensuring a solid, stable lifting platform.

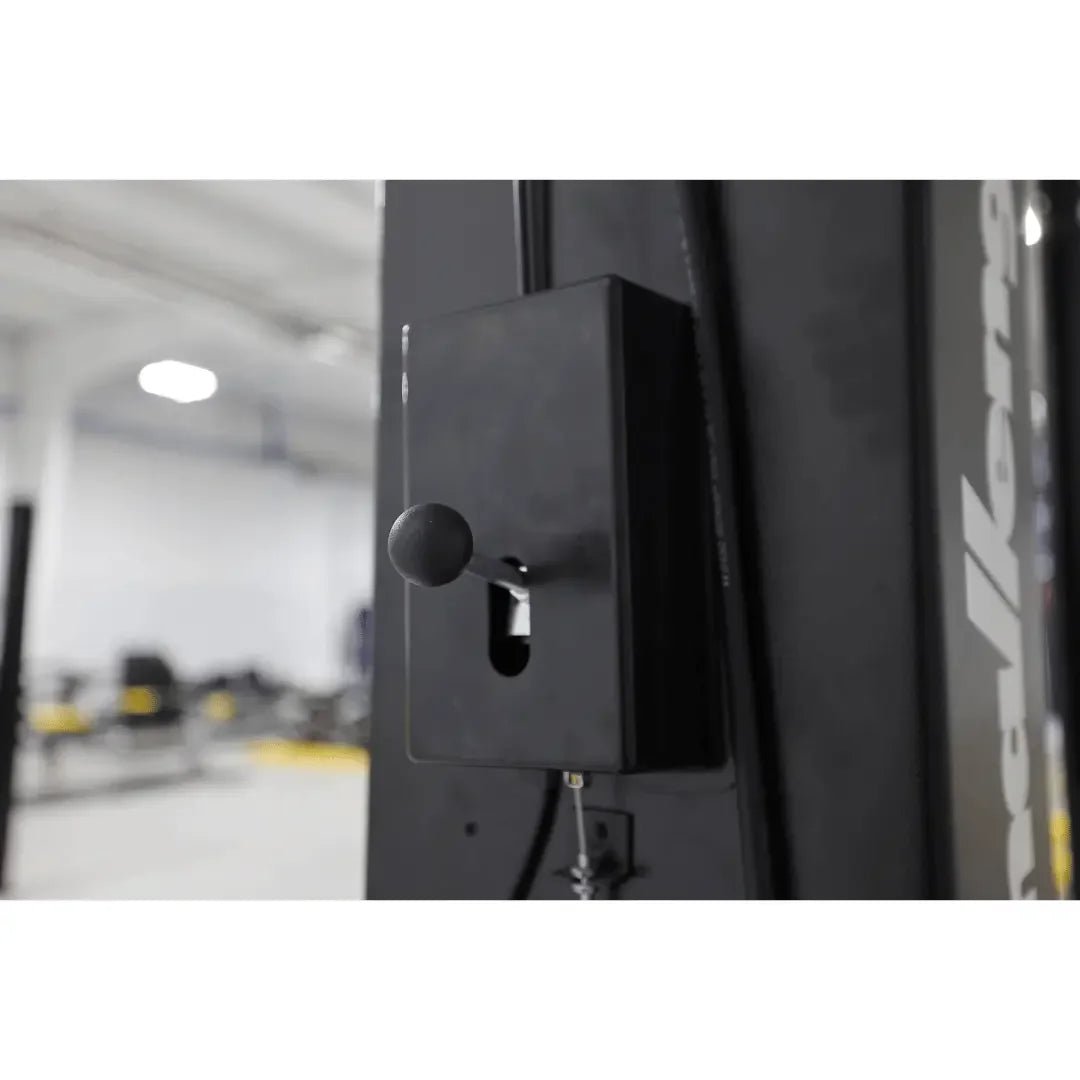

• Pulley-Less Jacketed Single-Point Lock Release System: Smoother, easier operation with longer system life and reduced wear.

• Standard Dual Integrated Rubber Door Guards: Protect vehicle panels from inadvertent damage during positioning and service.

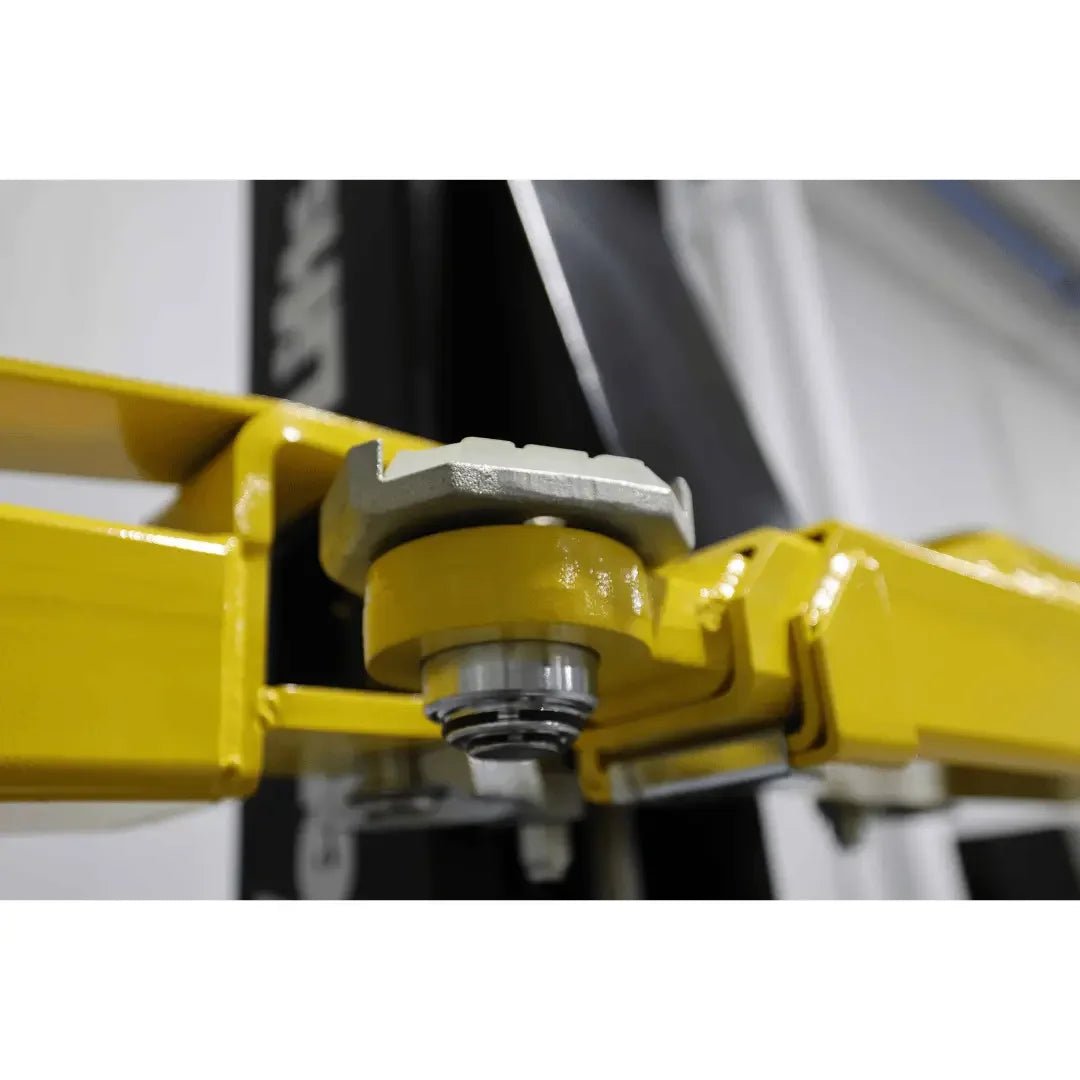

• Plated Arm Restraints and Arm Pins: Inhibit rust and provide long-lasting durability even in demanding shop environments.

• Premium Powder Coat Finish: Delivers long-lasting durability and corrosion resistance, keeping the lift looking and performing like new for years.

• Padded Overhead Shut-Off System: Prevents vehicle damage by gently stopping the lift before contact with the vehicle's undercarriage.

Every detail of the CL10A-XP9-DPC reflects Challenger's commitment to quality and longevity, from the robust structural components to the user-friendly control systems.

Key Highlights: What Sets the CL10A-XP9-DPC Apart

• 9,000 lb. Lift Capacity Handles a wide range of passenger vehicles, light trucks, and SUVs with confidence.

• Drive-On Express Pad Configuration Speeds up vehicle spotting for express service bays, reducing technician frustration and maximizing throughput.

• 74-1/8" (1908mm) Rise Height Provides ample working clearance for undercarriage access and service tasks.

• Adjustable Width from 11' 6.5" to 11' 11" Three width settings accommodate varying vehicle sizes and shop configurations.

• 12-Foot Minimum Ceiling Height Compatibility Standard model fits typical shop spaces, with optional 2-foot or 3-foot column extensions available for taller bays.

• Quick Cycle DPC: 24s Rise Time (est.) / Standard DPC: 38s Fast lifting speeds keep service moving efficiently.

• ALI Certified Validated by the Automotive Lift Institute for safety and performance, giving you and your customers peace of mind.

CL10A-XP9-DPC Series Model Options

Challenger offers three configurations in the CL10A-XP9-DPC Series to suit different ceiling heights and shop layouts:

• CL10A-XP9-DPC Column Height: 11' 2" or 11' 8" (standard model for 12-foot ceilings)

• CL10A-XP9-2-DPC 2ft Column Extension, Column Height: 13' 2" or 13' 8"

• CL10A-XP9-3-DPC 3ft Column Extension, Column Height: 14' 2" or 14' 8"

This series supersedes the previous CL10-XP9-DPC Series.

Watch the Challenger CL10A-XP9-DPC in Action

See for yourself how the Challenger CL10A-XP9-DPC Series delivers unmatched speed, precision, and convenience for express service bay operations:

Service Bay and Electrical Requirements

Ensure your shop is ready for installation by reviewing the service bay specifications for the CL10A-XP9-DPC Series:

• Minimum Ceiling Height: 12 feet

• Required Bay Width: 13' 3" or 13' 9" (depending on model configuration)

• Required Bay Depth: 14' 3" or 14' 9"

• Motor (Quick Cycle DPC): 3HP, Single Phase, 60Hz, 208/230V

• Motor (Standard DPC): 2HP, Single Phase, 60Hz, 208/230V

For detailed bay layout dimensions and installation guidance, refer to the downloadable PDF diagram below and the installation manual linked at the top of this page.

Made in the USA with Pride

The Challenger CL10A-XP9-DPC Series is proudly manufactured in the United States, reflecting Challenger's commitment to American craftsmanship, quality control, and supporting domestic manufacturing. When you invest in this lift, you're supporting American jobs and getting a product built to the highest standards.

Product Features

• 9,000 lb. lift capacity

• Drive-on style pad aids in quick vehicle spotting for express bays

• Dual Pendant Power Controls

• Oversized 5" diameter pulley and heavy duty 5/16" cable reduces stress on equalization system and increases cable life

• 48" elongated carriage design increases lift life

• Three settings for width adjustment, from 11' 6.5" to 12' 6.5"

• Adjustable Width 11'6-1/2" – 11'11"

• Standard model fits 12 foot ceiling height. Additional 2 foot or 3 foot extensions available

• Padded overhead shut off system prevents vehicle damage

• Fully gusseted base plate design increases column rigidity

• Pulley-less jacketed single-point lock release system makes for smoother, easier operation and longer life

• Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage

• Plated arm restraints and arm pins inhibit rust and provide long-lasting durability

• Premium powder coat finish provides long-lasting durability

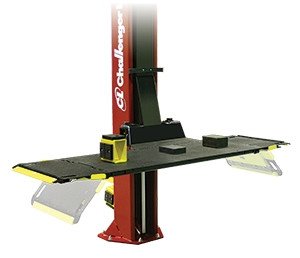

CLXP9 Low Profile Express Service Pad

• 9,000 Capacity

• Includes

• (4) 1.5 in. Rubber spotting blocks

• (4) 3 in. Rubber spotting blocks

• (2) Spotting block storage caddies

CL10A-XP9-DPC Series Available

• CL10A-XP9-DPC – Column Height 11' 2" or 11' 8"

• CL10A-XP9-2-DPC – 2ft Column Extension Height 13' 2" or 13' 8"

• CL10A-XP9-3-DPC 3ft Column Extension Height 14' 2" or 14' 8"

Supersedes CL10-XP9-DPC Series

Product Specifications

Model

CL10A-XP9-DPC
CL10A-XP9-2-DPC
CL10A-XP9-3-DPC

Lifting Configuration

Drive-on Express Pad

Lift Capacity*

9,000 lbs.

Rise Height

74-1/8" (1908mm)

Column Height

11' 2" or 11' 8"

13' 2" or 13' 8"

14' 2" or 14' 8"

Max. Extended Cylinder Height

11' 11"

Adjustable Width Overall

11'6-1/2" – 11'11"

Drive-Thru Clearance

90"

Floor to Overhead Switch

10' 8 1/2" or 11' 2-1/2"

12' 8 1/2" or 13' 2-1/2"

13' 8 1/2" or 14' 2-1/2"

Platform Height

2.25"

Platform Width

24"

Platform Length

58" / 66.5" / 75"

Width Between Platform

31.5"

Low Lock Height

12" Net Rise

Rise Time

QuickCycle™ DPC: 24s (est.) / Standard DPC: 38s

Service Bay Specifications

Height

12' Minimum

Width

13'- 3" or 13'- 9" Required

Depth

14'- 3' or 14'- 9" Required

Electrical

Motor

Quick Cycle DPC: 3HP, Single Phase, 60Hz, 208/230V / Standard DPC: 2HP, Single Phase, 60Hz, 208/230V

Ali Certified

Key Features

• Published product configuration: Challenger CL10A-XP9-DPC Series ALI Adjustable 9K 2 Post Lift w/Dual Pendant Power Controls The Challenger CL10A-XP9-DPC Series is a game-changer for high-volume express service bays demanding speed, safety, and versatility. This ALI Certified 9,000 lb. capacity 2-post lift features an innovative drive-on express
• Exact manufacturer model or part number: CL10A-XP9-DPC-V001
• Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
• Condition: New

Product Specifications
