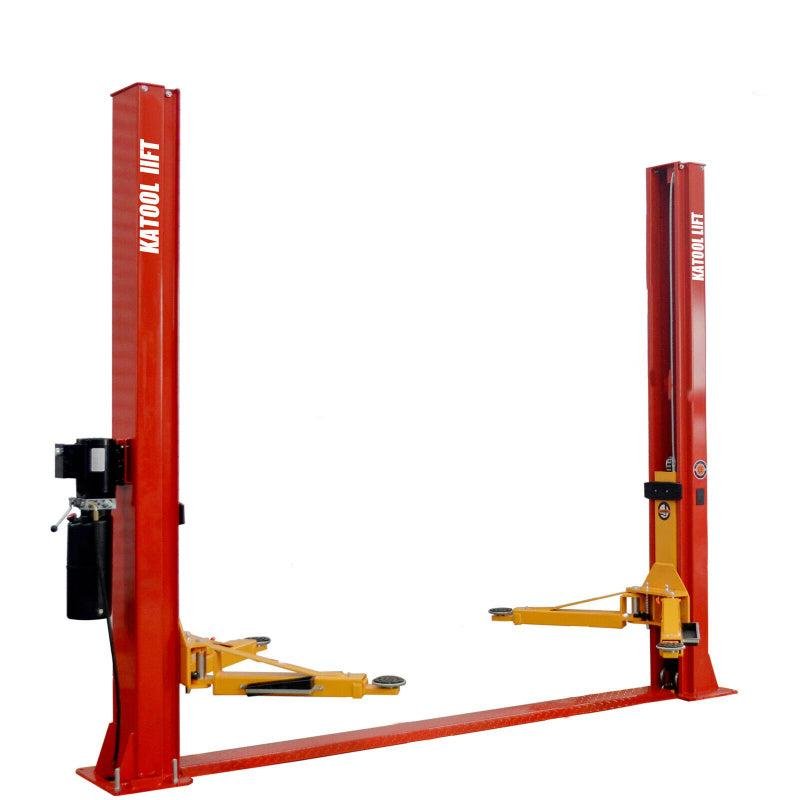

Katool KT-H100 Symmetric 2 Post Floor Plate Car Lift 10,000 lbs – Red
The Katool KT-H100 is a professional-grade 10,000 lbs capacity symmetric two-post car lift engineered for automotive shops, garages, and serious enthusiasts who demand reliable performance and CE approved safety standards. Featuring a base plate floor design, dual hydraulic chain-drive cylinders, and a striking red finish, the KT-H100 combines robust construction with versatile functionality to handle a wide range of vehicles with confidence.
This lift has been rigorously tested to meet 115% dynamic loading capacity standards and 150% static loading capacity, ensuring you can work safely under vehicles day after day. The symmetric arm configuration with 2-stage telescoping arms provides exceptional flexibility, with front and rear arm reach adjustable from 30.75" to 50.5" to accommodate various wheelbases and vehicle types. With a maximum lifting height of 70.75 inches and a generous 94.5-inch drive-thru clearance, you'll have ample working space for maintenance, repairs, and inspections.
Why Choose the KT-H100?
- 10,000 lbs Lifting Capacity Handle sedans, trucks, SUVs, and light commercial vehicles with ease
- CE Certified Safety Rigorously tested to 115% dynamic and 150% static load standards for peace of mind
- Versatile Arm Configuration Symmetric 2-stage arms extend from 30.75" to 50.5" for maximum vehicle compatibility
- Floor Plate Design Base plate construction provides stability and simplified installation compared to buried-post systems
- Dual Safety Features Manual safety release accessible from both sides plus rubber pad door opening protection and feet-protection guardrails
Advanced Engineering & Construction

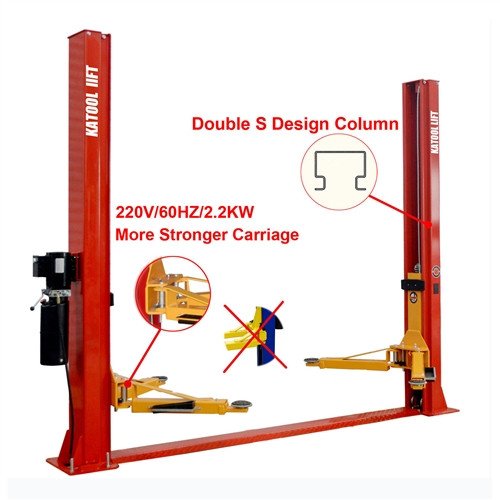

The KT-H100 is powered by a top-level hydraulic system with dual hydraulic chain-drive cylinders that deliver smooth, synchronized lifting action. The standard 220V/60Hz/1Ph motor (2.2KW) provides reliable power, with 110V operation available as an option. The lift features a compact minimum height of just 4.25 inches, allowing you to get under low-profile vehicles, while the overall height of 110.25 inches fits comfortably in most standard garage spaces.
Safety is paramount with manual safety release controls conveniently located on both sides of the lift, rubber pad door opening protection to prevent vehicle damage, and feet-protection safety guardrails that double as a practical tool storage box. The lift includes extension support adapter sets of +30mm and +120mm, giving you additional height options when working with lifted vehicles or larger tires.
Key Highlights at a Glance
- Max Lifting Height: 70.75" – plenty of clearance for undercarriage work
- Drive-Thru Clearance: 94.5" – easy vehicle positioning and access
- Column Spacing: Inside columns at 110.25", outside columns at 128"
- Overall Width: 142.25" fits standard two-car garage bays
- Net Weight: 1,256 lbs – substantial construction without excessive weight
What's Included
Your KT-H100 lift comes complete with a set of extension support adapters (+30mm and +120mm) to accommodate various vehicle configurations right out of the box. The lift also features integrated feet-protection safety guardrails with a tool storage box, keeping your workspace organized and safe.
Important Installation Requirements
⚠️ Critical Concrete Requirements:
Concrete thickness must be at least 5.9" (150mm) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.
Need Help Understanding Two-Post Lift Weight Capacities?
Learn how to properly assess vehicle weight and lifting points to maximize safety.
Technical Specifications Diagram
Product Features
- 10,000lbs lifting capacity
- Red color
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
- Manual safety release from two sides

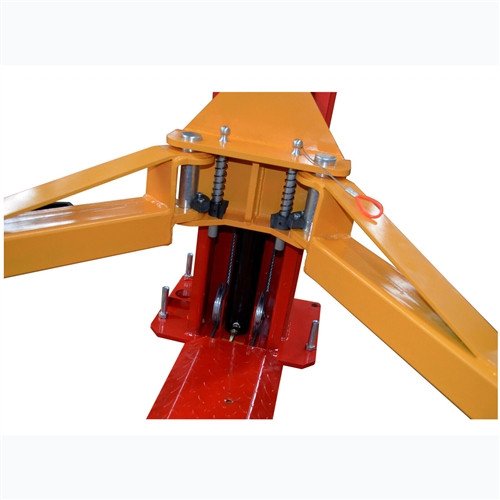

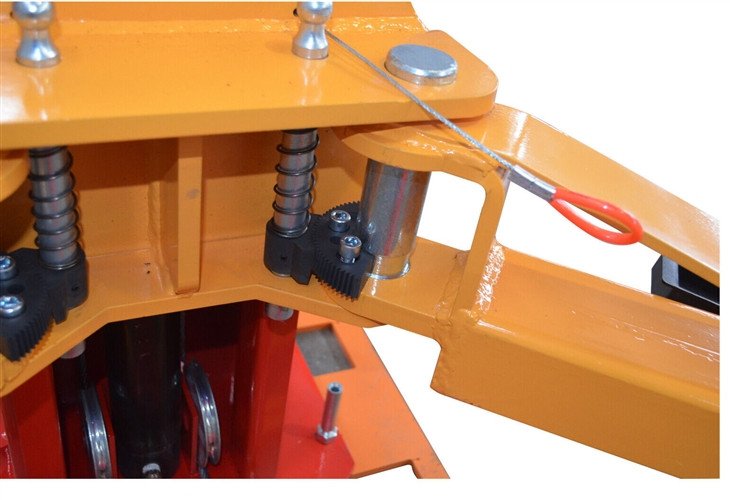

- Symmetric arm

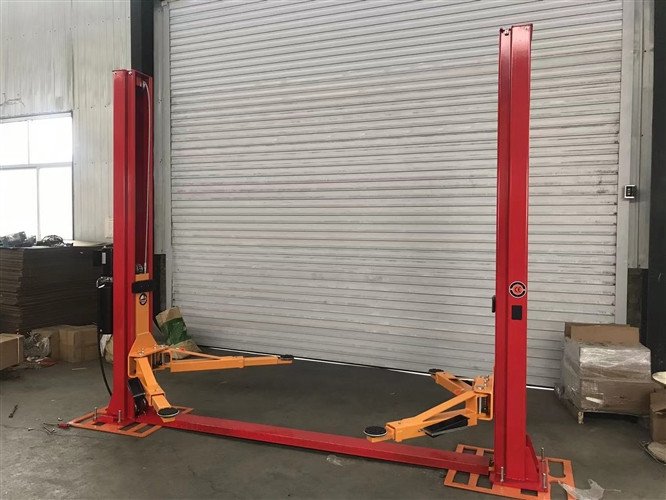

- Base plate design
- Dual Hydraulic Chain-Drive Cylinders
- Rubber pad door opening protection

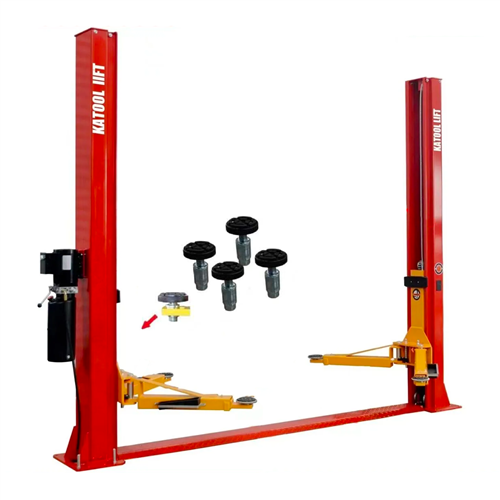

- Comes with extension support adaptor sets of +30mm and +120mm
- Feet-protection safety guardrails with tools box
- Top-level hydraulic system with 220V/60HZ/1PH and 110V/60HZ/1PH (Optional)
Includes
- Set of Extension Support Adapters
Product Specifications
Specifications
KT-H100
Lifting Capacity
10,000 lbs.
Max. Lifting Height
70.75" / 1800mm
Min. Height
4.25" / 110mm
Height Overall
110.25" / 2800mm
Width Overall
142.25" / 3614mm
Outside Column
128" / 3250mm
Inside Column
110.25" / 2800mm
Drive-Thru Clearance
94.5" / 2400mm
Front Arm Reach (Max)
50.5" / 1280mm (2 stage)
Front Arm Reach (Min)
30.75" / 780mm (2 stage)
Rear Arm Reach (Max)
50.5" / 1280mm (2 stage)
Rear Arm Reach (Min)
30.75" / 780mm (2 stage)
Motor
220VAC / 60HZ / 1PH / 2.2KW
Net Weight
1,256 lbs / 570KG
*Concrete thickness must be at least 5.9" (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
Key Features
- Published product configuration: Katool KT-H100 Symmetric 2 Post Floor Plate Car Lift 10,000 lbs – Red The Katool KT-H100 is a professional-grade 10,000 lbs capacity symmetric two-post car lift engineered for automotive shops, garages, and serious enthusiasts who demand reliable performance and CE approved safety standards. Featuring a base plate
- Exact manufacturer model or part number: KT-H100-V001
- Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
- 1 product manual or technical document linked below
- Condition: New
Product Specifications
| Brand | Katool |
|---|---|
| SKU | KT-H100-V001 |
| MPN / Model | KT-H100-V001 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 2 Post Lifts |
Before You Order
Confirm that model KT-H100-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
