Atlas® 12AWFSL Commercial Grade Alignment Scissor Lift 12,000 lbs w/Wheels-Free System
Important Information! Read To Avoid Damaging Your Lift

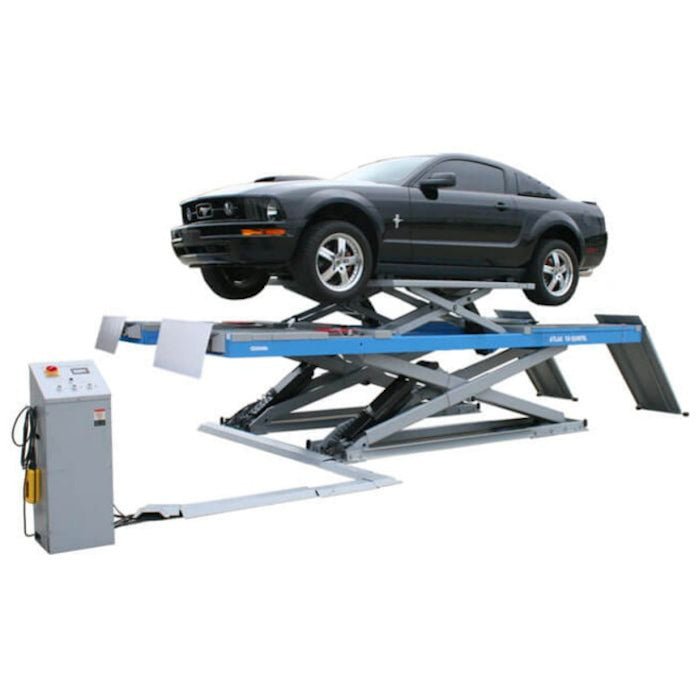

The Atlas® 12AWFSL represents the pinnacle of professional alignment technology, combining 12,000 lb. capacity with an innovative Wheels-Free System for maximum versatility in your shop. This commercial-grade scissor lift delivers the precision, build quality, and performance of Italian engineering with exceptional value that other big-name brands simply can't match. With over seven feet of lifting height, 19 locking positions, and the flexibility to be surface or flush mounted, the 12AWFSL is engineered for shops that demand accuracy, reliability, and the ability to handle everything from compact cars to full-size one-ton dual rear wheel pickup trucks.
Proven International Design with Unmatched Value
The Atlas® 12AWFSL has been in production for several years and hundreds of these lifts have been sold throughout the world. Atlas® partnered with one of the most prestigious Italian lift manufacturers to develop this lift in a joint venture that combines superior European engineering and design with efficient manufacturing. The result is an alignment lift that equals or exceeds similar big-name lift brands costing two and three times as much money.

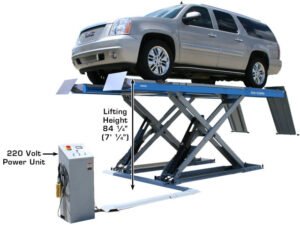

The Atlas® alignment lift boasts a lifting height of over seven feet (84 1/4") so that it may be floor mounted or recessed if you decide on a flush mount installation. The full frame under the scissor lift provides maximum stability and rock-solid performance during alignment procedures. Whether you choose to surface mount or flush mount, this lift delivers the precision and confidence your technicians need.
Installation Flexibility: Surface or Flush Mount
All Atlas® alignment scissor lifts can be surface mounted or flush mounted to suit your shop layout. Each lift comes with approach ramps for floor mounted applications, or an optional set of ramps if you decide to flush mount the lift. Check the technical specifications to better understand how the extra high lifting height allows the Atlas® 12K alignment scissor to be flush mounted and still offer plenty of room under the runways to properly access the underside of the vehicle.
The extra long 53" approach ramps make it easy to load low riding vehicles without scraping. With a lowered height of just 11 1/2", the 12AWFSL accommodates lowered and performance vehicles with ease. Whether you're mounting this lift on the surface or recessing it flush, you get a professional installation that maximizes bay space and technician access.
Innovative Wheels-Free System

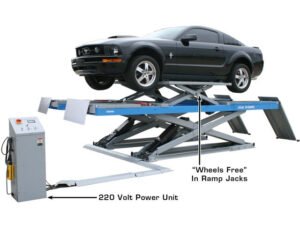

This lift features a wheels-free runway jack system that sets it apart from standard alignment lifts. The wheels-free system has the same style air-actuated lock system as the Atlas 12ASL. When fully extended, the wheels-free system elevates to over 17 inches above the runway, providing a perfect quick lift solution for perimeter-framed or unibody vehicles. This innovative method allows technicians to quickly raise the vehicle for suspension inspections, brake work, or other undercarriage service without repositioning the car.
The wheels-free jack system is not designed to lift straight-framed vehicles, because most straight-framed vehicles have narrower lifting points than a unibody vehicle. However, for the vast majority of modern cars, crossovers, SUVs, and light trucks, this system delivers unparalleled convenience and speed.
The wheels-free system can be controlled from either the control panel or from a wired remote. This wired remote allows you to actuate the wheels-free system from many different positions around the scissor lift, giving your technicians flexibility and convenience during operation. The telescoping wheels-free lift platform can be extended for longer wheelbase vehicles. Standard heavy-duty rubber supports are used to prevent damage to the lifting surfaces of the vehicle.
Wheels-Free System extends over 17" for quick access to suspension and undercarriage
Optional RJ-6 Rolling Jack Integration

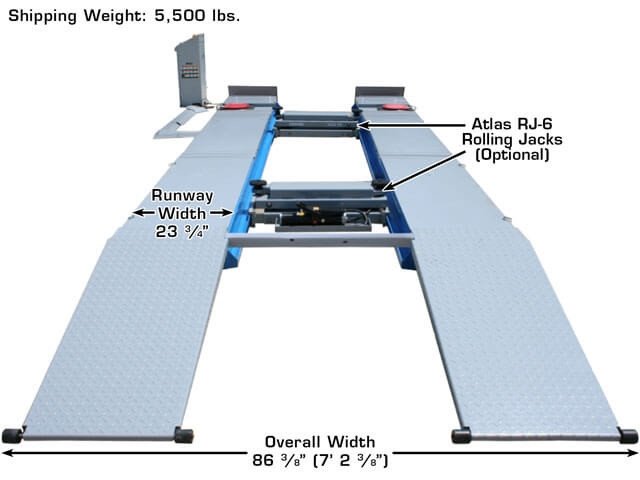

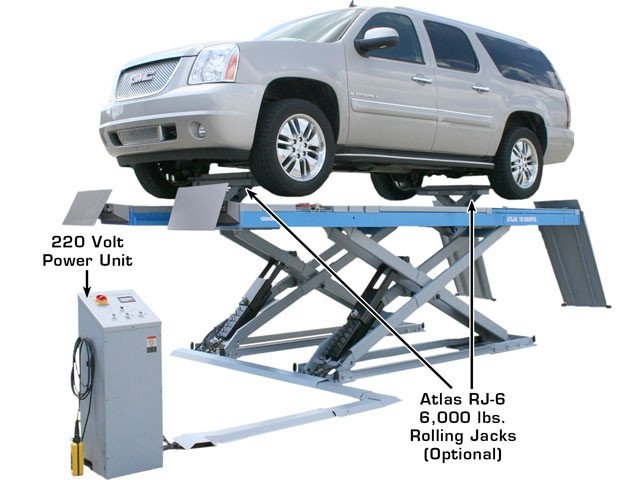

Once a vehicle is positioned on the Atlas® alignment scissor lift, the optional Atlas® RJ-6 rolling jack can lift the vehicle off of the runways to perform wheel service. The air-powered hydraulic Atlas® RJ-6 rolling jack has telescoping arms that extend over the runways to access lift points. These jacks have screw-out extensions or optional stack-on truck adapters for heavy-duty applications.
Welded rails on the inside of the runways are standard on all lifts, allowing you the option of incorporating the Atlas® RJ-6 rolling jack system on your Atlas® alignment scissor lift. This future-proofs your investment and gives you the flexibility to expand your service capabilities as your shop grows.
Precision Engineering and Heavy-Duty Construction
Quality workmanship, ease of operation, straightforward installation instructions, a durable powder coat finish, and the lowest prices in the industry make the Atlas® 12AWFSL 12,000 lb. alignment scissor lift the perfect choice for the demanding and discriminating shop owner.
The lift features heavy-duty construction and super-balanced design specifically engineered for wheel alignment work. Very precise platform leveling accuracy ensures your alignment readings are always spot-on. A mechanical safety lock with air-operated engagement and release provides confident security at any of the 19 locking positions. An emergency manual pump for lowering adds an extra layer of safety in case of power or air loss.

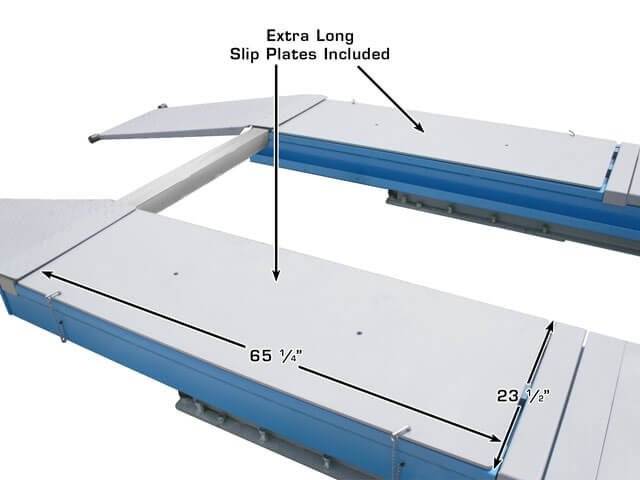

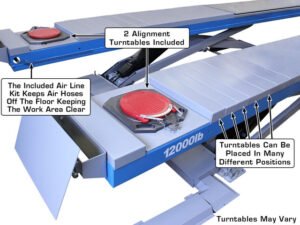

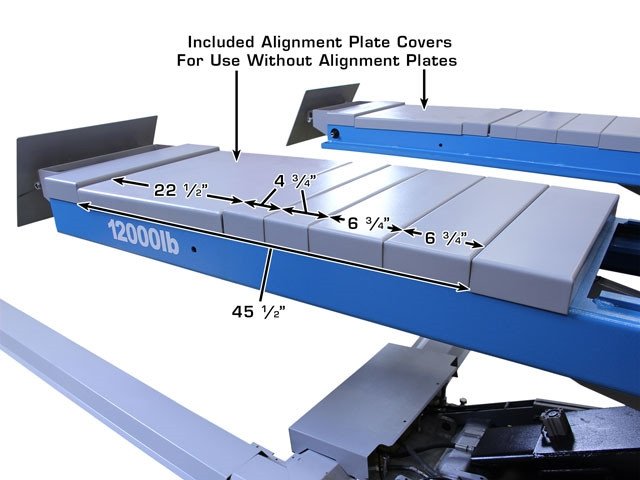

Extra-long slip plates allow for aligning of wheelbases from 172" down to 86", giving you the versatility to handle virtually any vehicle that rolls into your shop. Recessed turntables and turntable covers (turntable color may vary) are included, along with an overload valve, air line kit, and lowering speed control valve for smooth, controlled operation.
Maximize Your Bay Space
Worried about bay space? An Atlas Alignment System allows you to utilize a minimum amount of space and still be able to align the smallest foreign car all the way up to a one-ton dual rear wheel pickup truck. With an overall width of 86 3/8" and width between runways of 39", the 12AWFSL fits into compact bays while still providing ample clearance for technicians to work comfortably.
Key Highlights
- 12,000 lb. capacity handles everything from compact cars to one-ton trucks
- Wheels-Free System with 17" lift height and telescoping platforms for quick undercarriage access
- 84 1/4" lifting height with 19 locking positions for maximum flexibility
- Extra-long 53" approach ramps and low 11 1/2" profile for lowered vehicles
- Heavy-duty construction with full frame for superior stability and precision leveling
- Mechanical safety lock with air-operated engagement and emergency manual lowering pump
- Surface or flush mount installation flexibility to suit your shop layout
- Ready for optional RJ-6 rolling jack integration with welded runway rails
What's Included
- Overload valve for added safety
- Air line kit for pneumatic functions
- Lowering speed control valve for smooth, controlled descent
- Recessed turntables and turntable covers (turntable color may vary)
- 53" approach ramps for surface mount installation
- Wired remote control for wheels-free system operation
Product Features
- 12,000 lb. Capacity
- Wheels Free System
- Heavy Duty Construction and super- balanced lift for wheel alignment
- Can be surfaced mounted or flush mounted
- Very precise platform leveling accuracy
- Mechanical safety lock with air operated engagement and release
- Emergency manual pump for lowering
- Extra Long Slip Plates allow for aligning of wheelbases from 172" to 86"
- Shipping Dimensions: (2 boxes) 198" x 53" x 29 1/2"
- Shipping Weight: 5,500 lbs
Includes
- Overload valve
- Air Line Kit
- Lowering speed control valve
- Recessed turntables & turntable covers (Turntable Color May Vary)
Product Specifications
Specifications
12AWFSL
Capacity
12,000 lbs
Lifting Height (Surface Mount)
84 1/4" (7' 1/4")
"Wheels Free" in ramp jack system Height
17" (1' 5")
Lowered Height
11 1/2"
Overall Width
86 3/8" (7' 2 3/8")
Overall Length w/Approach Ramps
268" (22' 4")
Overall Length w/o Approach Ramps
197" (16' 5")
Approach Ramp Length
72" (6')
4-Wheel Alignment Wheelbase
168" Max / 90" Min
2-Wheel Alignment Wheelbase
172" Max / 86" Min
Runway Width Including Rail
23 3/4" (1' 11 3/4")
Width Between Runways
39 1/4"
Width Between Runway Rails
34 3/8"
Air Requirements
9-120 PSI
Motor
220V +/- 5% (209-231volts) 1 phase
30 amp breaker is required.
Oil Requirement
3-5 Gallons AW32/AW46 (Not Included)
Shipping Weight
6,000 lbs
Requires a minimum of 6" of concrete with a 3000 psi. rating
Key Features
- Published product configuration: Atlas® 12AWFSL Commercial Grade Alignment Scissor Lift 12,000 lbs w/Wheels-Free System Important Information! Read To Avoid Damaging Your Lift The Atlas® 12AWFSL represents the pinnacle of professional alignment technology, combining 12,000 lb. capacity with an innovative Wheels-Free System for maximum versatility in
- Exact manufacturer model or part number: ATTD-12AWFSL-N
- Cataloged for Lifts & Hoists: Car Lifts — Alignment Lifts
- 2 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | Atlas Automotive Equipment |
|---|---|
| SKU | ATTD-12AWFSL-N |
| MPN / Model | ATTD-12AWFSL-N |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Alignment Lifts |
Before You Order
Confirm that model ATTD-12AWFSL-N, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
