Product Overview

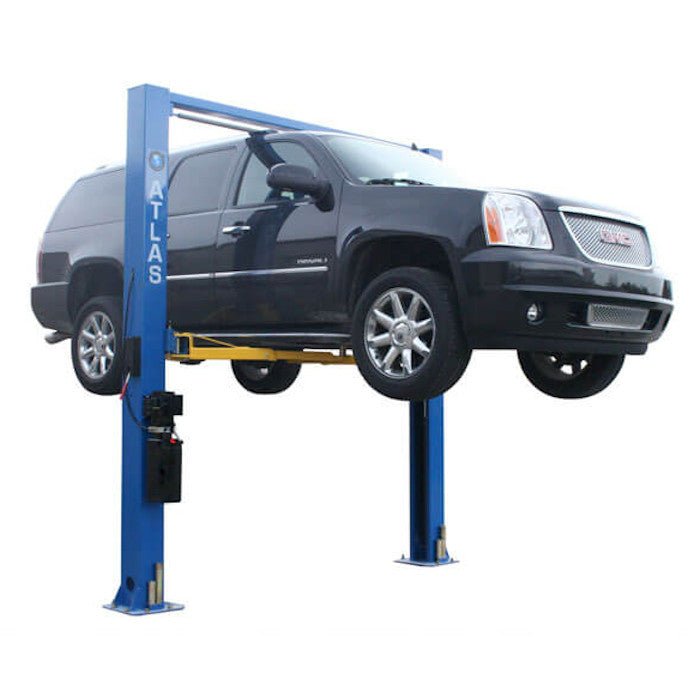

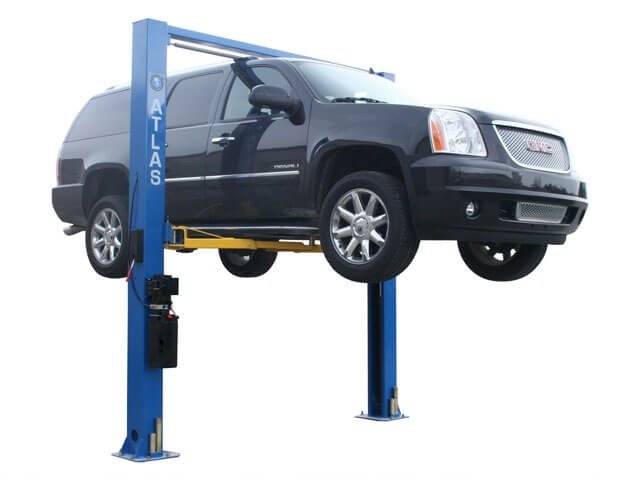

Atlas® 9OHSC-SS Symmetric 2 Post Lift 9,000 lbs
The Atlas® 9OHSC (SS) Symmetric 2 Post Lift is the perfect choice for smaller commercial repair facilities or dedicated "Mr. Homeowners" who demand the highest quality at the absolute best price. This is a TRUE 9,000 lb. capacity two post above ground lift that offers exceptional value without compromise. Engineered and manufactured to lift vehicles ranging from Smart Cars® to a Suburban®, the 9OHSC delivers professional-grade performance with an overhead, open-floor design that maximizes your workspace efficiency.
Built with a single-piece 11' 10" formed column and an extra-long carriage, the Atlas® 9OHSC provides maximum column and arm strength to safely lift and support heavy vehicles. The single-piece column design eliminates weak points and ensures years of trouble-free service, though it does require a minimum 12-foot ceiling height for installation. With dual hydraulic chain-drive cylinders, automatic arm restraints, and a convenient single-point lock release, this lift combines robust construction with user-friendly operation.
Key Highlights
- 9,000 lb. capacity handles a wide range of vehicles from compact cars to full-size SUVs and light trucks
- Overhead, open-floor design symmetric configuration maximizes workspace and drive-thru clearance of 100 ½"
- Single-piece column construction eliminates welds and weak points for maximum strength and reliability
- 3-stage front arms and 2-stage rear arms offers flexible positioning with a minimum arm height of just 4 inches
- Free 12-piece truck adapter set included – ready to lift trucks and larger vehicles right out of the box

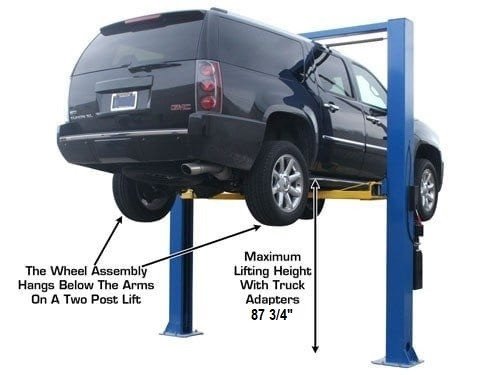

- Maximum lift height of 87 ¾" with adapters – provides ample clearance for working underneath vehicles
Professional Design Features
The Atlas® 9OHSC is packed with features that enhance safety, durability, and ease of use. The automatic arm restraints and single-point lock release system make operation straightforward and secure. Rubber guards on carriages protect vehicle frames and pinch welds during lifting. The dual hydraulic chain-drive cylinder system ensures smooth, balanced lifting every time.

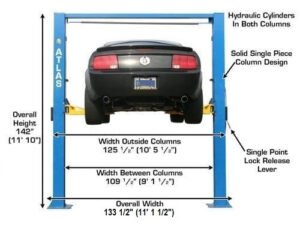

With an overall floor width of 133 ½" and an inside column clearance of 109 ½", this lift accommodates a wide variety of vehicle sizes. The 8" x 9 3/8" columns are constructed from 5mm thick steel, providing exceptional structural integrity. The lift ships at 1,430 lbs. and includes all necessary mounting hardware plus the 12-piece truck adapter set featuring adapters in 2", 3", and 6" heights.
What's Included
- Complete Atlas® 9OHSC-SS two post lift assembly
- Mounting hardware for installation
- 12-piece truck adapter set (4 each of 2", 3", and 6" adapters)
- Comprehensive installation manual
Installation Requirements:
Requires a minimum of 4" of concrete with 3000 psi rating. Ceiling height must be at least 12 feet to accommodate the single-piece column design. Oil not included – requires 3-5 gallons of AW32 or AW46 hydraulic oil.
Product Features
- 9,000 lb. Capacity
- Overhead, Open-Floor Lift
- Single-Piece Column Design

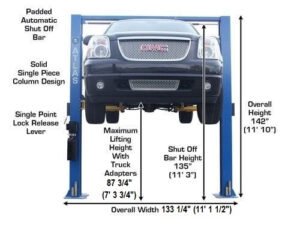

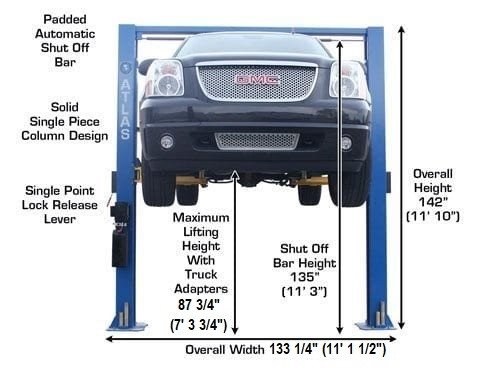

- Overall Height: 142" (11' 10")
- 3-Stage Front Arms/2-Stage Rear Arms

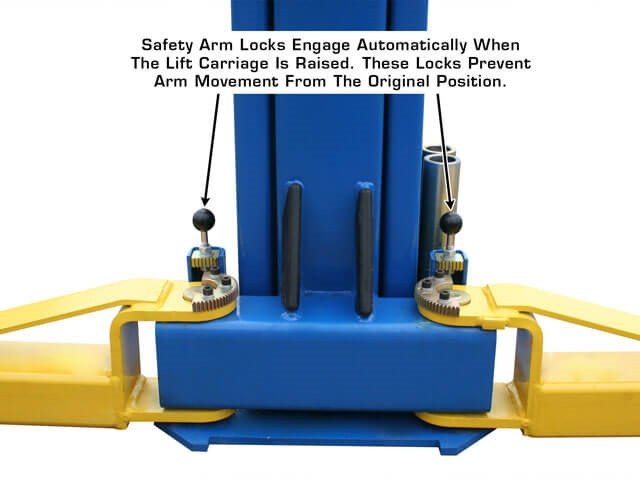

- Automatic Arm Restraints
- Single-Point Lock Release
- Rubber Guards on Carriages

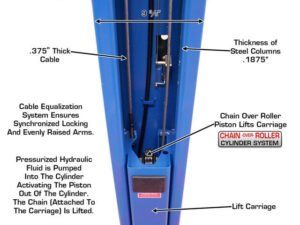

- Dual Hydraulic Chain-Drive Cylinders
- Free 12 Piece Truck Adapter Set
- Mounting Hardware Included
- Shipping Weight: 1,430 lbs.
Includes
- Mounting Hardware
- 12 Piece Truck Adapter Set
Product Specifications
Specifications
9OHSC (SS)
Capacity
9,000 lbs
Overall Height
142" (11' 10")
Overall Floor Width
133 ½" (11' 1 ½" )
Outside Column To Outside Column
125 ½" (10' 5 ½")

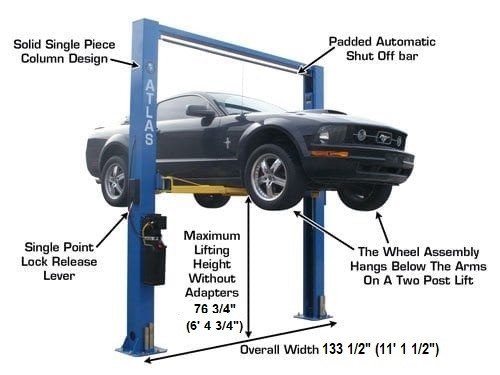

Maximum Lift Height w/o Adapters
76 3/4"
Maximum Lift Height w/Adapters
87 3/4"
Minimum Arm Height
4"

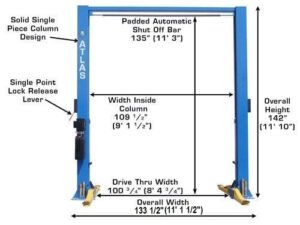

Inside Column
109 ½" (9' 1 ½")
Drive Thru
100 1/2” (8’ 4 1/2”)
Column Size
8" x 9 3/8"
Column Thickness of Steel
5mm
Base of Lift
16 ¾" x 17 ¾"
Adapter Heights
4 Each – 2", 3", 6"
Oil Requirement
3-5 Gallons AW32/AW46 (NOT Included)
Arm Hole/Adapter Peg Size
1.5"
Oil Requirement
3-5 Gallons AW32/AW46 (NOT Included)
Shipping Weight
1,430 lbs.
Requires a minimum of 4" of concrete with 3000 psi
Key Features
- Published product configuration: Atlas® 9OHSC-SS Symmetric 2 Post Lift 9,000 lbs The Atlas® 9OHSC (SS) Symmetric 2 Post Lift is the perfect choice for smaller commercial repair facilities or dedicated "Mr. Homeowners" who demand the highest quality at the absolute best price. This is a TRUE 9,000 lb. capacity two post above ground lift that offers
- Exact manufacturer model or part number: ATTD-9OHSC-SS
- Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
- 6 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | Atlas Automotive Equipment |
|---|---|
| SKU | ATTD-9OHSC-SS |
| MPN / Model | ATTD-9OHSC-SS |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 2 Post Lifts |
Before You Order
Confirm that model ATTD-9OHSC-SS, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Manuals & Technical Resources
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
