Product Overview

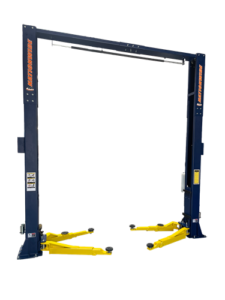

Nationwide NW-9KACD Asymmetric & Symmetric Two Post Car Lift 9,000 lbs
Professional-Grade Two-Post Lift for Modern Automotive Shops
The Nationwide NW-9KACD Two-Post Floor Plate Lift is a powerful and dependable solution for professional automotive shops, delivering a 9,000 lb. lifting capacity for cars, SUVs, and light-duty trucks. This lift combines rugged construction with advanced safety features to ensure long-lasting performance in high-volume service environments.
What sets the NW-9KACD apart is its remarkable flexibility. Featuring dual metric arms with both asymmetric and symmetric 3-stage front arms, this lift allows technicians to position vehicles precisely for optimal access to undercarriage components. The three-stage front arms extend from 25.5" to 44.25", while the rear arms reach from 39.5" to 57.5", accommodating everything from compact sedans to full-size trucks with ease.
Built with dual hydraulic chain-drive cylinders and automatic arm restraints, the NW-9KACD provides smooth, stable operation with every lift cycle. The direct drive cylinder attaches directly to the carriage for enhanced lift stability and long-term durability, ensuring your investment performs reliably for years to come.
Safety Systems That Protect Your Team and Your Vehicles
Safety is paramount in any professional shop. The Nationwide NW-9KACD is equipped with multiple layers of protection to give technicians confidence during every lift operation. A dual-point manual safety release gives operators precise control, while the ladder-style safety latch system engages in secure 3" increments starting at 16" from the ground for reliable protection during lifting.
The safety latch automatically re-engages when the lift ascends and must be manually disengaged to lower, adding an extra layer of operator safety. A padded shut-off bar provides added protection by preventing accidental overhead contact, while heavy-duty rubber padded door guards protect vehicle doors from scratches and dents during service—a detail your customers will appreciate.
Maximum Lifting Height: The NW-9KACD reaches 72" at standard height and extends to an impressive 77.75" with stack adapters, providing exceptional working clearance for technicians. Raising time is just 55 seconds, keeping your service bays efficient and productive.
Spacious Design for Maximum Shop Flexibility
The NW-9KACD is designed with generous clearances that accommodate a broad range of vehicles and make daily operations smoother. With 96" of drive-through clearance between arms and 115.75" between posts, you'll have no trouble maneuvering vehicles into position, even larger trucks and SUVs.
The lift's adjustable screw pads include stackable adapters ( 1.5" and 5" ) for customized lifting height at various contact points. The drop-in pad height adjusts from 4" to 10", giving technicians the flexibility to safely lift vehicles with different ground clearances and frame configurations. A complete set of drop-in height adapters is included with every lift.
Key Advantages at a Glance
- 9,000 lb. capacity handles a wide variety of vehicles from sedans to light-duty trucks
- Dual metric arms with asymmetric and symmetric positioning for flexible vehicle access
- Three-stage front arms extend from 25.5" to 44.25" for precise reach adjustment
- Direct drive cylinder design ensures lift stability and long-term reliability
- Powered by a 3 HP motor running on standard 220V / 1 phase power
- Fast 55-second rise time keeps your shop moving efficiently
- Stackable height adapters included for maximum versatility across vehicle types
Built for Durability, Backed by Manufacturer Support
The Nationwide NW-9KACD is built with heavy-duty materials and precision engineering to withstand the demands of a busy professional shop. Every component is designed for longevity, from the robust column height of 145.4" to 149.3" to the reinforced carriage system.
With a maximum load per arm of 2,250 lbs, the lift distributes weight evenly and safely. The total width (outside base plate) measures 139.5", providing a stable footprint without consuming excessive floor space. The overhead switch is positioned at 136.75" to 140.75" from the floor for convenient access.
This two-post lift is powered by a standard 220V/60Hz/1PH supply and backed by direct manufacturer support, ensuring confidence and peace of mind for professional technicians.
Important Installation Requirement:
Requires a minimum concrete thickness of 4.25" (108mm) at 3,000 PSI (207 bar). Improper installation may result in serious injury or damage. Please verify concrete specifications before installation.
WARNING: This product contains certain metals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to
Product Features
p>
Nationwide 9KACD
- Dual Metric Arms: Features both asymmetric and symmetric 3-stage front arms for flexible vehicle positioning
- Padded Shut-Off Bar: Provides added safety by preventing accidental overhead contact
- Adjustable Screw Pads: Includes stackable adapters (1.5" and 5") for customized lifting height
- Wide Drive-Through Clearance: 96" distance between arms for easy vehicle access
- Spacious Post Setup: 115.75" distance between posts accommodates a wide range of vehicles
- Maximum Lift Height: Reaches 77.75" with stack adapters for improved working clearance
- Direct Drive Cylinder: Cylinder attaches directly to the carriage for enhanced lift stability and durability
- Padded Door Guards: Protects vehicle doors from scratches and dents during service
Includes
- Set of Drop-In Height Adapters
WARNING: This product can contains certain metals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to
Product Specifications
Specifications
NW-9KACD
NW-10KACD
Capacity
9,000 lbs.
10,000 lbs.
Max Lifting Height
72"- (77.75" w/Adapters)
Column Height
145.4" / 149.3"
Total Width (outside base plate)
139 1/2"
Drive-Through Clearance
96"
Floor to Overhead Switch
136.75" / 140.75"
Front Arm Reach (Min/Max)
25.5" / 44.25" Three stage arm
Rear Arm Reach (Min/Max)
39.5" / 57.5"
Drop-in Pad Height
4" – 10"
Inside Column Width
115.75"
Motor / Voltage
3 HP / 220V / 1 phase
Rise
55 seconds
Max Load Per Arm
2250 lbs / 2500 lbs
Note: Requires a minimum concrete thickness of 4.25" (108mm) at 3,000 PSI (207 bar). Improper installation may result in serious injury or damage. Please verify concrete specs before installation.
Key Features
- Published product configuration: Nationwide NW-9KACD Asymmetric & Symmetric Two Post Car Lift 9,000 lbs Professional-Grade Two-Post Lift for Modern Automotive Shops The Nationwide NW-9KACD Two-Post Floor Plate Lift is a powerful and dependable solution for professional automotive shops, delivering a 9,000 lb. lifting capacity for cars, SUVs, and
- Exact manufacturer model or part number: NW-9KACD
- Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
- 1 product manual or technical document linked below
- Condition: New
Product Specifications
| Brand | Nationwide |
|---|---|
| SKU | NW-9KACD |
| MPN / Model | NW-9KACD |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 2 Post Lifts |
Before You Order
Confirm that model NW-9KACD, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
