Product Overview
Katool KT-AS110D Asymmetric Direct-Drive 2 Post Car Lift 11,000 lbs
Professional-Grade Performance at an Exceptional Value
The Katool KT-AS110D brings CE Approved and Certified performance to your garage or shop with an impressive 11,000 lbs lifting capacity. This asymmetric two-post lift features direct-drive cylinders for reliable, low-maintenance operation and a generous 70.75" maximum lifting height that handles everything from compact cars to full-size trucks and SUVs. Engineered with professional-grade safety standards, this lift has been tested to 150% static loading capacity and adopts the 115% dynamic loading capacity standard, ensuring it exceeds industry requirements for shop use.
Designed with asymmetric arms, the KT-AS110D positions the vehicle's center of gravity behind the columns, providing easier door access and enhanced clearance for working around the vehicle. The single point lock release system simplifies operation, while the overhead safety shutoff bar provides an additional layer of protection. With a 99.61" drive-thru clearance, you'll have ample room to maneuver vehicles safely into position. The lift operates on 220VAC / 60HZ / 1PH power (with 110V optional) and includes thoughtful features like rubber pad door opening protection and adjustable extended support adaptor sets that range from 3.94" to 6" for versatile vehicle compatibility.
Key Highlights
- 11,000 lbs lifting capacity handles a wide range of vehicles from sedans to light trucks
- Direct-drive cylinders proven reliability with fewer moving parts and less maintenance
- CE Approved and Certified tested to 150% static and 115% dynamic loading capacity standards

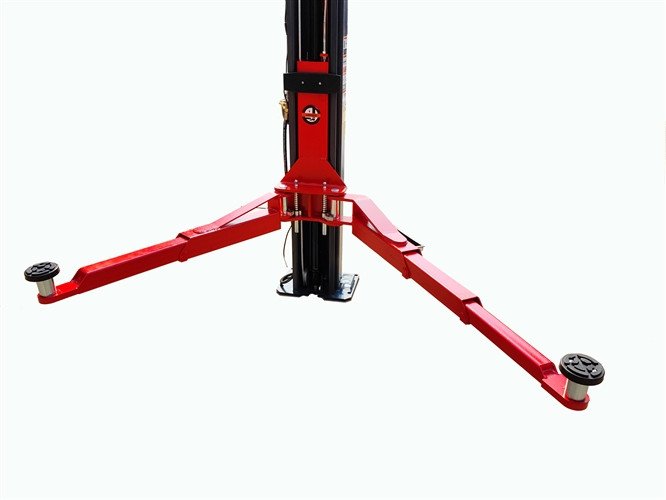

- Asymmetric arms optimized vehicle positioning for superior door access and work clearance
- Single point lock release and overhead safety shutoff bar convenient, safe operation
Important Concrete Requirements: This lift requires concrete that is at least 5.9" (150mm) thick with a 3000 PSI rating. Failure to install this lift on proper concrete could result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.
What's Included
Your Katool KT-AS110D comes complete with a set of extension support adapters to accommodate a variety of vehicle styles and lift points. The included adjustable extended support adaptor sets range from 3.94" to 6", ensuring compatibility with different undercarriage configurations and providing secure, stable support for every lift.
Additional Resources
Product Features
- 11000lbs (4990KG) lifting capacity
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested
- Single Point Lock Release
- Asymmetric arms
- Direct Drive Cylinders
- Rubber pad door opening protection
- Comes with adjustable extended support adaptor sets that range from 3.94" to 6"
- Overhead safety shutoff bar
- High-quality hydraulic system with 220V/60HZ/1PH or 110V/ 60HZ/ 1PH (Optional)
Includes
- Set of Extension Support Adapters
Product Specifications
Specifications
KT-AS110D
Lifting Capacity
11,000 lbs.
Max. Lifting Height
70.75" / 1800mm
Min. Height
3.74" / 95mm
Height Overall
141.25" / 3587mm
Width Overall
134.65" / 3420mm
Outside Column
120.4" / 3058mm
Inside Column
109.37" / 2778mm
Drive-Thru Clearance
99.61" / 2530mm
Motor
220VAC / 60HZ / 1PH
Net Weight
1,323 lbs / 660KG
*Concrete thickness must be at least 5.9" (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
Key Features
- Published product configuration: Katool KT-AS110D Asymmetric Direct-Drive 2 Post Car Lift 11,000 lbs Professional-Grade Performance at an Exceptional Value The Katool KT-AS110D brings CE Approved and Certified performance to your garage or shop with an impressive 11,000 lbs lifting capacity. This asymmetric two-post lift features direct-drive
- Exact manufacturer model or part number: KT-AS110D-V001
- Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
- 1 product manual or technical document linked below
- Condition: New
Product Specifications
| Brand | Katool |
|---|---|
| SKU | KT-AS110D-V001 |
| MPN / Model | KT-AS110D-V001 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 2 Post Lifts |
Before You Order
Confirm that model KT-AS110D-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
