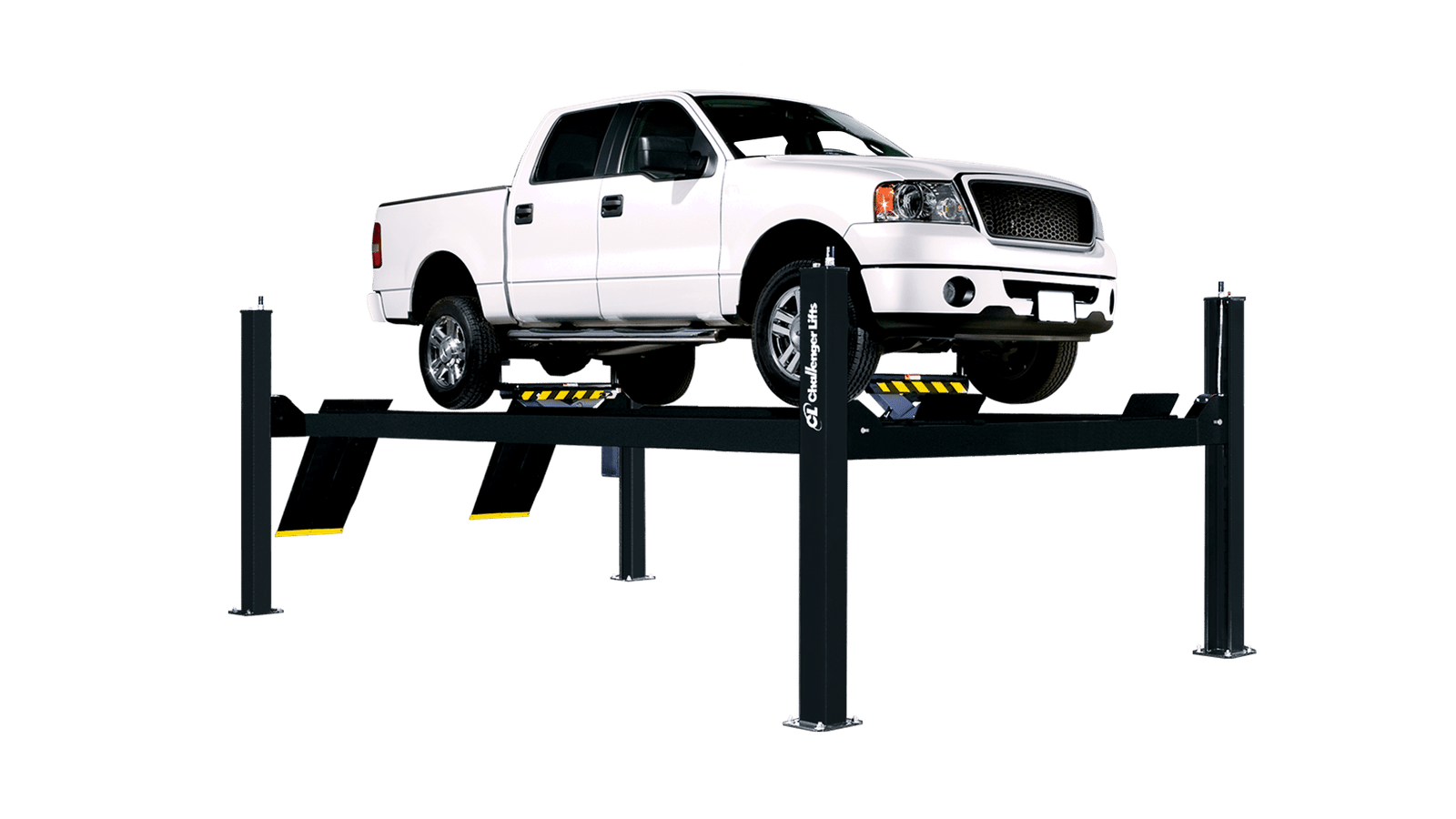

Challenger AR44018AR Medium-Duty 4-Post Alignment Lift Package 18,000 lb – New Black Color

Product Overview

Challenger AR44018AR Medium-Duty 4-Post Alignment Lift Package 18,000 lb – New Black Color

Supersedes 44018AR

The Challenger AR44018AR is the ultimate solution for automotive service facilities specializing in light and medium-duty vehicle alignments and general service work. This 18,000 lb. capacity four-post alignment lift package combines robust construction with precision alignment capabilities, making it ideal for shops that demand both versatility and reliability. With its new sleek black color finish, the AR44018AR not only performs exceptionally but looks professional in any bay.

Engineered with high tensile strength leaf chain and sealed roller bearings, this lift delivers maximum reliability and productivity while minimizing downtime. The heavy-duty cylinder provides optimum lifting power with minimal maintenance requirements, and the offset flared post column design ensures rigidity and stability even under maximum load conditions. Every aspect of the AR44018AR is designed to handle the demands of a high-volume service operation.

Complete Alignment Package with Professional-Grade Accessories

The AR44018AR four post alignment truck lift package comes fully equipped with everything you need to perform precision wheel alignments and comprehensive undercarriage service. This complete package includes two RJ9A 9,000 lb. capacity rolling jacks, stainless steel turning radius gauges (model 10500SS), and the 44AK18 internal airline kit for convenient dual rolling jack operation. No need to purchase accessories separately—this package is ready to deliver full alignment and service capabilities right out of the box.

With 22" wide runways, 17 level locking heights, and an impressive 4-wheel alignment range from 98" to 206", the AR44018AR accommodates a wide variety of vehicles. The lift supports a maximum 2-wheel alignment wheelbase of 220" and an overall maximum wheelbase of 236", making it suitable for everything from compact cars to full-size trucks and light commercial vehicles. The 83-3/8" rise height provides ample working clearance for comprehensive service procedures.

The included RJ9A Rolling Jacks feature air/hydraulic operation and come standard with four 3" stack adapters, providing easy access to brakes, suspension components, and wheels from underneath the lift. These rolling jacks are specifically designed to integrate seamlessly with the lift's built-in runway rail system, allowing for smooth positioning and secure operation. The adjustable width design and low vehicle drive-over clearance make these jacks exceptionally versatile for a wide range of service tasks.

The 10500SS Stainless Steel Turning Radius Gauges provide precision measurement for front wheel alignments, accurately measuring how many degrees the front wheels are turned left or right. These gauges are essential for measuring caster, camber, and toe-out on turns, ensuring your alignment work meets manufacturer specifications every time. The stainless steel construction ensures long-lasting durability even in demanding shop environments.

Key Performance Advantages

• Superior Lifting System: High tensile strength leaf chain and sealed roller bearings deliver maximum reliability and minimize maintenance requirements

• Single Point Lock Release: Allows technicians to disengage all column locks simultaneously for fast, efficient operation

• Diamond Plate Anti-Skid Runways and Ramps: Provide positive vehicle traction for safe loading and unloading

• Adjustable Runway Configuration: Accommodates tread widths of various medium-sized vehicles for maximum versatility (note: rolling jack applications require fixed runways)

• Built-In Runway Rail System: Provides integrated convenience for optional rolling jacks and oil drain pans

• Fast 60-Second Rise Time: Powered by a robust 3HP motor for efficient operation and maximum throughput

Perfect Fit for Your Shop

With an overall length of 25' 11-1/2" and an overall width of 11' 9-1/2", the AR44018AR is designed to fit efficiently into most service bays while maximizing vehicle capacity. The lift stands 8' 6-1/2" tall at full height, and the runways sit at 11-7/8" from the floor—providing easy vehicle drive-on access while maintaining substantial clearance for undercarriage work. The 122" inside column width and variable 36" / 54" runway spacing accommodate diverse wheel track widths.

The lift operates on standard single-phase 208v-230v power at 30 amps, making installation straightforward in most facilities. Optional three-phase electrical power is also available—simply specify your power requirements at the time of order to ensure your lift arrives configured for your shop's electrical system.

Watch the AR44018AR in Action

Included Package Components

RJ9A 9,000 lb Rolling Jack (Qty 2)

These professional-grade 9,000 lb. capacity rolling jacks feature air/hydraulic operation and come standard with four 3" stack adapters. Designed specifically for the AR44018AR, these jacks broaden your service revenue with easy access to brakes, suspension, and wheels from underneath the lift. Features include adjustable width for various vehicle configurations, low vehicle drive-over clearance, stackable height extensions with built-in storage rack, and a factory-installed and protected filter lubricator and regulator for reliable long-term performance.

10500SS Stainless Steel Turning Radius Gauges

Premium stainless steel turning radius gauges designed for the AR44018AR alignment lift. These precision instruments are used for front wheel alignments to measure how many degrees the front wheels are turned left or right. Commonly used when measuring caster, camber, and toe-out on turns for alignment-capable lifts. The durable stainless steel construction resists corrosion and wear, ensuring accurate measurements for years of professional use.

44AK18 Internal Airline Kit

This essential kit provides integrated air supply for dual rolling jack operation on the AR44018AR four-post lift. Eliminates the need for external air hoses across your shop floor, creating a cleaner, safer work environment while ensuring convenient air access exactly where you need it for efficient rolling jack operation.

Product Features

• Superior lifting system features high tensile strength leaf chain and sealed roller bearings for maximum reliability and productivity

• Heavy duty cylinder provides optimum lifting with minimum downtime and minimal maintenance

• Single point lock release allows techs to disengage all column locks simultaneously

• Diamond plate anti-skid runways and ramps for positive vehicle traction

• Adjustable runways to accommodate tread widths of a variety of medium sized transit vehicles (rolling jack application requires fixed runways)

• Built-in runway rail system provides convenience for optional rolling jacks & oil drain pan

Includes

RJ9A 9,000lb Rolling Jack
9,000 lb. capacity Rolling Jack for 44018AR. RJ9A rolling jack features air/hydraulic operation and comes standard with (4) 3" Stack Adapters for all 44018 four post automotive lifts. Broaden your service revenue with easy access to brakes and wheels from underneath four post lifts. 9,000 lb. capacity rolling jacks features adjustable width, low vehicle drive-over clearance, stackable height extensions with built-in storage rack and factory installed and protected filter lubricator and regular.

10500SS Stainless Steel Turning Radius Gauges
Stainless Steel turning radius gauges for 40series, 4P12series, AR40series and 44018AR four post car and truck lifts. Turning radius gauges are used for front wheel alignments to measure how many degrees the front wheels are turned left or right. They are commonly used when measuring caster, camber and toe-out on turns for alignment capable automotive lifts. General service four post automotive lifts can be turned into alignment capable four post lifts with a bolt on alignment kit (Part #40200-3DSS) which includes stainless steel turning radius gauges.

44AK18 Internal Airline Kit
Provides air for dual rolling jacks on the 44018 and 44018E four post lifts.

Product Specifications

Model Number

44018
44018E
44018AR

Lift Capacity

18,000 lbs.

A Length Overall

21' 4"

24' 4"

25' 11-1/2"

B Width Overall

11' 6-1/8"

11' 9-1/2"

C Inside of Columns

121"

122"

D Between Columns

204"

240"

204"

E Height Overall

8' 6-1/2"

F Height of Runways

7-1/4"

11-7/8"

G Width of Runways

22"

H Width Between Runways

36" / 54"

I Maximum Wheelbase

194"

230"

236"

J Rise Height

78-3/4"

83-3/8"

Min.-Max. 4 Wheel Align

N/A

98" – 206"

Max. 2 Wheel Alignment

N/A

220"

Motor

3HP

Voltage (Single Phase)

208v – 230v

Speed of Rise

60 seconds

Amps

30

Shipping Weights

3930 lbs. (1783 kg)

4350 lbs. (1973 kg)

5050 lbs. (2290 kg)

• Optional Three Phase Electrical Power Available. Please Specify at time of order.

Key Features

• Published product configuration: Challenger AR44018AR Medium-Duty 4-Post Alignment Lift Package 18,000 lb – New Black Color Supersedes 44018AR The Challenger AR44018AR is the ultimate solution for automotive service facilities specializing in light and medium-duty vehicle alignments and general service work. This 18,000 lb. capacity four-post
• Exact manufacturer model or part number: AR44018AR-V001
• Cataloged for Lifts & Hoists: Car Lifts — Alignment Lifts
• 2 product manual or technical documents linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model AR44018AR-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
