Atlas® 12ASL Commercial Grade Alignment Scissor Lift 12,000 lbs

Product Overview

Atlas® 12ASL Commercial Grade Alignment Scissor Lift 12,000 lbs

Important Information! Read To Avoid Damaging Your Lift

The Atlas® 12ASL Commercial Grade Alignment Scissor Lift delivers professional-grade wheel alignment capabilities with an impressive 12,000 lb capacity and over seven feet of lifting height. This scissor lift represents an exceptional combination of Italian engineering excellence and manufacturing efficiency, resulting in a premium alignment solution that rivals lifts costing two to three times as much. Designed for demanding shop environments, the 12ASL offers complete versatility with both surface mount and flush mount installation options, making it ideal for shops looking to maximize bay space while maintaining full access to vehicle undercarriages.

Developed through a strategic partnership between Atlas® and one of Europe's most prestigious Italian lift manufacturers, this alignment scissor lift incorporates decades of engineering expertise and proven design principles. The result is a lift that meets or exceeds the performance standards of major industry brands while remaining accessible to independent shops and growing businesses. Quality workmanship, intuitive operation, straightforward installation, and a durable powder coat finish combine to create the perfect choice for discriminating shop owners who demand reliability and value.

Professional Alignment System Design

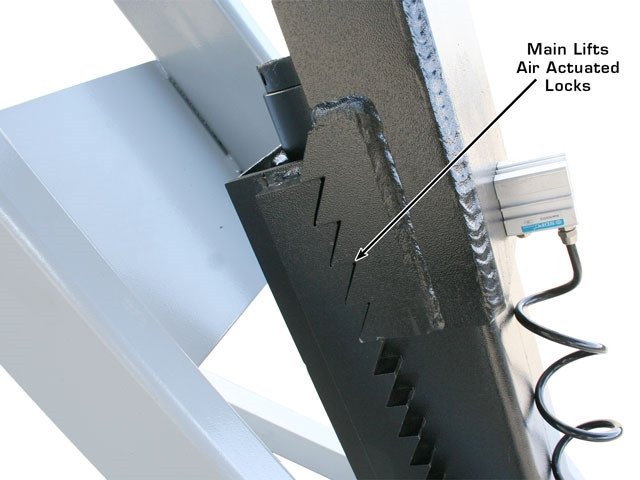

The Atlas® 12ASL features a full frame construction under the scissor mechanism that provides maximum stability during alignment procedures. This robust foundation ensures precise platform leveling accuracy with 19 locking positions, giving technicians the flexibility to position vehicles at optimal working heights. The open center design facilitates easy access to suspension components, brake systems, and undercarriage areas, while the air-operated single point lock release allows for smooth, controlled operation with an external air supply.

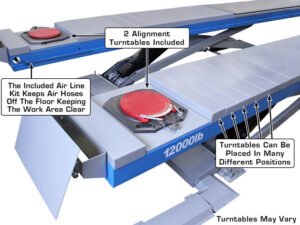

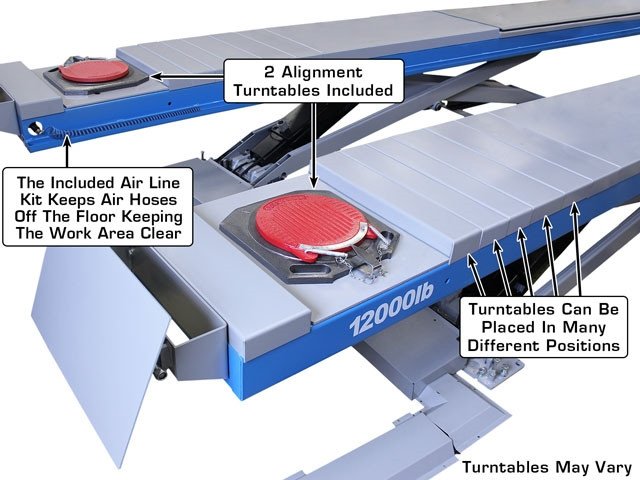

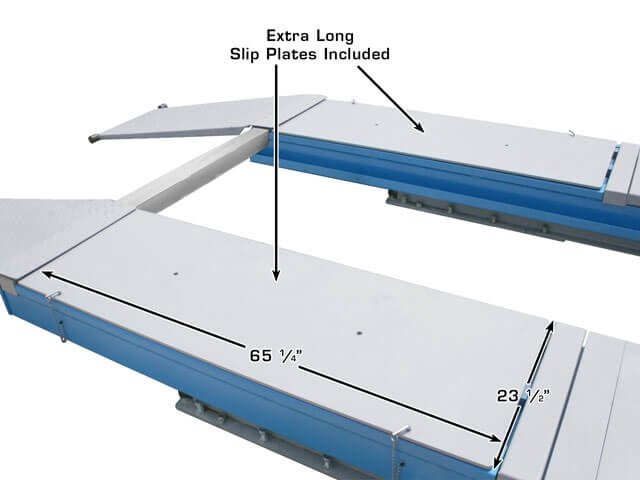

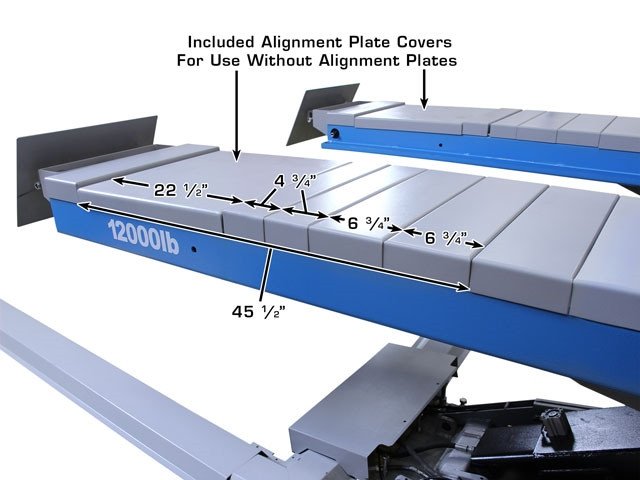

Built-in slip plates and alignment turntables come standard with every lift, complete with protective turntable covers to safeguard these precision components when not in use. The recessed turntables maintain a low profile on the runway surface, while the open center design provides technicians with unobstructed access to perform complete alignment services on everything from compact foreign vehicles to full-size one-ton dual rear wheel pickup trucks.

The extra long 72-inch approach ramps make loading low-riding vehicles effortless, accommodating modified suspensions, performance cars, and sport packages without scraping or damage. These extended ramps are included as standard equipment, demonstrating Atlas®'s commitment to practical, real-world functionality.

Installation Versatility: Surface or Flush Mount

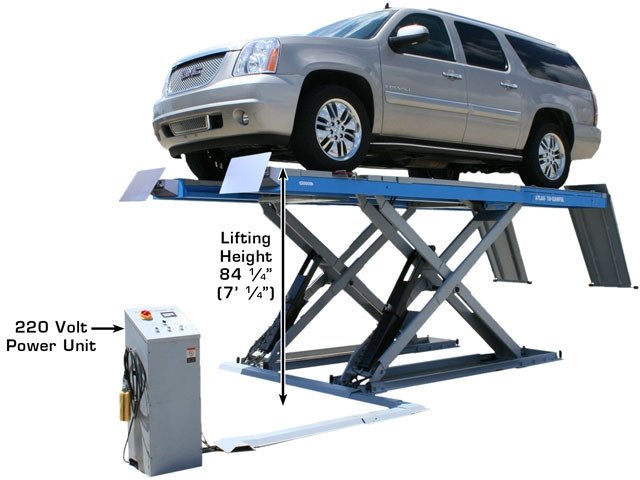

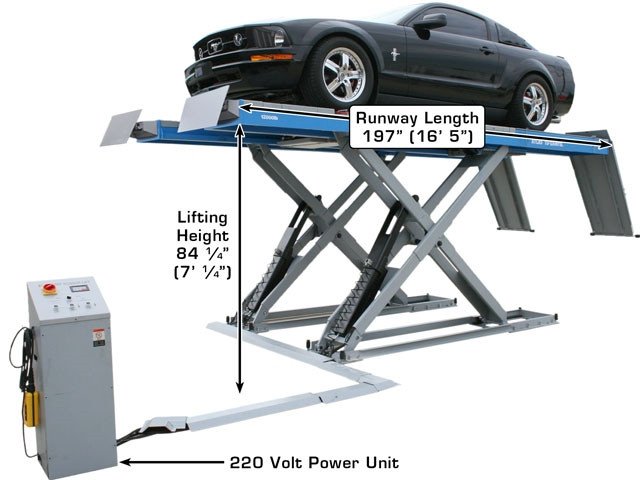

All Atlas® 12ASL alignment scissor lifts can be installed as either surface mounted or flush mounted configurations. The exceptional 84 1/4-inch lifting height (over seven feet when surface mounted) allows for flush mount installation while still providing ample room underneath the runways to properly access the underside of vehicles. This flexibility gives shop owners the freedom to choose the installation method that best suits their facility layout, ceiling height, and workflow requirements.

For surface mount installations, the lift comes with approach ramps and all necessary mounting hardware included. Shops planning a flush mount installation can review the detailed pit dimensions to ensure proper preparation. The lowered height of just 11 1/2 inches minimizes the depth required for flush mounting, making installation feasible in a wider range of facilities. Whether you choose surface or flush mounting, the 12ASL delivers the same exceptional lifting capacity and stability.

Worried about bay space? An Atlas® Alignment System allows you to utilize a minimum amount of floor space while retaining the capability to align the smallest compact cars all the way up to heavy-duty trucks. The overall width of 86 3/8 inches and overall length of 268 inches with approach ramps (197 inches without ramps) provides a compact footprint that maximizes valuable shop real estate.

Enhanced Wheel Service with Optional Rolling Jack System

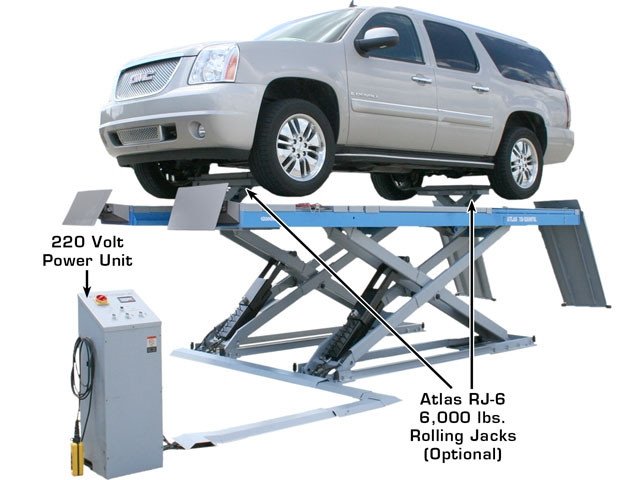

Once a vehicle is positioned on the Atlas® 12ASL alignment scissor lift, the optional Atlas® RJ-6 rolling jack can lift the vehicle off the runways to perform wheel service, tire replacement, and brake work without lowering the entire lift. This air-powered hydraulic rolling jack features telescoping arms that extend over the runways to access factory lift points safely and securely.

Welded rails on the inside of the runways are standard on all 12ASL lifts, allowing customers the option of incorporating the RJ-6 rolling jack system now or in the future. The rolling jacks include screw-out extensions and are compatible with optional stack-on truck adapters for lifting heavy-duty vehicles. This integration transforms your alignment lift into a complete service station, increasing efficiency and billable hours per bay.

Key Features & Highlights

• 12,000 lb capacity with commercial-grade construction for heavy-duty professional use

• 84 1/4-inch lifting height (surface mounted) enables both surface and flush mount installation options

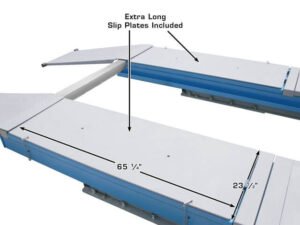

• Built-in slip plates and alignment turntables included with protective turntable covers for complete alignment functionality

• Extra long 72-inch approach ramps standard for easy loading of low-riding and modified vehicles

• Open center design provides easy access to undercarriage, suspension, and brake components

• Air-operated single point lock release with airline kit included (external air supply required: 90-120 PSI)

• Rear cross beam for extra stability ensures safe, reliable operation under maximum loads

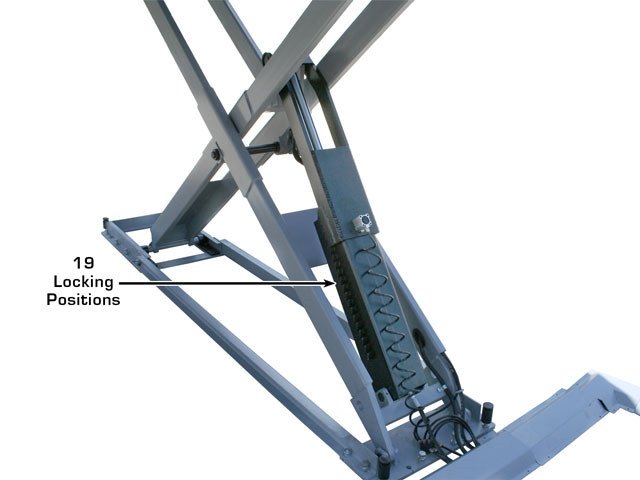

• Precise platform leveling accuracy with 19 locking positions for optimal working height selection

• Separate self-contained control panel for convenient operation positioned away from work area

• Emergency manual pump for lowering provides fail-safe operation in case of power loss

• CE Certified for international quality and safety standards compliance

• Accommodates 4-wheel alignment wheelbase: 168" max / 90" min and 2-wheel alignment: 172" max / 86" min

• Mounting hardware included for straightforward installation with clear instructions

Complete Package Includes

Every Atlas® 12ASL comes equipped with essential components for immediate operation:

• Overload valve for automatic load protection

• Air line kit for pneumatic lock release system

• Lowering speed control valve for smooth, controlled descent

• Recessed turntables & turntable covers (turntable color may vary)

• 72-inch approach ramps for easy vehicle loading

• Rear cross beam for enhanced stability

• Mounting hardware for installation

Please note: The lift requires 3-5 gallons of AW32/AW46 hydraulic oil (not included) and a 220V ±5% (209-231 volts) 1-phase electrical connection with a 30 amp breaker.

Technical Specifications & Dimensions

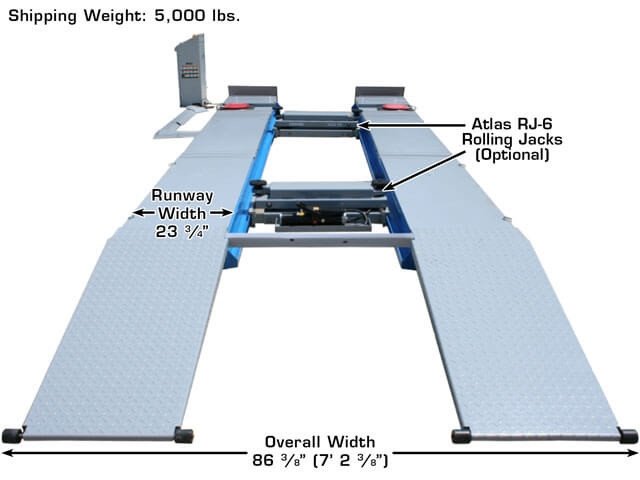

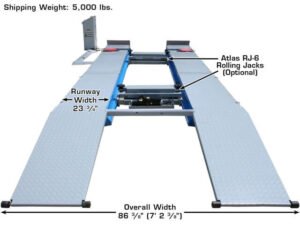

The Atlas® 12ASL is engineered with precision dimensions to accommodate a wide range of vehicles while maintaining a manageable footprint. The runway width of 23 3/4 inches provides stable support, while the 39 1/4-inch width between runways and 34 3/8-inch width between runway rails allows easy access for alignment equipment and technician movement. The lift weighs approximately 5,000 lbs, reflecting its robust, commercial-grade construction.

For flush mount installations, detailed pit dimensions are provided to ensure accurate preparation. The diagram below illustrates the precise measurements required for recessed installation:

Why Choose the Atlas® 12ASL?

The Atlas® 12ASL Commercial Grade Alignment Scissor Lift represents the perfect intersection of quality, value, and versatility. With Italian engineering heritage, commercial-grade construction, and the industry's lowest prices, this lift delivers professional performance without the premium brand markup. The combination of quality workmanship, ease of operation, straightforward installation instructions, and durable powder coat finish makes the 12ASL the ideal choice for demanding and discriminating shop owners who refuse to compromise on quality.

Whether you're adding alignment capabilities to your existing service bay, upgrading from an older lift, or equipping a new facility, the Atlas® 12ASL offers the features, capacity, and reliability you need to grow your alignment business and increase profitability.

California Prop 65 Warning: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to

Product Features

• 12,000 lb. Capacity

• Commercial Grade

• Scissor Alignment Lift

• Built in Slip Plates and Alignment Turntables Included

• Turntable Covers Included

• Open Center Design for Easy Access

• Air-Operated Single Point Lock Release (External Air Supply Required)

• Airline Kit Included

• Rear Cross Beam for Extra Stability Included

• Extra Long 72" Ramps Standard

• Precise Platform Leveling Accuracy

• Separate Self-Contained Control Panel

• Emergency Manual Pump for Lowering

• 19 Locking Positions

• CE Certified

• Can be Surface Mounted or Flush Mounted

• Mounting Hardware Included

Includes

• Overload valve

• Air Line Kit

• Lowering speed control valve

• Recessed turntables & turntable covers (Turntable Color May Vary)

Product Specifications

Specifications
12ASL

Capacity
12,000 lbs

Lifting Height
84 1/4" (7' 1/4") (Surface Mounted)

Lowered Height
11 1/2"

Overall Width
86 3/8" (7' 2 3/8")

Overall Length w/Approach Ramps
268" (24' 4")

Overall Length w/o Approach Ramps
197" (16' 5")

Approach Ramp Length
72" (6')

4-Wheel Alignment Wheelbase
168" Max / 90" Min

2-Wheel Alignment Wheelbase
172" Max / 86" Min

Runway Width
23 3/4" (1' 11 3/4")

Width Between Runways
39 1/4"

Width Between Runway Rails
34 3/8"

Runway Width
23 3/4" (1' 11 3/4") (Including Rail)

Air Requirement
90-120 PSI

Motor
220V +/- 5% (209-231volts) 1 phase
30 amp breaker is required.

Oil Requirement
3-5 Gallons AW32/AW46 (NOT Included)

Shipping Weight
5,500 lbs

Requires a minimum of 6" of concrete with a 3000 psi. rating

Key Features

• Published product configuration: Atlas® 12ASL Commercial Grade Alignment Scissor Lift 12,000 lbs Important Information! Read To Avoid Damaging Your Lift The Atlas® 12ASL Commercial Grade Alignment Scissor Lift delivers professional-grade wheel alignment capabilities with an impressive 12,000 lb capacity and over seven feet of lifting height. This
• Exact manufacturer model or part number: ATTD-12ASL-N
• Cataloged for Lifts & Hoists: Car Lifts — Alignment Lifts
• 2 product manual or technical documents linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model ATTD-12ASL-N, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
