Product Overview

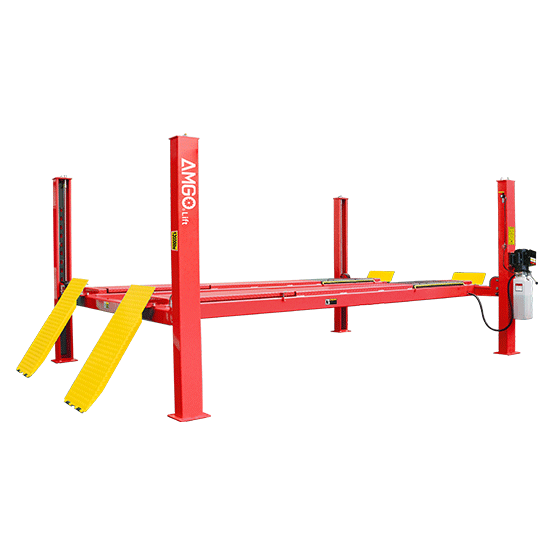

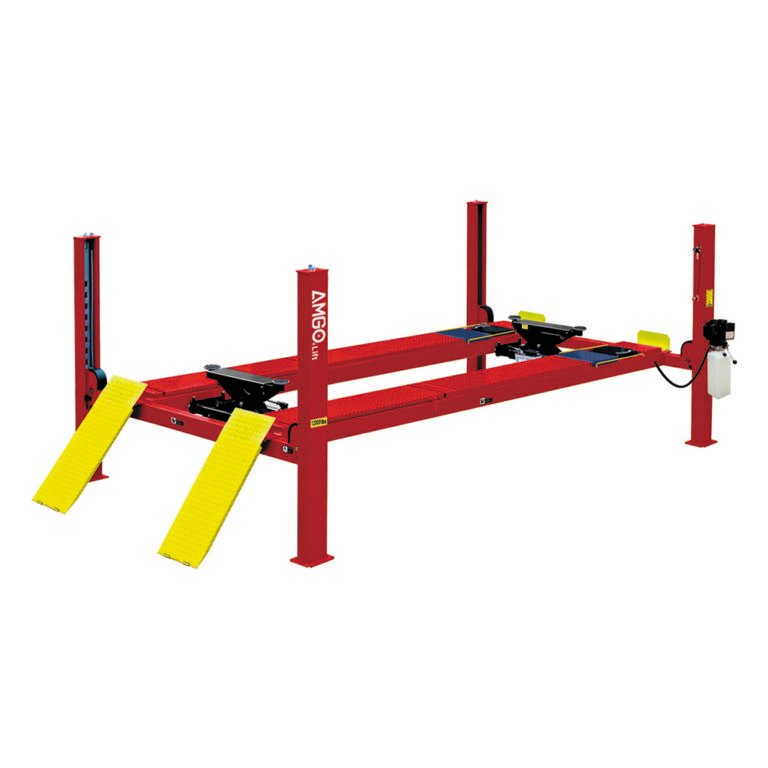

AMGO® Hydraulics PRO-12A 4 Post Alignment Lift 12,000 lbs
Professional Alignment Lift for Complete Wheel Service

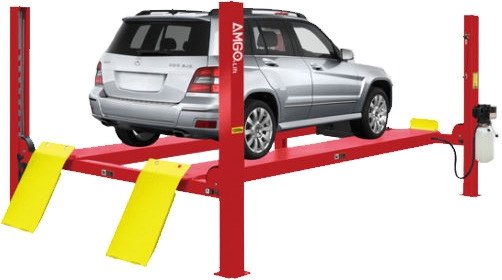

The AMGO PRO-12A is a purpose-built alignment-ready 4-post lift designed for professional automotive service facilities that demand precision wheel service capabilities. With a robust 12,000 lb lifting capacity and integrated alignment features including rear slip plates and adjustable turn plate pockets, this lift delivers the versatility needed for comprehensive wheel maintenance, alignment diagnostics, and general vehicle service.
Built to accommodate various wheelbases, the PRO-12A features adjustable turn plate pockets that adapt to different vehicle configurations, making it ideal for shops servicing cars, light trucks, and SUVs. The alignment-specific design includes 22" wide runways and a Max 76 3/8" lifting height, providing excellent access for suspension work, brake service, and precise wheel alignment procedures.
Engineered with safety and reliability at its core, this lift incorporates air-released safety locks for convenient operation, mechanical self-lock protection, and cable breaking protection systems. The hydraulic cylinders are manufactured to high quality standards, while the 1/2" aircraft quality cables ensure dependable performance lift after lift. A skid-proof diamond platform provides secure footing during service operations.
Key Features & Capabilities
- 12,000 lbs lifting capacity handles a wide range of passenger vehicles and light trucks
- Alignment-ready design with integrated rear slip plates and adjustable turn plate pockets to fit various wheelbases
- Air-released safety locks provide convenient operation with maximum reliability during vehicle service
- 76 3/8" maximum lifting height offers excellent working clearance for suspension and undercarriage service
- 98 3/8" drive-thru clearance accommodates various vehicle lengths and service requirements
- 63-second lifting time powered by a 2.0HP single-phase motor for efficient workflow
Safety & Reliability Features
Safety is paramount in any professional shop environment. The PRO-12A incorporates multiple safety systems to protect both technicians and vehicles. The mechanical self-lock system provides redundant protection, while cable breaking protection guards against unexpected failures. The 1/2" aircraft quality cables are engineered for durability and long service life, and the skid-proof diamond platform ensures secure footing during all service operations.

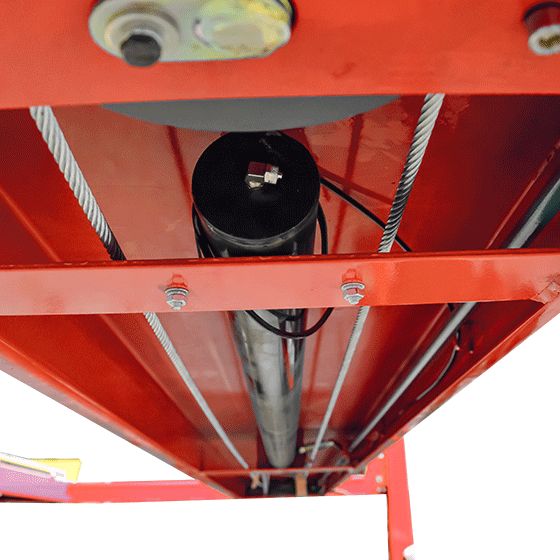

High-quality hydraulic cylinders are designed and manufactured to rigorous standards, delivering smooth, consistent operation across thousands of lift cycles. The air-released safety lock system makes raising and lowering vehicles both safe and convenient, streamlining your shop's workflow without compromising on protection.
Alignment Specifications
The PRO-12A is designed specifically for alignment work with precise dimensional capabilities:
- Minimum four-wheel alignment wheelbase: 81 3/4"
- Maximum two-wheel alignment wheelbase: 167 5/8"
- Maximum four-wheel alignment wheelbase: 166 5/16"
- Adjustable runway width: 43 5/16" standard, expandable from 38" to 50 7/8" maximum
These specifications ensure compatibility with virtually all passenger vehicles, crossovers, and light trucks requiring alignment services.
Expand Your Capabilities with Optional Accessories
Customize your PRO-12A to match your shop's specific needs with a range of available accessories:
- 41203 Extension Platform Set (2-piece) for PRO-12 & PRO-12A models
- 40905 Turnplate Adjustment Blocks for PRO-12A (used with turnplates 40903)
- RJ-6A Pneumatic Rolling Jacks with 6,000 lbs capacity for axle service
- 40102A Airline Kit designed for 4-post lifts under 18K capacity
- 40103 LED Light Kit for enhanced visibility during undercarriage work
Dimensions & Installation Requirements
The PRO-12A requires a footprint of 239 13/16" overall length with ramps and 126 5/16" overall width. The 112 1/4" width between columns provides generous drive-thru clearance for easy vehicle positioning. With an overall height of 86" and minimum height of 8 3/8", the lift fits in most professional shop environments with standard ceiling heights.
Powered by a 2.0HP, 220V/60Hz single-phase motor, the lift requires standard shop electrical service and completes full lifting cycles in approximately 63 seconds. The gross weight of 2,936 lbs ensures stability during operation while remaining manageable for installation.
California Residents:
WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to
Product Features
- 12,000 lbs capacity

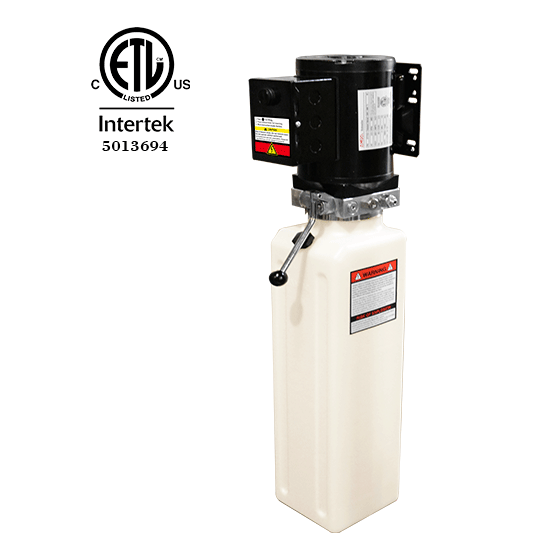

- AMGO ETL certified power unit comes as standard

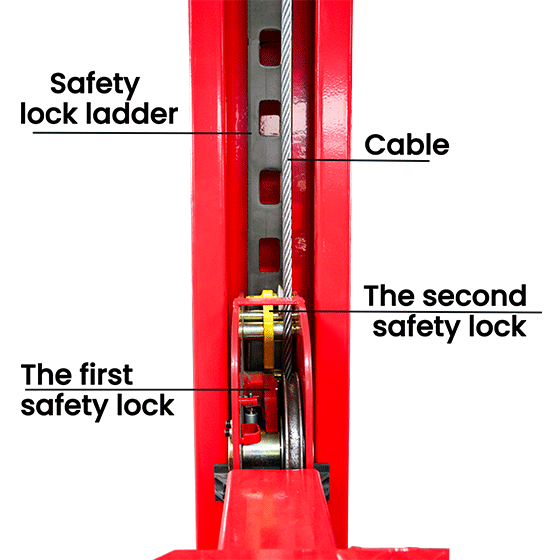

- Mechanical self-locking safety device with air-driven lock release
- Primary multiple safety locks and cable-slack protection system come standard
- Cable-driven, utilizing aircraft standard high quality cables
- Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve
- Non-skid diamond platforms
- Stepless adjustable width between platforms
- Integrated slip plates and adjustable turnplate pockets
Optional Accessories Available

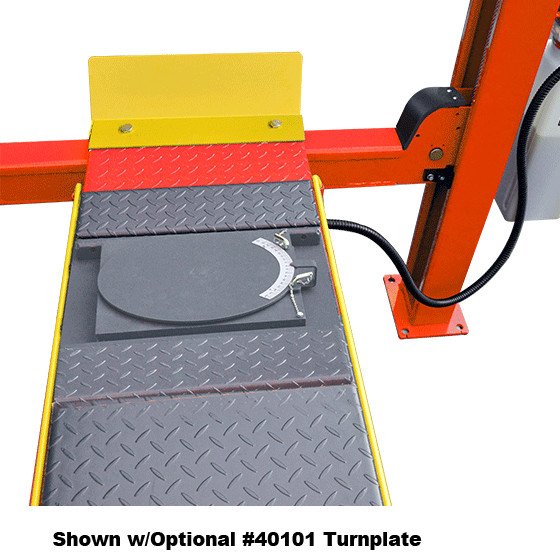

- 40101-2 Set of 2 Turnplates
- 41203 Extension Platform Set for PRO-12 & PRO-12A (2Pcs). Adds 26" in length to the platform
- 40905 Turnplate Adjustment Blocks for PRO-12A (Used with 41203)
- RJ-6A Pneumatic 6,000lbs Rolling Jacks
- 40102A Airline Kit for 4 Post Lifts less than 18K
Product Specifications
Model
PRO-12A
Style
Alignment
Lifting Capacity
12,000 lbs
A Overall Length w/Ramp
239 13/16"
A Overall Length w/o Ramp
N/A
B Runway Length
189 13/16"
C Overall Width
126 5/16"
D Width Between Columns
112 1/4"
E Max Lifting Height
76 3/8"
E Max. Lock Height (to Top of Runway)
73 1/4"
F Overall Height
86"
G Minimum Height
8 11/16"
H Max. Underneath Height
68 7/8"
H Max. Lock Underneath Height
65 3/4"
I Drive-Thru Clearance
98 3/8"
J Width Between Runways
43 5/16" / Min. 38" / Max. 50 7/8"
K Outside Edge of Runways
83 5/16" / Min. 78" / Max. 90 7/8"
L Min. Four Wheel Align
81 3/4"
M Max. Four Wheel Align
166 5/16"
N Max. Two Wheel Align
167 5/8"
Lifting Time
63 S
Motor
2.0HP, 220V/60Hz Single Phase
Gross Weight
2,936 lbs
Key Features
- Published product configuration: AMGO® Hydraulics PRO-12A 4 Post Alignment Lift 12,000 lbs Professional Alignment Lift for Complete Wheel Service The AMGO PRO-12A is a purpose-built alignment-ready 4-post lift designed for professional automotive service facilities that demand precision wheel service capabilities. With a robust 12,000 lb lifting
- Exact manufacturer model or part number: PRO-12A
- Cataloged for Lifts & Hoists: Car Lifts — Alignment Lifts
- Condition: New
Product Specifications
| Brand | AMGO Hydraulics |
|---|---|
| SKU | PRO-12A |
| MPN / Model | PRO-12A |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Alignment Lifts |
Before You Order
Confirm that model PRO-12A, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
