Product Overview
BendPak PL-6KT 18,000-lb. Triple / Independent Platforms Parking Lift

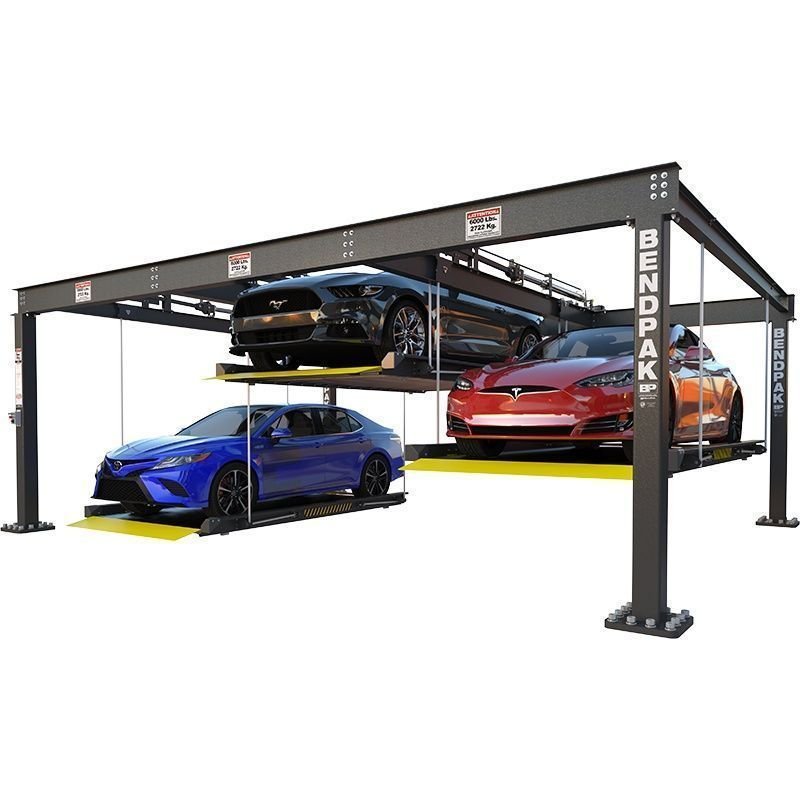

The BendPak PL-6KT is a revolutionary triple-wide parking lift engineered for maximum efficiency and space optimization. With a combined 18,000-lb. lifting capacity ( 6,000 lbs. per deck ), this four-column car storage system transforms three parking spots into six, making it the ultimate solution for residential garages, municipal parking facilities, dealerships, and commercial storage operations. Its streamlined design features three independent platforms free from surrounding posts, allowing safer, easier vehicle entry and exit while maximizing your available space.
The Ultimate Multi-Car Parking Solution
The PL-6KT triple-wide platform parking lift is one of the most efficient parking units ever designed. The key to its design is the streamlined, four-column structure that leaves all three lifting platforms free from surrounding posts, making it safer and easier to enter and exit parked vehicles.
This professional-grade car lift is equally useful in large residential garages and commercial spaces. Municipal parking lots and custom shops in need of extra parking don't need to waste money buying multiple lifts that may or may not even fit in their space. A triple-wide lift is the most efficient way to turn three parking spots into six.
One Lift, Six Vehicles – The Smart Investment
If you're in need of significant additional parking capacity, your first instinct may be to buy multiple parking lifts. However, the smarter investment is to order a BendPak triple-wide specialty lift. These unique car storage lifts house six vehicles for long or short-term storage. It's much more economical to buy one extra-wide car lift than it is to purchase three smaller units. It also takes up less overall floor space and won't clutter your garage with redundant columns and power units.
Three Independent Platforms for Maximum Flexibility

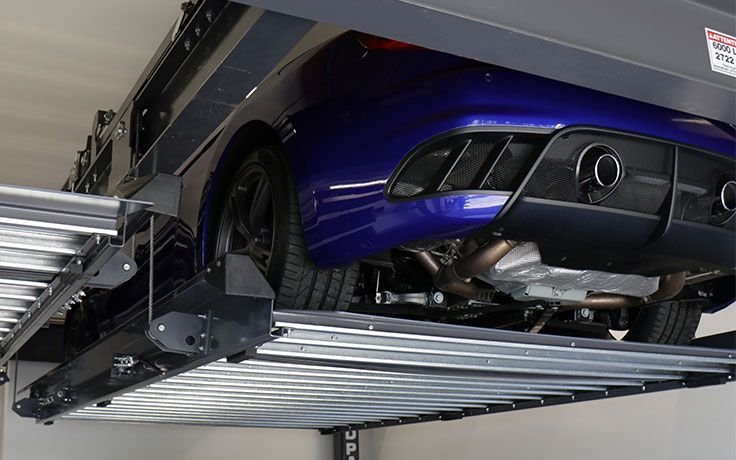

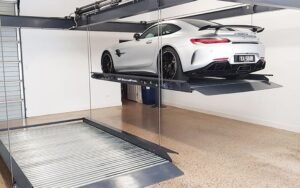

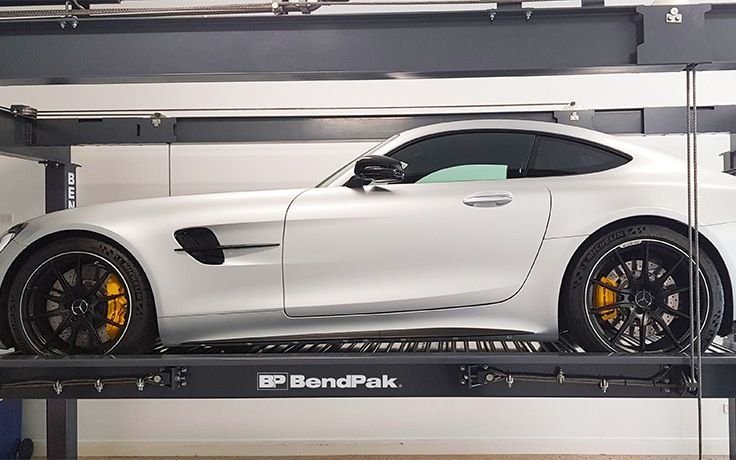

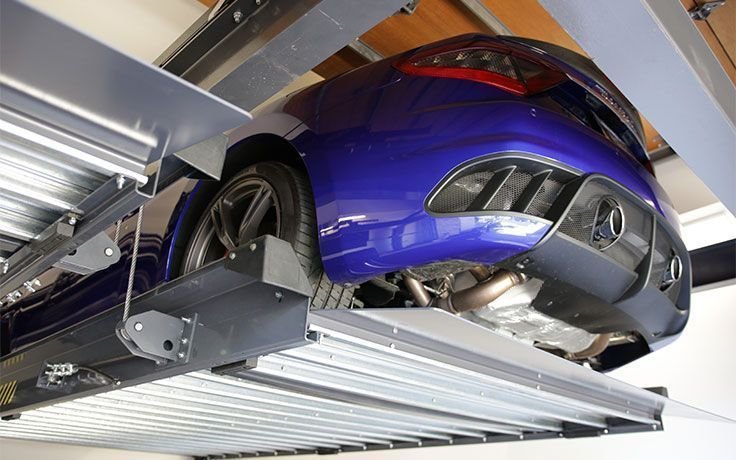

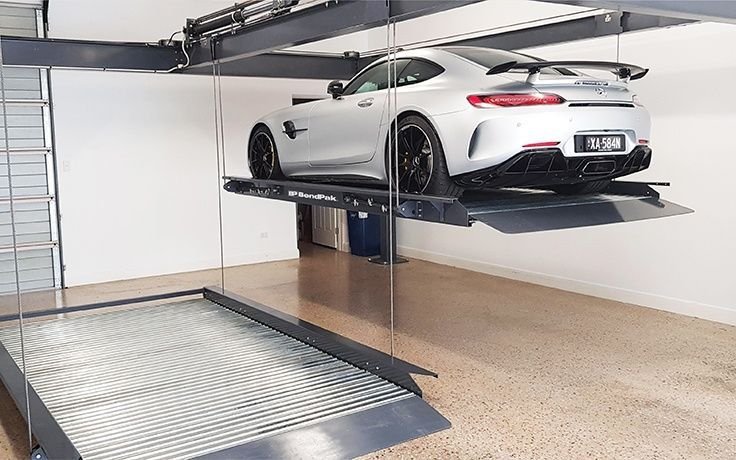

Three full-width, galvanized steel platforms cover the entire length and width of this car lift. Resistant to oil, weather, and daily wear, these durable decks will easily last the lifetime of your unit. Each 82" wide by 152" long platform moves independently of the other two, which means more vehicles can be stored or accessed without rummaging through the entire bottom row just to get to one raised vehicle. Keep life simple! The PL-6KT is a triple-wide marvel that keeps you organized without slowing you down.
With an overall width of 308 inches and a width between posts of 283 inches, this lift accommodates a wide variety of vehicles including cars, light trucks, motorcycles, and ATVs. The 93-inch drive-thru clearance ensures easy maneuverability, while the 89-inch maximum rise provides ample vertical space for storage.
Internally Routed Hydraulic Lines and Cables

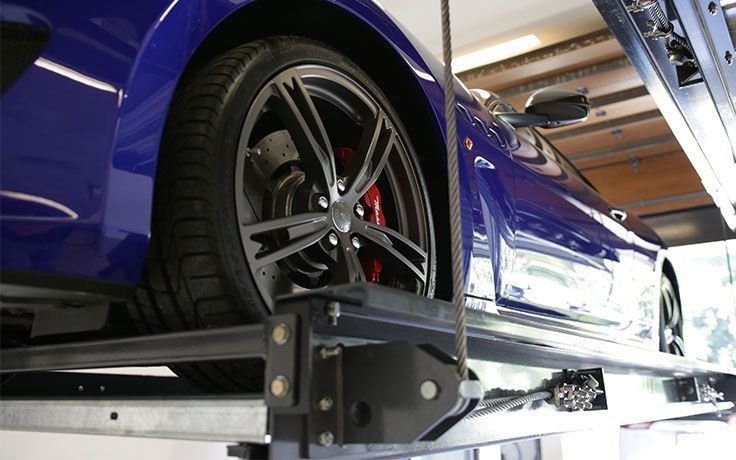

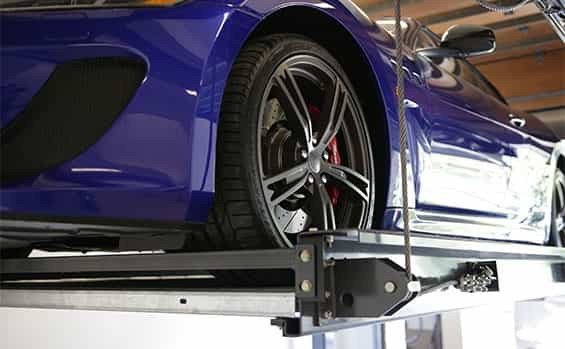

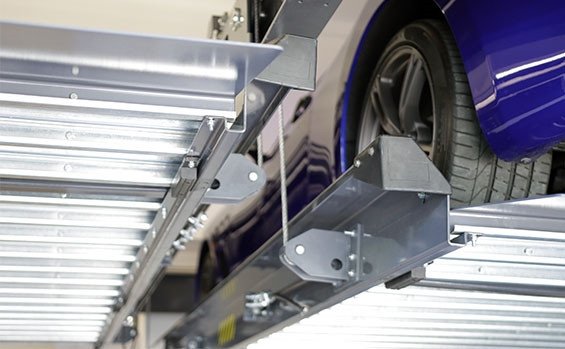

All dual hydraulic lifting cylinders and heavy-duty 3/8" aircraft lifting cables are routed internally throughout the mammoth structure of this lift. Clever engineering prevents the extensive network of cables from awkwardly crossing over each other, so the platforms rise and descend safely at all times. The oversized sheave diameter reduces cable fatigue for long-term reliability, while rugged 1-1/4" roller axles ensure smooth operation under heavy loads.
Single-Position, Auto-Engaging Safety Lock System
All three platforms automatically lock into place at the maximum rise position. This is the safest way to store vehicles on your parking lift, as the platform and hydraulic/suspension system is virtually incapable of failing, even in the extremely unlikely event of hydraulic hose or cable failure. Multi-position safety locks in each column and independent backup slack-cable safety latches provide multiple layers of protection. The push-button pneumatic safety release makes lowering platforms simple and controlled.
Park Safer Inside – Protect Your Investment

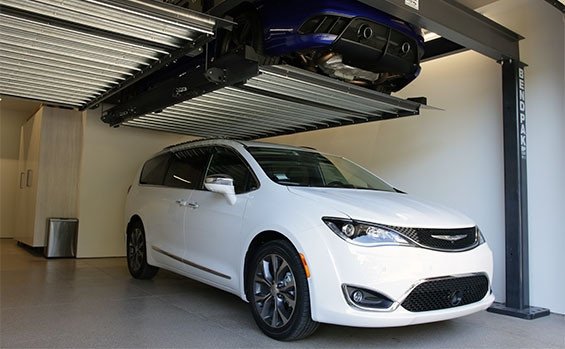

Don't risk keeping your vehicles exposed to the elements. Theft, weather, and environmental damage can wreak havoc on your valuable property. Keep your vehicles bundled up safe and sound indoors. They're second in importance only to your family, and this parking lift is a cradle they'll never outgrow. The full-width platforms keep bottom vehicles protected from oil, debris, and accidental damage, while built-in wheel stops and front and rear wheel chocks secure vehicles in place during storage.
Flexible Power Options for Any Application
This parking lift operates on 220V AC / 60 Hz / 1-phase power (standard motor) and features a reliable electric-hydraulic power system with simple controls. The lift raises to full height in just 30 seconds, providing fast, efficient operation. International voltages are available upon request. The customizable power unit location allows you to configure the system to fit your specific space requirements.
Key Advantages at a Glance
- 18,000-lb. total capacity 6,000 lbs. per deck for versatile vehicle storage
- Three independent platforms access any vehicle without moving others
- Rugged I-beam and C-channel construction with durable powder-coat finish
- Wide base-plate for maximum stability engineered for heavy-duty use
- Non-skid runway surface safe vehicle positioning and loading
Watch the Installation Process
GoPro Time Lapse of BendPak Home Garage Lift Installation
BendPak Home Garage Car Lift Installation
Product Features
- 6,000-lb. capacity per deck (18,000 lbs. total)
- Perfect for cars, light trucks, motorcycles and ATVs
- Rugged I-beam and C-channel construction
- Built-in wheel stops
- Wide base-plate for maximum stability

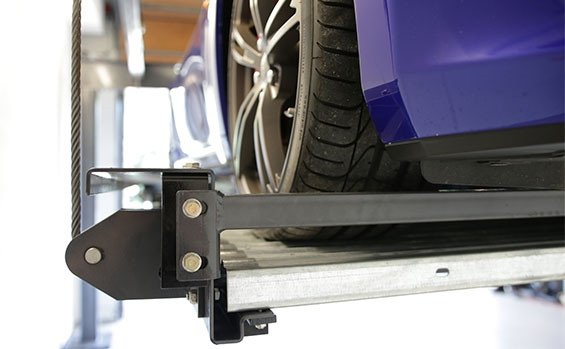

- Front and rear wheel chocks
- Superstructure features durable powder-coat finish
- Dual hydraulic cylinders with heavy-duty steel lifting cable
- Heavy-duty steel construction
- Reliable electric-hydraulic power system

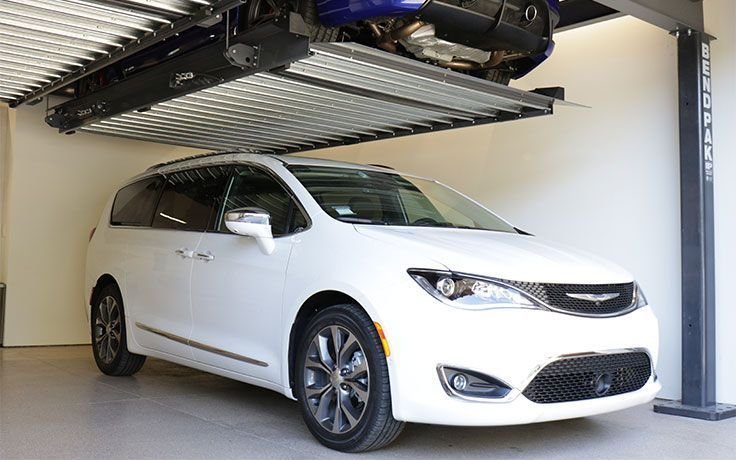

- Full-width platform to keep bottom vehicles protected
- Simple controls
- Oversized sheave diameter reduces cable fatigue
- High-speed lifting
- Features heavy-duty 3/8" aircraft cable
- Rugged 1-1/4" roller axles
- Multi-position safety locks in each column
- Runways feature non-skid surface
- Push-button pneumatic safety release
- Independent backup slack-cable safety latches
- Customizable power unit location
This is a Special Order Item has a 90 – 120 Day Lead-time. There is 50% NON REFUNDABLE Charge
Product Specifications
Specifications
PL-6KDT
PL-6KDTX
PL-6KT
Style
Style
Multi-Platform
Ex-Wide Multi-Platform
Triple Multi-Platform
Capacity
Lifting Capacity
6,000-lb. Per Deck (12,000 lbs. total) / 2,722 kg
Overall Width
210.75” (5,353 mm)
250” / 6,350 mm
308” (7,834 mm)
Overall Length
236-1/2” / 6,008 mm
Overall Height
122.75” (3,118 mm)
123.75” (3,140 mm)
Min. Runway Height
9” / 230 mm
Max. Rise
89” / 2,261 mm
Width Between Posts
185-1/2" / 4,715 mm
225” / 5,713 mm
283" (7,197 mm)
Platform Width
82" / 2,086 mm
Length of Platforms
152" / 3,862 mm
Drive-thru Clearance
93" / 2,374 mm
Locking Positions
1 (Adjustable)
Lifting Time
30 Seconds
Standard Motor
220 VAC / 60 Hz. 1Ph.
Shipping
Shipping Weight
6,905-lbs. (3,132 kg)
7,125-lbs. (3231 kg)
8,889-lbs. (4,032 kg)
Shipping Dimensions
234" x 32" x 62"
(5,943 x 812 x 1,574 mm)
310" x 32" x 63"
(7,874 x 813 x 1,600 mm)
Key Features
- Published product configuration: BendPak PL-6KT 18,000-lb. Triple / Independent Platforms Parking Lift The BendPak PL-6KT is a revolutionary triple-wide parking lift engineered for maximum efficiency and space optimization. With a combined 18,000-lb. lifting capacity ( 6,000 lbs. per deck ), this four-column car storage system transforms three parking
- Exact manufacturer model or part number: 5175154
- Cataloged for Lifts & Hoists: Car Lifts — Parking Lifts
- 4 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | BendPak |
|---|---|
| SKU | 5175154 |
| MPN / Model | 5175154 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Parking Lifts |
Before You Order
Confirm that model 5175154, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
