Product Overview

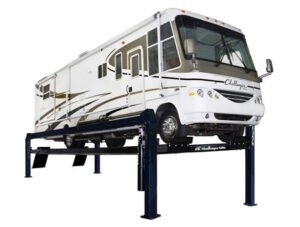

Challenger 44030XAR HD XL Ex-Length 4-Post Hydraulic Alignment Lift 30,000 – New Black Color
The Challenger 44030XAR is the ultimate heavy-duty truck alignment solution for shops that service large commercial vehicles, buses, and extended-wheelbase fleets. With a massive 30,000 lb. capacity and an extra-long 34' 7-1/2" overall length accommodating wheelbases up to 350 inches, this alignment rack four-post hydraulic lift is built to handle your biggest jobs with confidence. The XAR (alignment rack) model features turning radius gauge cutouts ready for optional flush-mounted gauges, transforming your shop into a full-service truck alignment and repair center. Now available in a sleek new black finish, the 44030XAR combines industrial-grade construction with modern aesthetics.
30,000 Pounds of Heavy Duty Truck Lifting Power

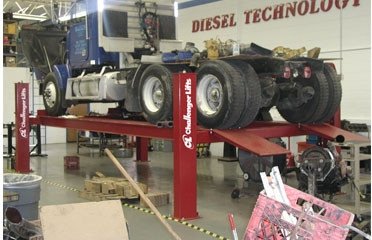

The 30,000 lb. capacity heavy duty four post truck lift features a superior lifting system with high tensile strength leaf chain and sealed roller bearings for maximum reliability and smooth, consistent operation. Heavy duty hydraulic cylinders provide optimum lifting performance with minimum maintenance, ensuring years of dependable service in demanding commercial environments. The robust construction and precision engineering make the Challenger 44030XAR ideal for transit buses, large commercial trucks, RVs, and other oversized vehicles.
Other features and benefits of the 44030 series four post lifts include a single point air lock release to disengage all post column locks simultaneously for fast, safe operation, diamond plate approach ramps and anti-skid runway surfaces for positive traction upon approach and unload, and adjustable runways that accommodate a variety of commercial transit buses and other large vehicles.
An All-in-One Hydraulic Truck Alignment and Service Lift
The 44030XAR alignment rack four post truck lift accommodates heavy duty vehicles and can be transformed into a complete productivity solution with optional accessories including ramp kits, oil drain pans, heavy duty turning radius gauges, and rolling jacks for brake and wheel work. The built-in runway rail system provides versatility to add convenience options like rolling jacks and sliding oil drain pans, maximizing your shop's efficiency and service capabilities.
The 44030 series truck lifts are available in three different lengths to handle a wide range of vehicle sizes: standard length models accommodate wheelbases up to 230 inches, extended length (E) models handle up to 290 inches, and the extra extended length 44030X/XAR models accommodate wheelbases up to 350 inches. This 44030XAR extra extended model offers the longest platform in the series, perfect for super-duty trucks, extended buses, and specialty commercial vehicles.
Alignment Rack (AR) truck lifts feature turning radius gauge cutouts and are designed for optional flush mounted 10500HD gauges. (Turning radius gauges and rolling jacks are sold separately.) Alignment rack auto lifts are perfect for increasing your truck repair and alignment service offering, making your shop more profitable and competitive in the heavy-duty market.
Key Features & Benefits
- Extra Extended Length Platform: 34' 7-1/2" overall length accommodates wheelbases up to 350 inches ideal for large commercial buses, extended chassis trucks, and specialty vehicles
- Alignment-Ready Design: Turning radius gauge cutouts on the AR model allow for precise two-wheel alignment work with optional flush-mounted gauges (up to 326" max 2-wheel align )
- Heavy Duty Hydraulic System: 3HP motor with 208v-230v voltage delivers fast 105-second rise time to a full 68" rise height, powered by rugged hydraulic cylinders designed for minimal maintenance
- Single Point Air Lock Release: Convenient air-actuated lock release system allows technicians to disengage all column locks simultaneously for faster, safer operation
- Adjustable Runways with Built-In Rail System: 24" wide runways adjust from 54" to 75" apart to fit various axle widths, with integrated rail system for optional rolling jacks and accessories
Rugged Construction & Components
Diamond Plate Ramps
Diamond plate approach ramps provide superior drive-on tread traction and feature heavy duty steel rolling wheels for high volume durability and long service life. The anti-skid surfaces ensure positive vehicle traction during loading and unloading operations.
Internal Lock Ladder
Multi-position internal lock ladder provides a wide variety of comfortable and safe work heights. The robust locking mechanism ensures secure positioning at any height throughout the 68-inch rise range.

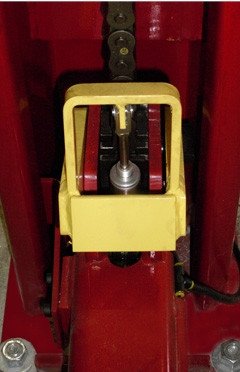

Heavy-Duty Chain
Heavy-duty, high tensile strength leaf chain with sealed roller bearings ensures smooth, reliable lift operation for years of trouble-free service. The single point air actuated lock release system works in conjunction with the robust chain drive for safe, efficient operation.
Product Features
- Heavy duty, high tensile strength leaf chain with sealed roller bearings for smooth reliable lift operation
- Heavy duty cylinder for optimal performance and minimal maintenance
- Single point air actuated lock release system allows technician to disengage all column locks simultaneously
- Diamond plate anti-skid runways and ramps provide positive vehicle traction and long lasting durability
- Adjustable runways accommodate a variety of commercial transit buses and other large vehicles (rolling jack application requires fixed runways)
- Built-in runway rail system provides versatility to add convenience options like rolling jacks and sliding oil drain pan
Product Specifications
To compare the specifications for the different 44030 truck lifts, take a look at the chart below. Identify the length, width, wheelbase, speed of rise and more for six of Challenger's heavy duty lifts. Questions? Get in touch with us today.
Model Number
44030
44030AR
44030E
44030EAR
44030X
44030XAR
Lift Capacity
30,000 lbs.
A Overall Length
24' 7-1/2"
29' 7-1/2"
34' 7-1/2"
B Overall Width
12’ 5½”
C Inside Columns
132-1/2"
D Between Columns
233-3/4"
293-3/4"
353-3/4"
E Overall Height
92"
F Height of Runways
9"
G Width of Runways
24"
H Width Between Runways
54" – 75"
I Maximum Wheelbase
230"
290"
350"
J Rise Height
68"
Max. 2 Wheel Align
N/A
206"
N/A
266"
N/A
326"
Motor
3HP
Voltage
208v – 230v
Speed of Rise
105 seconds
Amps
30
Shipping Weight
5250 lbs
(2381 kg)
5450 lbs
(2472 kg)
5750 lbs
(2608 kg)
5950 lbs
(2699 kg)
6250 lbs
(2835 kg)
6450 lbs
(2926 kg)
*Optional Three Phase Electrical Power Available. Please Specify at time of order.
Available in Black Only
Key Features
- Published product configuration: Challenger 44030XAR HD XL Ex-Length 4-Post Hydraulic Alignment Lift 30,000 – New Black Color The Challenger 44030XAR is the ultimate heavy-duty truck alignment solution for shops that service large commercial vehicles, buses, and extended-wheelbase fleets. With a massive 30,000 lb. capacity and an extra-long 34' 7-1/2"
- Exact manufacturer model or part number: 44030XAR-V001
- Cataloged for Lifts & Hoists: Car Lifts — Alignment Lifts
- 2 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | Challenger |
|---|---|
| SKU | 44030XAR-V001 |
| MPN / Model | 44030XAR-V001 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Alignment Lifts |
Before You Order
Confirm that model 44030XAR-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
