Product Overview

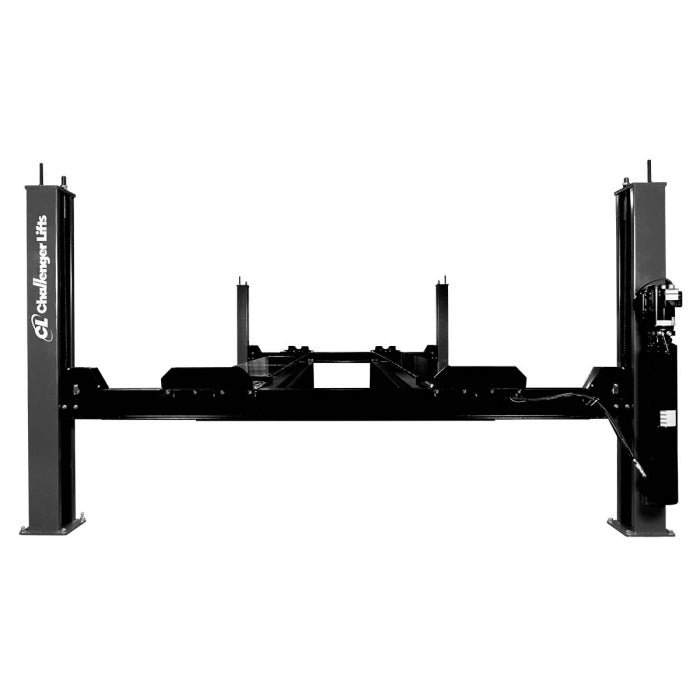

Challenger 4030SAX Closed Front 4 Post Alignment Rack Lift 30,000 lbs – New Black Color
The Challenger 4030SAX is a professional-grade closed front 4-post alignment rack engineered for serious commercial shops demanding precision wheel alignment capabilities combined with heavy-duty service lift performance. With a robust 30,000 lb capacity, 71.75" rise height, and specialized front turntable cutouts for alignment procedures, this ALI-Certified lift represents the perfect fusion of versatility, durability, and advanced service functionality. Now available in a sleek black finish, the 4030SAX delivers the performance your technicians need with the professional appearance your shop deserves.
Built on Proven Engineering Excellence
Challenger Lifts' 4030 Series Heavy Duty 4-Post lifts are built on a time-proven cable and cylinder design system using large heavy-duty steel sheaves and cables that provide reliable, smooth operation shift after shift. This design philosophy prioritizes longevity and minimal maintenance requirements—critical factors for busy commercial operations where downtime equals lost revenue.
These lifts feature a heavy-duty cylinder engineered for optimal performance and minimal maintenance needs, ensuring your investment continues to deliver year after year. The robust construction and proven mechanical design mean you can count on consistent, dependable lifting performance for even the heaviest light-duty trucks and SUVs.
Durable non-skid louvered approach ramps provide positive vehicle traction and enhance technician safety during drive-on procedures. The fold-down approach ramps with jack rails offer convenience and additional support for supplemental lifting equipment when needed.
A built-in runway rail system provides exceptional versatility, allowing you to add convenience accessories like rolling jacks and sliding oil drain pans (sold separately) to create a fully customized service station tailored to your shop's unique workflow.
Alignment Rack Precision Meets Service Bay Power
The 4030SAX Alignment Rack Package is specifically configured to handle two-wheel alignment procedures on vehicles with wheelbases up to 256 inches. This model features front turntable cutouts that accommodate precision alignment turntables, making it fully compatible with the industry's latest camera imaging alignment systems. Available recessed heavy-duty steel turnplates provide accurate readings essential for precise alignment work.
The lift's adjustable runways allow for flexible vehicle positioning, while the anti-sway device ensures stability during alignment measurements and adjustments. With multiple locking positions, technicians can select the optimal height for a variety of alignment and general service tasks, maximizing efficiency across diverse job types.
The single point air actuated lock release disengages all column locks simultaneously, providing fast, convenient operation. Combined with six position locking and pneumatic single position safety release, you get both flexibility and redundant safety systems that meet the highest industry standards.
Key Advantages at a Glance
- ALI-Certified Cable-Driven 30K 4 Post meets rigorous third-party safety and performance standards
- 71.75" rise height provides expansive work space underneath vehicles for comfortable, efficient service
- Front turntable cutouts and alignment-ready design for advanced wheel alignment capabilities
- 308.125" overall length accommodates vehicles with wheelbases up to 244.5"
- Adjustable runways (46" Min – 52" Max) adapt to various vehicle track widths for maximum versatility
Video Overview
Watch the Challenger 4030 Series in action to see the build quality, smooth operation, and professional features that set this lift apart.
Complete Specifications & Features Available Above
Why Choose the Challenger 4030SAX?
Available in alignment and flat deck models across three lengths, the Challenger 4030 Series accommodates wheelbases from 244.5" to 318.625", ensuring you can select the perfect configuration for your bay size and vehicle mix. The 4030SAX model is specifically designed for shops that need dedicated alignment capabilities without sacrificing general service versatility.
With a 3 HP motor, single phase 208v-230v power, and 90-120 psi air requirement, the 4030SAX integrates seamlessly into most shop electrical and pneumatic systems. The minimum recommended bay size of 28' x 17' ensures this powerful lift can fit into standard commercial service bays.
Available in black only, this lift combines professional aesthetics with uncompromising functionality—perfect for shops that demand both performance and appearance.
Whether you're performing precision alignment work, brake service, exhaust repairs, or routine maintenance, the Challenger 4030SAX provides the capacity, rise height, safety features, and alignment-specific design elements to help your technicians work faster, safer, and more profitably.
Product Features
- ALI-Certified Cable-Driven 30K 4 Post!
- Front turntable cutouts
- Two wheel alignment up to 256 in.
- Adjustable runways
- Anti-sway device
- Six position locking and pneumatic single position safety release
- Fold down approach ramps with jack rails
- Large heavy-duty steel sheaves and cables
- Time-proven cable and cylinder design system
- 71.75” rise height provides more work space underneath vehicles
- Heavy-duty cylinder for optimal performance and minimal maintenance
- Single point air actuated lock release disengages all column locks simultaneously
- Multiple locking positions for a variety of alignment and general service tasks
- Compatible with the industry’s latest camera imaging alignment systems
- Available recessed heavy duty steel turnplates provide accurate readings
- Durable non-skid louvered approach ramps for positive vehicle traction and technician safety
- Built-in runway rail system provides versatility to add convenience options like rolling jacks and sliding oil drain pan (Sold Separately)
Product Specifications
Closed Front
Flat Deck
Alignment Rack Package
Model
4030SFX
4030EFX
4030XFX
4030SAX
4030EAX
4030XAX
Lift Capacity
30,000 lbs.
A Length Overall
308.125”
(7826mm)
344.125”
(8741mm)
380.125”
(9655mm)
308.125”
(7826mm)
344.125”
(8741mm)
380.125”
(9655mm)
B Width Overall
172.75” (4388mm)
C Inside of Columns
152” (3861mm)
D Between Columns
246.125”
(6252mm)
282.625”
(7179mm)
318.625”
(8093mm)
246.125”
(6252mm)
282.625”
(7179mm)
318.625”
(8093mm)
E Height Overall
92.25” (2343mm)
F Height of Runways
8.5” (216mm)
G Width of Runways
24” (610mm)
H Width Between Runways
46” Min – 52” Max (1168mm – 1321mm)
I Maximum Wheelbase 1
244.5” (6210mm)
281” (7137mm)
317” (8052mm)
244.5” (6210mm)
281” (7137mm)
317” (8052mm)
J Rise Height
71.75” (1822mm)
Max. 2 Wheel Alignment
N/A
N/A
N/A
219.5” (5575mm)
256” (6502mm
292” (7419mm)
Motor
3 HP
Voltage (Single Phase)
208v – 230v
Air Required
90 – 120 psi
Speed of Rise
TBD
Min. Recomm. Bay Size
28’ x 17’
31´ x 17´
34´ x 17´
28’ x 17’
31´ x 17´
34´ x 17´
1. Maximum wheelbase is based on a tire diameter of 30"
Available in Black Only
Key Features
- Published product configuration: Challenger 4030SAX Closed Front 4 Post Alignment Rack Lift 30,000 lbs – New Black Color The Challenger 4030SAX is a professional-grade closed front 4-post alignment rack engineered for serious commercial shops demanding precision wheel alignment capabilities combined with heavy-duty service lift performance. With a
- Exact manufacturer model or part number: 4030SAX
- Cataloged for Lifts & Hoists: Car Lifts — Alignment Lifts
- 4 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | Challenger |
|---|---|
| SKU | 4030SAX |
| MPN / Model | 4030SAX |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Alignment Lifts |
Before You Order
Confirm that model 4030SAX, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Manuals & Technical Resources
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
