Challenger AR4115EAO Open Front ALI 15,000 lbs 4 Post Alignment Rack Package

Product Overview

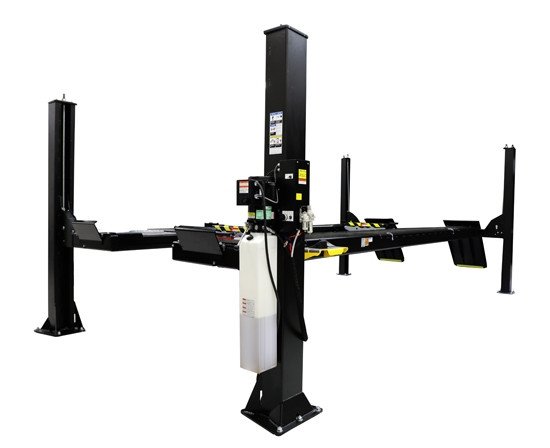

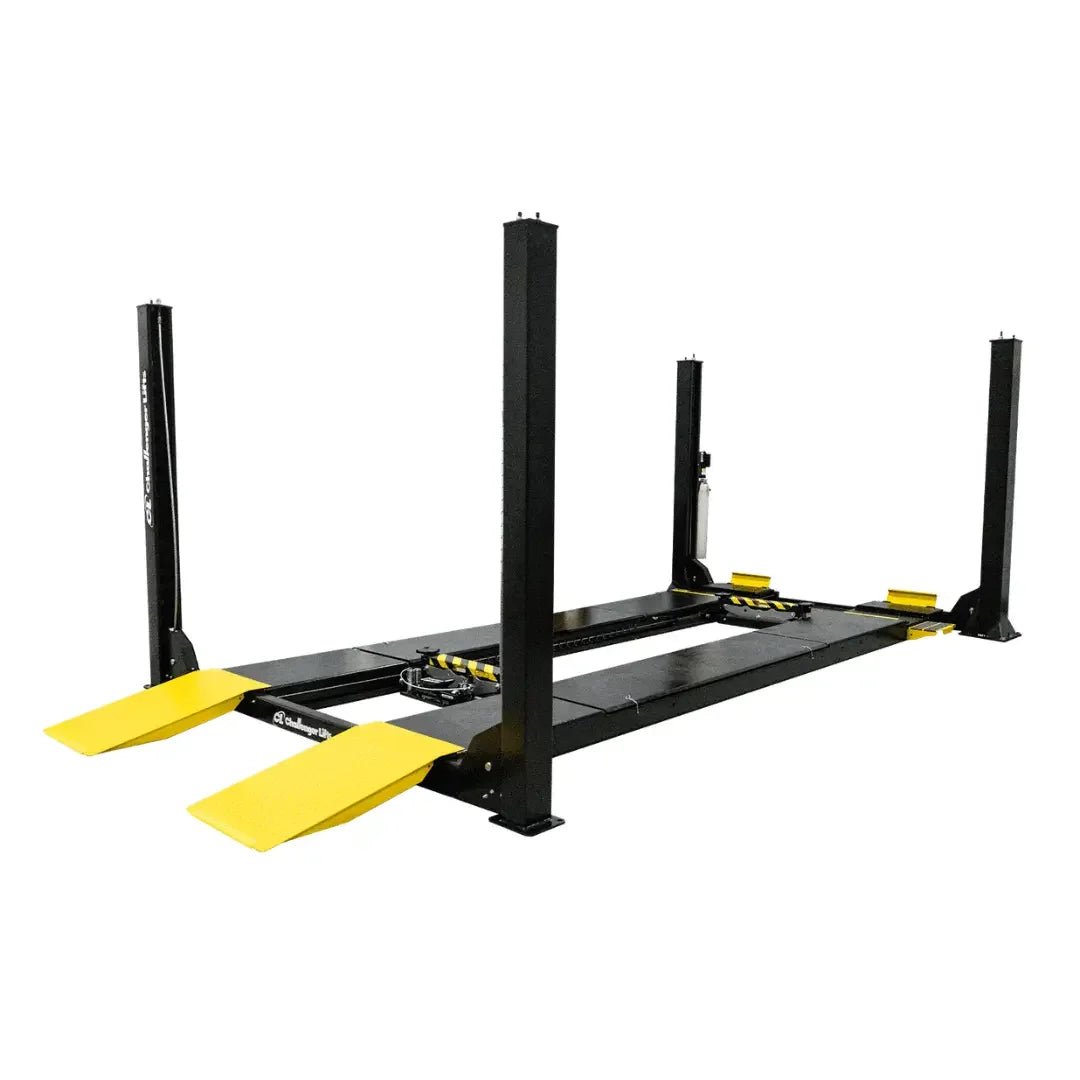

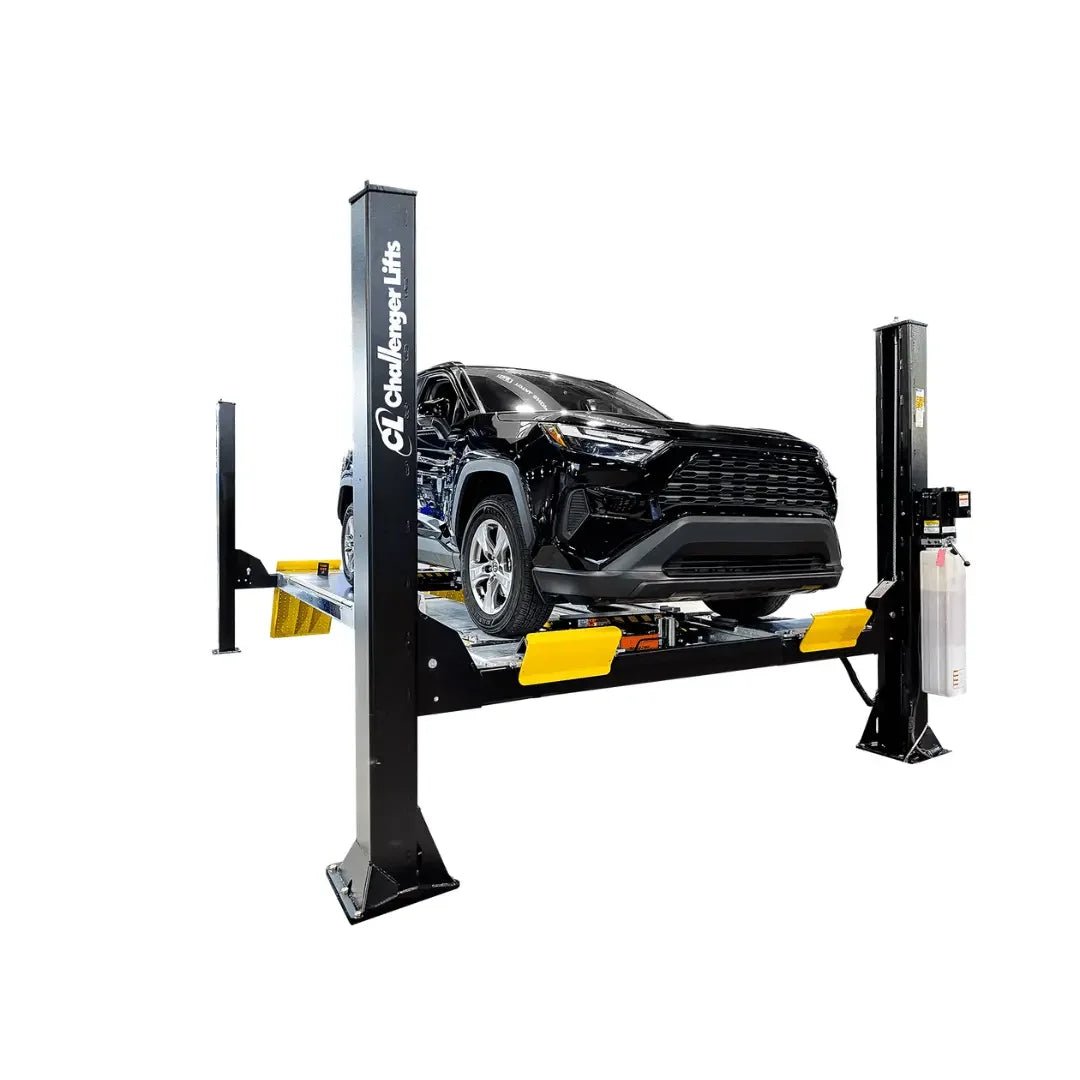

Challenger AR4115EAO Open Front ALI 4 Post Alignment Rack Package – 15,000 lbs

Supersedes AR4015EAO

Designed with productivity and safety as top priorities, the Challenger AR4115EAO represents the next generation of 15,000 lb. capacity four-post alignment lifts. This ALI-certified open-front design delivers exceptional versatility for modern automotive service facilities, accommodating everything from small passenger cars to medium-duty trucks and vans. With all-new wider 22-inch runways, improved alignment capabilities, and a complete package of professional-grade accessories, this lift is engineered to expand your service offerings and maximize bay productivity.

The AR4115EAO features a comprehensive alignment rack package that includes two 7,500 lb. rolling jacks, an internal airline system for dual rolling jack operation, flush mount stainless steel turning radius gauges, rear slip plates, multi-position work-steps, and automatic wheel stops. This complete system transforms your shop's capabilities, enabling precision four-wheel alignments alongside general service work—all on one powerful platform.

Why the AR4115EAO Stands Out

• All-New Wider 22" Runways Enhanced stability and easier vehicle positioning for a broader range of vehicles

• Open Front Design Superior ergonomics with easy access to front-end adjustment points on both standard and long wheelbase vehicles

• Improved 4-Wheel Alignment Wheelbase Accommodates wheelbases from 68" to 158" for extended alignment capabilities on short and long wheelbase vehicles

• Compatible with Modern Imaging Alignment Systems Ready to integrate with the industry's latest alignment technologies

• 17 Locking Positions Improved lock design provides precise height control and enhanced safety

Advanced Design Features

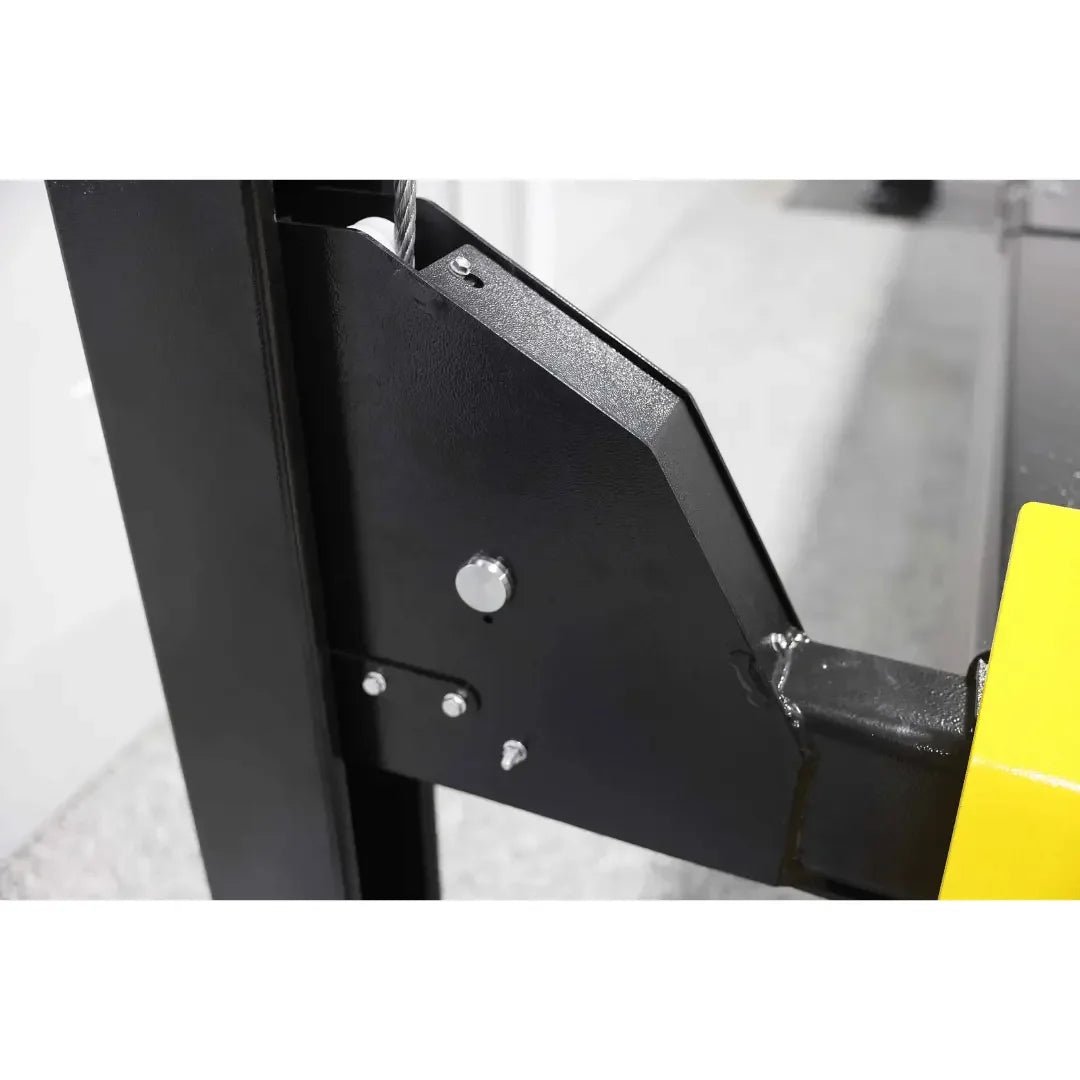

The 4115 Series showcases Challenger's commitment to innovation and durability. The lift features louvered approach ramps that prevent wheel-spin—far more effective than traditional diamond tread or abrasive strips. The all-new enclosed front column and crossbeam design keeps your shop looking clean and professional while protecting internal components for a longer operational life.

Internal to the lift, UHMW encapsulated slide blocks ensure smooth, quiet operation and extended service life. The lift raises vehicles to a maximum 78-inch rise height in approximately 85 seconds, powered by a reliable 2HP motor (208v-230v, 60Hz, 1Ph). Three-phase electrical power is available as an option—please specify at time of order.

Recessed stainless steel turning radius gauges provide accurate readings for precise front-wheel alignment measurements, including caster, camber, and toe-out on turns. Rear recessed free-floating slip plates offer a wider range of four-wheel alignment capabilities, making this lift a true alignment powerhouse.

Complete Alignment Package Includes

The AR4115EAO Alignment Rack Package is a turnkey solution that includes everything you need to perform professional alignments and comprehensive undercar service:

• Two (2) 7,500 lb. Rolling Jacks (RJ7.5) with air/hydraulic operation and (4) 3" stack adapters

• Flush Mount Stainless Steel Turning Radius Gauges

• 40230E Internal Airline Kit for dual rolling jack operation

• Rear Slip Plates for 4-wheel alignment capability

• Multi-Position Work-Steps for safe technician access

• Automatic Wheel Stops for quick, safe vehicle positioning

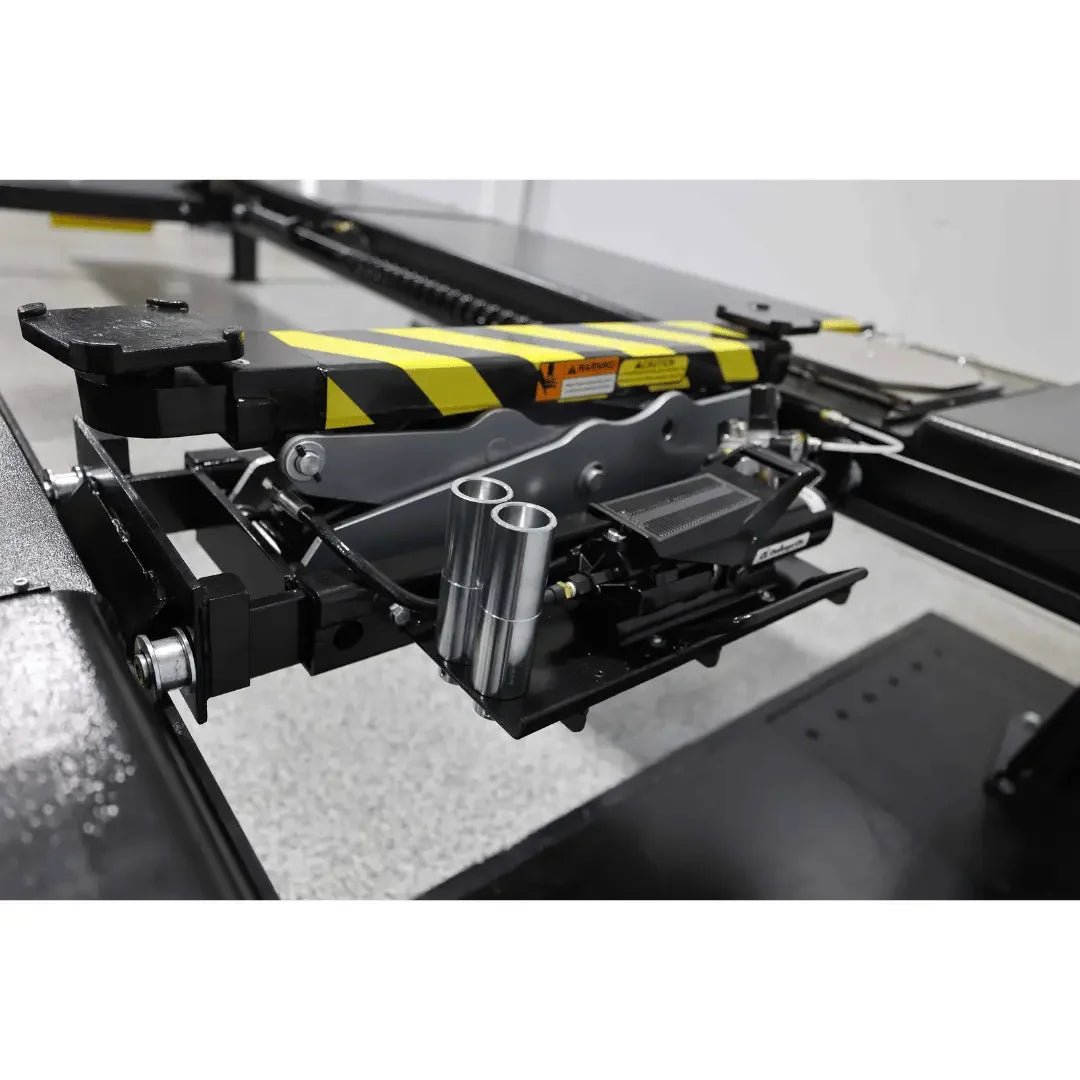

RJ7.5 – 7,500 lb. Rolling Jack

The included 7,500 lb. capacity Rolling Jacks for the 4115 Series four-post lifts feature air/hydraulic operation and come complete with (4) 3" stack adapters. Broaden your service revenue with easy access to brakes, suspension, and wheels from underneath four-post lifts. Each rolling jack features adjustable width, low vehicle drive-over clearance, stackable height extensions with built-in storage rack, and factory-installed and protected filter lubricator and regulator for reliable long-term performance.

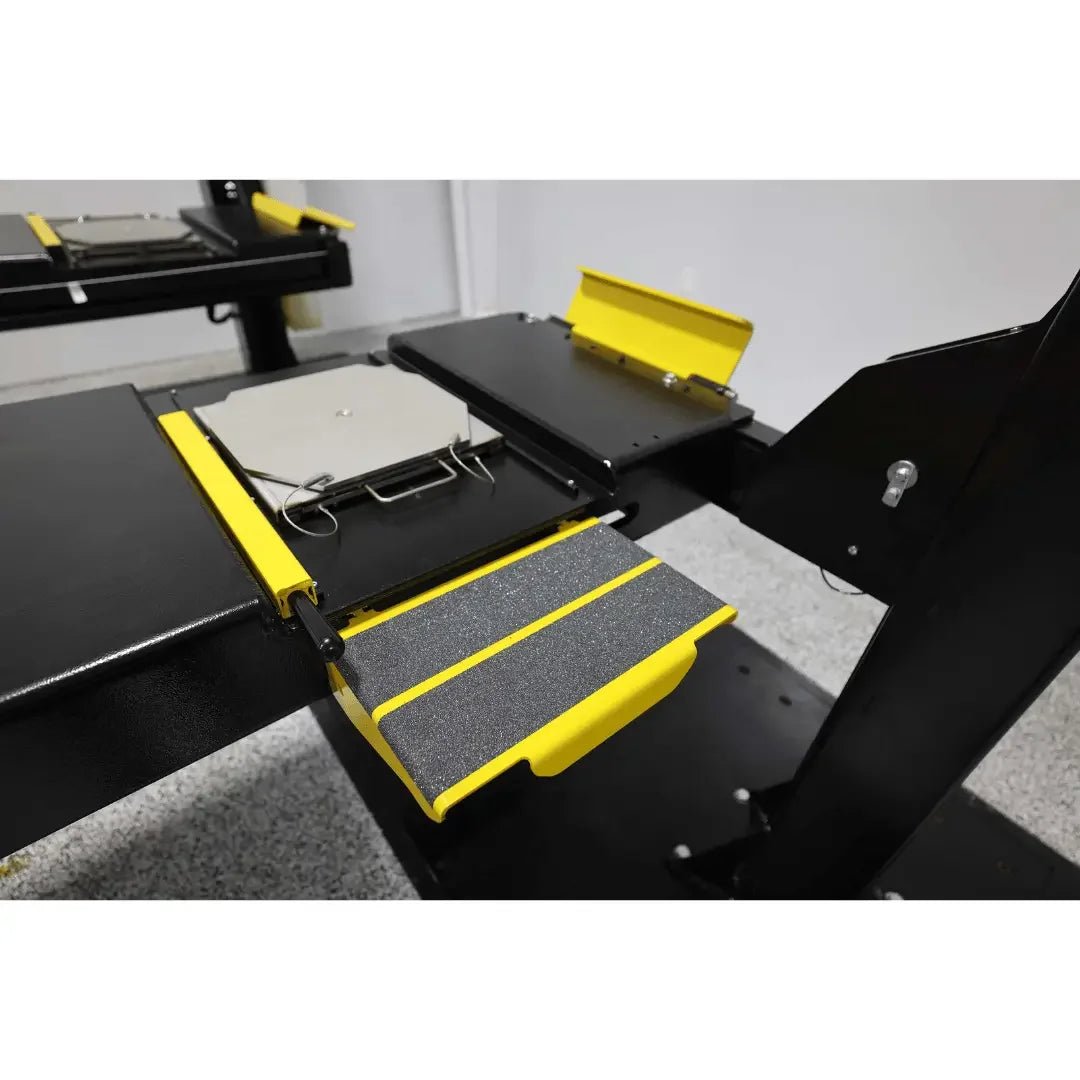

Flush Mount Stainless Steel Turning Radius Gauges

The stainless steel turning radius gauges included with the 4115 Series four-post alignment lifts are essential for front-wheel alignment work. These flush-mount gauges measure how many degrees the front wheels are turned left or right—critical for accurately measuring caster, camber, and toe-out on turns. Their recessed design and durable stainless steel construction ensure accurate readings and long service life even in high-volume shops.

40230E Internal Airline Kit

The included 40230E Internal Airline Kit provides air supply for dual rolling jack operation on 15,000 lb. capacity four-post lifts. This integrated system delivers compressed air throughout the lift structure, allowing both rolling jacks to operate simultaneously without external hoses cluttering your workspace. The kit is specifically designed for the 4115 Series standard-length four-post lifts, ensuring seamless operation and a clean, professional appearance.

Key Performance Specifications

• Lift Capacity: 15,000 lbs.

• Overall Length: 250.75"

• Overall Width: 142"

• Runway Width: 22.375"

• Width Between Runways: 40.625"

• Rise Height: 78"

• Maximum Wheelbase: 183" (based on 30" tire diameter)

• 4-Wheel Alignment Range: 68" – 158"

• Speed of Rise: 85 seconds

• Air Supply Required: 90-120 psi

• Minimum Recommended Bay Size: 14' x 24'

• Available Color: Black only

Professional-Grade Construction

Every Challenger 4115 Series lift is built to withstand the demands of high-volume professional shops. The lift's enclosed column and crossbeam design not only looks cleaner but also protects critical mechanical components from debris and damage. ALI certification ensures that every lift meets rigorous safety and performance standards, giving you and your technicians peace of mind.

With 17 locking positions and an improved locking mechanism, you can position vehicles at the optimal working height for any service procedure. The lift's compatibility with modern imaging alignment systems means you're ready to integrate the latest diagnostic technology as your business grows.

Whether you're performing routine oil changes, brake service, suspension work, or precision four-wheel alignments, the Challenger AR4115EAO delivers the capacity, versatility, and professional features your shop needs to compete and thrive.

Product Features

• Available in Black Color Only

• All-new and wider 22" runways.

• Open and closed front design for better ergonomics, allowing easy access to adjustment points on both standard or long length runway racks.

• Improved 4-wheel alignment wheelbase for extended alignment capabilities allowing you to service both long and short wheelbase vehicles.

• Louvered approach ramps prevent wheel-spin and are more effective than diamond tread or abrasive strips.

• Keep your shop looking stylish & clean with our new and improved all enclosed front column and crossbeam design. Expect a longer and smoother operational life with our UHMW internally encapsulated slide block.

• Compatible with the industry’s latest imaging alignment systems.

• 17 locking positions with improved lock design.

Alignment Rack Package Includes
2) 9,000lb Rolling Jack, Flush Mount SS Turning Radius Gauges, Internal Airline Kit, Rear Slip Plates, Multi-Position Work-Steps & Automatic Wheel Stops

• Recessed stainless steel turning radius gauges provide accurate readings

• Rear recessed free floating slip plates offer a wider range of 4 wheel alignment capabilities

RJ7.5 7,500lb Rolling Jack
7,500 lb. capacity Rolling Jack for 4115series four post automotive lifts features air/hydraulic operation and includes (4) 3" stack adapters. Broaden your service revenue with easy access to brakes and wheels from underneath four post lifts. 7,500 lb. capacity rolling jacks features adjustable width, low vehicle drive-over clearance, stackable height extensions with built-in storage rack and factory installed and protected filter lubricator and regular.

Flush Mount Stainless Steel Turning Radius Gauges
Stainless Steel turning radius gauges for 4P12series, 44018AR and 4115series four post car and truck lifts. Turning radius gauges are used for front wheel alignments to measure how many degrees the front wheels are turned left or right. They are commonly used when measuring caster, camber and toe-out on turns for alignment capable automotive lifts. General service four post automotive lifts can be turned into alignment capable four post lifts with a bolt on alignment kit (Part #40200-3DSS) which includes stainless steel turning radius gauges.

40230E Internal Airline Kit
Internal air line kit for dual rolling jack operation on 15,000 lb. capacity four post automotive lifts. Internal airline kit, #40230E provides air for dual rolling jack on the 4115series standard length four post lifts. #40230X provides air for dual rolling jack operation on the 4115series extended length four post lifts.

Product Specifications

Model

AR4115EAO

AR4115XAO

AR4115EAX

AR4115XAX

Open or Closed Front

Open

Open

Closed

Closed

Lift Capacity

15,000 lbs.

A Overall Length

250.75"

277"

247.625"

275.5"

B Overall Width

142"

C Inside of Columns

Front: 120.75” / Rear: 125.5

125.5"

D Between Columns

195"

222.5"

196"

223.375"

E Height of Columns

Front: 99.25” / Rear: 98"

98"

F Height of Runways

7"

G Width of Runways

22.375”

H Width Between Runways

40.625”

I Maximum Wheelbase 1

183"

210.5"

183"

210.5"

J Rise Height

78"

Max. 2 Wheel Alignment

167.75”

195.25”

167.75”

195.25”

Max. 4 Wheel Alignment

68" – 158"

Air Supply Required

90 -120 psi

Motor/Voltage 2

2HP, 208v-230v, 60Hz, 1Ph

Speed of Rise

85 seconds

Min. Recomm. Bay Size

14' x 24'

14' x 26'

14' x 24'

14' x 26'

1 Maximum wheelbase is based on a tire diameter of 30"

2 Optional Three Phase Electrical Power Available. Please Specify at time of order.

Available in Black Color Only
