Product Overview

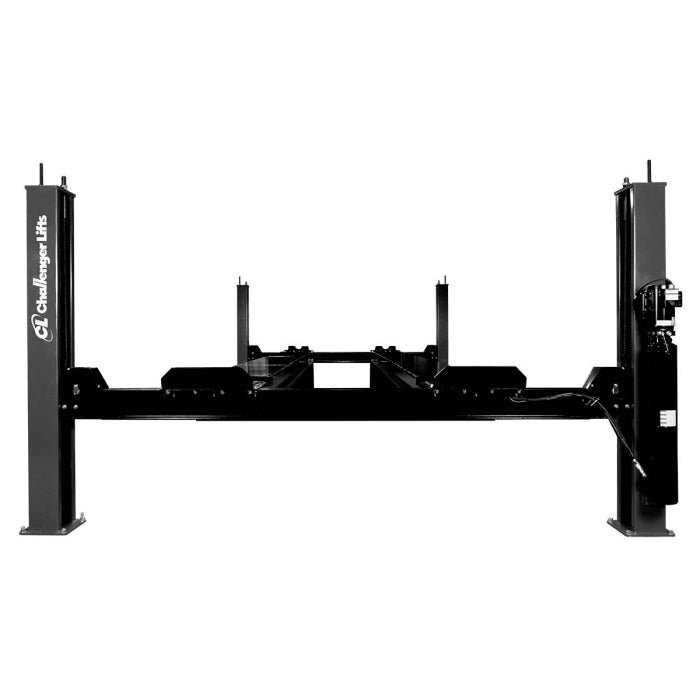

Challenger 4030XAX Closed Front Ex-Length 4 Post Alignment Rack Lift – New Black Color
The Challenger 4030XAX is a professional-grade 30,000 lbs capacity closed-front four-post alignment lift engineered for shops demanding precision wheel alignment capabilities combined with the versatility of a heavy-duty service lift. With an extra-long 380.125" overall length and maximum 317" wheelbase capacity, this ALI-certified lift handles the longest trucks, vans, and specialty vehicles with ease. The alignment rack package includes front turntable cutouts designed to integrate seamlessly with modern camera imaging alignment systems, making it the complete solution for shops performing both alignment and general service work.
Built on Challenger's time-proven cable and cylinder design system, the 4030XAX features large heavy-duty steel sheaves, premium cables, and a robust hydraulic cylinder engineered for optimal performance and minimal maintenance. The 71.75" rise height provides exceptional working clearance underneath vehicles, giving technicians ample space for alignment procedures, undercarriage inspections, and comprehensive service tasks. Now available exclusively in a sleek new black finish, this lift combines rugged commercial-grade construction with a modern professional appearance.
Precision Alignment Meets Heavy-Duty Versatility
The Challenger 4030 Series represents the pinnacle of heavy-duty four-post lift engineering. Every 4030XAX is built with commercial shop environments in mind, where reliability, safety, and precision are non-negotiable. The closed-front design with integrated front turntable cutouts allows this lift to function as a dedicated alignment rack, supporting two-wheel alignment procedures on vehicles up to 292" (7419mm) in length. This makes it the ideal platform for shops that need to perform precision alignment work on extended wheelbase trucks, commercial vehicles, and specialty chassis.
Unlike lighter-duty lifts, the 4030XAX is engineered to handle the punishment of daily commercial use. The adjustable runways accommodate varying track widths ( 46" minimum to 52" maximum between runways ), while the 24" wide runways provide a stable, generous platform for all vehicle types. Fold-down approach ramps with integrated jack rails ensure smooth vehicle loading and provide convenient access points for rolling jacks and service equipment.
Safety is engineered into every aspect of the 4030XAX. The lift features six-position mechanical locking with a pneumatic single-position safety release, allowing technicians to securely lock the lift at multiple heights for different service procedures. A single-point air-actuated lock release disengages all column locks simultaneously, providing smooth and synchronized lowering. An integrated anti-sway device minimizes lateral movement during lifting operations, ensuring stable and safe operation even with unevenly loaded vehicles.
Built-In Versatility and Convenience Features
One of the standout features of the 4030 Series is the built-in runway rail system. This integrated rail network runs the length of the runways, providing a secure mounting track for optional accessories like rolling jacks and sliding oil drain pans (sold separately). This transforms the lift from a simple raising platform into a comprehensive service station where technicians can access multiple work points without repositioning equipment or moving the vehicle.
The durable non-skid louvered approach ramps are engineered for both vehicle traction and technician safety. The louvered design allows debris and fluids to pass through, preventing buildup that could create slip hazards. When not in use, the ramps fold down and out of the way, reducing the lift's footprint and making it easier to maneuver equipment around the bay. Each ramp is constructed from heavy-duty steel to withstand years of vehicle loading cycles without bending or warping.

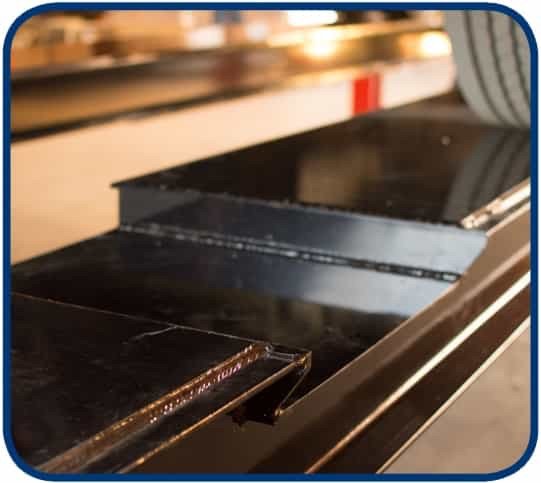

The 4030XAX is fully compatible with the industry's latest camera imaging alignment systems. The front turntable cutouts are precisely positioned to accept recessed heavy-duty steel turnplates (available separately), which provide accurate camber, caster, and toe readings. This compatibility ensures your investment in the lift will integrate seamlessly with current and future alignment technology, protecting your shop's ability to service the latest vehicle models.
Key Features at a Glance
- 30,000 lbs lifting capacity handles the heaviest trucks, vans, and commercial vehicles
- 380.125" overall length with 317" maximum wheelbase accommodates extended chassis and specialty vehicles
- 71.75" rise height provides exceptional undercarriage clearance for alignment and service work
- Front turntable cutouts for precision alignment integration with modern camera systems
- Adjustable runway width (46" – 52") – adapts to narrow and wide track vehicles
Robust Power and Reliable Operation
The 4030XAX is powered by a 3 HP single-phase motor operating on 208-230V, making it compatible with standard shop electrical systems without the need for three-phase power. The lift requires 90-120 psi compressed air for the pneumatic lock release system. This combination of electric hydraulic power and pneumatic controls delivers smooth, reliable lifting and lowering cycles shift after shift.

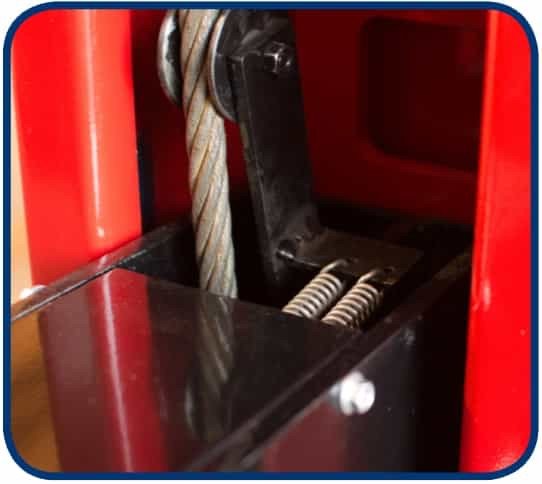

The lift's cable-driven design uses large-diameter steel sheaves and aircraft-grade cables to distribute lifting forces evenly across all four posts. This proven system minimizes wear on components and ensures decades of reliable service with minimal maintenance. The heavy-duty hydraulic cylinder is protected and positioned for optimal mechanical advantage, reducing strain on the system and extending service intervals.
Watch the Challenger 4030 Series in Action
See the Challenger 4030 Series demonstrate its lifting capacity, smooth operation, and professional-grade construction. This video showcases the lift's alignment capabilities, safety features, and the quality engineering that makes it a trusted choice for high-volume service shops.
Recommended Installation Space
For optimal operation and technician access, the 4030XAX requires a minimum recommended bay size of 34' x 17'. This allows adequate clearance around the lift for vehicle maneuvering, technician movement, and the integration of alignment equipment and service accessories. Ensure your shop floor meets the structural requirements for anchoring a 30,000 lbs capacity four-post lift before installation.
Why Choose the Challenger 4030XAX?
The Challenger 4030XAX delivers the trifecta every shop needs: heavy-duty capacity, precision alignment capability, and long-term reliability. Whether you're servicing heavy-duty pickups, full-size vans, or extended wheelbase commercial vehicles, this lift provides the platform, the capacity, and the features to get the job done right. Backed by ALI certification and Challenger's reputation for quality, the 4030XAX is an investment in your shop's productivity and your technicians' safety.
Available exclusively in the new black color finish, this lift combines industrial-strength performance with a modern, professional aesthetic that enhances any shop environment.
⚠ WARNING: Cancer and Reproductive Harm
Product Features
- ALI-Certified Cable-Driven 30K 4 Post!
- Front turntable cutouts
- Two wheel alignment up to 256 in.
- Adjustable runways
- Anti-sway device
- Six position locking and pneumatic single position safety release
- Fold down approach ramps with jack rails
- Large heavy-duty steel sheaves and cables
- Time-proven cable and cylinder design system
- 71.75” rise height provides more work space underneath vehicles
- Heavy-duty cylinder for optimal performance and minimal maintenance
- Single point air actuated lock release disengages all column locks simultaneously
- Multiple locking positions for a variety of alignment and general service tasks
- Compatible with the industry’s latest camera imaging alignment systems
- Available recessed heavy duty steel turnplates provide accurate readings
- Durable non-skid louvered approach ramps for positive vehicle traction and technician safety
- Built-in runway rail system provides versatility to add convenience options like rolling jacks and sliding oil drain pan (Sold Separately)
Product Specifications
Closed Front
Flat Deck
Alignment Rack Package
Model
4030SFX
4030EFX
4030XFX
4030SAX
4030EAX
4030XAX
Lift Capacity
30,000 lbs.
A Length Overall
308.125”
(7826mm)
344.125”
(8741mm)
380.125”
(9655mm)
308.125”
(7826mm)
344.125”
(8741mm)
380.125”
(9655mm)
B Width Overall
172.75” (4388mm)
C Inside of Columns
152” (3861mm)
D Between Columns
246.125”
(6252mm)
282.625”
(7179mm)
318.625”
(8093mm)
246.125”
(6252mm)
282.625”
(7179mm)
318.625”
(8093mm)
E Height Overall
92.25” (2343mm)
F Height of Runways
8.5” (216mm)
G Width of Runways
24” (610mm)
H Width Between Runways
46” Min – 52” Max (1168mm – 1321mm)
I Maximum Wheelbase 1
244.5” (6210mm)
281” (7137mm)
317” (8052mm)
244.5” (6210mm)
281” (7137mm)
317” (8052mm)
J Rise Height
71.75” (1822mm)
Max. 2 Wheel Alignment
N/A
N/A
N/A
219.5” (5575mm)
256” (6502mm
292” (7419mm)
Motor
3 HP
Voltage (Single Phase)
208v – 230v
Air Required
90 – 120 psi
Speed of Rise
TBD
Min. Recomm. Bay Size
28’ x 17’
31´ x 17´
34´ x 17´
28’ x 17’
31´ x 17´
34´ x 17´
1. Maximum wheelbase is based on a tire diameter of 30"
Available in Black Only
Key Features
- Published product configuration: Challenger 4030XAX Closed Front Ex-Length 4 Post Alignment Rack Lift – New Black Color The Challenger 4030XAX is a professional-grade 30,000 lbs capacity closed-front four-post alignment lift engineered for shops demanding precision wheel alignment capabilities combined with the versatility of a heavy-duty service
- Exact manufacturer model or part number: 4030XAX
- Cataloged for Lifts & Hoists: Car Lifts — Alignment Lifts
- 4 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | Challenger |
|---|---|
| SKU | 4030XAX |
| MPN / Model | 4030XAX |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Alignment Lifts |
Before You Order
Confirm that model 4030XAX, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
