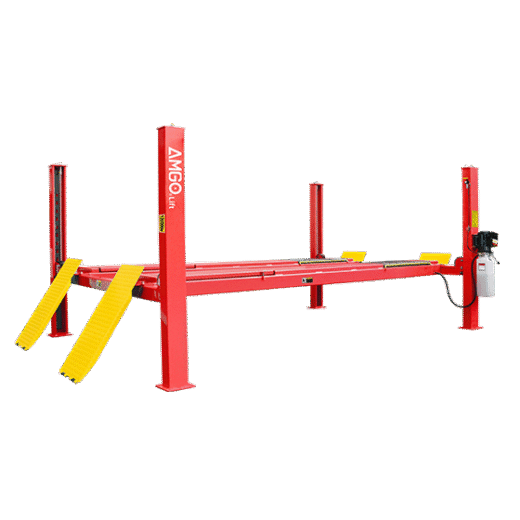

AMGO® Hydraulics PRO-14AE Extended 4 Post Alignment Lift 14,000 lbs

Product Overview

AMGO® Hydraulics PRO-14AE Extended 4 Post Alignment Lift 14,000 lbs

Professional-Grade Extended Alignment Lift for Your Shop

The AMGO® Hydraulics PRO-14AE is a powerful extended-runway four-post alignment lift engineered to deliver 14,000 lbs lifting capacity with the versatility to handle a wide variety of vehicle types and wheelbases. This heavy-duty alignment model features extra-long runways compared to standard models, providing the extended length necessary for larger vehicles, trucks, and challenging alignment jobs. Built with air-released safety locks, mechanical self-locking protection, and cable-breaking safety systems, the PRO-14AE ensures reliable, secure operation in professional automotive service environments.

Designed specifically for alignment work, this lift includes adjustable turnplate pockets and extra-long rear slip plates to accommodate your alignment equipment setup. The 2.0HP 220V single-phase motor provides consistent, smooth lifting performance, while the skid-proof diamond pattern platform ensures secure vehicle positioning at any height.

With a maximum lifting height of 77 9/16" and an impressive 66 3/4" underneath clearance, the PRO-14AE gives technicians ample workspace for comprehensive alignment procedures, suspension work, and undercarriage inspections. The 116" width between columns and 102 1/16" drive-thru clearance make it easy to maneuver vehicles on and off the lift, while the extended overall length of 285 1/2" with ramps accommodates longer wheelbase vehicles with confidence.

Key Features & Highlights

• 14,000 lbs capacity handles trucks, SUVs, vans, and passenger vehicles with ease

• Extended runway design overall length of 286" with ramps, providing room for longer wheelbases

• Air-released safety locks for convenient operation and reliability during every lift cycle

• Mechanical self-lock and cable-breaking protection dual safety systems keep vehicles secure at height

• Width on platforms offers a runway spacing of 46" between runways to fit various vehicle track widths

• High-quality 1/2" aircraft-grade cable engineered for strength, durability, and long service life

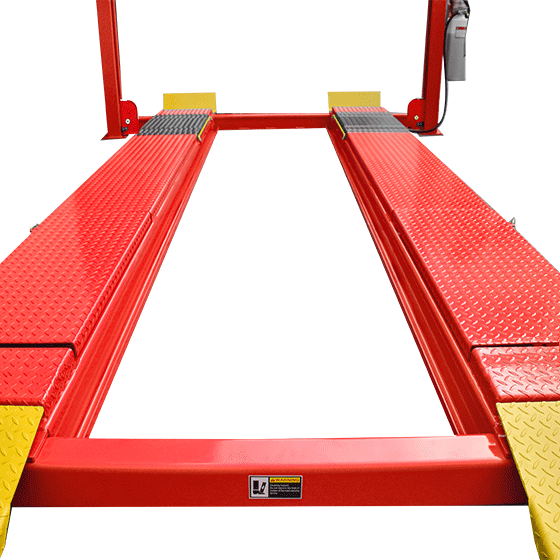

• Skid-proof diamond platform surface ensures secure traction and vehicle stability

• Maximum lifting height of 77 9/16" with 68 7/8" max. underneath clearance for comfortable working conditions

• 2.0HP, 220V/60Hz single-phase motor powerful, efficient, and compatible with most shop electrical systems

• Hydraulic cylinders designed and manufactured to high quality standards for smooth, reliable performance

• Accommodates vehicles from 92 5/8" to 177 3/16" wheelbase for four-wheel alignment and up to 207 1/16" for two-wheel alignment

Important Note: Turn plates are NOT included as standard equipment and must be purchased separately. See optional accessories below.

Extended Length for Maximum Versatility

The PRO-14AE Extended model offers longer runways compared to the standard PRO-14A, making it the ideal choice for shops that service larger trucks, extended cab pickups, vans, and specialty vehicles. With a total length of 286" with ramps, this lift provides the extra space you need to position long-wheelbase vehicles securely for alignment and service work. The adjustable turnplate pockets and extra-long rear slip plates are specifically designed to accommodate alignment equipment, allowing you to perform precise four-wheel and two-wheel alignments with confidence.

Safety and Reliability Built In

Safety is paramount with the AMGO PRO-14AE. This lift incorporates multiple layers of protection to keep both your technicians and vehicles safe. The air-released safety lock system provides convenient, reliable locking at any height, while the mechanical self-locking device ensures the lift stays securely in place even if hydraulic pressure is lost. An integrated cable-breaking protection system offers additional peace of mind, preventing uncontrolled descent in the unlikely event of cable failure.

High-quality 1/2" aircraft-grade cable is used throughout the lift, engineered for exceptional strength and durability. The hydraulic cylinders are designed and manufactured to rigorous quality standards, delivering smooth, consistent lifting performance over years of service. The skid-proof diamond pattern platform ensures vehicles remain securely positioned, reducing the risk of slippage during loading, unloading, or while elevated.

Optional Accessories to Expand Capability

Enhance your PRO-14AE with a range of optional accessories designed to maximize productivity and versatility:

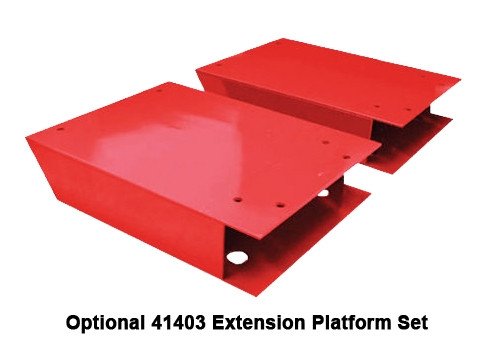

• 41403 Extension Platform Set adds an extra 26" (660mm) to the platform length for PRO-14, PRO-14A, and PRO-14AE models (2 pieces included)

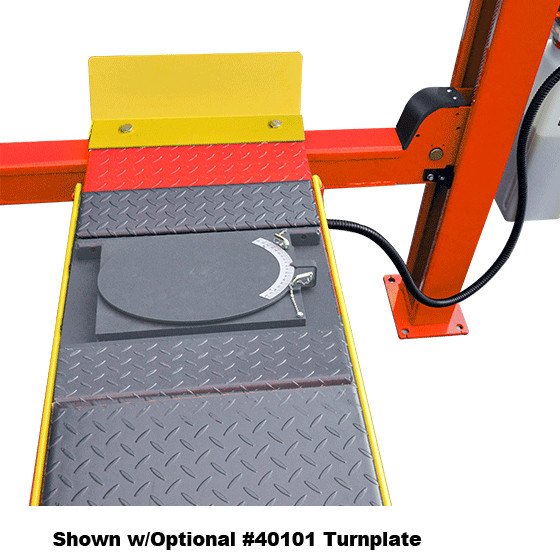

• 40101 Front Turnplate Kit essential for precision alignment work

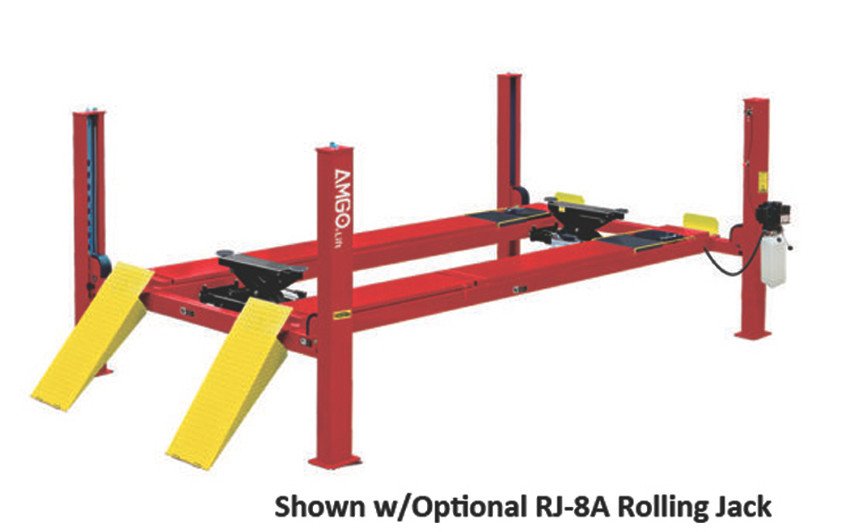

• RJ-8A Pneumatic Rolling Jacks 8,000 lbs capacity rolling bridge jacks for wheel-free service

• 40102 Airline Kit for 4 Post Lifts less than 18K convenient onboard air supply for pneumatic tools

• 40103 LED Light Kit for 4 Post Lifts illuminate the undercarriage workspace for improved visibility

Note: Turn plates are NOT standard equipment and must be purchased separately for alignment applications.

California Residents:

WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to

Product Features

• 14,000 lbs capacity

• Turn plates are NOT standard. Must be purchased separately

• AMGO ETL certified power unit comes as standard

• Mechanical self-locking safety device with air-driven lock release

• Primary multiple safety locks and cable-slack protection system come standard

• Cable-driven, utilizing aircraft standard high quality cables

• Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valv

• Non-skid diamond platforms

• Integrated slip plates and adjustable turnplate pockets

Optional Accessories Available

• 41403 Extension Platform Set (adds an extra 26"(660mm) to the platform) for PRO-14, PRO-14A, & PRO-14AE (2Pcs)

• 40101 Front Turnplate Kit

• RJ-8A Pneumatic 8,000lbs Rolling Jacks

• 40102 Airline Kit for 4 Post Lifts less than 18K

Product Specifications

Model

PRO-14AE

Style
Alignment

Lifting Capacity
14,000 lbs

A Overall Length w/Ramp
286"

A Overall Length w/o Ramp
N/A

B Runway Length
229"

C Overall Width
130 7/8"

D Width Between Columns
116"

E Max Lifting Height
77 9/16"

E Max. Lock Height (to Top of Runway)
74 7/16"

F Overall Height
86 3/16"

G Minimum Height
9 13/16"

H Max. Underneath Height
68 7/8"

H Max. Lock Underneath Height
65 3/4"

I Drive-Thru Clearance
102 1/16"

J Width Between Runways
46"

K Outside Edge of Runways
86"

L Min. Four Wheel Align
92 5/8"

M Max. Four Wheel Align
177 3/16"

N Max. Two Wheel Align
207 1/16"

Lifting Time
81 S

Motor
2.0HP, 220V/60Hz Single Phase

Gross Weight
3,752 lbs

Key Features

• Published product configuration: AMGO® Hydraulics PRO-14AE Extended 4 Post Alignment Lift 14,000 lbs Professional-Grade Extended Alignment Lift for Your Shop The AMGO® Hydraulics PRO-14AE is a powerful extended-runway four-post alignment lift engineered to deliver 14,000 lbs lifting capacity with the versatility to handle a wide variety of vehicle
• Exact manufacturer model or part number: PRO-14AE
• Cataloged for Lifts & Hoists: Car Lifts — Alignment Lifts
• Condition: New

Product Specifications

Before You Order

Confirm that model PRO-14AE, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
