BendPak PL6000DC-ADD-ON Shared Column Add-On Platform & Column Set 6,000 lbs

Product Overview

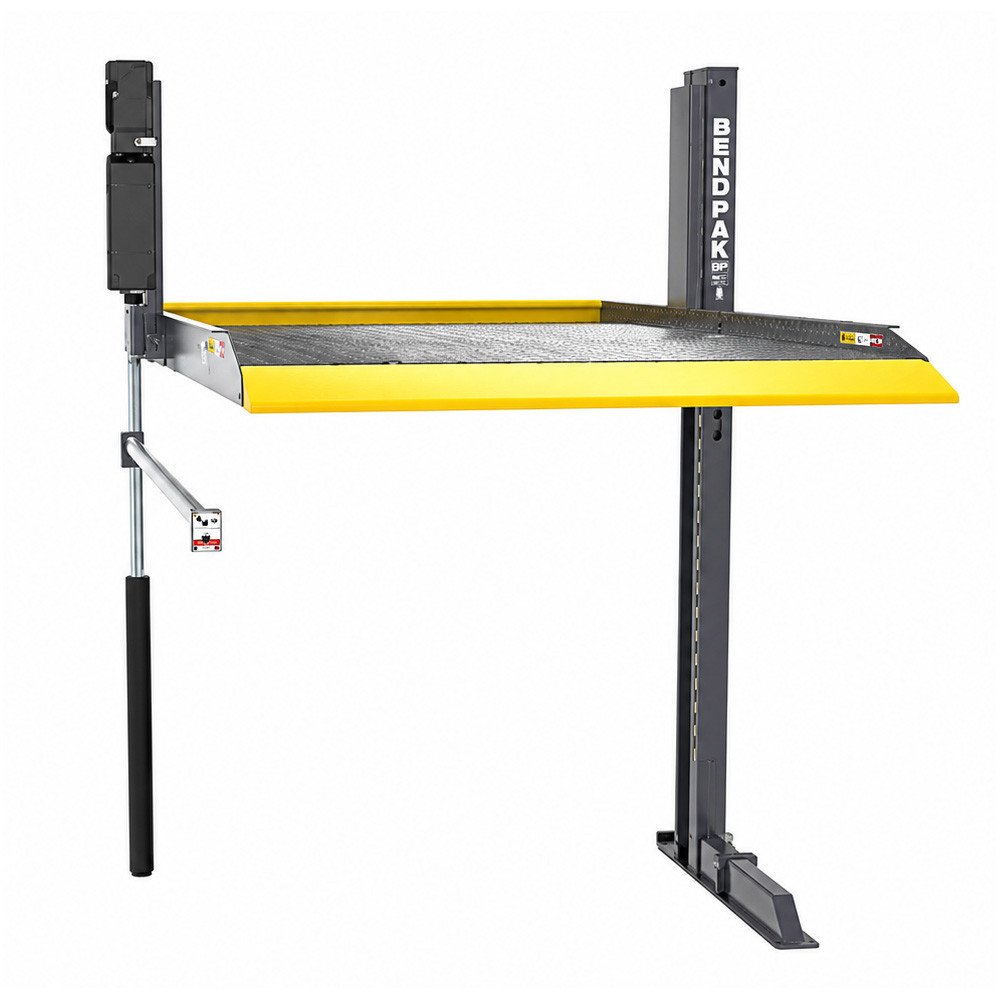

BendPak PL6000DC-ADD-ON Shared Column Add-On Platform & Column Set

Supersedes 5175439

The BendPak PL6000DC-ADD-ON is a shared column add-on platform and column set engineered to seamlessly integrate with the PL-6000DC dual-column parking lift, transforming a single two-post lift into a high-density, multi-row parking system. Designed with commercial-grade construction and a 6,000 lbs. capacity, this add-on set maximizes parking efficiency and delivers professional-grade performance in automotive dealerships, multi-level parking facilities, vehicle showrooms, and high-density storage operations. With its innovative ganged column design, freestanding configuration when installed two-wide or more, and comprehensive safety features, the PL6000DC-ADD-ON represents BendPak's commitment to innovation, reliability, and space-saving vehicle storage solutions.

Expand Your Parking Capacity with Shared Column Technology

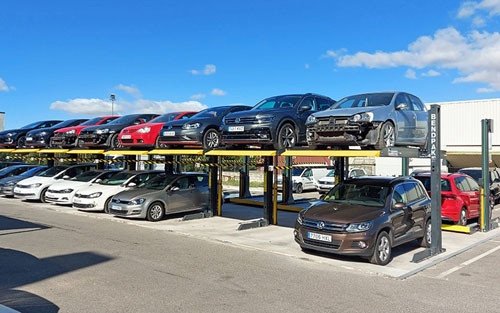

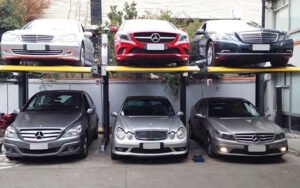

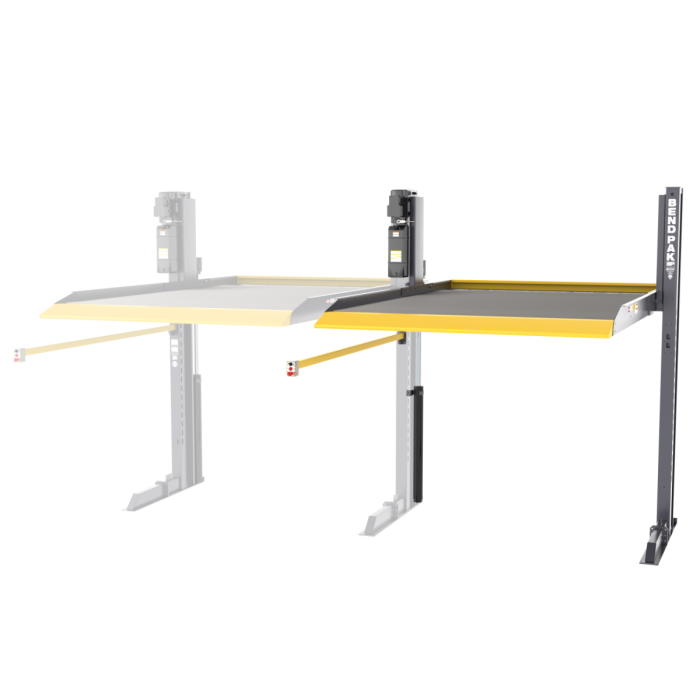

The PL6000DC-ADD-ON connects directly to the PL-6000DC two-post lift and turns your single parking lift into a multiple-row system with shared columns. This innovative design enables you to install multiple lifts in minimum space, dramatically increasing vehicle storage density while reducing overall installation costs. When ganged two-wide or wider, the system becomes freestanding, eliminating the need for individual anchoring at each position and simplifying installation logistics.

The PL6000DC-ADD-ON shared column add-on set and PL-6000DC dual-column parking lift are designed to accommodate a wide array of vehicles including SUVs, sedans, sports cars, pickups, vans, and light trucks. They offer the perfect combination for both long-term and short-term parking. Typically, long-term parking occupies the upper level while short-term parking remains below, creating a flexible, high-efficiency storage solution that doubles your parking capacity without doubling your floor space.

The PL-6000DC system was specifically designed to accommodate the needs of real estate developers, architects, engineers, automotive dealers, and commercial parking operators. It can be installed inside a typical 8-foot parking space and operates reliably in both indoor and outdoor locations, making it a versatile choice for diverse parking environments, from luxury car dealerships to residential condominiums to fleet storage facilities.

Commercial-Grade Design and Dependable Hydraulic Operation

Built with commercial-grade design and construction, the PL6000DC-ADD-ON features a galvanized and corrugated anti-slip platform that accommodates the wide footprint of modern pickups, vans, and cars. The platform's usable width of 82.5 inches ensures ample space for vehicle tires, while the full-width channel-locked center panels protect any vehicle parked below from debris or fluids.

With an overall length of 148.25 inches and overall width of 93.5 inches, the system is engineered to fit standard parking bay dimensions while maximizing usable platform area. The overall height of 126.5 inches makes it compatible with most commercial parking structures and indoor storage facilities.

The lift is powered by an overhead power unit that provides smooth, quiet hydraulic operation with dual direct-drive hydraulic cylinders. Unlike chain or screw-driven systems, the dual telescoping direct-drive cylinders eliminate the need for lifting chains or screw mechanisms, offering better reliability, smoother operation, and dramatically lower maintenance costs. The system features a 2.2kw hydraulic power pump and is compatible with 220-420V, 1 or 3 Phase, 50/60Hz electrical configurations, ensuring flexibility across various facility power setups and global installations.

The platform can be stopped at different heights to fit various vehicles and ceiling heights, with a maximum lifting height of 82.5 inches. This adjustability means you can optimize the platform position based on vehicle dimensions and overhead clearance requirements. Lifting time is 50 seconds, and lowering time is 45 seconds, with the platform driven by gravity when lowered, eliminating electric motor consumption and significantly reducing operating costs over the life of the system. The 24V control power ensures safe, low-voltage operation that protects operators and complies with modern electrical safety standards.

Comprehensive Safety Features for Maximum Protection

Safety is engineered into every component of the PL6000DC-ADD-ON. The system features an automatic safety lock combined with anti-fall device that holds the platform securely at any height. Powerful load-holding devices automatically engage and lock the lift structure as the parking lift raises, preventing sudden free fall in the unlikely event of a suspension component failure. Mechanical safety locks are spaced every 4 inches, providing continuous protection throughout the entire lift's travel range with multiple redundant locking points.

Additional safety features include an electric auto release lock system, 24V operator controls for low-voltage operator safety, and a photocell sensor that prohibits the lift from being lowered if a vehicle is parked below. This critical sensor prevents accidental damage to lower-level vehicles and ensures operators cannot accidentally lower the platform onto occupied spaces. An electric key switch provides security and safety, with automatic shut-off when the operator releases the key switch, preventing unauthorized operation. A manual lock release is available as an optional feature in case of electricity failure, ensuring operational continuity even during power outages.

The system includes hydraulic overload protection to prevent damage from exceeding weight capacity, electric protection for power overload or improper voltage, an automatic locking system during power outage, an emergency stop button within easy operator reach, an upper limit switch to prevent over-travel, and a pressure relief valve and pressure compensated flow control valve to ensure safe operation and level lifting. Industrial-grade hydraulic cylinders feature a single-piece, pilot-fitted, machined steel piston with specially designed, pressure-loaded U-cup piston seals, backups, and wear bands to virtually eliminate fluid bypass and ensure consistent, reliable performance.

Safety Notice:
The PL6000DC-ADD-ON includes multiple layers of safety protection including mechanical locks every 4 inches, anti-fall devices, photocell sensors, emergency stop, upper limit switch, and hydraulic overload protection. Always follow proper operating procedures and refer to the installation manual for complete safety guidelines.

Fast, Easy Installation and Low Maintenance

Installation is fast and easy with the included comprehensive installation manual, floor plan drawings, and foundation specifications. The system is designed for installation on typical parking surfaces, and BendPak supplies concrete fasteners that meet the criteria of ANSI/ALI ALCTV (Current Edition) standards. This means you can install with confidence knowing you're meeting nationally recognized safety standards for automotive lifting equipment.

Professional packaging and an experienced logistics team ensure customers receive the product damage-free, while compact package sizing with shipping dimensions of 150" x 35" x 32" and a shipping weight of 1,934 lbs means simpler unloading and handling compared to fully assembled lift systems. The modular design allows for easier transport through standard doorways and into existing facilities.

The PL6000DC-ADD-ON features maintenance-free composite carriage bearings that reduce upkeep requirements and improve long-term reliability. Unlike traditional metal bearings that require regular lubrication, these advanced composite bearings operate smoothly without maintenance, reducing your total cost of ownership. The add-on set includes the power unit required for independent hydraulic operation.

Important Installation Information:

BendPak lifts are supplied with concrete fasteners that meet the criteria of the American National Standard ANSI/ALI ALCTV (Current Edition). Buyer is responsible for all charges relating to any special regional structural or seismic anchoring requirements specified by any other agencies or codes such as the Uniform Building Code (UBC) or International Building Code (IBC). Consult local building codes and regulations before installation.

Perfect for Commercial Parking Applications

The PL6000DC-ADD-ON is engineered specifically for demanding commercial applications where maximizing parking density and minimizing installation costs are critical. Its wide deck platform accommodates pickups, vans, and cars with ease, while the 6,000 lbs. (2,722 kg) lifting capacity handles the majority of passenger vehicles and light commercial vehicles on the road today.

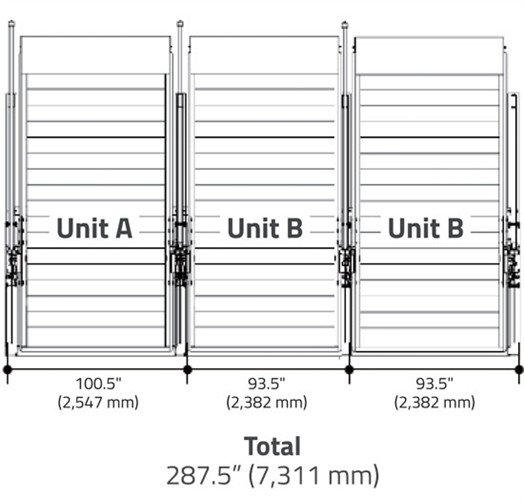

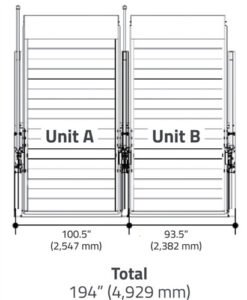

The ganged column design is what truly sets this system apart. By sharing columns between adjacent lift bays, you reduce the number of columns required, minimize floor space consumption, and create a cleaner, more open parking environment. When installed two-wide or wider, the system becomes freestanding, further simplifying installation and reducing structural requirements.

Whether you're an automotive dealership looking to showcase more inventory, a commercial parking operator maximizing revenue per square foot, or a residential developer adding value with secure parking, the PL6000DC-ADD-ON delivers the perfect balance of capacity, safety, reliability, and space efficiency.

Key Highlights

• 6,000 lbs. lifting capacity (2,722 kg) accommodates a wide range of vehicles including SUVs, sedans, pickups, vans, sports cars, and light trucks

• Ganged column design allows multiple installations in minimum space, reducing installation costs and maximizing parking density

• Freestanding when ganged two-wide or wider simplifies anchoring requirements and installation logistics

• Overhead power unit with dual direct-drive hydraulic cylinders provides smooth, quiet, reliable operation with minimal maintenance and no chains or screws to maintain

• Comprehensive safety features including automatic safety locks every 4 inches, photocell sensor, anti-fall device, emergency stop, upper limit switch, and 24V controls for maximum operator protection

• Galvanized and corrugated anti-slip platform with 82.5-inch usable width accommodates wide modern vehicles

• Full-width channel-locked center panels protect vehicles parked below from debris and fluids

• Adjustable platform height up to 82.5 inches allows customization for various vehicle sizes and ceiling heights

• Fast operation with 50-second lift time and 45-second gravity-driven lowering time reduces energy consumption

• Maintenance-free composite carriage bearings eliminate lubrication requirements and reduce long-term maintenance costs

California Prop 65 Warning: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to

Product Features

• Add-On Shared Column Platform & Column Set w/Large Wheel Plate for PL6000DC 2 Post lift

• Space-Saving Ganged Column Design: Supports multiple lift installations in minimal space to maximize parking capacity.

• Commercial-Grade Construction: Heavy-duty steel construction delivers exceptional strength and long-term durability.

• Galvanized Anti-Slip Platform: Corrugated galvanized deck provides superior traction and corrosion resistance.

• Freestanding Multi-Lift Configuration: Can be installed as a freestanding system when configured two-wide or larger.

• Quiet Hydraulic Operation: Overhead-mounted power unit delivers smooth, reliable lifting performance.

• Versatile Installation: Designed for installation on standard parking surfaces.

• Adjustable Parking Heights: Platform can be stopped at multiple heights to accommodate different vehicle sizes and ceiling clearances.

• Full-Width Center Protection Panels: Channel-locked center panels help protect the vehicle parked below.

• Wide Vehicle Platform: Accommodates cars, SUVs, pickups, and vans with ease.

• Dual Direct-Drive Hydraulic Cylinders: Provide smooth, powerful, and dependable lifting performance.

• Automatic Safety Lock System: Integrated safety locks and anti-fall device securely hold the platform in place.

• Maintenance-Free Composite Bearings: Durable carriage bearings reduce maintenance and ensure smooth operation.

• Electric Key Switch Control: Restricts operation for enhanced safety and security.

• Automatic Shut-Off: Lift stops immediately when the key switch is released.

• Optional Manual Lock Release: Allows platform lowering during power outages.

• Hydraulic Overload Protection: Prevents lifting beyond the system's rated capacity for added safety.

Safety Features

• Mechanical safety locks are spaced every 4 inches

• 24v operator controls and lock release

• Photocell sensor prohibits lift to be lowered if vehicle is parked below

• Electric protection for power overload or improper voltage

• Automatic locking system during power outage

• Emergency stop button

• Upper limit switch

• Pressure relief valve and pressure compensated flow control valve to ensure safe operation and level lifting

• Industrial-grade hydraulic cylinders feature a single-piece, pilot fitted, machined steel piston, wrapped with specially designed, pressure loaded U-cup piston seals, backups and wear bands to virtually eliminate fluid bypass

Includes

• Power unit

Product Specifications

Specifications
PL6000DC-ADD-ON

Style

Shared Column Add-On Platform & Column Set for PL6000DC

Capacity

Lifting Capacity
6,000 lbs. (2,722 kg)

Lift Dimensions

Overall Height
126.5" (3,221 mm)

Overall Length
148.25” (3,766 mm)

Overall Width
93.5" (2,385 mm)

Usable Platform Width
82.5" (2,100 mm)

Lifting Height
82.5" (2,100 mm)

Power

Lifting / Lowering Time
50 / 45 sec

Electrical Required
220-420V, 1 or 3 Phase, 50/60Hz

Control Power
24V

Lock Release
Electric Auto Release

Electrical Required
220-420V, 1 or 3 Phase, 50/60Hz

Power Pack
2.2kw Hydraulic Power Pump

Shipping Dimensions
150" x 35" x 32"

Shipping Weight
1934 lbs

BendPak lifts are supplied with concrete fasteners that meet the criteria of the American National Standard ANSI/ALI ALCTV-(Current). Buyer is responsible for all charges relating to any special regional structural or seismic anchoring requirements specified by any other agencies or codes such as the Uniform Building Code (UBC) or International Building Code (IBC).

Key Features

• Published product configuration: BendPak PL6000DC-ADD-ON Shared Column Add-On Platform & Column Set Supersedes 5175439 The BendPak PL6000DC-ADD-ON is a shared column add-on platform and column set engineered to seamlessly integrate with the PL-6000DC dual-column parking lift, transforming a single two-post lift into a high-density, multi-row parking
• Exact manufacturer model or part number: 5176262
• Cataloged for Lifts & Hoists: Car Lifts — Specialty Lifts
• 1 product manual or technical document linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model 5176262, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
