Product Overview
Auto Lift MR6.5K-38 6,500lb. Portable Mid-Rise Frame Lift
Supersedes MR6K-38

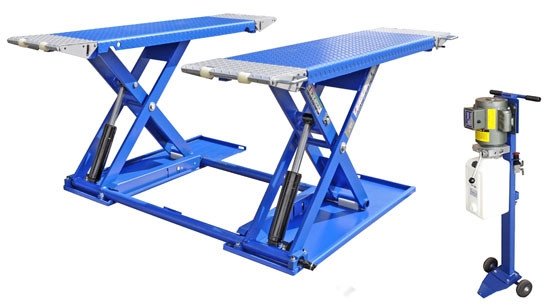

The Auto Lift MR6.5K-38 is a heavy-duty 6,500 lb. capacity portable mid-rise scissor frame lift engineered to deliver professional-grade performance with exceptional mobility. Designed specifically for brake work, wheel service, inspections, and detailing applications, this lift combines the power of twin hydraulic cylinders with the convenience of true portability. With a generous 38" working height and a low 4" drive-on clearance, the MR6.5K-38 accommodates cars, light trucks, and low-profile vehicles with ease. The improved design features an increased 500 lb. weight capacity boost over its predecessor, along with enhanced flat-top platforms for superior stability and safety during service operations.
Built for professional shops and serious DIYers alike, this lift includes a comprehensive portability package: a power unit dolly, lift wheel kit, and tow bar, making it effortless to reposition or store when not in use. The pneumatic single point / double lock release system ensures safe, reliable operation, while load-bearing flip-up runway extensions and rubber spacer blocks provide maximum versatility for different vehicle types and lifting scenarios. Whether you're running a busy service bay or outfitting a mobile operation, the MR6.5K-38 is built for years of trouble-free service.
Key Advantages of the MR6.5K-38
- Portable Design: Complete wheel kit, tow bar, and dolly-mounted power unit make this lift easy to move and position wherever you need it
- Increased Capacity: Enhanced 6,500 lb. lifting capacity handles a wide range of cars and light trucks with confidence
- Comfortable Working Height: Full 38" lift height provides ergonomic access for brake jobs, suspension work, and detailed inspections
- Low-Profile Access: 4" minimum pad height allows easy drive-on clearance for lowered vehicles and sports cars
- Versatile Configuration: Load-bearing flip-up runway extensions and included rubber spacer blocks adapt to various vehicle frames and lift points
See the MR6.5K-38 in Action
Detailed Feature Breakdown
The MR6.5K-38 is equipped with a robust twin hydraulic cylinder system paired with a pneumatic single point / double lock release for smooth, safe lifting and lowering operations. The lift's 77" overall length and 75-1/4" overall width provide a stable footprint, while the 33-1/4" width between runways and 18-3/16" runway width accommodate a wide variety of vehicle wheelbases and frames.
With a 56" pad length, the lift offers exceptional contact area for secure vehicle positioning. Operating on 115V / 20 Amp single phase power and requiring 90-125 PSI air supply, the MR6.5K-38 integrates seamlessly into most shop environments. The lift achieves full height in just 40 seconds, maximizing productivity without sacrificing control or safety. When used with optional adapters, lifting height extends to 39-1/2", providing even greater flexibility for specialized service tasks.
Included Components for Maximum Value
Every Auto Lift MR6.5K-38 comes complete with everything you need to get started:

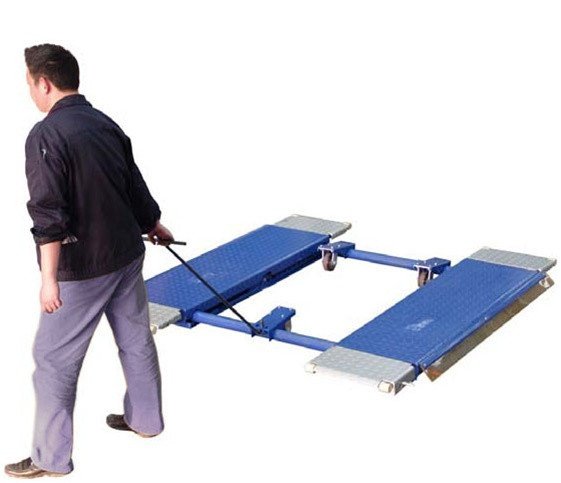

- Wheel Kit for easy mobility around your shop
- Tow Bar convenient towing and repositioning
- Rubber Spacer Blocks adapt lift pads to different vehicle frame configurations
For shops servicing SUVs and trucks, the optional MR6K-38-SUV Adapter Kit is available to further extend lift versatility and capacity for higher-clearance vehicles.
Product Features
- 6,500 lb Lifting Capacity
- Portable Lift Design with Wheel Kit & Tow Bar
- Portable Dolly Mounted Power Unit
- 38" Working Height
- Low Drive Height of 4" for Approach of Low Vehicles
- Pneumatic Single Point Double Lock Release System
- Load Bearing Flip-Up Runway Extensions
- Optional MR6K-38-SUV Adapter Kit Available
Includes
- Wheel Kit
- Tow Bar
- Rubber Spacer Blocks
Supersedes MR6K-38
Product Specifications
Specifications
MR6.5K-38
Capacity
6,500 lbs.
Overall Length
77”
Overall Width
75-1/4”
Lifting Height
38"
Min. Pad Height
4"
Lifting Height with Adapters
39-1/2"
Width Between Runways
33-1/4"
Width of Runways
18-3/16"
Lifting Speed
40 sec
Pad Length
56"
Air Supply
90 – 125 PSI
Power
115V – 20 Amp 1Ph
Ship Weight
1,355 lbs.
Key Features
- Published product configuration: Auto Lift MR6.5K-38 6,500lb. Portable Mid-Rise Frame Lift Supersedes MR6K-38 The Auto Lift MR6.5K-38 is a heavy-duty 6,500 lb. capacity portable mid-rise scissor frame lift engineered to deliver professional-grade performance with exceptional mobility. Designed specifically for brake work, wheel service, inspections
- Exact manufacturer model or part number: AL-MR6.5K-38
- Cataloged for Lifts & Hoists: Car Lifts — Specialty Lifts
- 2 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | Auto Lift |
|---|---|
| SKU | AL-MR6.5K-38 |
| MPN / Model | AL-MR6.5K-38 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Specialty Lifts |
Before You Order
Confirm that model AL-MR6.5K-38, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
