Product Overview

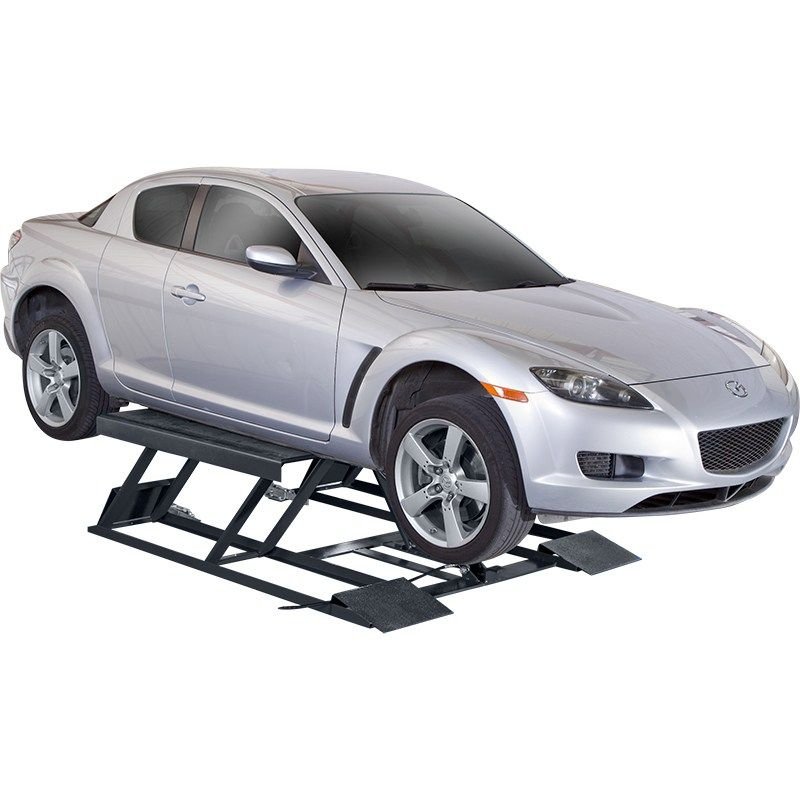

BendPak LR-60P Low-Rise Portable Specialty Car Lift 6,000 lb. Capacity
You haven't experienced state-of-the-art portable lifting convenience until you've used the BendPak LR-60P. This 6,000-lb. capacity lift delivers the perfect combination of power, portability, and precision. Equipped with an electric/hydraulic power system, multi-position safety locks, rubber lifting blocks, a dropped crossbar for added clearance, and a heavy-duty steel channel frame, the LR-60P is engineered to elevate both your vehicles and your service capabilities to new heights.
When you need to add versatility and productivity to your shop or garage, your first stop should always be BendPak. Simple, safe, and rugged—this rubber-topped low-rise lift can handle a mighty 6,000-lb. load without consuming precious floor space and fits comfortably into narrower bays. The LR-60P is the ideal solution for quick service on today's passenger cars and light trucks.
Unmatched Portable Versatility
With wide rubber pads, wheel service and auto-body repair can now be performed on a surprisingly large variety of vehicles. And when you're done? Just wheel it over to the next bay. The integrated tow handle makes moving the lift from bay to bay effortless, maximizing your shop's flexibility and workflow efficiency.
The included solid rubber lift blocks can be positioned in a variety of pick-up points on unibody and frame-contact undercarriages, giving you the adaptability to service everything from compact cars to light trucks. The LR-60P delivers 23 inches of maximum lifting height, expandable up to 26 inches with optional 3-inch blocks, and reaches full rise in just 35 seconds.
Why Choose BendPak?
Always bet on BendPak for increased durability, safety, and productivity. You aren't going to find comparable quality or value anywhere else BendPak always bests the rest. The LR-60P represents decades of engineering excellence combined with real-world shop experience, resulting in a portable low-rise lift that delivers professional performance every time.
Love the compact lifting power of the LR-60P but would prefer a non-portable version? Check out the LR-60 standard model for a permanent installation option.
Key Highlights
- 6,000-lb. lifting capacity handles most passenger cars and light trucks with confidence
- Portable design with tow handle easily move from bay to bay for maximum shop flexibility
- Low 4-inch collapsed height accommodates low-profile and sports cars
- 35-second rise time fast operation keeps your workflow moving
- Multi-position safety locks secure your vehicle at multiple working heights
Engineered Features That Set the LR-60P Apart
Low-Profile Design
A low 4-inch collapsed height accommodates most vehicles, including many low-clearance sports cars and performance vehicles. This makes the LR-60P one of the most versatile portable lifts on the market.
Single-Point Safety Release
The single-point safety release and dead-man style operation controls make the LR-60P easy to operate and safe to use. Even inexperienced technicians can confidently operate this lift with minimal training.
Dropped Crossbar
A specially formed crossbar is dropped in the center, providing added clearance for vehicle drive-over. This thoughtful design detail ensures smooth loading and unloading without scraping undercarriages.
Rugged Steel Channel Frame
If you're going to do heavy lifting, you need a solid base. The heavy-duty steel channel frame construction ensures long-lasting durability even under the most demanding shop conditions.
Industrial-Grade Hydraulic Cylinder
Integrated into the single hydraulic cylinder is a one-piece, pilot-fitted, machined steel piston wrapped with specially designed, pressure-loaded U-cup piston seals, backups, and wear bands that virtually eliminate any fluid bypass. The micro-smooth chrome rod is machined from high-yield, ground and polished C-1045/50 micro-alloy steel and plated to a minimum of.001" diametrically to ensure superior cylinder operation and life.
The superior-design high-durometer, mechanically-loaded rod seals make rod leakage a thing of the past, while a specially formulated abrasion-resistant urethane rod wiper provides exclusion protection. The welded cylinder body is made from robust steel tubing produced to exceed ASTM specifications. This combination of superb base material and superior processing ensures that the cylinders remain straight, smooth, and last a very long time.
Durable Powder-Coat Finish
All BendPak low-rise lifts feature a durable powder-coat finish that gives the metal a high-quality, extremely durable surface which can withstand even the harshest environmental or chemical conditions. Unlike other companies that claim to powder coat, BendPak takes pride in its meticulous 10-step process.
First, all parts are visually inspected before being sandblasted. Afterwards, the parts are washed in our 5-stage phosphate tanks that can accommodate parts up to 25 feet long. Once cleaned, they're immediately dried to avoid rust production, and then outgassed. Outgassing pre-bakes the parts in a curing oven, reducing the possibility of blemishes that may be hiding in the pores of the metal. If not properly outgassed, imperfections in the metal may bubble during the curing process and will likely cause chips in the powder.
After the parts are washed and outgassed, any surfaces and/or threaded holes that need to be masked or plugged are done so with high-temperature masking tape and silicone plugs. Next, the parts are given a quick thinner wipe to remove any light debris or fingerprints before being hung on an electrostatically grounded conveyor line. The powder is finally applied using an electrostatic spray gun—the powder "sticks" to the surface in a fashion similar to how dust sticks to a television screen. Once the parts are powder coated, the carts are rolled into the curing oven and baked at 400°F for 45 minutes.
Solid Rubber Lift Blocks Included
Others charge extra for these necessary adapters, but they're standard with every LR-60P lift. These rubber blocks protect vehicle undercarriages while providing secure contact points for unibody and frame vehicles alike.
Detailed Instructions and Safety Materials
Included with every lift are detailed installation and maintenance instructions, graphic safety decals, maintenance decals, a vehicle lifting point guide, and a safety instruction placard to train personnel on proper safety procedures and maintenance guidelines. BendPak ensures you have everything you need for safe, long-term operation right out of the box.
Power and Performance
The LR-60P is powered by a reliable 110 VAC / 50-60 Hz / 1 Ph motor, making it compatible with standard shop electrical systems without requiring special wiring or power upgrades. The electric/hydraulic power system delivers smooth, controlled lifting with the push of a button.
With an overall pad length of 53 inches, overall width of 70.5 inches, and overall length of 82 inches, the LR-60P offers a large lifting platform while remaining compact enough to fit in most garage and shop bays. The 18" x 52" lift pad dimensions provide excellent surface contact for stable, secure vehicle support.
Product Features
- 6,000-lb. lifting capacity
- Tow handle makes it easy to move lift from bay to bay
- Electric / hydraulic power system
- Multi-position safety locks
- Rubber lifting blocks included
- Dropped cross bar for added clearance
- Heavy-duty steel channel frame
Product Specifications
Model
LR-60
LR-60P
Style
Low Rise
Low Rise Portable
Capacity
Lifting Capacity:
6,000 lbs. (2,722 kg)
Rise
Max Lifting Height
23" (584 mm)
Max Lift Height + 1.5" blocks
24.5" (622 mm)
Max Lift Height + Optional 3" Blocks
26" (661 mm)
Time to Full Rise
35 seconds
Outside Dimensions
Overall Pad Length
53" (1,346 mm)
Overall Width
70.5" (1,791 mm)
Overall Length
82" (2,083 mm)
Lowered Height
3.5" (89 mm)
4" (102 mm)
Lift Pad Dimension
18" x 52" (457 mm x 2,591 mm)
Locking Heights
Fully Lowered
3.5" (89 mm)
1st Lock
14.75" (375 mm)
2nd Lock
20.25" (514 mm)
3rd Lock
23.75" (603 mm)
Full Rise
25" (635 mm)
Power Unit
Motor
110 VAC / 50-60 Hz / 1 Ph
Shipping
Weight
940 lbs. (426 kg)
974-lbs. (442 kg)
Dimensions
73" x 84" x 20"
(1,854 mm x 2,133 mm x 508 mm)
Key Features
- Published product configuration: BendPak LR-60P Low-Rise Portable Specialty Car Lift 6,000 lb. Capacity You haven't experienced state-of-the-art portable lifting convenience until you've used the BendPak LR-60P. This 6,000-lb. capacity lift delivers the perfect combination of power, portability, and precision. Equipped with an electric/hydraulic power
- Exact manufacturer model or part number: 5175728
- Cataloged for Lifts & Hoists: Car Lifts — Specialty Lifts
- 4 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | BendPak |
|---|---|
| SKU | 5175728 |
| MPN / Model | 5175728 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Specialty Lifts |
Before You Order
Confirm that model 5175728, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
