Product Overview

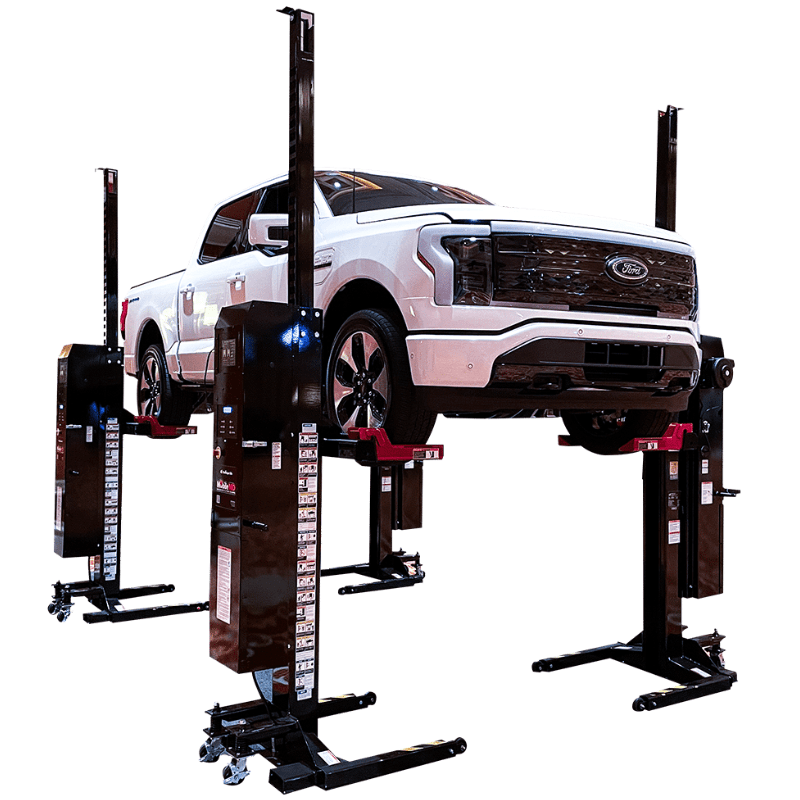

Challenger CLMM-5000 Medium Duty Mobile Column ALI Lift – 5,000 lbs Single
Bring the shop anywhere with the Challenger CLMM-5000 medium-duty mobile column lifting system, capable of lifting 5,000 lbs. per column on any solid surface. Built with heavy-duty tow handles and spring-loaded wheels for comfortable maneuverability, this ALI-certified mobile column lift delivers professional-grade lifting capacity without the need for pits, cables, or compressed air.
Designed for ultimate flexibility, the CLMM-5000 allows you to lift any rubber-tired vehicle up to 20,000 lbs. (set of 4 columns) wherever your work takes you. From traditional combustion vehicles to modern Electric Vehicles (EVs), these mobile columns provide safe, reliable access for maintenance and service. The completely wireless operation, powered by onboard 24 VDC batteries, ensures you're never tethered to a fixed location.
Each CLMM-5000 column features a retractable cord reel for convenient battery charging, heavy-duty caster wheels for smooth mobility, and robust construction that delivers 870 lbs. of solid engineering. With a maximum lift height of 69 inches (4-unit configuration) and a lift speed of 60 inches per minute at max load, you get fast, efficient service bay productivity in a portable package.
Key Advantages of the CLMM-5000 Mobile Column Lift
- 5,000 lbs. lifting capacity per column connect up to 4 units for a combined 20,000 lbs. system capacity
- True portability works on any solid surface with no pits, cables, or compressed air required
- Perfect for Electric Vehicle (EV) servicing safe, flexible access for modern vehicle maintenance
- Heavy-duty tow handles and spring-loaded caster wheels easy maneuvering around the shop or in the field
- Retractable cord reel keeps charging simple and organized
- Upgraded AGM batteries (Effective May 2025) – Group 27 AGM 12 Volt with a 2-year free replacement warranty
- ALI-certified meets strict industry safety and performance standards
Why Choose Mobile Column Lifts?
Mobile column lifts like the CLMM-5000 offer unparalleled versatility for service bays, fleet maintenance operations, and mobile repair units. Unlike fixed in-ground lifts, mobile columns can be moved to wherever the job requires – inside the shop, outside, or even at remote service locations. This flexibility is especially valuable for shops that service a wide range of vehicle types and sizes, from passenger cars to light-duty trucks.
The wireless, battery-powered design eliminates the need for complex installation and allows you to reconfigure your workspace as needed. Combined with the CLMM-5000's compact footprint ( 450 sq. in. per column ), narrow turning radius ( 50.5 inches ), and ability to accommodate wheel diameters from 6 to 22 inches, you get a lifting solution that adapts to your workflow – not the other way around.
Built for Durability and Safety
The Challenger CLMM-5000 is engineered with robust construction and intelligent design. Each column measures 88.5 inches tall in its lowered position and extends to 157 inches at full rise, with an overall width of 38.5 inches and length of 56.75 inches. The hydraulic system operates at a maximum pressure of 2,230 psi, delivering smooth, controlled lifting power with 4HP operating peak power.
Safety is paramount: the CLMM-5000 is ALI-certified, meeting the rigorous standards set by the Automotive Lift Institute for design, construction, and testing. With a ground pressure of just 13.04 psi at max load, the lift distributes weight effectively across its stable footprint. The system's synchronization technology ensures all connected columns lift and lower in perfect unison, providing stable, level support throughout the lifting cycle.
AGM Battery Upgrade (Effective May 2025)
All Challenger CLHM / CLMM model lifts will include Group 27 AGM (Absorbed Glass Mat) 12 Volt batteries, offering superior performance, longer lifespan, and enhanced reliability. These AGM batteries come with a 2-year free replacement warranty for added peace of mind.
Technical Highlights
- Operating Voltage: 24 VDC nominal (battery-powered)
- Charger Requirements: 120-240 VAC @ 50-60 Hz, 2.8 Amps
- Lift Speed: 60 inches per minute at maximum load
- Max Lift Height: 69 inches (4-unit configuration)
- Weight: 870 lbs. per column
- Footprint: 450 sq. in. per column
- Color: Available in Black only
Product Features
- Single column mobile lift
- Can connect up to 4 units together
- Capable of lifting 20,000 lbs. (set of 4) on any solid surface
- Heavy-duty tow handles and spring-loaded
- Built with a heavy-duty caster wheels for moving unit
- Retractable cord reel for battery charging
- Mobile columns are perfect for servicing Electric Vehicles
- Effective May 2025, all Challenger Lifts CLHM / CLMM model lifts will have AGM batteries (Absorbed Glass Mat) Group 27 AGM 12 Volt. The AGM battery will carry a 2-year free replacement warranty
Product Specifications
Specifications
CLMM-5000
Lift Capacity
5,000 lbs.
Height of Lift Unit
88.5"
Height of Lift Unit at Full Rise
157"
Width of Lift Unit
38.5"
Length of Lift Unit
56.75"

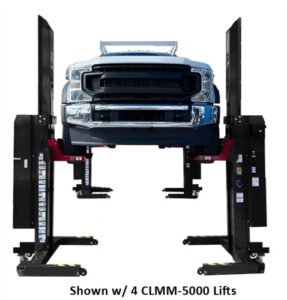

Max Lift Height (4 units)
69"
Min-Max Wheel Diameter
6" – 22"
Turning Radius of Lift Unit
50.5"
Lift Speed (Max Load)
60" per min.
Ground Pressure for Each Lift (Max. Load)
13.04 psi
Max. Hydraulic System Operating Pressure
2,230 psi
Operating Peak Power
4HP
Operating Voltage
24 VDC nominal
Charger Voltage Required
120-240 VAC @ 50-60 Hz
Charger Amps Required
2.8 Amps
Footprint of Lift Unit
450 sq. in.
Weight of Lift Unit
870 lbs.
Available in Black Only
Key Features
- Published product configuration: Challenger CLMM-5000 Medium Duty Mobile Column ALI Lift – 5,000 lbs Single Bring the shop anywhere with the Challenger CLMM-5000 medium-duty mobile column lifting system, capable of lifting 5,000 lbs. per column on any solid surface. Built with heavy-duty tow handles and spring-loaded wheels for comfortable
- Exact manufacturer model or part number: CLMM-5000
- Cataloged for Lifts & Hoists: Car Lifts — 4 Post Lifts – Heavy-Duty
- 2 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | Challenger |
|---|---|
| SKU | CLMM-5000 |
| MPN / Model | CLMM-5000 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 4 Post Lifts – Heavy-Duty |
Before You Order
Confirm that model CLMM-5000, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
