Product Overview
AMGO® Hydraulics LR10 Low-Rise Portable Lift 10000 lbs
The AMGO® Hydraulics XL-10F is a heavy-duty in-ground scissor lift with a 10,000 lb lifting capacity, engineered to service passenger cars, pickup trucks, SUVs, and light-duty commercial vehicles. Its dual extendable platforms accommodate a wide range of wheelbases, providing the versatility needed for professional repair shops and service centers.

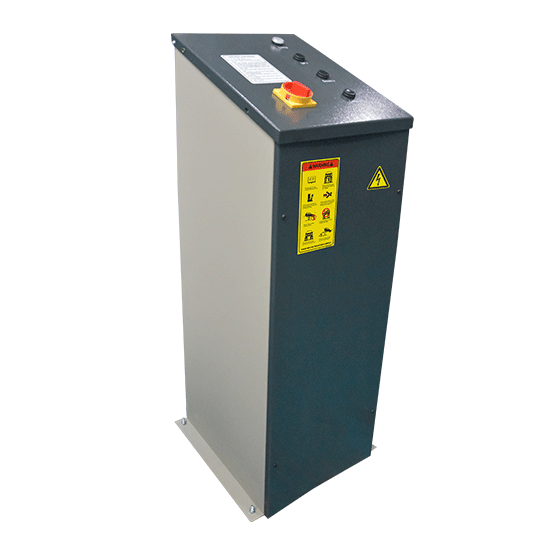

Equipped with a reliable 220V electro-hydraulic control cabinet, the XL-10F features a photocell synchronization system to keep both platforms perfectly aligned during lifting, along with an automatic safety stop mechanism for enhanced operator protection. Its flush-mount design and full-rise lifting capability make it an ideal solution for routine maintenance, inspections, tire service, and general automotive repairs.
Flush-Mount Design
Recesses into the floor for a clean, level surface when the lift is fully lowered, maximizing workspace and eliminating floor obstructions.
Full-Rise Lifting Height
The full-rise lifting height provides generous under-vehicle clearance, allowing technicians to work comfortably while performing maintenance, inspections, repairs, and other service tasks.
California Prop 65 Warning: This product can expose you to chemicals including certain metals and other substances known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to
Product Features
- 10,000 lb Lifting Capacity Heavy-duty construction is designed to safely lift cars, trucks, SUVs, and other light commercial vehicles.
- Flush-Mount Design Installs level with the shop floor to provide an unobstructed work area when the lift is lowered.
- Full-Rise Lifting Height Delivers ample under-vehicle clearance for comfortable access during maintenance, inspections, and repairs.

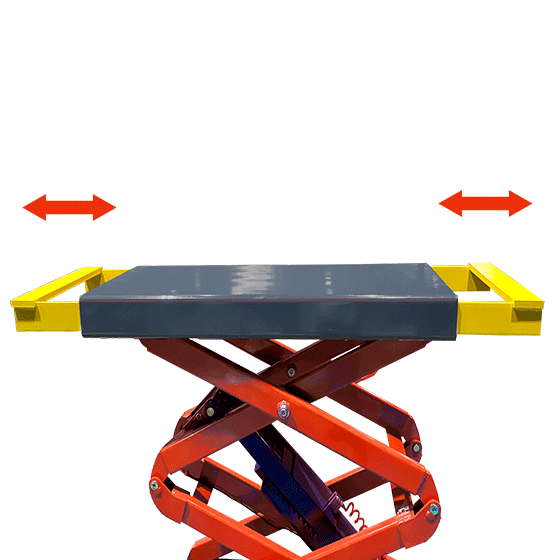

- Dual Extendable Platforms Adjustable platforms accommodate a wide range of vehicle wheelbases for added versatility.
- Mechanical Air-Release Locking System Pneumatic lock release provides secure locking and smooth operation throughout the lifting cycle.
- Electro-Hydraulic Power System Features a powerful hydraulic system with a dedicated control cabinet for reliable performance.
- Photocell Synchronization System Maintains precise platform synchronization for smooth, balanced lifting and enhanced safety.
- Automatic Safety Stop Built-in safety stop device provides additional protection during lift operation.
- 3-Inch Rubber Lift Pads Included Comes standard with durable rubber pads to help protect vehicle lifting points.
Product Specifications
Specifications
XL-10F
Lifting Capacity
10,000 lbs
A Max Lifting Height
75"
A Max Lock Height
72 5/8"
B Min Height
13 3/4"
Lifting Time
49s
C Runway Length
65 1/8" ~ 80 5/16"
D Overall Width
75 7/16"
E Width Between Runways
31 1/2"
Motor
2.0 HP
Gross Weight
1,964 lbs
Key Features
- Published product configuration: AMGO® Hydraulics LR10 Low-Rise Portable Lift 10000 lbs The AMGO® Hydraulics XL-10F is a heavy-duty in-ground scissor lift with a 10,000 lb lifting capacity, engineered to service passenger cars, pickup trucks, SUVs, and light-duty commercial vehicles. Its dual extendable platforms accommodate a wide range of
- Exact manufacturer model or part number: XL-10F
- Cataloged for Lifts & Hoists: Car Lifts — Specialty Lifts
- Condition: New
Product Specifications
| Brand | AMGO Hydraulics |
|---|---|
| SKU | XL-10F |
| MPN / Model | XL-10F |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Specialty Lifts |
Before You Order
Confirm that model XL-10F, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
