Product Overview

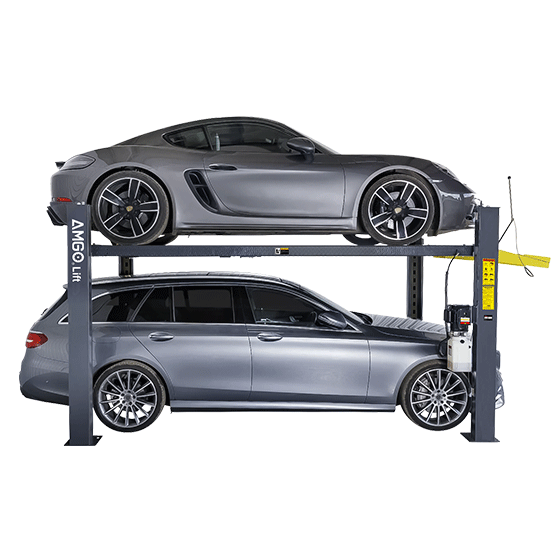

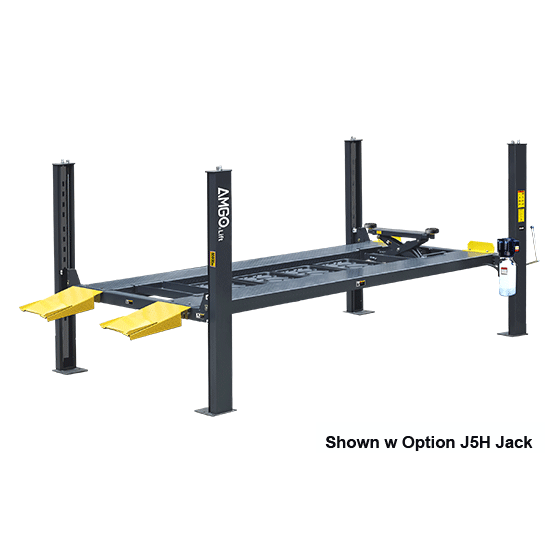

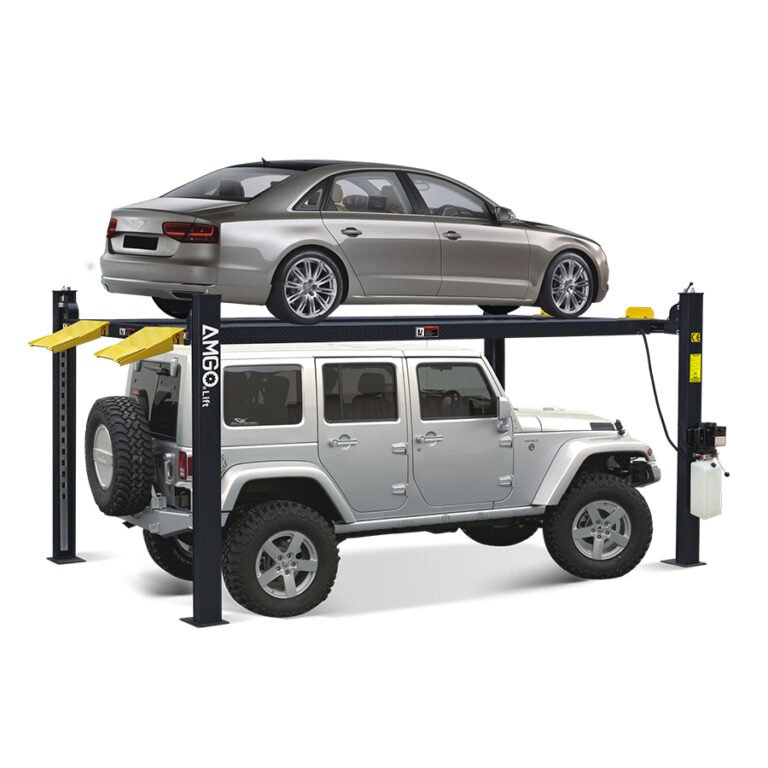

AMGO® Hydraulics 408-HP Ex-Tall Parking & Service 4 Post Lift 8,000 lbs
The AMGO® Hydraulics 408-HP is a professional deluxe 4-post parking and service lift designed to deliver exceptional performance for light-duty vehicles. With an impressive 8,000 lbs lifting capacity and an extra-tall maximum lifting height of 87 1/2", this model stands out as one of the best 4-post parking lifts available on the market. Whether you're storing vehicles, performing routine maintenance, or conducting detailed service work, the 408-HP provides the clearance and stability you need. Built with AMGO's signature engineering and backed by the AMGO 5-3-2 Warranty, this lift combines safety, versatility, and durability in one powerful package.
Exceptional Clearance for Full Access
The 408-HP is engineered for professionals and enthusiasts who need extra height for comprehensive vehicle access. With a maximum underneath height of 82 15/16", you'll have ample room to work comfortably beneath full-size trucks, SUVs, and passenger vehicles. The lift's minimum height of just 5 11/16" accommodates low-clearance vehicles, while the drive-thru clearance of 81 5/8" ensures easy entry and exit. The overall design provides 92 7/8" width between columns, giving you generous workspace on all sides of the vehicle.
This lift is ideal for shops and garages where versatility matters. The non-slip platform ensures safe footing during operation, and the flexible power unit design allows the power side column to be installed at any corner—making it easy to adapt the lift to your specific workspace configuration.
AMGO Exclusive Hidden Safety Lock System

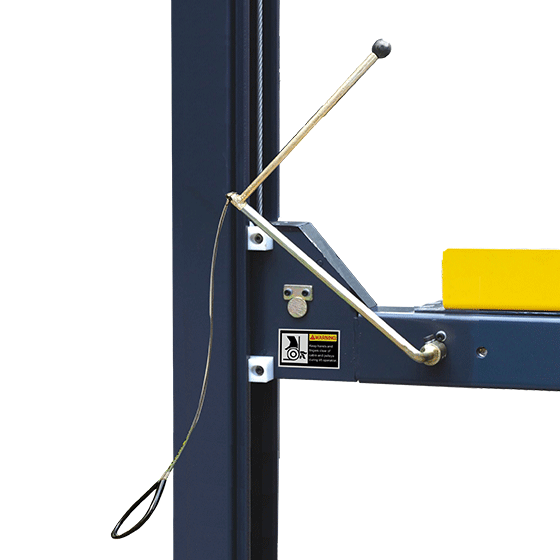

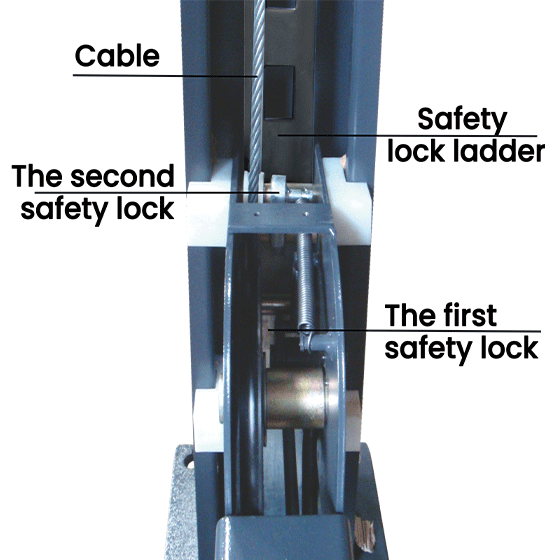

Safety is paramount with the AMGO 408-HP. This lift features AMGO's exclusive hidden safety lock mechanism combined with a manual single-point lock release for streamlined operation. Each column is equipped with multiple safety locks, and the system includes automatic safety locks combined with redundant anti-fall devices to provide layers of protection. The adjustable lock ladder lets you position the lift at the optimal height for any job, while the commercial-grade double safety locks ensure the vehicle remains secure throughout your service procedures.
Unlike exposed lock systems, AMGO's hidden lock design protects critical components from contamination and wear, extending the life of the lift and maintaining consistent, reliable performance. This innovation reflects AMGO's commitment to building lifts that exceed industry safety standards.
Built for Strength and Longevity
The 408-HP is built with double-S shaped columns for increased structural strength and rigidity. This design minimizes flex and vibration during operation, ensuring a stable, secure lifting experience even at maximum height. The lift's overall length with ramp is 208 1/16", and 174 5/8" without the ramp, while the overall width is 102 1/2". The width between runways is 37", providing ample space for positioning jack stands and equipment.
Powered by a 1.0 HP 110V motor (30 amp required) with an optional 2.0 HP 220V upgrade, the lift delivers efficient performance with lifting times of 98 seconds on 110V or just 46 seconds on 220V. The overall height is 96 5/8", and the unit ships at 1,669 lbs, ready for professional installation.
Key Highlights
- 8,000 lbs capacity perfect for light-duty vehicles including trucks, SUVs, and passenger cars
- Extra-tall maximum lifting height of 87 1/2" provides exceptional clearance for comprehensive service and storage
- AMGO exclusive hidden safety locks with manual single-point release and redundant anti-fall devices
- Double-S shaped columns for superior structural strength and stability
- Flexible power unit installation power side column can be installed at any corner to suit your shop layout
Optional Accessories for Enhanced Functionality
Customize your AMGO 408-HP with optional accessories designed to increase versatility and convenience:
- #40801 Caster Kit add mobility for easier positioning and shop reconfiguration

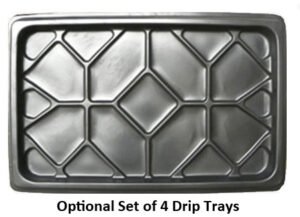

- #40806 Set of 4 Drip Trays protect your shop floor from leaks and spills during service
- #40808 Jack Tray convenient storage for floor jacks and equipment

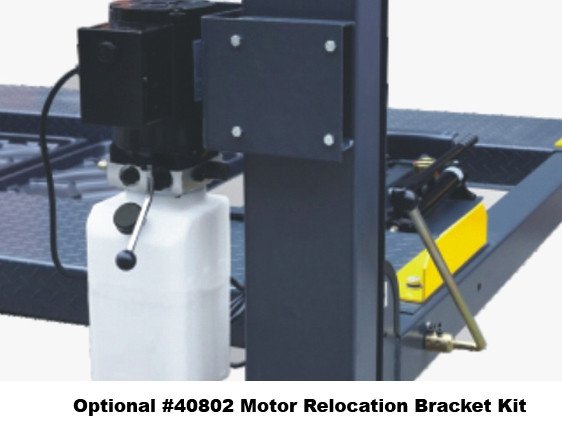

- #40802 90° Installation Plate allows power unit installation at the side of a column for alternative configurations
Product Features
- 8,000 lbs. capacity, which is perfect for light-duty vehicles
- AMGO ETL certified power unit comes as standard
- High quality cylinder is designed and made to a high standard
- AMGO’s patented design concealed safety lock control device, with manual single-point lock release
- Aero standard cables are included as standard
- Double-S shaped columns are utilized to enhance strength

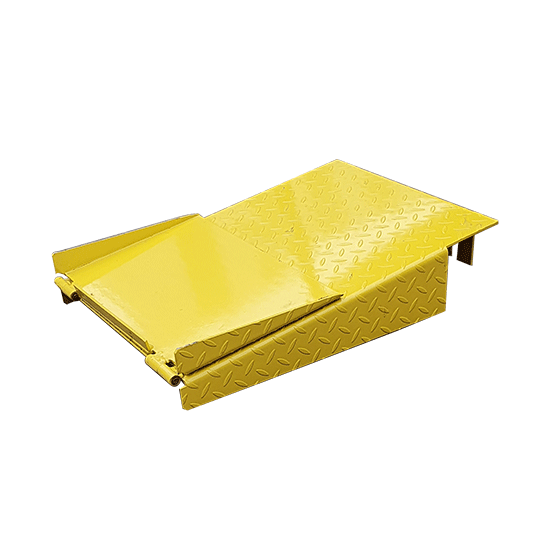

- Non-slip platforms come with foldable drive-in ramps as standard
- Support back to back installation to minimize space occupancy
- Power side column can be installed at any corner
- Extremely high lifting is suitable to park taller vehicles
- Pull rope comes as standard.
Optional Accessories Available – See Below in Add Ons
- # 40801 Caster Kit
- # 40802 90° Motor Installing Plate
- # 40806 Set of 4 Drip Trays
- # 40808 Jack Tray
Product Specifications
Specifications
408-P
408-HP
Lifting Capacity
8,000 lbs
A Overall Length w/Ramp
208 1/16"
A Overall Length w/o Ramp
174 5/8"
B Outside Edge of Crossbeams
167 5/8"
C Overall Width
102 1/2"
D Width Between Columns
92 13/16"
E Max Lifting Height
73 11/16"
87 11/16"
E Max Lock Height
70 15/16"
84 15/16"
F Overall Height
82 7/8"
96 5/8"
G Minimum Height
5 11/16"
H Max. Underneath Height
69"
82 15/16"
H Max. Lock Underneath Runway
66 1/4"
80 3/16"
I Drive-Thru Clearance
81 5/8" (2074mm)
J Width Between Runways
37"
K Outside Edge of Runways
74 7/16"
Lifting Time
98s(110V) / 40s(220V)
98s(110V) / 46s(220V)
Motor
1.0HP 110V/60Hz – 30 amp Required / Optional 2.0HP 220V/60Hz
Shipping Weight
1,563 lbs
1,669 lbs
Key Features
- Published product configuration: AMGO® Hydraulics 408-HP Ex-Tall Parking & Service 4 Post Lift 8,000 lbs The AMGO® Hydraulics 408-HP is a professional deluxe 4-post parking and service lift designed to deliver exceptional performance for light-duty vehicles. With an impressive 8,000 lbs lifting capacity and an extra-tall maximum lifting height of 87
- Exact manufacturer model or part number: 408-HP-V001
- Cataloged for Lifts & Hoists: Car Lifts — Parking Lifts
- 2 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | AMGO Hydraulics |
|---|---|
| SKU | 408-HP-V001 |
| MPN / Model | 408-HP-V001 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Parking Lifts |
Compatibility & Ordering Notes
Use SKU / MPN 408-HP-V001 as the primary ordering reference. Before purchase, match the equipment model, serial-number range, mounting or connection details, and any size or electrical requirements shown in the listing. Compatibility is not implied beyond the verified information above.
Manuals & Technical Resources
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
