BendPak 9APF Floorplate Two-Post Lift for Low Ceilings — 9,000 lbs

Open-Top Design Engineered for Real-World Shop Constraints

The BendPak 9APF is a 9,000-lb. capacity floorplate two-post lift purpose-built to eliminate ceiling height restrictions while maximizing bay versatility. Its open-top configuration completely removes the traditional overhead beam, making it the ideal solution for shops with low ceilings, overhead obstructions such as ductwork or lighting, or facilities where clearance is at a premium. Whether you're servicing tall cargo vans, lifted trucks, or everyday passenger vehicles, the 9APF delivers unrestricted overhead access and 123-inch post height that fits where conventional two-post lifts cannot.

Unlike traditional clearfloor lifts, the 9APF features an ultra-low 1.4-inch floorplate that houses hydraulic lines and equalizer cables beneath a durable steel cover plate. This contained system keeps your bay floor cleaner, safer, and easier to navigate. Transmission jacks, oil drains, creepers, and shop carts roll smoothly across the plate without snagging on exposed hardware or tripping hazards, improving workflow efficiency and reducing downtime during service operations.

Built on BendPak's proven AP-Series platform, the 9APF incorporates triple-telescoping swing arms with Bi-Metric positioning, allowing technicians to configure the lift for either symmetric or asymmetric vehicle spotting. Dropped pad receivers and stackable height adapters accommodate low-profile sports cars and varied lift points, while the Automatic Swing Arm Restraint System (ASARS) delivers a secure, 360-degree grip with easy quick-release operation. With 14 safety lock positions spaced every 3.6 inches, a robust dual hydraulic cylinder system, and heavy-duty equalizer cables with oversized sheaves, the 9APF is engineered for dependable, high-cycle performance in professional shop environments.

Key Advantages of the BendPak 9APF

• Open-top floorplate design eliminates overhead beam for low-ceiling installations and accommodates tall vehicles with ease

• Extra-low 1.4-inch steel floorplate protects hydraulic and equalizer lines while allowing jacks and equipment to roll freely across the bay

• AP-Series triple-telescoping swing arms with Bi-Metric geometry provides exceptional reach, flexibility, and precise symmetric or asymmetric positioning

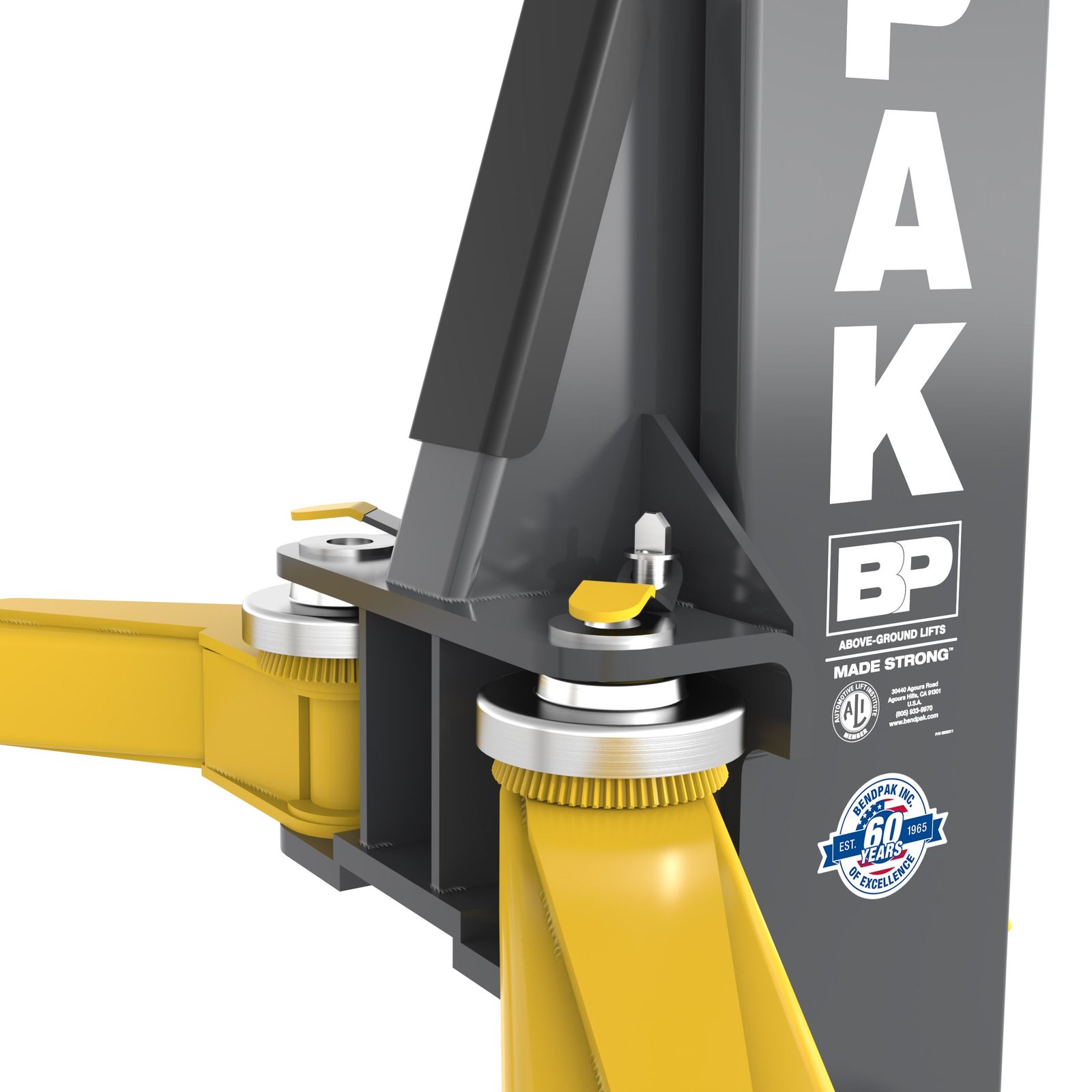

• Automatic Swing Arm Restraint System (ASARS) with 360-degree grip delivers secure arm locking and fast, one-hand quick release

• Adjustable installation width 136-inch or 146-inch overall width options to fit varied drive-thru and bay configurations

Engineered for Daily Shop Productivity

The BendPak 9APF is designed to handle the demands of busy service bays. The electric-hydraulic power unit delivers smooth, consistent lifting with a full rise time of approximately 60 seconds. Dual hydraulic cylinders ensure balanced lifting force, while heavy-duty equalizer cables with oversized sheaves reduce fatigue and wear over thousands of cycles. Self-lubricating UHMW carriage sliders provide smooth, low-friction travel along the columns, minimizing maintenance and extending component life.

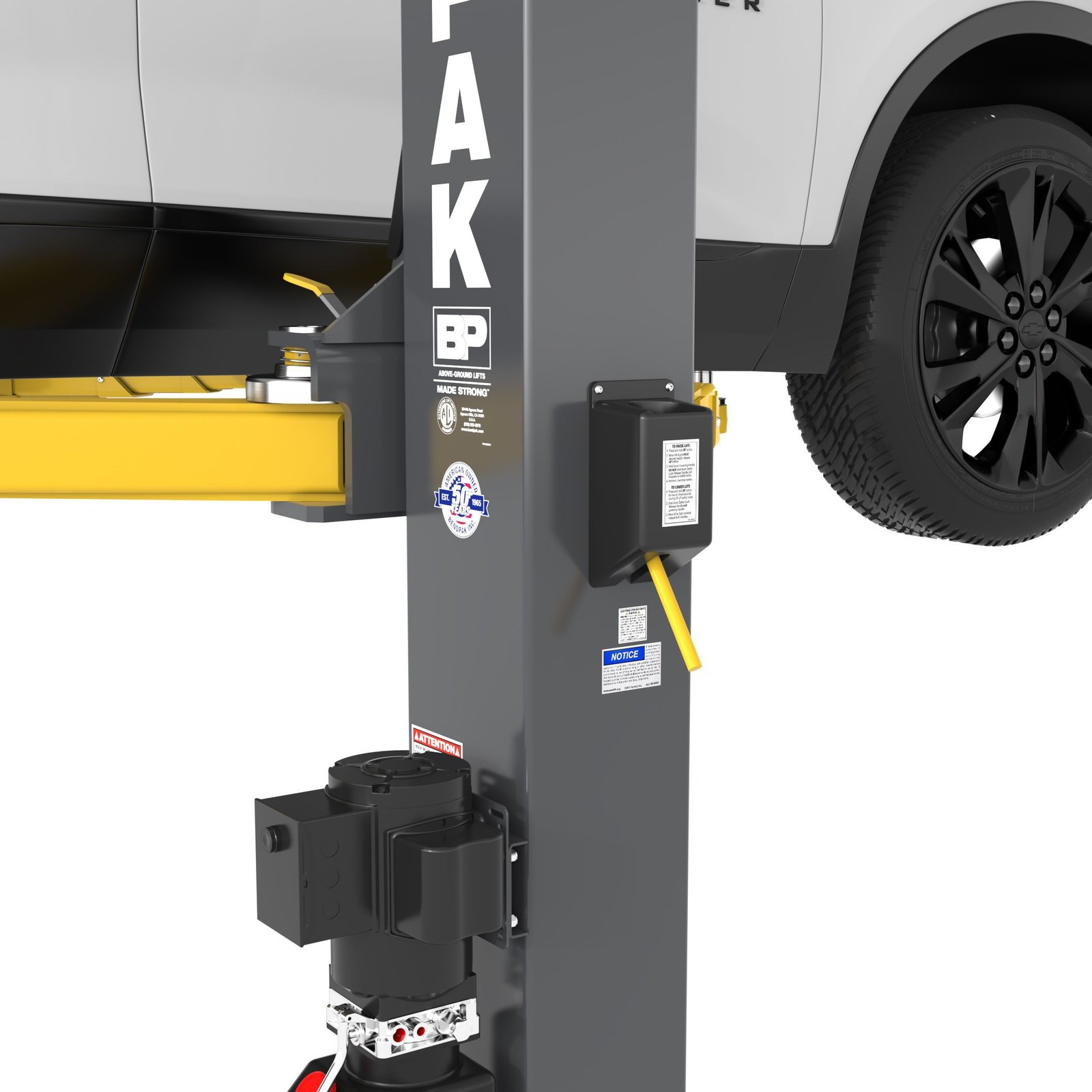

The lift's single-piece steel columns and large steel base plates deliver exceptional rigidity and structural stability under load. With a maximum lifting height of 73.5 inches (not engaged on lock) and a maximum rise of 70 inches, the 9APF provides ample undercar access for a wide range of service tasks. 14 safety lock positions offer versatile working heights, and the single-point lock release simplifies operation during fast-paced service intervals.

The 9APF's dropped pad receivers and stackable height adapters make lifting low-clearance vehicles quick and secure, while the triple-telescoping arms extend from 22.25 to 47.5 inches (front) and 29.5 to 57 inches (rear), accommodating everything from compact cars to larger SUVs and light trucks. The lift is powered by a 208–240 VAC, 50/60 Hz, 1-phase motor drawing approximately 11 amps, with special voltages available upon request.

Watch the BendPak 9APF in Action

Safety, Certification, and Service Access

The BendPak 9APF is CE Approved and Certified, meeting or exceeding the standards prescribed by European Standard EN 1493. It operates at a maximum hydraulic pressure of 2,170 psi under full load, with each lift arm rated to 2,250 lbs. and balanced weight distribution of 4,500 lbs. per axle. The lift's straightforward service access points and durable construction ensure reliable, long-term performance in high-volume professional environments.

With a minimum pad height of 4.5 inches and 2.25-inch maximum pad adjustment, the 9APF accommodates varied vehicle lift points and low-clearance chassis. The 9.5-inch-wide floorplate provides a stable, protected pathway for hydraulic and equalizer components, and the adjustable narrow or wide installation options ( 91-inch or 101-inch drive-thru clearance ) allow shops to tailor the lift to their specific bay layout and traffic flow requirements.

California Proposition 65 Warning:
This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to

Product Features

• 9,000-lb lifting capacity for cars, SUVs, and light trucks

• Open-top, floorplate design for low-ceiling installations and tall vehicle clearance

• Extra-low steel cover plate with contained hydraulic and equalizer lines for a clean, safe bay

• AP-Series triple-telescoping, low-profile swing arms for exceptional reach and retraction

• Bi-Metric arm geometry for symmetric or asymmetric spotting flexibility

• Automatic Swing Arm Restraint System with 360-degree grip and quick-release lever

• Dropped pad receivers and stackable height adapters for low vehicles and varied lift points

• Multiple safety-lock positions with single-point lock release

• Dual hydraulic cylinders and electric-hydraulic power unit

• Heavy-duty equalizer cables with oversized sheaves for reduced fatigue

• Large steel base plates and single-piece columns for rigidity

• Self-lubricating UHMW carriage sliders for smooth travel

• Adjustable narrow or wide installation to fit your drive-thru needs

• Designed for high-cycle shop use with straightforward service access

Product Specifications

Model
9APF

Capacity

Lifting Capacity: (*)
9,000 lbs. (4,082 kg)

*Max Capacity / Front Axle
4,500 lbs. (2,041 kg)

*Max Capacity / Rear Axle
4,500 lbs. (2,041 kg)

Maximum Capacity Per Lift Arm
2,250 lbs. (1,021 kg)

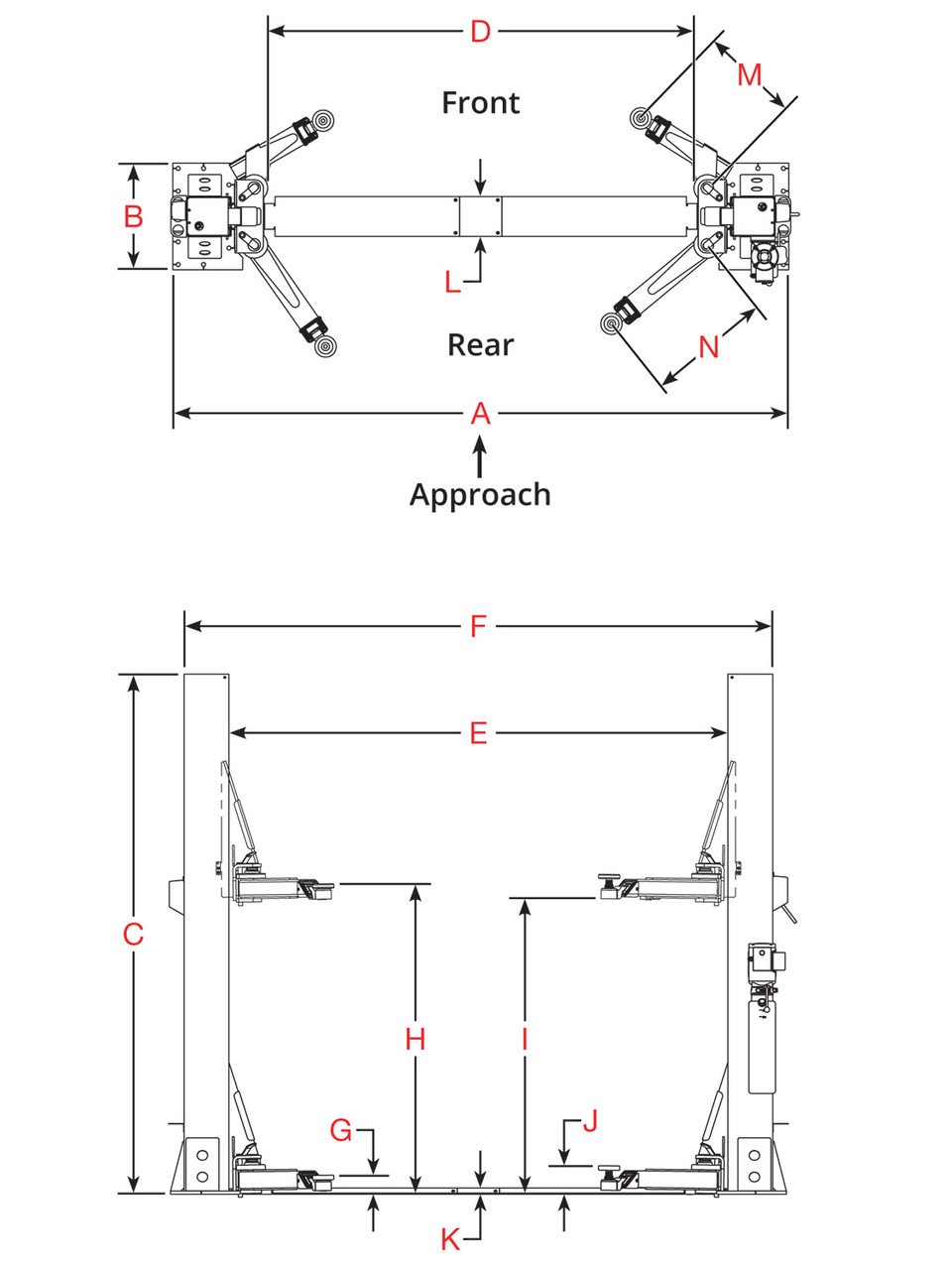

Dimensions

A Width Overall
136" or 146" (3,453 or 3,707 mm)

B Base Plate Width
25.25" (642 mm)

C Post Height
123" (3,128 mm)

D Drive-Thru
91" or 101" (2,311 or 2,565 mm)

E Width Inside Columns
108.25" or 118.25" (2,749 or 3,003 mm)

F Outside Posts
129.5" or 139.5" (3,289 or 3,543 mm)

G Min. Height w/Cradle Pad
4.5" (114 mm)

F Max. Lift Height 1
73.5 in. (1,865 mm)

I Maximum Rise 2
70" (1,780 mm)

J Maximum Pad Adjustment
2.25" (55 mm)

K Floor Plate Height
1.4" (36 mm)

L Floor Plate Width
9.5" (240 mm)

M Front Arm Reach (Min – Max) 3
22.25" – 47.5" (562 – 1,205 mm)

N Rear Arm Reach (Min – Max) 4
29.5" – 57" (745 – 1,446 mm)

Safety Lock Position
14 Positions Spaced Every 3.6" (92 mm)

Time to Full Rise
≈60 Seconds

Operating Hydraulic Pressure Under Max. Load
2,170 psi

Standard Motor 5
208-240 VAC, 50/60 Hz, 1 Phase, Approx. 11 Amps

• Max. Lifting Height w/Pad is the max. height while not engaged on a Safety Lock and without adjustment or adapter(s)

• Maximum Rise is the maximum lifting height not engaged on the Safety Lock

• Asymmetric Arm Reach is range of reach from least to greatest

• Symmetric Arm Reach is range of reach from least to greatest

• Special voltages available upon request
