BendPak HD-9XL Four Post Lift 9,000 lb. Capacity – Extra Wide, Standard Height, Long Car Runway
The BendPak HD-9XL four-post lift delivers 9,000-lb. lifting capacity with extended runways specifically designed for longer wheelbase vehicles. Featuring wide drive-thru clearance and standard lift height, this ALI-certified lift maximizes valuable floor space—about the size of a typical parking space—making it the ultimate solution for vehicle storage, service, and maintenance. Whether you're storing cars, trucks, ATVs, snowmobiles, jet skis, golf carts, or boats, the HD-9XL safely elevates your equipment and frees up ground-level space.

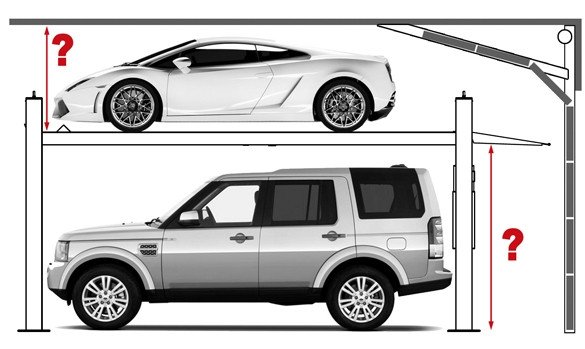

With an 8-foot ceiling, you can take full advantage of wasted vertical space above your vehicle. The optional caster kit allows you to roll the lift outside or reposition it wherever you need. But don't be fooled by its residential-friendly footprint—this is no "hobby lift." The HD-9XL is packed with commercial-grade engineering features previously reserved for professional-grade designs, all backed by BendPak's 40+ years of industry-leading experience.
Watch the HD-9XL in Action
Why Choose the HD-9XL?
The HD-9XL isn't just a lift—it's a precision-engineered solution designed for reliability, durability, and ease of use. BendPak has a reputation that carries just as much weight as the lift itself, and we're proud to have the HD-Series in our lineup. You'll be proud to have one in your shop or garage.
Key Highlights:
- 9,000-lb. lifting capacity with extended 188" runways for long-wheelbase vehicles

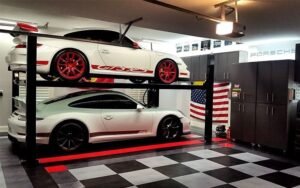

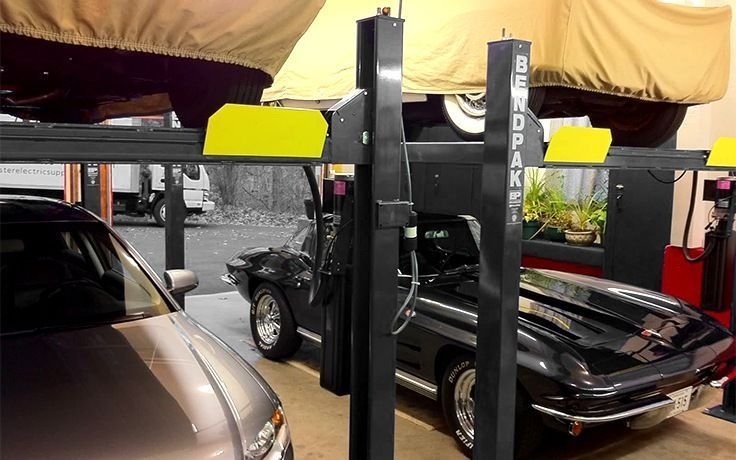

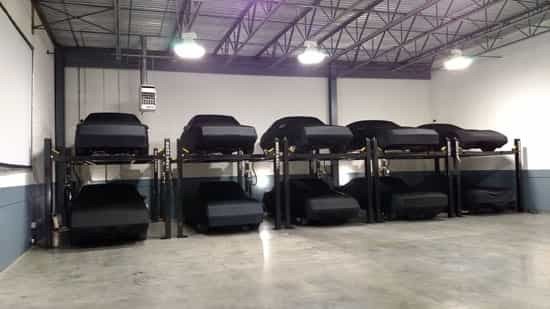

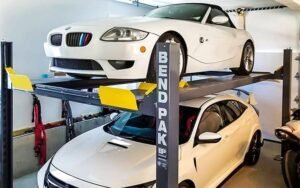

- Freestanding design perfect for parking, storage, and full service work
- 12 multi-position safety locks (every 4") with pneumatic push-button release
- Single hydraulic cylinder and 4 heavy-duty aircraft cables (combined rating: 640% of lift capacity)
- 70" maximum rise, 45-second full raise time, and ETL approved
Dependable Design & Commercial-Grade Engineering
Dependable design: Four heavy-duty, high-quality stainless steel lifting cables and a single hydraulic cylinder mounted underneath the runway make this lift the most durable, maintenance-free lifting system on the market. Each cable is rated at 14,400 lbs., and the combined rating exceeds 640% of the lift's maximum capacity built with safety margins that far exceed industry standards.

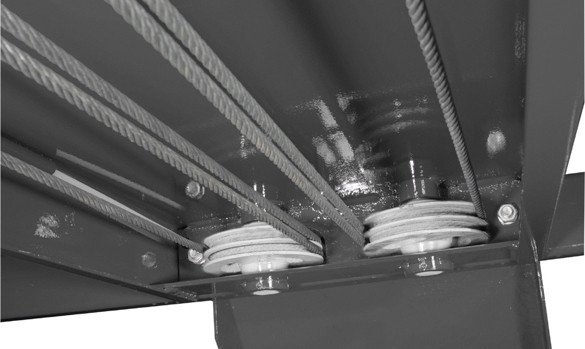

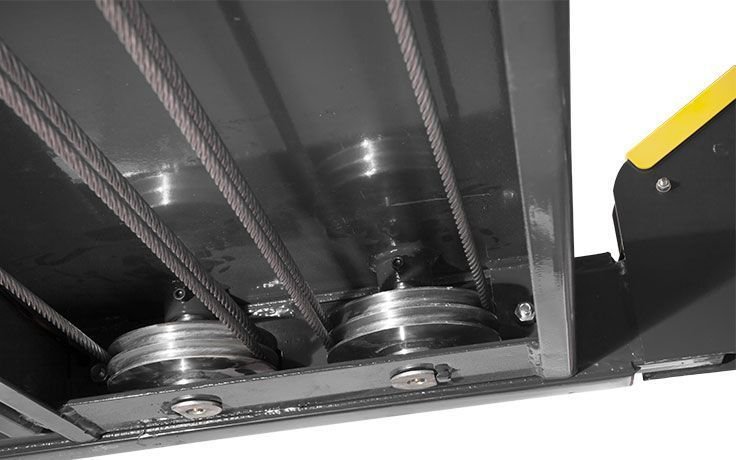

Dual-hub cable sheaves: These reduce stress and fatigue on the axles, sheaves, and cables. BendPak insists on using dual-hub cable sheaves, even if they cost more to manufacture. When you buy BendPak, peace of mind is included.
Multi-level locking positions: The HD-9XL is equipped with 12 adjustable locking positions (spaced every 4") for variable-height parking and service flexibility. A convenient push-button pneumatic safety lock control releases all four independent safety locks simultaneously, ensuring smooth and safe operation.
Heavy-duty aircraft cable: Each lift is supplied with 4 high-quality 3/8" stainless steel lifting cables, rated at 14,400 lbs. each. All lifting cables are fully enclosed within the lift structure for a clean, professional appearance and enhanced safety.
Electric / hydraulic power system: BendPak incorporates maintenance-free electric hydraulic power systems into each lift for ultimate dependability. All controls are conveniently located within close reach, and the system operates at a quiet 45 dB noise level.
Large base plates: 10" x 12" base plates provide a solid, stable foundation for the HD-9XL, ensuring long-term stability and safety under heavy loads.
Single hydraulic cylinder: Each lift is equipped with a single industrial-grade hydraulic cylinder, hidden away under the runway for minimum exposure and maximum reliable performance. Our cylinders feature a single-piece, pilot-fitted, machined steel piston with specially designed, pressure-loaded U-cup piston seals, backups, and wear bands to virtually eliminate fluid bypass. The micro-smooth chrome rod is machined from high-yield, ground and polished C-1045/50 micro-alloy steel and plated to a minimum of.001" diametrically, ensuring superior cylinder operation and life. High-durometer, mechanically-loaded rod seals prevent leakage, while a specially formulated abrasion-resistant urethane rod wiper provides exclusion protection. The welded cylinder body is made from robust steel tubing produced to exceed ASTM specifications. An integrated flow restrictor provides a controlled descent in the case of an unexpected hose rupture.
Durable Powder-Coat Finish
All HD-Series lifts feature a durable powder-coat finish that gives the metal a high-quality, extremely durable surface that can withstand even the harshest environmental or chemical conditions. Unlike other companies that claim to powder coat, BendPak takes pride in a meticulous 10-step process:
- All parts are visually inspected before being sandblasted.
- Parts are washed in a 5-stage phosphate tank (accommodating parts up to 25' long).
- Parts are immediately dried to avoid rust production.
- Parts are outgassed in a curing oven, reducing the possibility of blemishes that may be hiding in the pores of the metal.
- Surfaces and threaded holes that need to be masked or plugged are protected with high-temperature masking tape and silicone plugs.
- Parts are given a quick thinner wipe to remove any light debris or fingerprints.
- Parts are hung on an electrostatically grounded conveyor line.
- Powder is applied using an electrostatic spray gun.
- Parts are baked at 400°F for 45 minutes in a curing oven.
This rigorous process ensures a finish that resists chips, scratches, and environmental damage—keeping your lift looking professional for years to come.
Integrated Safety & Design Features
Integrated design: Lifting cables, airlines, safety latches, and sheaves are all fully enclosed within the lift structure, providing a clean, professional appearance and enhanced operator safety.
Longer approach ramps: These approach ramps were designed a little longer to help when loading low ground clearance vehicles. It's the little bit that makes a big difference. Removable approach ramps provide additional drive-under clearance when needed.
Automatic safety locks: Aircraft-quality stainless steel and aluminum pneumatic cylinders release all 4 locks simultaneously with the simple push of a button. The spring-loaded safety locks automatically engage continuously as the lift is raised. For added safety, a secondary lock system acts as a slack-cable device to engage in the unlikely event of cable failure. Independent backup slack-cable safety latches provide redundant protection.
Oversized self-lubricating cable rollers and rugged 1-1/4" roller axles ensure smooth, reliable operation. Internal anti-sway slider blocks in each column prevent unwanted movement during operation.
Non-skid runway surface: Runways feature a non-skid surface for enhanced traction and safety during vehicle loading and unloading.
Customizable power unit location: Install the power unit in the position that best suits your shop layout, giving you complete control over your workspace.
Choose Your Model: Find the Perfect Fit
Take your pick. You're currently looking at the extra-wide, standard-height HD-9XL. BendPak also offers the HD-9ST (narrow model), the HD-9 (standard-width model), and the HD-9STX (narrow-width, tall model). Each is engineered to fit specific space requirements and vehicle types.
Optional Accessories to Maximize Your Lift
Runways include rail-kit for optional accessories such as drip trays, solid decks, and more. Optional drive-thru ramps are available for added convenience. Optional 4,500-lb. air / hydraulic rolling jacks (Model RJ-45) are available for undercarriage service work.
Optional Pair of Drip Trays – BendPak 5700301
A lightweight, cost-effective solution to drips, these polypropylene drip trays will catch harmful fluids and keep them in one place to protect your vehicles and garage flooring. Sold in sets of two, these trays are reversible and designed to accommodate BendPak four-post lifts with the runways positioned either wide or narrow.
These affordable, impact-resistant polypropylene drip trays are rugged and light, helping solve the common problem of potentially harmful drips. Each tray comes with 56 articulated catches and gutters to restrain fluid from sloshing out—so all that oil, coolant, and other muck stays neatly contained within individual compartments, even when carried or bumped. A smart, black color hides the appearance of stains and blemishes.
Drip Tray Specifications
Optional #5210142 Add-On Alignment Kit – Available While Supplies Last
This Alignment Kit is designed to fit all standard 9K, 12K, and 14K four-post lifts with minimum 19" wide runways. This wheel alignment kit provides the necessary rear slip plates, turnplate pockets, and commercial-grade turnplates to convert your standard four-post lift into an economical solution for performing two and four-wheel alignments.
Kit Includes:
- Fits 9K – 14K Runway Lifts that are a minimum of 19" wide
- Bolt-on ramp piece for both the front turn plates & back slip plates
- Turn plates
Optional Add-On Alignment Kit
⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to.
Important Air Supply Note:
An air supply (minimum: 30 psi / 3 CFM ) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install, and maintain the air supply.
Product Features
- 9,000-lb. maximum lifting capacity
- Freestanding design
- Perfect for parking, storage and service
- Runways accommodate narrow and standard vehicles
- Runways include rail-kit for optional accessories
- Electric / hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks and sheaves
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers
- Features heavy-duty 3/8" aircraft cable
- Rugged 1-1/4" roller axlesMulti-position safety locks in each column
- Adjustable lock ladders
- Runways feature non-skid surface
- Push-button pneumatic safety release
- Independent backup slack-cable safety latches
- Customizable power unit location
- Removable approach ramps for additional drive-under clearance
- Longer approach ramps for low-ground clearance vehicles
- Optional drive-thru ramps available
- Optional drip trays available
- ptional solid deck available to increase storage capacity
- Optional 4,500-lb. air / hydraulic rolling jacks available (Model RJ-45)
- ETL Approved
Optional # 5210142 Add-On Alignment Kit – Available While Supplies Last
This Alignment Kit is designed to fit all standard 9K, 12K, and 14K four‐post lifts with minimum 19” wide runways. This wheel alignment kit provides the necessary rear slip plates, turnplate pockets and commercial‐grade turnplates to convert your standard four‐post lift into an economical solution for performing two and four‐wheel alignments.
Kit Includes
- Fits 9K – 14K Runway Lifts that are a minimum of 19” wide
- Bolt on ramp piece for both the front turn plates & back slip plates
- Turn plates
Product Specifications
Model
HD-9
HD-9XL
HD-9XW
Style
Standard Width
Standard Width /
Ext. Length
Standard Width / High Lift
Capacity
Lifting Capacity: (*)
9,000 lbs. (4,082 kg)
*Max Capacity / Front Axle
4,500 lbs. (2,041 kg)
*Max Capacity / Rear Axle
4,500 lbs. (2,041 kg)
Rise
A Min. Runway Height
4.5" (114 mm)
B Max. Rise
70" (1,778 mm)
82" (2,083 mm)
C Max. Lifting Height
74.5" (1,892 mm)
86.5" (2,197 mm)
Time to Full Rise
45 seconds
50 seconds
Outside Dimensions
D Overall Width
110.25" (2,800 mm)
E Outside Length
174" (4,420 mm)
198" (5,029 mm)
F Overall Length
200" (5,080 mm)
224" (5,690 mm)
G Height of Columns
88" (2,235 mm)
100" (2,540 mm)
Inside Dimensions
H Width Between Columns
100.25" (2,546 mm)
I Drive-Thru Clearance
86.5" (2,197 mm)
Runways
J Runway Width
19" (483 mm)
K Length of Runways
164" (4,166 mm)
188" (4,775 mm)
L Width Between Runways
37.5" or 44.375" (953 or 1,127 mm)
M Runway Centerline
56.5" or 63.375" (1,435 or 1,610 mm)
N Outside Edge of Runways
75.5" or 82.375" (1,918 or 2,092 mm)
Minimum Wheelbase
Rated Capacity
115" (2,921 mm)
135" (3,429 mm)
75% Capacity
100" (2,540 mm)
115" (2,921 mm)
50% Capacity
85" (2,159 mm)
95" (2,413 mm)
25% Capacity
70" (1,778 mm)
80" (2,032 mm)
Locking
Locking Positions
12
15
Lock Spacing
Every 4" (102 mm)
Power Unit
Motor
220 VAC / 60 Hz / 1Ph
Noise
45 dB
Shipping
Weight
1,746-lbs. (792 kg)
1,787-lbs. (810.6 kg)
1,798-lbs. (815.6 kg)
Dimensions
165" x 22" x 34"
(4,191 x 559 x 864 mm)
184" x 21" x 36"
(4,674 x 533 x 914 mm)
192" x 21" x 34"
(4,877 x 533 x 864 mm)
Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
Key Features
- Published product configuration: BendPak HD-9XL Four Post Lift 9,000 lb. Capacity – Extra Wide, Standard Height, Long Car Runway The BendPak HD-9XL four-post lift delivers 9,000-lb. lifting capacity with extended runways specifically designed for longer wheelbase vehicles. Featuring wide drive-thru clearance and standard lift height, this
- Exact manufacturer model or part number: 5175859-V001
- Cataloged for Lifts & Hoists: Car Lifts — Parking Lifts
- 4 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | BendPak |
|---|---|
| SKU | 5175859-V001 |
| MPN / Model | 5175859-V001 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Parking Lifts |
Before You Order
Confirm that model 5175859-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
