Product Overview

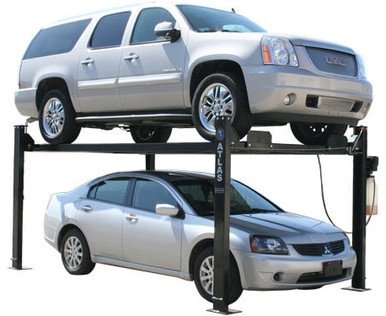

Atlas® Garage Pro 8000 Service/Parking 4 Post Lift 8,000 lbs
Important: Perform this procedure immediately after installation to ensure optimal performance and safety.
The Atlas® Garage Pro 8000 delivers professional-grade lifting capability at a competitive price point that dramatically outperforms the flood of generic "economy" lifts sold by no-name Internet marketers. With a 8,000 lb. capacity and 72" maximum lift height, this versatile four-post lift is engineered specifically for home garage enthusiasts, restoration shops, and automotive hobbyists who demand reliability, safety, and convenience.
The Atlas® brand above ground auto lift offers more features, better build quality, and superior support than competing economy models. Every PRO 8000 includes a comprehensive accessory package and is backed by Atlas Automotive Equipment's commitment to quality manufacturing and customer service.
Portable Design With Included Caster Kit
The portable Atlas® Garage Pro 8000 includes a caster kit with polyurethane wheels that transforms your lift into a mobile workspace solution. The caster kit can be installed or removed in just a matter of minutes and requires no tools. This innovative feature allows you to reposition your lift for maximum garage space utilization, move it for cleaning, or store it when not in use.
Whether you're working on classic car restorations, performing routine maintenance, or simply need secure long-term vehicle storage, the PRO 8000 provides the perfect balance of functionality and flexibility. The lift's 67" clearance under runways provides ample room for comfortable undercarriage access, while the 80 1/2" drive-thru width accommodates a wide range of vehicles from sedans to light trucks.
Designed for Home Garage and Light Commercial Use
All Atlas® portable four post lifts with 8,000 lb. capacity are designed and built specifically for use by home garage owners and restoration shops. These lifts are engineered for enthusiasts who need reliable, safe lifting performance for periodic use—not for commercial repair shops that raise and lower a lift several times per day under heavy-duty production demands.
Perfect for storing or working on vehicles in home garages, collector car facilities, and specialty automotive shops, the PRO 8000 offers professional capability without the commercial price tag. If you have questions about which lift will best suit your specific application, please contact our knowledgeable sales team for personalized recommendations.
Key Features & Advantages
- Double Lock Safety System with single point lock release and lock ladder design provides maximum security and convenience
- Atlas® Powder Coat Finish ensures long-lasting durability and corrosion resistance in demanding garage environments
- 110V motor with 30 amp breaker requirement no special electrical service needed for most home installations
- Complete accessory package included: steel approach ramps, steel jack tray, four plastic drip trays, four wheel stops, and two rubber wheel chocks
- Generous dimensions: 165 3/4" runway length, 21 1/2" runway width with rails, and 153 1/2" maximum wheelbase capacity
Complete Package – Ready to Work
The Atlas® Garage Pro 8000 arrives with everything you need to start lifting vehicles safely and efficiently:
- 1 Jack Tray for positioning floor jacks and jack stands
- 4 Plastic Drip Trays to catch fluids during maintenance
- 2 Rubber Wheel Chocks for added vehicle security
- Steel Approach Ramps for smooth, controlled vehicle loading
- 1 Caster Kit with Polyurethane Wheels for portability
Note: Anchor bolts are optional and sold separately. Oil requirement: 3-5 gallons AW32/AW46 hydraulic oil (not included).
California Prop 65 Warning: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to
Product Features
- 8,000 lb. Capacity
- Atlas® Powder Coat Finish
- Single Point Lock Release
- Lock Ladder Design
- Double Lock Safety System
- Caster Kit With Polyurethane Wheels Included
- Anchor Bolts Optional (Sold Separately)
- Steel Approach Ramps Included
- Steel Jack Tray Included
- Four Plastic Drip Trays Included
- Four Wheel Stops Included
- Two Rubber Wheel Chocks Included
- Perfect For Storing Or Working On Vehicles
Includes
- 1 Jack Tray
- 4 Plastic Drip Trays
- Two Rubber Wheel Chocks
- Steel Approach Ramps
- 1 Caster Kit With Polyurethane Wheels
Product Specifications
Specifications
PRO 8000
Capacity
8,000 lbs
Lifting Height To Top Of Runway
72" (6')
Clearance Under Runways
67" (5' 7")

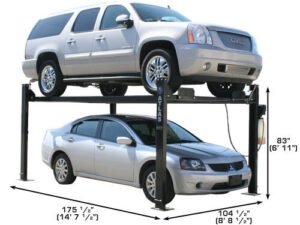

Height of Columns
83" (6' 11")
Overall Width w/ Motor
115" (9' 7")
Overall Width w/o Motor
104 1/2" (8' 8 1/2")

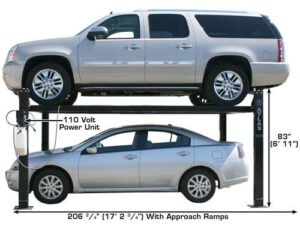

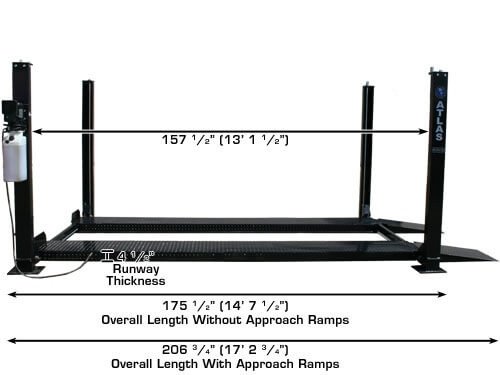

Overall Length w/Approach Ramps
206 3/4" (17' 2 3/4")
Overall Length w/o Approach Ramps
N/A
Approach Ramps
37" (3' 1")
Runway Width
21 1/2" (w/ Rails) or 18 3/4" (Driving Surface)
Runway Length
165 3/4" (13' 9 3/4")
Runway Thickness
4 ½"
Width Between Runways
37" (3' 1")
Width Between Runway Rails
31 1/2" (2' 7 1/2")
Outside Runway to Outside Runway
74 5/8" (6' 2 5/8")
Clearance Between Columns
94 1/2" (7' 10 1/2")
Length Between Columns
157 1/2" (13' 1 1/2")
Maximum Wheel Base
153 1/2" (12' 9 1/2")
Drive Thru (Outside of tire to outside of tire)
80 1/2" (6' 8 1/2")
Motor
110V / 30 amp breaker is required.
Oil Requirement
3-5 Gallons AW32/AW46 (NOT Included)
Weight
1,800 lbs
Key Features
- Published product configuration: Atlas® Garage Pro 8000 Service/Parking 4 Post Lift 8,000 lbs Important: Perform this procedure immediately after installation to ensure optimal performance and safety. The Atlas® Garage Pro 8000 delivers professional-grade lifting capability at a competitive price point that dramatically outperforms the flood of
- Exact manufacturer model or part number: XH-PRO8000
- Cataloged for Lifts & Hoists: Car Lifts — Parking Lifts
- 3 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | Atlas Automotive Equipment |
|---|---|
| SKU | XH-PRO8000 |
| MPN / Model | XH-PRO8000 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Parking Lifts |
Compatibility & Ordering Notes
Use SKU / MPN XH-PRO8000 as the primary ordering reference. Before purchase, match the equipment model, serial-number range, mounting or connection details, and any size or electrical requirements shown in the listing. Compatibility is not implied beyond the verified information above.
Manuals & Technical Resources
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
