Product Overview
BendPak HD-7PXW ALI 7K Super-Tall Rise 4 Post Parking Lift
The BendPak HD-7PXW is the ultimate four-post vehicle display lift for dealerships and automotive showrooms. With its super-tall 12-foot rise, this 7,000-lb. capacity lift is specifically engineered to showcase vehicles in striking "jewel box" style displays visible from highways and busy streets. Featuring an attractive low-sheen black powder coat finish and sleek full-length runway covers, this lift blends seamlessly into any showroom environment while keeping the spotlight on your inventory. Whether you need to double your floor space or create an eye-catching display visible from across the street, the HD-7PXW provides dealerships with a dramatic competitive edge and delivers ALI certified safety in every installation.
Engineered Exclusively for High-Impact Vehicle Display

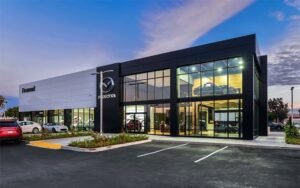

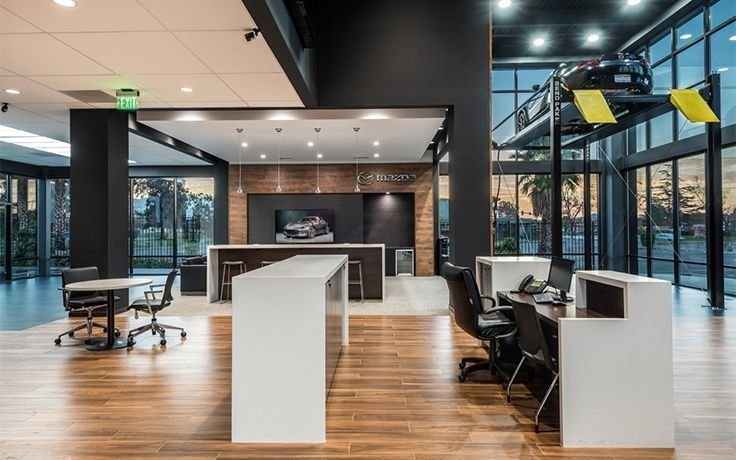

The HD-7PXW was created specifically as a showroom vehicle display lift for dealerships nationwide. As part of BendPak's push to offer dealers superior vehicle display solutions, this lift allows you to stack two cars in a glass "jewel box" display in front of your dealership—attracting attention from customers passing by on nearby highways or within your main showroom. This specially designed four-post lift delivers full 360-degree visibility of the vehicle from all sides, ensuring your inventory looks its absolute best from every angle.
More than just unique styling, this car lift is exceptionally easy to use. It features a multi-position platform locking system that safely secures raised vehicles at 30 different height positions (with locks every 4 inches ), allowing for flexible, open display viewing areas. The lift's electric/hydraulic drive system is hidden beneath the fully covered platforms for a clean, clutter-free appearance that keeps the focus on your vehicles. With 188-inch long runways, the HD-7PXW accommodates a wide variety of vehicle types and wheelbases—from compact cars to full-size trucks.
Why Choose a Display Lift for Your Dealership?
Auto dealerships are constantly seeking an edge when it comes to their displays. The newest vehicles—or the ones most likely to attract customer attention—need to be prominently shown and visible from the street. The narrow dimensions of the HD-7PXW, combined with its sleek low-sheen black coloration, allow it to blend seamlessly into busy lots and showrooms. This design ensures that your vehicles are all that people notice, not the lift itself.
The lift's impressive 140-inch maximum rise (with a maximum lifting height of 145 inches ) is perfect for getting cars seen from over the highway or across the street—creating a visual landmark that draws customers to your location. Originally designed for dealerships of any size, this lift is ideal for anyone looking to gain a competitive advantage. BendPak's mission is to help make your inventory look its best, so you can increase foot traffic and close more deals.
Proven Safety Features and Engineering Excellence
The HD-7PXW delivers all the same safety and convenience features as other BendPak four-post lifts—but with added height and style for showroom environments. A one-touch pneumatic safety release instantly releases all locks simultaneously, providing quick, safe operation every time. The lift's single hydraulic cylinder is neatly tucked under the power-side runway, keeping the mechanism out of sight and mind.
Additionally, the entire undersides of both runways are completely covered by full-length shields, dramatically improving the aesthetics of the lift when viewed from underneath. Since this lift reaches incredible heights, BendPak engineers made the strategic decision to cover up all mechanical and electric-hydraulic componentry—ensuring a clean, professional appearance from every angle. There's simply no better-looking or higher-reaching display lift on the market than the HD-7PXW.

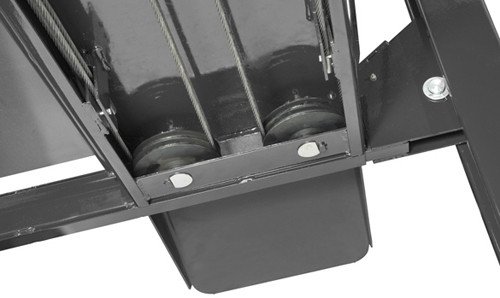

Internal engineering features include internal anti-sway slider blocks in each column for enhanced stability, oversized self-lubricating cable rollers for smooth operation, heavy-duty 3/8-inch aircraft cable, and rugged 1.25-inch roller axles. The adjustable lock ladders and multi-position safety locks in each column ensure vehicles remain securely locked at any height. Ramps feature a non-skid surface for safe vehicle loading.
Key Selling Points
- Super-Tall 12-Foot Rise: Reaches a maximum lifting height of 145 inches (140-inch max rise) in just 60 seconds, making vehicles visible from highways and busy streets
- Showroom-Ready Aesthetics: Low-sheen black powder coat finish with fully covered runways creates a sleek, professional appearance that keeps attention on your vehicles
- 7,000-lb. Capacity: Accommodates a wide variety of vehicles with 3,500-lb. front and rear axle capacity and 188-inch runways
- 30 Locking Positions: Multi-position safety locks every 4 inches allow flexible display heights and one-touch pneumatic safety release for easy operation
- ALI Certified: Engineered and validated to meet rigorous ALI/ANSI standards for commercial use
Technical Overview

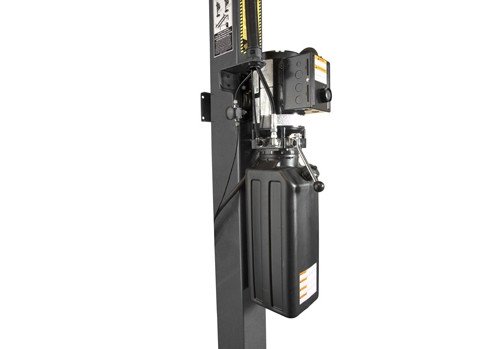

The HD-7PXW features a 208-230 VAC / 50-60 Hz / 1Ph motor with exceptionally quiet operation at just 45 dB making it ideal for indoor showroom environments. With a minimum runway height of just 4.5 inches, vehicles drive on easily, and the 100-inch width between columns provides ample clearance for a variety of vehicle sizes. Drive-thru clearance measures 86.5 inches. Runways are 19 inches wide and can be configured with 37.5-inch or 44.5-inch spacing between runways to accommodate different vehicle track widths.
Important Air Supply Requirement:
An air supply (minimum: 30 psi / 3 CFM ) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install, and maintain the air supply.
Product Features
- 7,000-lb. maximum lifting capacity
- Super tall rise of delivers 12-feet of lifting height
- Low sheen black color
- Underside of runways are shielded by full-length covers
- Electric / hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers
- Features heavy-duty 3/8” aircraft cable
- Rugged 1.25” roller axles
- Multi-position safety locks in each column
- Adjustable lock ladders
- Ramps feature non-skid surface
- Push-button pneumatic safety release
Product Specifications
Specifications
HD-7PXW
Capacity
Lifting Capacity: (*)
7,000 lbs. / 3,175 kg
*Max Capacity / Front Axle
3,500 lbs. / 1,588 kg
*Max Capacity / Rear Axle
3,500 lbs. / 1,588 kg
Rise
A Min. Runway Height
4.5" (114 mm)
B Max Rise
140" (3,556 mm)
C Max. Lifting Height
145" (3,683 mm)
Time to Full Rise
60 seconds
Outside Dimensions
D Overall Width
110.25" (2,800 mm)
E Outside Length
198" (5,029 mm)
F Overall Length
224.5" (5,702 mm)
G Height of Columns
158" (4,013 mm)
Inside Dimensions
H Width Between Columns
100" (2,540 mm)
I Drive-Thru Clearance
86.5" (2,197 mm)
Runways
J Runway Width
19" (483 mm)
K Length of Runways
188" (4,775 mm)
L Width Between Runways
37.5" or 44.5" (953 mm or 1,130 mm)
M Runway Centerline
56.5" or 63.5" (1,435 mm or 1,613 mm)
N Outside Edge of Runways
75.5" or 82.5" (1,918 mm or 2,096 mm)
Minimum Wheelbase
Rated Capacity
135" (3,429 mm)
75% Capacity
115" (2,921 mm)
50% Capacity
95" (2,413 mm)
25% Capacity
80" (2,032 mm)
Locking
Locking Positions
30
Lock Spacing
Every 4" (102 mm)
Power Unit
Motor
208-230 VAC / 50-60 Hz / 1Ph
Noise
45 dB
Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
Key Features
- Published product configuration: BendPak HD-7PXW ALI 7K Super-Tall Rise 4 Post Parking Lift The BendPak HD-7PXW is the ultimate four-post vehicle display lift for dealerships and automotive showrooms. With its super-tall 12-foot rise, this 7,000-lb. capacity lift is specifically engineered to showcase vehicles in striking "jewel box" style displays
- Exact manufacturer model or part number: 5175516
- Cataloged for Lifts & Hoists: Car Lifts — Parking Lifts
- 4 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | BendPak |
|---|---|
| SKU | 5175516 |
| MPN / Model | 5175516 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Parking Lifts |
Before You Order
Confirm that model 5175516, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
