Product Overview

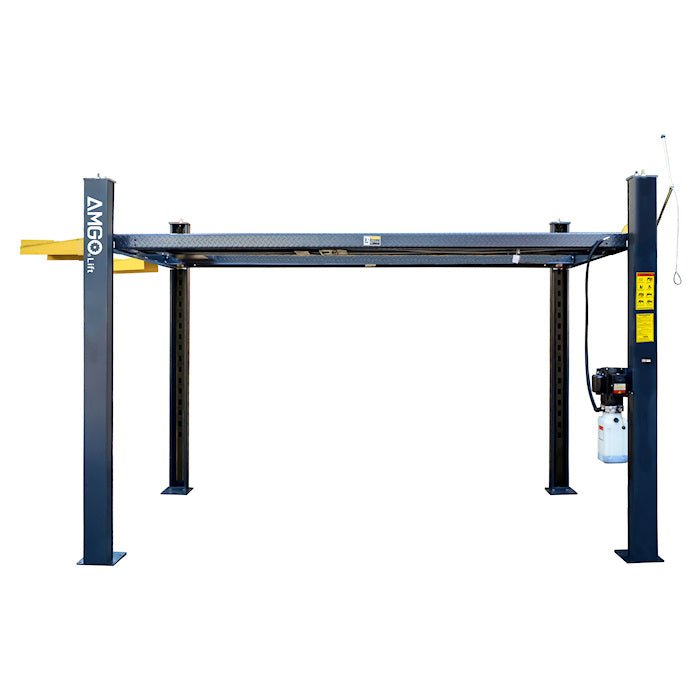

AMGO® Hydraulics 409-HPX 9,000 lbs Boat Storage 4 Post Lift w/Ex. Height
Stepping up in size and strength, the AMGO® Hydraulics 409-HPX is built to handle more, featuring a robust 9,000 lb lifting capacity and an extended frame that's 16" longer than the 408-HPX model. This makes it the ideal storage solution for longer boats and heavier watercraft. The 409-HPX combines engineering excellence with practical features, delivering a seamless, secure, and efficient boat storage experience for marinas, boat clubs, home garages, and commercial storage facilities.
Designed with safety and versatility at its core, the 409-HPX includes AMGO's proprietary concealed lock-control device with a manual single-point release—no air source required. Dual safety mechanisms provide peace of mind with primary safety locks and cable-slack protection. The integrated non-skid diamond platforms ensure stable loading and unloading, while the adjustable two-width platform settings accommodate various trailer widths (adjustable from 42 1/2" to 64 5/16" ). Standard foldable drive-in ramps (two units per lift) make drive-on access effortless, and the ETL-certified power unit can be mounted at any corner for flexible installation.
Key Advantages of the 409-HPX
- Extended Length for Longer Boats: At 238 1/8" overall length with ramps (204 11/16" without), the 409-HPX provides 16" more length than the 408-HPX, making it perfect for larger vessels.
- Impressive Lifting Height: Max lifting height of 88 1/16" and max lock height of 85 5/16" offer exceptional vertical storage capability and underneath access of up to 82 9/16".
- Fast and Efficient Operation: Powered by a 2.0 HP, 220V motor, the lift raises your boat to full height in just 57 seconds.
- Wide Drive-Thru Clearance: 111" drive-thru clearance and width between runways adjustable from 46 1/2" to 64 15/16" ensure compatibility with a variety of boat trailers.
- Safety-First Engineering: Concealed lock control, dual safety locks, and cable-slack protection provide multiple layers of protection for your valuable watercraft.
Concealed Lock & Safety Systems

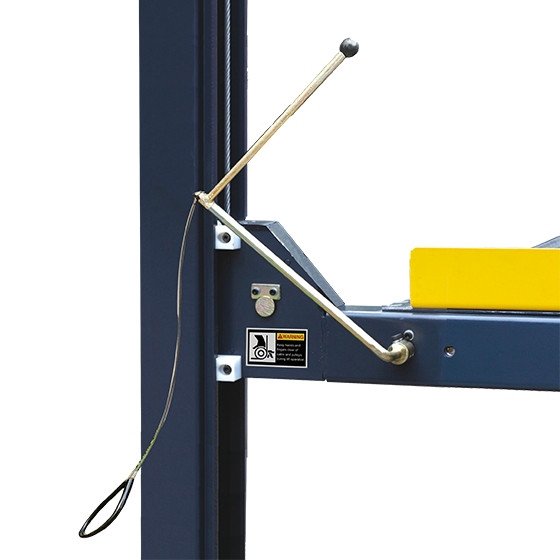

Hidden Lock Control: AMGO's proprietary concealed lock-control device features a manual single-point release, eliminating the need for an external air source. This streamlined design keeps the locking mechanism protected from the elements while providing quick, reliable operation.
Dual Safety Locks: The 409-HPX is equipped with double safety locks that provide additional layers of security. Combined with cable-slack protection, these safety mechanisms ensure your boat remains stable and secure at any height, offering peace of mind whether you're storing for the season or accessing your vessel frequently.
Adjustable Platform & Foldable Ramps
Adjustable Trailer Platform: The standard adjustable platform accommodates various trailer widths with an adjustment range of 42 3/8" to 66 1/4". The two-width setting design ensures compatibility with a wide range of boat trailers, giving you the flexibility to store different vessels on the same lift.
Foldable Drive-On Ramps: Included with the lift are standard foldable drive-in ramps (two units per lift). These ramps make loading and unloading smooth and easy, and they fold away when not in use to save space and maintain a clean, organized storage area.
Who Should Choose the 409-HPX?
The AMGO Hydraulics 409-HPX is the perfect solution for boat owners and facilities that need to store longer, heavier boats with confidence. Whether you're a marina owner looking to maximize vertical storage space, a boat club managing multiple vessels, or a homeowner with a spacious garage, the 409-HPX delivers professional-grade performance and reliability. Its 9,000 lb capacity, extended frame length, and robust safety features make it ideal for a wide variety of watercraft, from pontoon boats to larger powerboats.
WARNING: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to
Product Features
- 9,000lbs Lifting capacity
- AMGO’s proprietary concealed lock-control device with a manual single-point release (no air source required)
- Dual safety mechanisms with primary safety locks and cable-slack protection
- Integrated non-skid diamond platforms
- Flexible installation with the power unit mountable at any corner
- Two-widths setting platforms accommodates various trailers
- Standard foldable drive-in ramps
- ETL certified Power unit
- 16" more in length than 408-HPX, is ideal for longer boats.
Product Specifications
Specifications
409-HPX
Lifting Capacity
9,000 lbs
A Overall Length w/Ramp
238 1/8"
B Overall Length w/o Ramp
204 11/16"
C Overall Width
131 7/8"
D Width Between Columns
122 3/16"
E Max Lifting Height
88 1/16"
E Max Lock Height
85 5/16"
F Overall Height
96 5/8"
G Minimum Height
6 1/8"
H Max. Underneath Height
82 9/16"
H Max. Lock Underneath Height
79 13/16"
I Drive-Thru Clearance
111"
J Width Between Runways
46 1/2" – 64 15/16"
K Outside Edge of Runways
86 1/2" – 104 15/16"
Lifting Time
57s
Motor
2.0HP,220V/60Hz
Shipping Weight
2,061 lbs
Key Features
- Published product configuration: AMGO® Hydraulics 409-HPX 9,000 lbs Boat Storage 4 Post Lift w/Ex. Height Stepping up in size and strength, the AMGO® Hydraulics 409-HPX is built to handle more, featuring a robust 9,000 lb lifting capacity and an extended frame that's 16" longer than the 408-HPX model. This makes it the ideal storage solution for
- Exact manufacturer model or part number: 409-HPX-V001
- Cataloged for Lifts & Hoists: Car Lifts — Parking Lifts
- 2 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | AMGO Hydraulics |
|---|---|
| SKU | 409-HPX-V001 |
| MPN / Model | 409-HPX-V001 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Parking Lifts |
Before You Order
Confirm that model 409-HPX-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Manuals & Technical Resources
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
