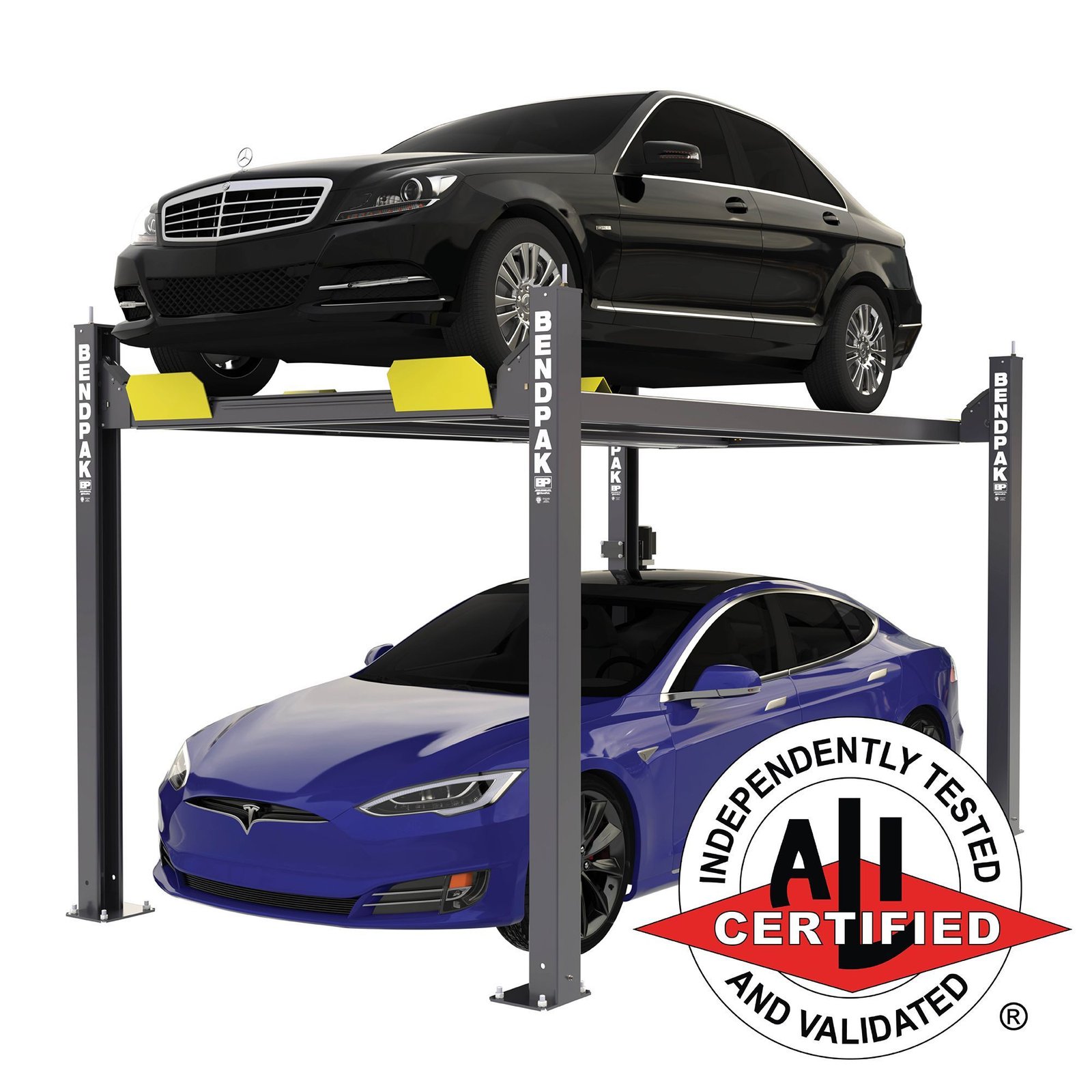

BendPak HD-7P Short Runways Extra-Tall ALI Car Lift – 7,000 lb. (New Gray)
Why the HD-7P Is the Ultimate Space-Saving Lift
When floor space is at a premium but you still need professional-grade lifting performance, the HD-7P is the answer. This lift combines short runways with an extra-tall 82" maximum rise and 86.5" max lifting height, allowing you to work comfortably under vehicles while minimizing the footprint in your shop. The narrow-width design (100.25" overall width) fits into tight bays and garages where wider lifts simply won't work. Add in the low 4.5" runway height for easy drive-on access with low-clearance vehicles, and you've got a lift that's as practical as it is powerful.

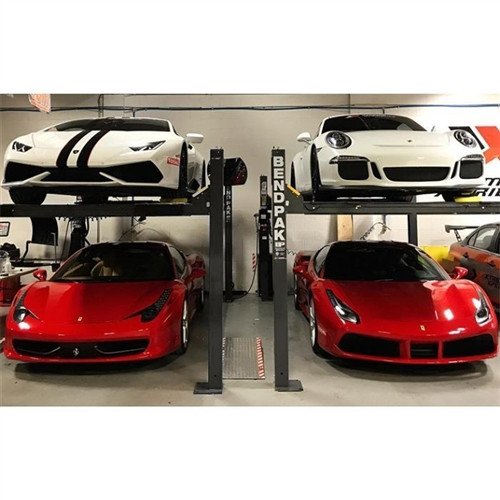

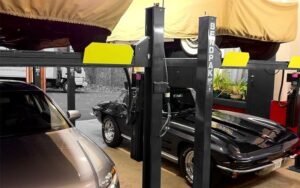

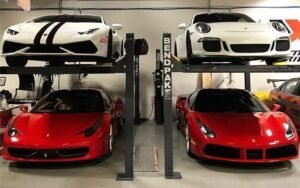

The applications are endless: use it as a service lift for oil changes, brake work, and undercarriage inspections, or as a parking lift to double your garage capacity. The HD-7P offers 15 locking positions spaced every 4 inches, giving you flexible height adjustments for vehicle storage or work at any level. And with a 35-second full rise time, you're not wasting time waiting—just efficient, fast lifting every time you need it.
Dependable Design You Can Trust
BendPak has been building the most durable, maintenance-free lifting systems on the market for over four decades. The HD-7P features four heavy-duty, high-quality stainless steel lifting cables rated at 14,400 lbs. each a combined rating of more than 822% of the lift's maximum capacity. That's serious over-engineering for serious peace of mind. A single hydraulic cylinder mounted underneath the runway provides smooth, reliable lifting power, and all lifting cables are fully enclosed within the lift structure for a clean, integrated design that keeps your workspace tidy and safe.

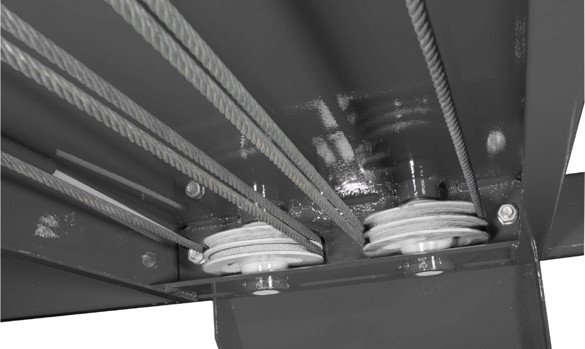

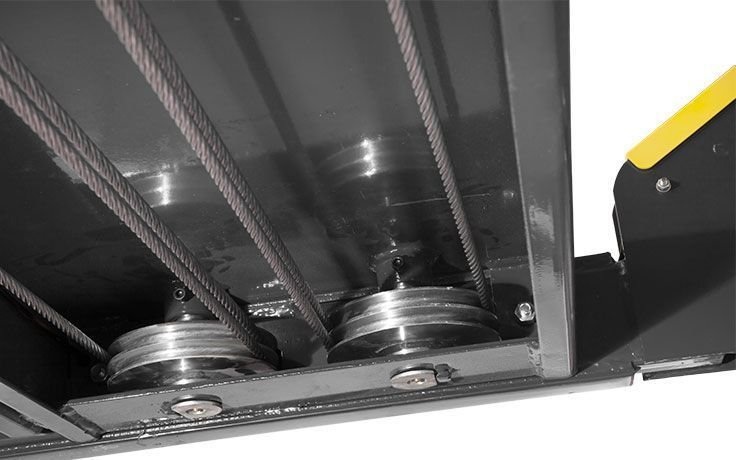

BendPak's dual-hub cable sheaves reduce stress and fatigue on axles, sheaves, and cables—adding years of reliable service life. Even though dual-hub sheaves cost more to manufacture, BendPak insists on using them because your safety and satisfaction matter more than cutting corners. The result? A lift that performs flawlessly day after day, year after year.
Electric/Hydraulic Power System
The HD-7P incorporates a maintenance-free electric hydraulic power system for ultimate dependability. The 220 VAC / 60 Hz / 1Ph motor operates at a whisper-quiet 45 dB, so you can work without disrupting your entire shop. All controls are conveniently located within close reach, making operation simple and intuitive.

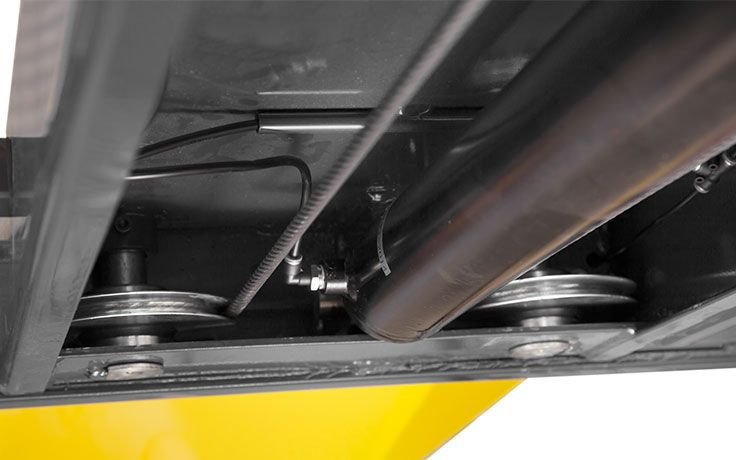

Each lift is equipped with a single industrial-grade hydraulic cylinder hidden away under the runway for minimum exposure and maximum reliable performance. BendPak's cylinders feature a single-piece, pilot-fitted, machined steel piston with specially designed pressure-loaded U-cup piston seals, backups, and wear bands to virtually eliminate fluid bypass. The micro-smooth chrome rod is machined from high-yield, ground and polished C-1045/50 micro-alloy steel and plated to a minimum of.001" diametrically for superior operation and longevity.
High durometer, mechanically-loaded rod seals make rod leakage a thing of the past, while a specially formulated abrasion-resistant urethane rod wiper provides exclusion protection. The welded cylinder body is made from robust steel tubing produced to exceed ASTM specifications. An integrated flow restrictor provides a controlled descent in the unlikely event of a hose rupture—an added layer of safety you won't find on bargain lifts.
Advanced Safety Features

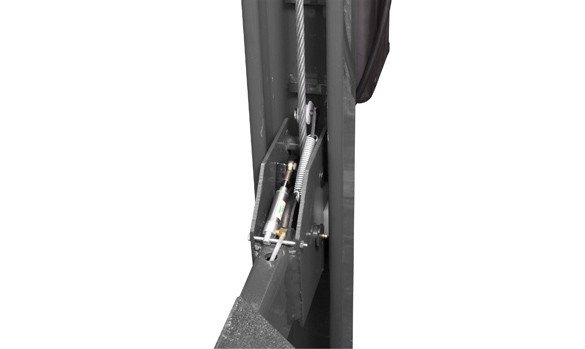

Safety is never optional with BendPak. The HD-7P is equipped with multi-position safety locks in each column, featuring aircraft-quality stainless steel and aluminum pneumatic cylinders that release all four locks simultaneously with the simple push of a button. The spring-loaded safety locks automatically engage continuously as the lift is raised, providing constant protection at every height.

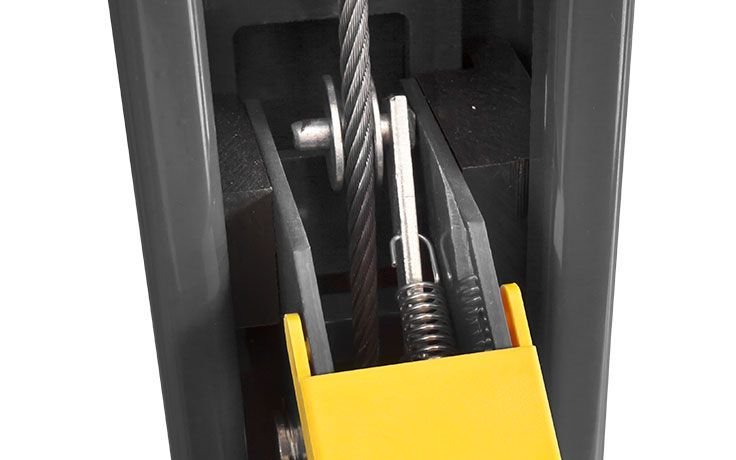

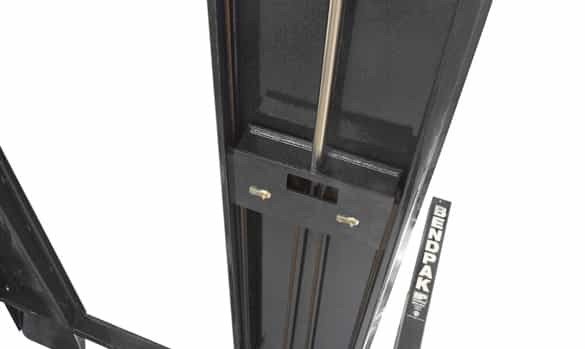

For added security, a secondary lock system acts as a slack-cable device to engage in the unlikely event of cable failure. Adjustable lock ladders and internal anti-sway slider blocks in each column further stabilize the lift and prevent lateral movement. The oversized self-lubricating cable rollers and rugged 1-1/4" roller axles ensure smooth, reliable operation with minimal maintenance over the life of the lift.
Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install, and maintain the air supply.
Durable Powder-Coat Finish
All HD-Series lifts feature a durable powder-coat finish in the new Gray color, giving the metal a high-quality, extremely durable finish that withstands even the harshest environmental or chemical conditions. Unlike other companies that claim to powder coat, BendPak takes pride in a meticulous 10-step powder-coating process:
- Visual inspection before sandblasting
- 5-stage phosphate wash in tanks that accommodate parts up to 25' long
- Immediate drying to prevent rust
- Outgassing to pre-bake parts and reduce blemishes hiding in metal pores
- Masking and plugging threaded holes and surfaces with high-temperature tape and silicone plugs
- Thinner wipe to remove light debris or fingerprints
- Hanging on an electrostatically grounded conveyor line
- Electrostatic spray application where powder "sticks" like dust to a television screen
- Curing at 400°F for 45 minutes
- Final quality inspection
The result is a finish that resists chips, scratches, and corrosion far better than standard paint or inferior powder-coating processes. Your HD-7P will look as good in ten years as it does the day you install it.
Smart Design Details That Matter

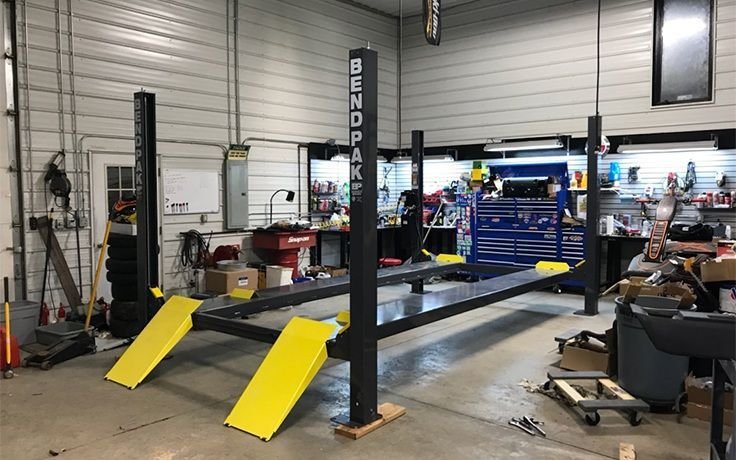

Large 10" x 12" base plates provide a solid, stable foundation for the HD-7P without requiring anchor bolts or a special concrete pad—just set it on a level surface and you're ready to lift. The low-deck 4.5" runways accommodate even the lowest sports cars and modern vehicles with minimal ground clearance, and the longer approach ramps make loading low-clearance vehicles easier than ever. It's the little details that make a big difference.
The 19" wide runways feature a non-skid surface for secure vehicle positioning, and outside guide rails and an included rail kit for optional accessories give you the flexibility to add rolling jacks, drip trays, or other work tools. Speaking of rolling jacks, an optional 4,500-lb. capacity rolling jack (Model RBJ-4500) is available separately for undercarriage work at full lift height.
An optional 4-piece caster kit makes your lift portable, with or without a car loaded. Need to rearrange your shop or move the lift to a new location? The caster kit makes it possible without a forklift or rigging crew.
Key Selling Points at a Glance
- 7,000-lb. lifting capacity with 3,500-lb. front and rear axle ratings
- Short runways (164" length) with extra-tall 82" rise and 86.5" max lifting height
- ALI-certified for safety and compliance—meets rigorous industry standards
- Low 4.5" runway height and longer approach ramps for low-clearance vehicles
- Fast 35-second rise time for maximum productivity
- 15 locking positions spaced every 4 inches with push-button pneumatic release
- Single hydraulic cylinder with integrated flow restrictor for controlled descent
- Four heavy-duty stainless steel cables rated at 14,400 lbs. each (822% over-capacity)
- Dual-hub cable sheaves and oversized self-lubricating rollers for long life
- Internal anti-sway slider blocks and secondary slack-cable safety system
- Whisper-quiet 45 dB operation with maintenance-free electric/hydraulic power
- Durable 10-step powder-coat finish in new Gray color
- No special foundation required large 10" x 12" base plates for easy installation
- Non-skid runway surface with outside guide rails and included rail kit for accessories
- Optional 4-piece caster kit for portability and optional RBJ-4500 rolling jack
Technical Highlights
HD-7P (Narrow Width Model):
- Overall Width: 100.25" (2,546 mm)
- Width Between Columns: 90.25" (2,292 mm)
- Drive-Thru Clearance: 76.5" (1,943 mm)
- Width Between Runways: 37.5" (953 mm)
- Runway Centerline: 56.5" (1,435 mm)
- Overall Length: 200" (5,080 mm) / Outside Length: 174" (4,420 mm)
- Height of Columns: 100" (2,540 mm)
- Shipping Weight: 1,803 lbs. (817.8 kg)
- Minimum Wheelbase (Rated Capacity): 115" (2,921 mm)
- Power: 220 VAC / 60 Hz / 1Ph
Why Choose BendPak?
When you buy a BendPak lift, you're investing in more than just equipment—you're investing in over 40 years of proven engineering excellence, industry-leading safety standards, and a reputation built on reliability. BendPak lifts are designed, tested, and built to last, with attention to detail that shows in every component. From the industrial-grade hydraulic cylinders to the aircraft-quality lifting cables and meticulous powder-coating process, every part of the HD-7P reflects BendPak's commitment to quality and your peace of mind.
If you've ever owned a BendPak, you know that means a whole lot. If this is your first BendPak, welcome to a new standard of lifting performance.
Product Features
- 7,000-lb. maximum lifting capacity
- High lift with short runways
- Runways include rail-kit for optional accessories
- Runways include outside guide rails
- Electric / hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers
- High-speed lifting
- Features heavy-duty 3/8" aircraft cable
- Rugged 1-1/4" roller axles
- Multi-position safety locks in each column
- Adjustable lock ladders
- Runways feature non-skid surface
- Push-button pneumatic safety release
- Optional 4,500-lb. capacity rolling jack available (Model RBJ-4500)
Product Specifications
Model
HD-7P
HD-7W
Style
Narrow Width
Wide Width
Capacity
Lifting Capacity: (*)
7,000 lbs. (3,175 kg)
*Max Capacity / Front Axle
3,500 lbs. (1,588 kg)
*Max Capacity / Rear Axle
3,500 lbs. (1,588 kg)
Rise
A Min. Runway Height
4.5" (114 mm)
B Max. Rise
82" (2,083 mm)
C Max. Lifting Height
86.5" (2,197 mm)
Time to Full Rise
35 seconds
Outside Dimensions
D Overall Width
100.25" (2,546 mm)
110.25" (2,800 mm)
E Outside Length
174" (4,420 mm)
F Overall Length
200" (5,080 mm)
G Height of Columns
100" (2,540 mm)
Inside Dimensions
H Width Between Columns
90.25" (2,292 mm)
100.25" (2,546 mm)
I Drive-Thru Clearance
76.5" (1,943 mm)
86.5" (2,197 mm)
Runways
J Runway Width
19" (483 mm)
K Length of Runways
164" (4,166 mm)
L Width Between Runways
37.5" (953 mm)
37.5" or 44.375" (953 or 1,127 mm)
M Runway Centerline
56.5" (1,435 mm)
56.5" or 63.375" (1,435 or 1,610 mm)
N Outside Edge of Runways
75.5" (1,918 mm)
75.5" or 82.375" (1,918 or 2,092 mm)
Minimum Wheelbase
Rated Capacity
115" (2,921 mm)
75% Capacity
100" (2,540 mm)
50% Capacity
85" (2,159 mm)
25% Capacity
70" (1,778 mm)
Locking
Locking Positions
15
Lock Spacing
Every 4" (102 mm)
Power Unit
Motor
220 VAC / 60 Hz / 1Ph
Noise
45 dB
Shipping
Weight
1,803-lbs. (817.8 kg)
1,702-lbs. (772 kg)
Dimensions
168" x 22" x 35" (4,267 mm x 559 mm x 889 mm)
166" x 22" x 34" (4,216 mm x 559 mm x 864 mm)
Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
Key Features
- Published product configuration: BendPak HD-7P Short Runways Extra-Tall ALI Car Lift – 7,000 lb. (New Gray) Why the HD-7P Is the Ultimate Space-Saving Lift When floor space is at a premium but you still need professional-grade lifting performance, the HD-7P is the answer. This lift combines short runways with an extra-tall 82" maximum rise and 86.5"
- Exact manufacturer model or part number: 5175510-V001
- Cataloged for Lifts & Hoists: Car Lifts — Parking Lifts
- 4 product manual or technical documents linked below
- Condition: New
Product Specifications
| Brand | BendPak |
|---|---|
| SKU | 5175510-V001 |
| MPN / Model | 5175510-V001 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Parking Lifts |
Before You Order
Confirm that model 5175510-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
