Katool KT-4H850 4 Post Car Lift 8,500 lbs

Product Overview

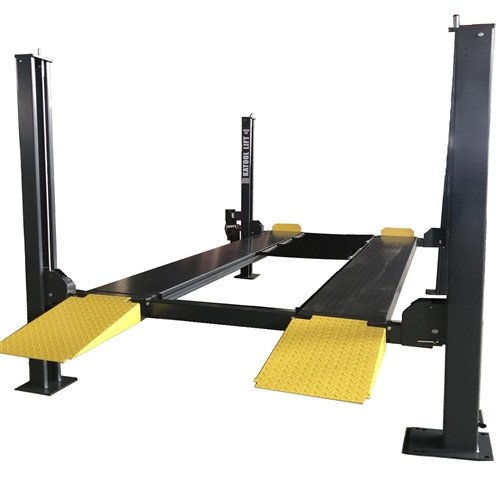

Katool KT-4H850 4 Post Car Lift 8,500 lbs

Professional-Grade Four-Post Lifting Solution

The Katool KT-4H850 is a four-post car lift designed to deliver reliable performance for home garages, automotive shops, and professional service facilities. With an 8,500 lb lifting capacity, this lift handles a wide range of vehicles from sedans and coupes to SUVs and light trucks. Built with safety and convenience in mind, the KT-4H850 is CE Approved and Certified, meeting rigorous testing standards including 115% dynamic loading capacity and 150% static loading capacity tests—ensuring you're working on a platform engineered for safety and peace of mind.

What sets the KT-4H850 apart is its thoughtful engineering and included accessories. From the single-point manual safety lock release for easy operation to the four mechanical locking devices with a secondary slack-cable safety system that engages in the unlikely event of cable failure, every detail is designed to protect you and your investment. The power side column can be installed on both sides, front, or rear, giving you flexibility to configure the lift to match your workspace layout. Add in non-skid diamond platforms, adjustable safety lock ladders, and a high-quality hydraulic system powered by 110V/60HZ/1PH (with 220V optional), and you have a complete lifting solution ready to go to work.

The KT-4H850 comes complete with a caster kit for easy mobility around your shop, three drip trays to keep your workspace clean, and a jack tray for convenient tool storage. With a max lifting height of 70.87", 82" drive-thru clearance, and a 75-second lifting time (40 seconds down), this lift combines speed, safety, and versatility in one professional package.

Key Highlights

• 8,500 lb capacity handles cars, SUVs, and light trucks with ease

• CE certified with 115% dynamic and 150% static load testing engineered for safety and reliability

• Single-point manual safety lock release and four mechanical locking devices with secondary slack-cable safety system

• Flexible power side column placement (front, rear, or either side) to fit your workspace

• Complete accessory package includes caster kit, 3 drip trays, and jack tray for mobility and convenience

Designed for Safety and Convenience

Safety is paramount when lifting thousands of pounds overhead, and the KT-4H850 delivers multiple layers of protection. The four mechanical locking devices secure the lift at multiple height positions, while the secondary slack-cable safety system acts as a fail-safe, engaging automatically if a cable were to fail. The single-point manual safety lock release makes it simple to lower the vehicle safely and efficiently. Non-skid diamond platforms provide secure footing and protect vehicle tires, while the adjustable safety lock ladders give you precise control over lifting height.

Beyond safety, this lift is built for real-world use. The included caster kit allows you to reposition the lift as needed—perfect for shops that need flexibility or home garages with limited space. The three drip trays catch fluids and keep your floor clean during maintenance, and the jack tray keeps your floor jack within easy reach. With an overall length of 198.43" (including ramps), 107.95" overall width, and a drive-thru clearance of 82", the KT-4H850 fits most garage spaces while offering generous room for working underneath vehicles.

Important Installation Requirement:

Concrete thickness must be at least 3.93" (100 MM) with a 3000 PSI rating. Failure to install this lift on proper concrete could result in serious injury or death! It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.

California Prop 65 Warning:

This product can contain certain metals/chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to

Product Features

• 8,500 lb. Capacity

• CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested

• Single Point Manual Safety Lock Release

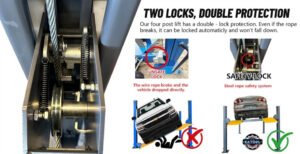

• Four mechanical locking devices, a secondary lock system acts as a slack-cable device to engage in the unlikely event of cable failure

• Power side column can be installed at both sides, front or rear

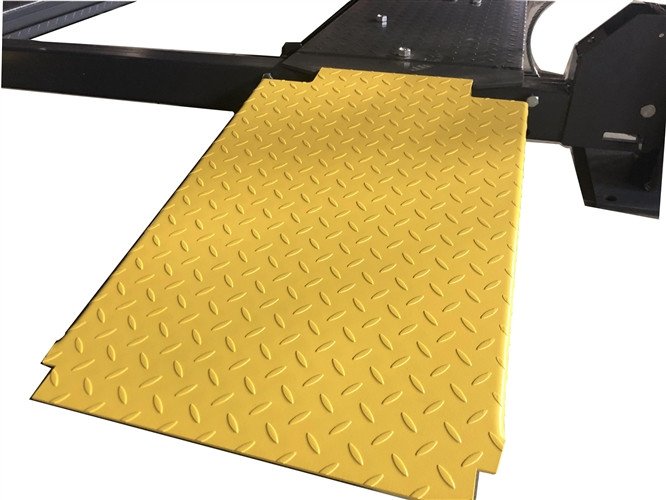

• Non-skid diamond platforms and adjustable safety lock ladders

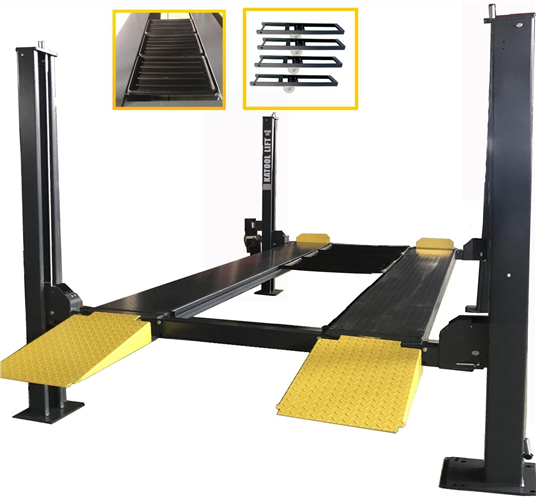

• Comes with a caster kit for moving the lift around

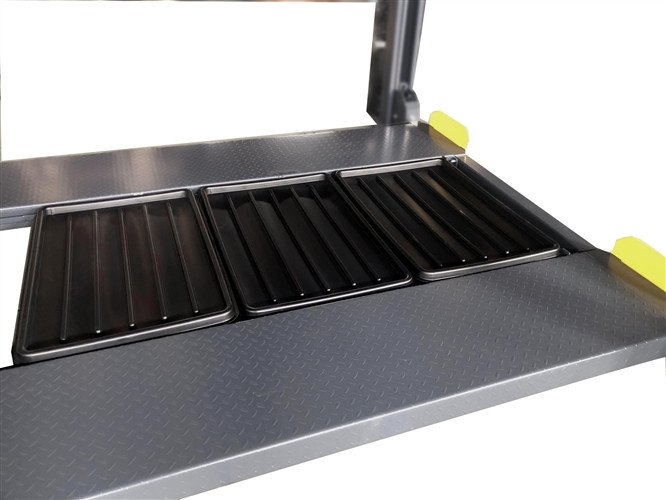

• Comes with drip trays and a jack tray

• High-quality hydraulic system with 110V/60HZ/1PH or 220V/60HZ/1PH (Optional))

Includes

• Caster Kit

• 3 Drip Trays

• Jack Tray

Product Specifications

Specifications
KT-4H850

Lifting Capacity
8,500 lbs.

Max. Lifting Height
70.87" / 1800mm

Height of Posts
83.66" / 2125mm

Overall Width
107.95" / 2742mm

Overall Length w/Ramps
198.43" / 5040mm

Outside Column
124.8" / 3170mm

Inside Column
94.72" / 2406mm

Drive-Thru
82" / 2083mm

Outside Runway to Outside Runway
6'2"

Min. Runway Height
4.76" / 121mm

Lifting Time
75s Up / 40s Down

Motor
110VAC / 60HZ / 1PH

Net Weight
1,820lbs / 826KG

Key Features

• Published product configuration: Katool KT-4H850 4 Post Car Lift 8,500 lbs Professional-Grade Four-Post Lifting Solution The Katool KT-4H850 is a four-post car lift designed to deliver reliable performance for home garages, automotive shops, and professional service facilities. With an 8,500 lb lifting capacity, this lift handles a wide range of
• Exact manufacturer model or part number: KT-4H850-V001
• Cataloged for Lifts & Hoists: Car Lifts — Parking Lifts
• 2 product manual or technical documents linked below
• Condition: New

Product Specifications

Before You Order

Confirm that model KT-4H850-V001, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
