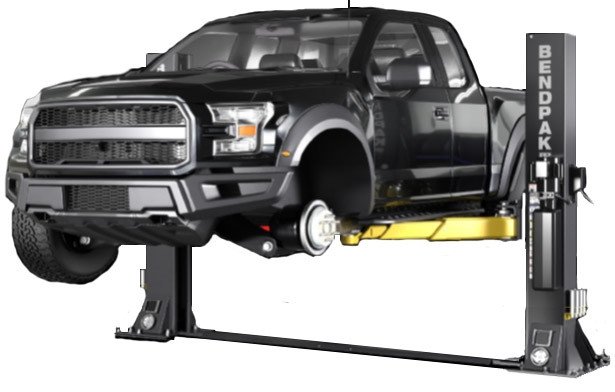

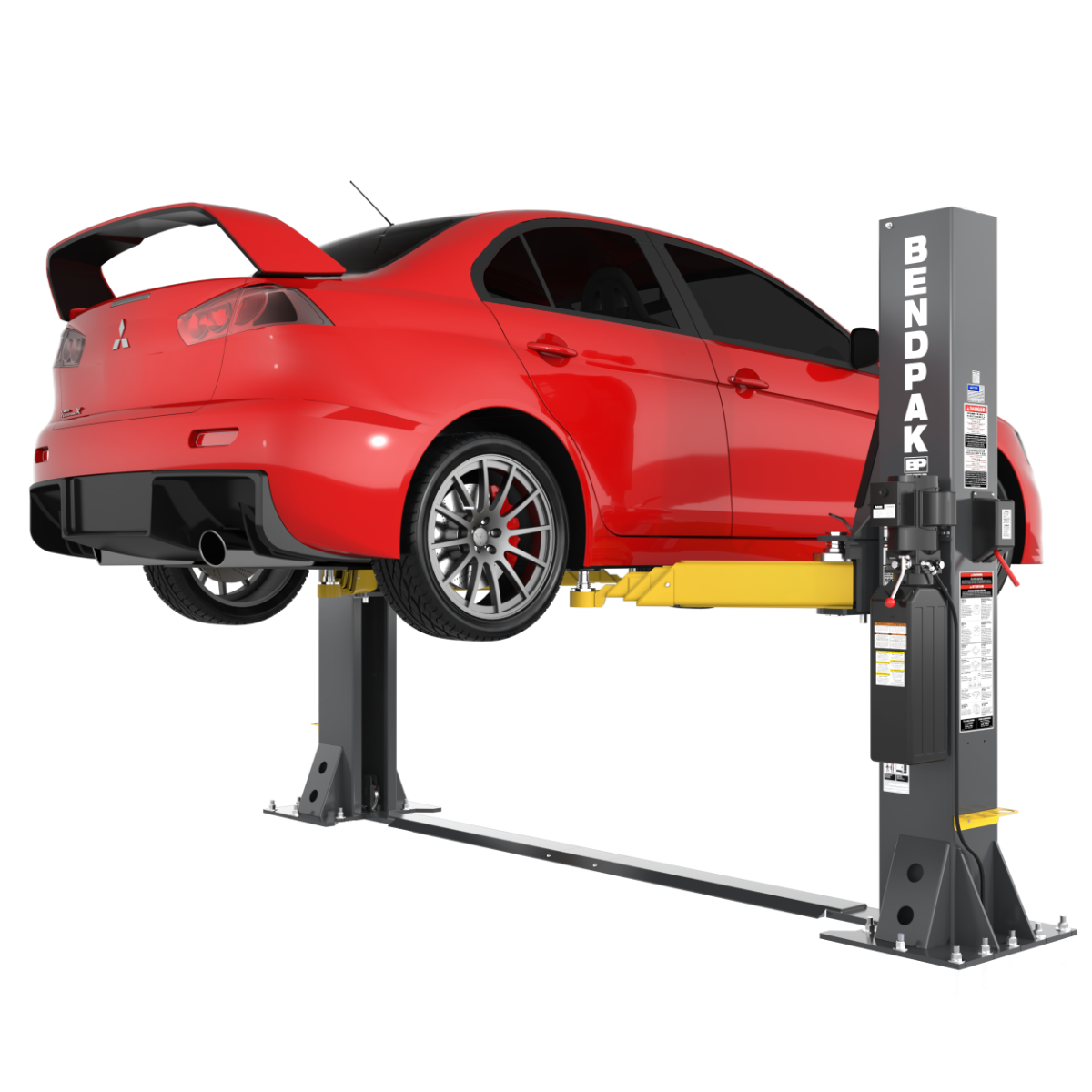

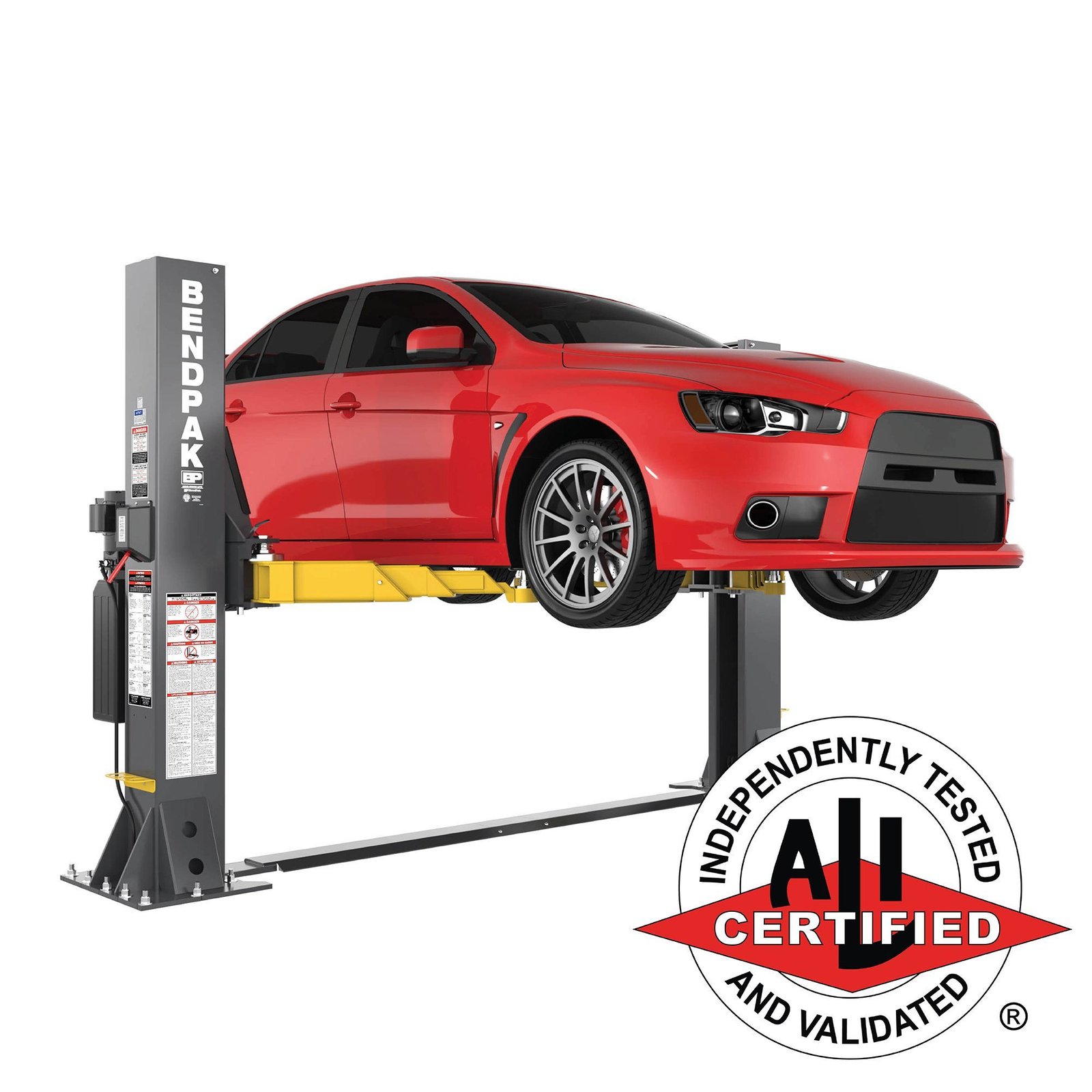

BendPak 10AP-SRT Low-Ceiling Mid-Rise 2 Post Car Lift — 10,000 lb. Capacity
When your shop demands precision, versatility, and low-ceiling compatibility, the BendPak 10AP-SRT delivers. This 10,000 lb. capacity mid-rise two-post lift is engineered for shops and garages where headroom is at a premium. With a 93.5" post height and a maximum rise of 46.25 inches, it fits into spaces where traditional full-rise lifts simply won't work—yet still provides ample height for tire service, detailing, brake jobs, and undercarriage access. Part of BendPak's revolutionary AP Series, the 10AP-SRT combines innovative safety systems, patented telescoping arms, and heavy-duty construction to set a new standard in mid-rise lifting technology.
The Ultimate Mid-Rise Solution
At BendPak, we understand that different jobs require different tools. You're not always going to need a standard full-rise lift so you can stand under a vehicle, and that's where the 10AP-SRT comes in. This short-rise, short-column lift is the latest addition to the revolutionary AP Series and fits perfectly in shops and low-ceiling garages. It's also capable of safely handling up to 10,000 lbs, with a 5,000 lb. front axle capacity and 5,000 lb. rear axle capacity, ensuring balanced and secure lifting for a wide range of vehicles.
Perfect for Tire and Wheel Service
The compact design of the 10AP-SRT makes it the lift of choice when you're performing tasks that don't require you to stand underneath a vehicle. With a max rise of approximately 46 inches, this lift is ideal for tire service, wheel work, and detailing. The drop-end arms provide a low pad height of just 4.5 inches, making it easy to position vehicles and engage lift points quickly and safely.
A New Paradigm in Lifting Technology
The AP Series features an innovative design that combines the best attributes of today's two-post lifts into a completely fresh approach to car lift engineering. The final result is a lift unlike any other on the market, built to handle tough jobs, heavy loads, and ensure the safety of both the vehicle and the operator.
Double-Telescoping Screw Pads and Adapters
BendPak's double-telescoping screw adapters are designed with precision and safety in mind. Featuring durable polyurethane pads that resist gouging and tearing, these adapters can be easily adjusted up or down to ensure level lifting, even in challenging conditions. The 10AP-SRT includes a set of 4 screw pads (Part # 5215752) and an adapter holder (Part # 5701660) for convenient storage. For added versatility, optional 2.5" and 5" stackable adapters provide precise and secure support for vehicles. Their convenient drop-in design allows for quick and effortless use, while a column-mounted rack keeps these adapters neatly organized and secure, streamlining your workflow.
Unparalleled Safety with Automatic Arm Restraint

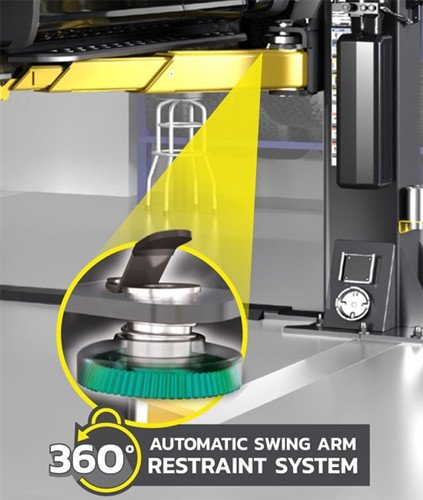

Traditional swing arm restraints serve their purpose, but BendPak takes safety to the next level. The AP Series introduces the revolutionary Automatic Swing Arm Restraint System (ASARS) that stands strong against the forces exerted when vehicles unexpectedly shift during loading or service. This adaptive system boasts a heavily forged-steel design, providing over 2,000 pounds of load-holding force. With a 360-degree grip, this patented arm restraint system ensures arms stay firmly in place, minimizing unplanned swing arm movement. The system's quick-release operator lever guarantees precise and secure control during every lift operation.
The Future Is Triple-Telescoping
Innovative and patented triple-telescoping swing arms redefine lifting precision. Unlike traditional arms, the AP arms retract shorter and extend farther, offering versatile arm positioning options for lift operators. The unique three-stage design, complete with a patented nesting feature, enables greater retraction and extension. Inner sliding arm movement reaches new levels without any hindrance, allowing for precise lifting action with increased efficiency.
The 10AP-SRT front arms extend from 22.25" minimum to 47.5" maximum, while rear arms extend from 29.5" minimum to 47.5" maximum, providing exceptional reach and versatility for lifting a wide variety of vehicle types and sizes.
Bi-Metric Swing Arms

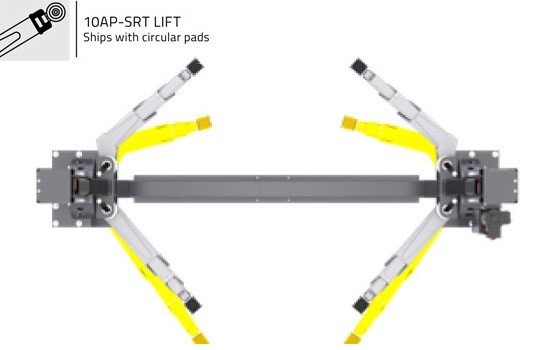

Exclusive Bi-Metric adaptable swing-arms give users the ability to set their lift up in either symmetric or asymmetric configurations. The 2-in-1 design gives operators the option of loading vehicles either symmetrically (centerline of vehicle at column) or asymmetrically (centerline of vehicle behind column). By not having to switch out arms, you'll be able to service vehicles faster than ever before, maximizing productivity and minimizing downtime in your shop.
Innovative Safety Lock System
BendPak's patented automatic safety lock system is a game-changer for operator efficiency and safety. Its innovative design ensures that safety locks automatically engage during all lift rising operations, providing a reliable layer of protection. The 10AP-SRT features 8 safety lock positions, spaced every 3.75 inches, giving you flexible work-height options throughout the lift's range.

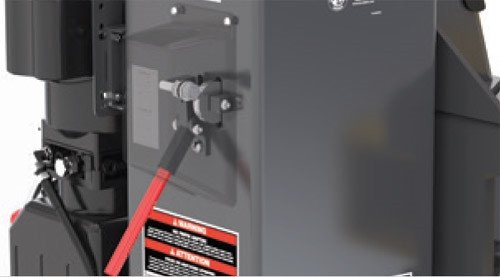

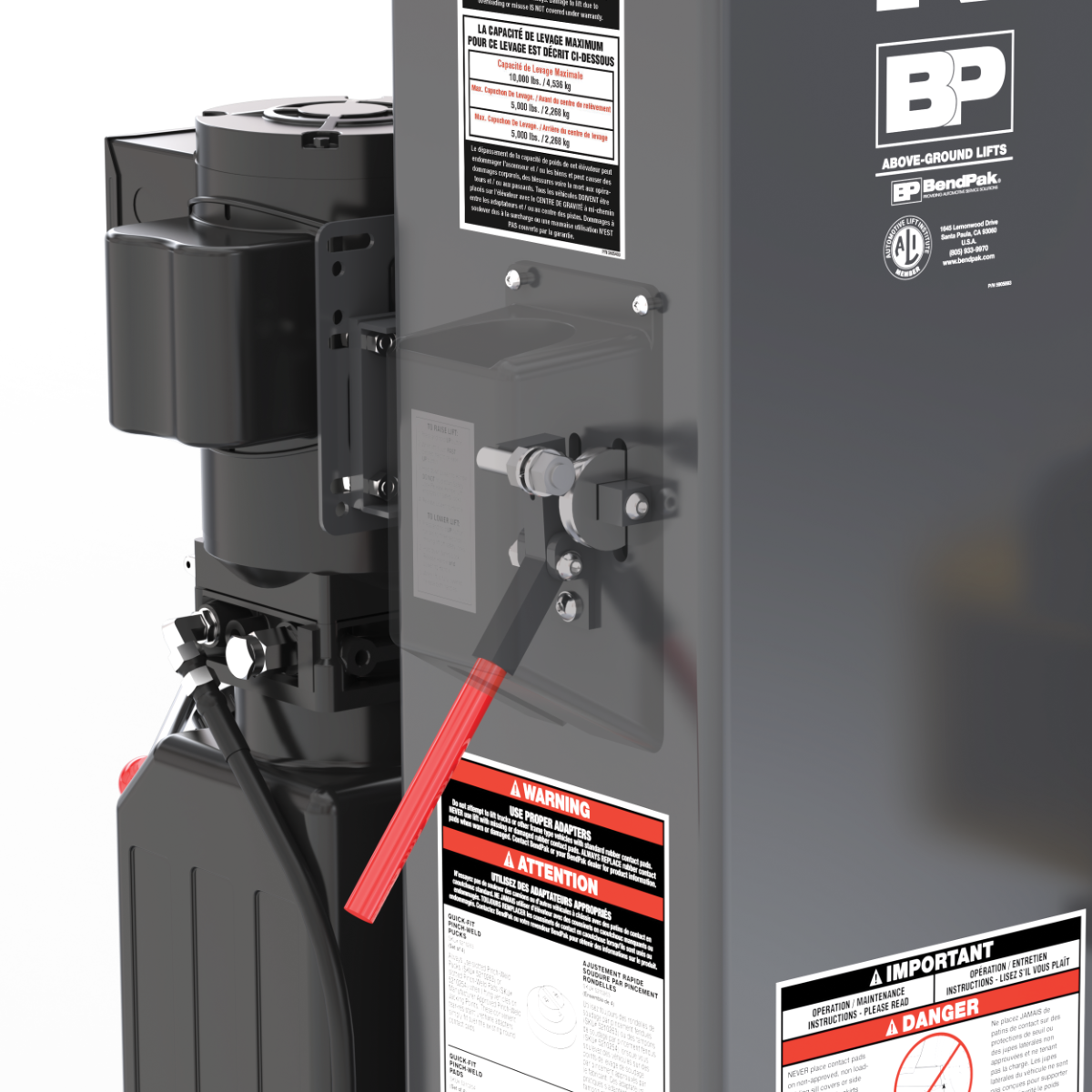

What truly sets it apart is the user-friendly experience it offers. With an ergonomic single-point release mechanism, operators can effortlessly disengage the safety locks during lift descent. It's that simple, making your operations smoother and safer than ever before.
Dual Hydraulic Power and Quiet Operation
The 10AP-SRT is powered by a robust Electric/Hydraulic HVLP power system with dual hydraulic direct-drive cylinders for smooth, synchronized lifting. The lift operates on 220 VAC, 60 Hz, single-phase power and delivers an impressive time to full rise of approximately 45 seconds. Operating hydraulic pressure under maximum load is a safe 2,170 psi.

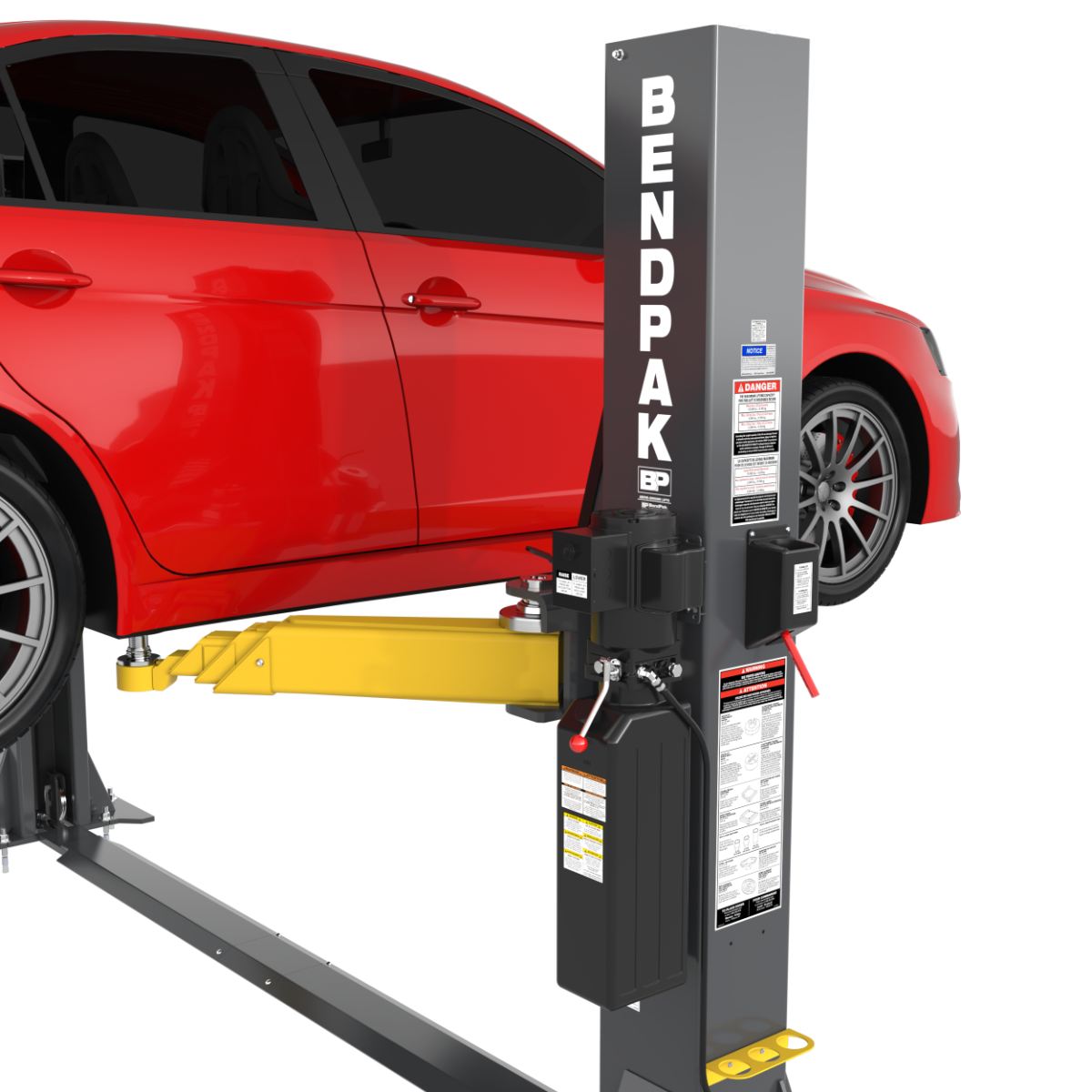

Even more impressive is the lift's quiet operation—running at less than 43 dB, it won't disturb your shop environment or conversations with customers. The power side post conveniently houses the power unit, lowering handle, and safety lock release handle, keeping controls at your fingertips.
Heavy-Duty Construction and Finish
Built to last, the 10AP-SRT features 40-inch tall carriages for superior strength and durability. Heavy-duty ½" aircraft-quality equalizer cables and oversized cable sheave diameters reduce cable fatigue and ensure long-term reliability. A durable powder coat finish protects the lift from rust, wear, and the elements, keeping it looking professional year after year.
Key Highlights
- 10,000 lb. lifting capacity with 5,000 lb. front and rear axle limits
- 93.5" post height ideal for low-ceiling garages and shops
- 46.25" max lifting height perfect for tire service, brakes, and detailing work
- Patented ASARS (Automatic Swing Arm Restraint System) withstands over 2,000 lbs. of side force
- Single-point safety release and 8 automatic safety lock positions for operator convenience
- Triple-telescoping, Bi-Metric swing arms symmetric or asymmetric configurations without changing arms
- Drop-end arms with 4.5" minimum pad height and double-telescoping screw pads for precise vehicle engagement
- Quiet operation (<43 dB) and fast 45-second rise time

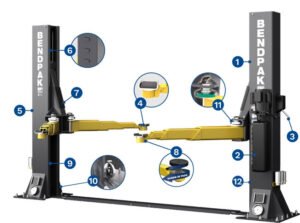

Product Features
- Dual Hydraulic Direct-Drive Cylinders
- Electric/Hydraulic HVLP Power System
- Single-Point Safety Release
- Drop-End Arms Provide a Lower Pad Height
- Durable Powder Coat Finish
- Safety Locks in Each Column Spaced Every 3.75"
- 40" Tall Carriages for Superior Strength and Durability (10AP-SRT Only)
- Double-Telescoping Screw Pads Offer Increased Versatility (10AP-SRT Only)
- Heavy-Duty ½" Aircraft-Quality Equalizer Cables
- Oversized Cable Sheave Diameter Reduces Cable Fatigue
- ASARS – Withstand Over 2000 lbs. of Side Force
- Power Side Post Supports
- Power Unit
- Lowering Handle
- Safety Lock Release Handle
Includes
- 5215752 – Set of 4 Screw Pads
- 5701660 – Adapter Holder
Product Specifications
Model
10AP-SRT
12AP-SRT
Capacity
Lifting Capacity: (*)
10,000 lbs. (4,536 kg)
12,000 lbs. (5,443 kg)
Maximum Capacity – Front Axle
5,000 lbs. (2,268 kg)
6,000 lbs. (2,721.5 kg)
Maximum Capacity – Rear Axle
5,000 lbs. (2,268 kg)
6,000 lbs. (2,721.5 kg)
Dimensions
A Width Overall (Narrow)
136" / 3,453 mm
155" / 3,937 mm
A Width Overall (Wide)
146" / 3,707 mm
155" / 3,937 mm
B Base Plate Width
25.25" / 642 mm
26.5" / 674 mm
C Post Height
93.5" / 2,377 mm
D Drive-Thru (Narrow)
91" / 2,311.5 mm
102.25" / 2,598 mm
D Drive-Thru (Wide)
101" / 2,565 mm
102.25" / 2,598 mm
E Inside Posts (Narrow)
108.25" / 2,749 mm
119.25" / 3,026 mm
E Inside Posts (Wide)
118.25" / 3,003 mm
119.25" / 3,026 mm
F Outside Posts (Narrow)
129.5" / 3,289 mm
141.75" / 3,600 mm
F Outside Posts (Wide)
139.5" / 3,543 mm
141.75" / 3,600 mm
G Minimum Height w/ Pad
4.5" / 116 mm
4.25" / 105 mm
H Max. Lifting Height
46.25" / 1,081 mm
I Max. Rise
42.5" / 1,081 mm
42.75" / 1,089 mm
J Max. Screw Pad Adjustment
2.25" / 55mm
N/A
J Min. Height w/ Adapters (5" + 2.")
N/A
11.75" / 298 mm
K Floor Plate Height
1.4 " / 36 mm
1.5 " / 38 mm
L Floor Plate Width
9.5" / 240 mm
M Front Arm Reach
22.25" Min – 47.5" Max. / 562 mm – 1,205mm
26" Min – 55.25" Max. / 659 mm – 1,403 mm
N Rear Arm Reach
29.5" Min – 47.5" Max. / 659 mm – 1,205mm
29.25" Min – 60" Max. / 745 mm – 1,525mm
Safety Lock Positions
8
Power Unit
Motor
220 VAC, 60 Hz, 1 Phase
Noise
<43 dB
Time to Full Rise
≈45 seconds
Operating Hydraulic Pressure Under Max. Load
2,170 psi
The design, material and specifications are subject to change without notice.
