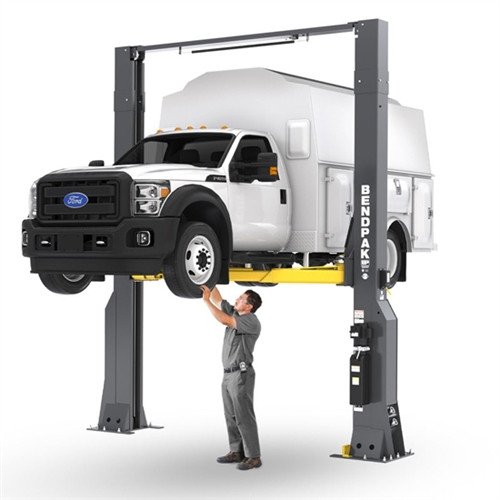

BendPak 20AP-192 High-Rise Clearfloor 2 Post Lift 20,000 lb. w/192" O.A Height
From heavy-duty fleet service to airport maintenance and emergency vehicle management, the BendPak 20AP-192 High-Rise Clearfloor 2 Post Lift tackles them all. With an astounding 20,000-pound lifting capacity combined with long-reaching telescoping arms and a sizeable assortment of lifting adapters to accommodate virtually every chassis configuration, the 20AP-192 makes an ideal supplement to existing fleet operations. Over 50 years of lift-building heritage delivered in a tall, high-rise package with 193" overall height for maximum working space.
Engineered for Super-Duty Performance
With oversize dimensions and capabilities that go well beyond those typically found on traditional two-post lifts, the BendPak 20AP-192 lifts more, lifts higher, reaches farther, and realizes more vehicle-supporting stability than ever before. And with fewer moving parts, it's less susceptible to wear and tear, easier to maintain and less expensive to operate. That all adds up to a cost-savings advantage you'll appreciate regardless of your environment. More uptime means more free time.
From accommodating large commercial trucks safer than ever before and lifting and supporting long awkward vehicles effortlessly, the Super-Duty 20AP Series handles heavy fleet tasks very comfortably. The key? Graciously spaced columns make for easier entry and exit 107.75" drive-thru width and 126" inside post spacing while ruggedly built far-reaching arms increase lifting point coverage delivering greater stability. Lift arm reach adjusts from 35" to 62", ensuring compatibility with a wide variety of wheelbases and chassis configurations. Ergonomic operator controls allow for simple and safe operation, a benefit that boosts productivity resulting in higher output and greater profitability.
The Future of Two-Post Lifting Technology
Every day the automotive industry evolves with new and advanced technologies, meaning that it's crucial for auto repair shops to keep pace by outfitting themselves with the best of the best. That's where the 20AP-192 comes in. As part of the revolutionary AP Series, this lift marks a new era in car lift engineering. It has been meticulously crafted to integrate the best features from existing two-post lift types into an entirely new concept, catering to extreme use, heavy loads, and operator safety and efficiency.
The 20AP-192 delivers everything professionals love about the AP Series in a taller package. With an increased 193" overall height, techs will have more room to work comfortably. The lift provides 76.5" under clearance at top lock, offering ample workspace for undercarriage service on full-size trucks and commercial vehicles. Maximum lifting height reaches 82.75" at top lock (or 90.25" with adapters stacked ), giving technicians the overhead clearance needed for extensive repairs and maintenance on the tallest vehicles.
Flexible Installation, Minimal Maintenance
BendPak's AP Series introduces a game-changing solution for auto repair shops seeking flexibility in installation. This resilient, secure, and dependable car lift seamlessly combines wide and narrow installation options in a single customizable package. The expandable top beam accommodates wide or narrow drive-through configuration, making it easy to adapt to your shop's footprint and workflow. The intelligent lift design strikes a balance between simplicity and sophistication, resulting in minimal service and maintenance costs, leading to reduced operating expenses and heightened productivity.
Powered by a dual hydraulic direct-drive cylinder system and an electric/hydraulic HVLP power system, the 20AP-192 operates smoothly and reliably. The self-lubricating Dura-Glide UHMW polyethylene bearing system reduces friction and wear, ensuring years of trouble-free operation. Heavy-duty ½" aircraft-quality equalizer cables and oversized cable sheaves reduce cable fatigue for long-term durability. Safety locks in each column spaced every 3" provide secure holding at any height, while the single-point safety release makes lowering quick and convenient.
Revolutionary Automatic Swing Arm Restraint System (ASARS)
Experience unparalleled stability and safety with BendPak's revolutionary Automatic Swing Arm Restraint System (ASARS). Crafted with a patented and exclusive heavily forged-steel design, this system boasts a full 360-degrees of load-holding grip, ensuring the lift arms remain securely in place with over 2,000-pounds of load-holding force. No more worrying about arm drift during critical service tasks.
Designed for maximum convenience and efficiency, ASARS requires minimal operator involvement, thanks to its adaptive nature. Say goodbye to unplanned swing arm movement during lift use and vehicle service operations. With its distinctive power-hold design, ASARS allows for precise non-shifting action, providing peace of mind during even the most demanding service tasks. Plus, with the handy quick-release operator lever, you can instantly release the clamping pressure, further enhancing operational ease and speed.
Key Features & Highlights
- 20,000 lb. lifting capacity handles heavy fleet vehicles, commercial trucks, and oversized SUVs with ease
- 193" overall height provides extra working clearance for tall vehicles and enhanced undercarriage access
- Clearfloor design no crossbeam or overhead obstacles, maximizing work space and productivity
- Double-telescoping screw pads and drop-end arms offer increased versatility and lower pad height for a broader range of lift points
- Padded overhead safety shutoff bar prevents overtravel and protects vehicles and technicians
- Durable powder coat finish resists corrosion and provides long-lasting protection in demanding shop environments
- Convenient storage included for lifting adapters, keeping accessories organized and within reach
- ALI Certified for safety and quality assurance
Complete Adapter Set Included
The BendPak 20AP-192 comes complete with a 12-piece adapter set to maximize lifting point compatibility and vehicle coverage:
- (4) Drop-in frame cradle pads
- (4) 2.5" Medium stacking adapters
- (4) 5" Tall stacking adapters
With this versatile selection of adapters, you'll be ready to safely lift virtually any vehicle that rolls into your shop, from low-profile sports cars to heavy-duty commercial trucks.
Watch the 20AP Series in Action
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to.
Product Features
- 20,000-lb. lifting capacity
- Convenient Storage is included for lifting adapters
- Durable powder coat finish
- Expandable top beam accommodates wide or narrow drive-through configuration
- Double-telescoping screw pads offer increased versatility
- Padded overhead safety shutoff bar
- Single-point safety release
- Drop-end arms provide a lower pad height
- Dual hydraulic direct-drive cylinders
- Electric / hydraulic HVLP power system
- Self-lubricating dura-glide UHMW polyethylene bearing system
- Safety locks in each column spaced every 3"
- Automatic arm restraints withstand over 2000-pounds of side force
- Heavy-duty ½" aircraft-quality equalizer cables
- Oversized cable sheave diameter reduces cable fatigue
Includes 12 Piece Adapter Set
- (4) Drop-In frame cradle pads
- (4) 2.5" Medium stacking adapters
- (4) 5" Tall stacking adapters
Product Specifications
Model
20AP
20AP-192
Capacity
Lifting Capacity:
20,000 lbs. / 9,072 kg
Dimensions
A Under Clearance 1 (Top Lock)
76.5" / 1,943 mm
B1 Max. Lifting Height 2 (Top Lock)
82.75" / 2,102 mm
B2 Max. Rise 3
83.25" / 2,114 mm
C Max. Lifting Height w/ Adapters 4
90.25 in. / 2,292 mm
D Min. Height w/ Pad
8" / 206 mm
E Overall Height
169" / 4,294 mm
193" / 4,904 mm
F Overall Width
168" / 4,267 mm
G Outside Posts
149" / 3,785 mm
H Inside Posts
126" / 3,199 mm
I Drive-Thru Width
107.75" / 2,740 mm
J Floor to Top Switch
162.5" / 4,128 mm
186.5" / 4,738 mm
K Lift Arm Reach 5
35" / 893 mm (Min) – 62" / 1,678 mm (Max)
L Base Plate Width
28" / 710 mm
M Post to Base Plate
9.5" / 241 mm
Max. Load Per Lift Arm
5,000 lbs. / 2,268 kg
Motor 3
220 VAC, 60 Hz, 1 Phase
Time to Full Rise
N/A
Sound
<70 dB
- Under Clearance is to the bottom of the lift arms while engaged on top locks.
- Max Lifting Height is with the locks engaged measured to the top of the pad.
• Max Rise is distance
raised to maximum vertical travel, above locks.
- Max Lifting height is measured with adapters stacked and on top lock positions.
- Lift Arms are measured from the Lift Arms axis of rotation to the Frame Cradle Pad mounting pin center.
Specifications subject to change without notice.
