Product Overview

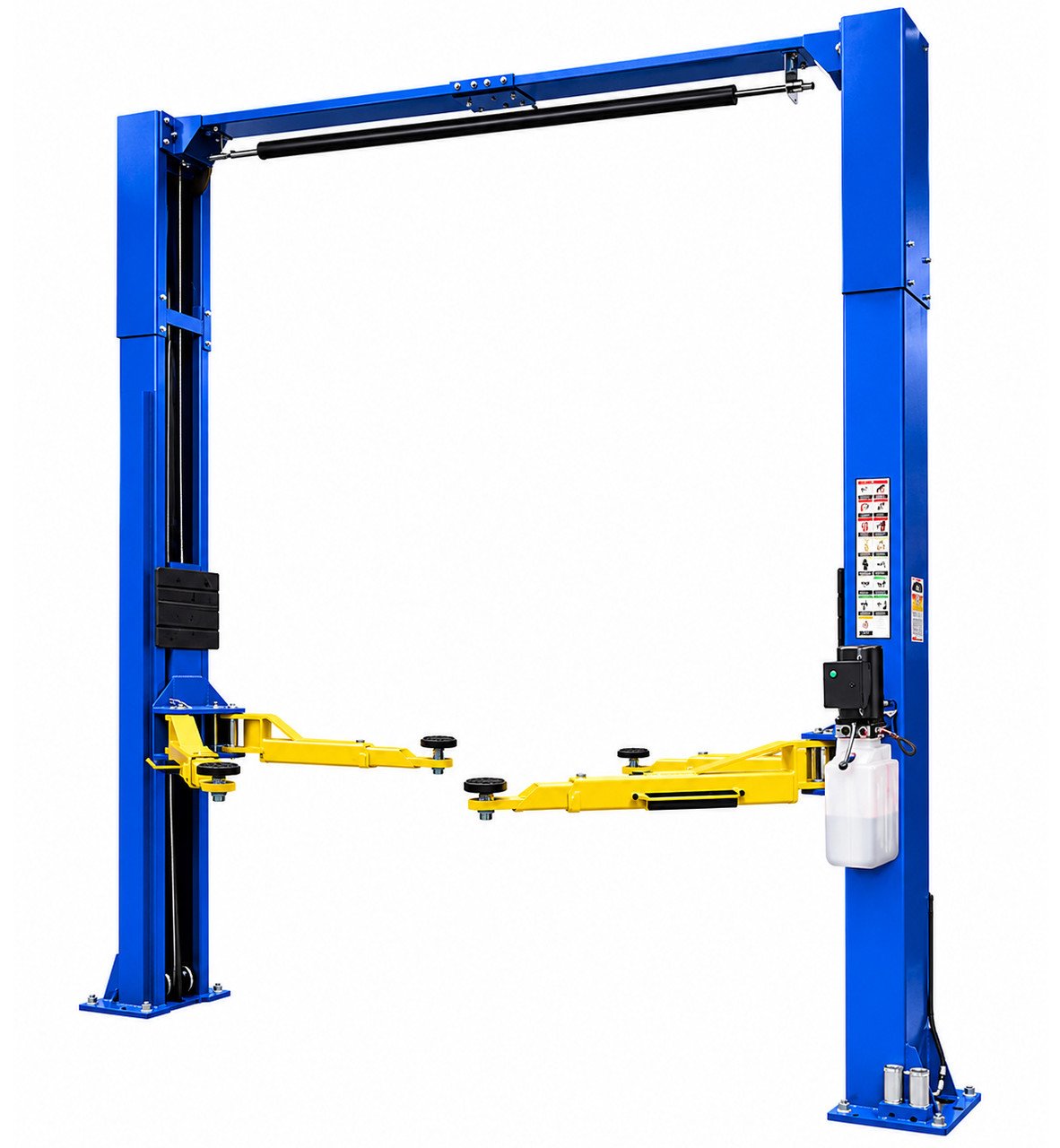

Torin TRJR-245LD TCE 220V 2 Post Lift 10,000 lb.
The lift utilizes a manual single-point safety release, mechanical locking system, and safety latches in each column for enhanced operator protection. A durable chain-driven lifting system and steel wire rope equalizing cables ensure smooth and balanced lifting.
Designed to accommodate a variety of electrical requirements, the lift supports multiple voltage options and includes adjustable lift pads and adapters for servicing a wide range of vehicles.
Operation is simple with user-friendly controls, featuring an "UP" button on the power unit and manual lowering via a release lever. Routine maintenance requires only periodic lubrication and inspections.
Built with high-quality materials, heavy-duty cables, and upgraded pulleys, this lift is engineered for long-term durability, reduced synchronization stress, and reliable performance in professional automotive service environments.
California Prop 65 Warning: Proposition 65 requires warnings on products that contain certain metals/chemicals that the State of California has determined may cause cancer and/or birth defects or other reproductive harm, if those products expose consumers to such chemicals above certain threshold levels that are designed to protect public health. For more information go to
Product Features
- 10,000 lb Lifting Capacity: Designed for cars, light trucks, and SUVs.
- 220V Power Unit: Features a reliable hydraulic system powered by dual hydraulic cylinders.
- Arm Configurations: This lift provides a symmetric and asymmetric configuration
- Overhead Clear-Floor Design: Provides open floor space between the columns for easier vehicle access.
- CE Certified: Built to meet CE safety and quality standards.
- Safety Tested: Standardized for 115% dynamic load capacity and tested to 150% static load capacity.
- Single-Point Lock Release: Single-sided unlocking system allows convenient operation from one side of the lift.
- Mechanical Safety Locks: Safety latches in each column help keep the vehicle securely raised.
- Chain-Type Lifting System: Uses steel wire rope equalizing cables for smooth, balanced lifting.

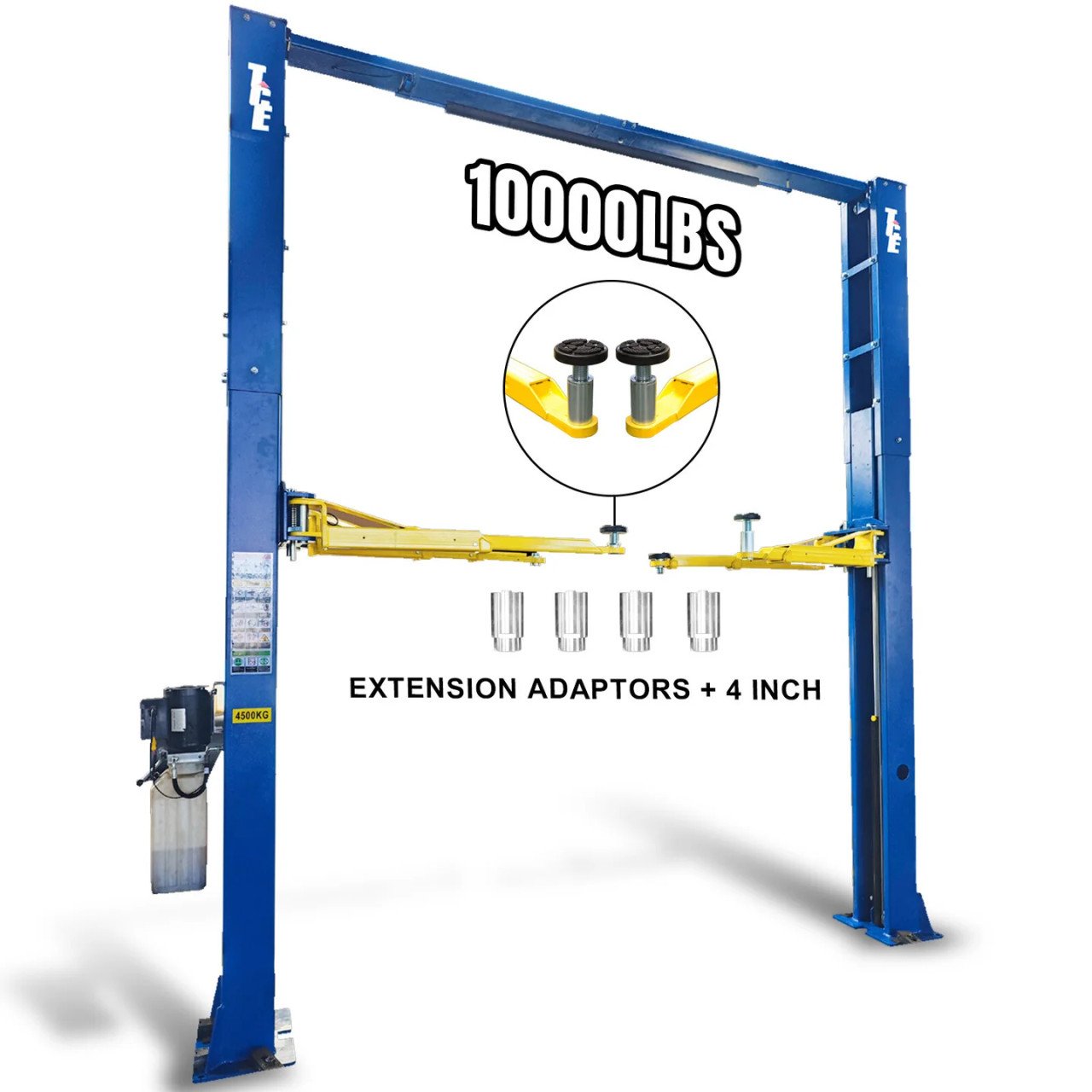

- Adjustable Lift Pads & Adapters: Helps accommodate a wide range of vehicle lifting points.
- Easy Operation: Simple “UP” button lifting with manual lowering by lever.
- Low Maintenance: Requires routine lubrication and periodic inspections for dependable use.
- Heavy-Duty Construction: Built with durable materials, upgraded cables, and heavy-duty pulleys for long service life.
Product Specifications
Specifications
TRJR-245LD
Capacity
10,000 lbs. / 4.5 Tons

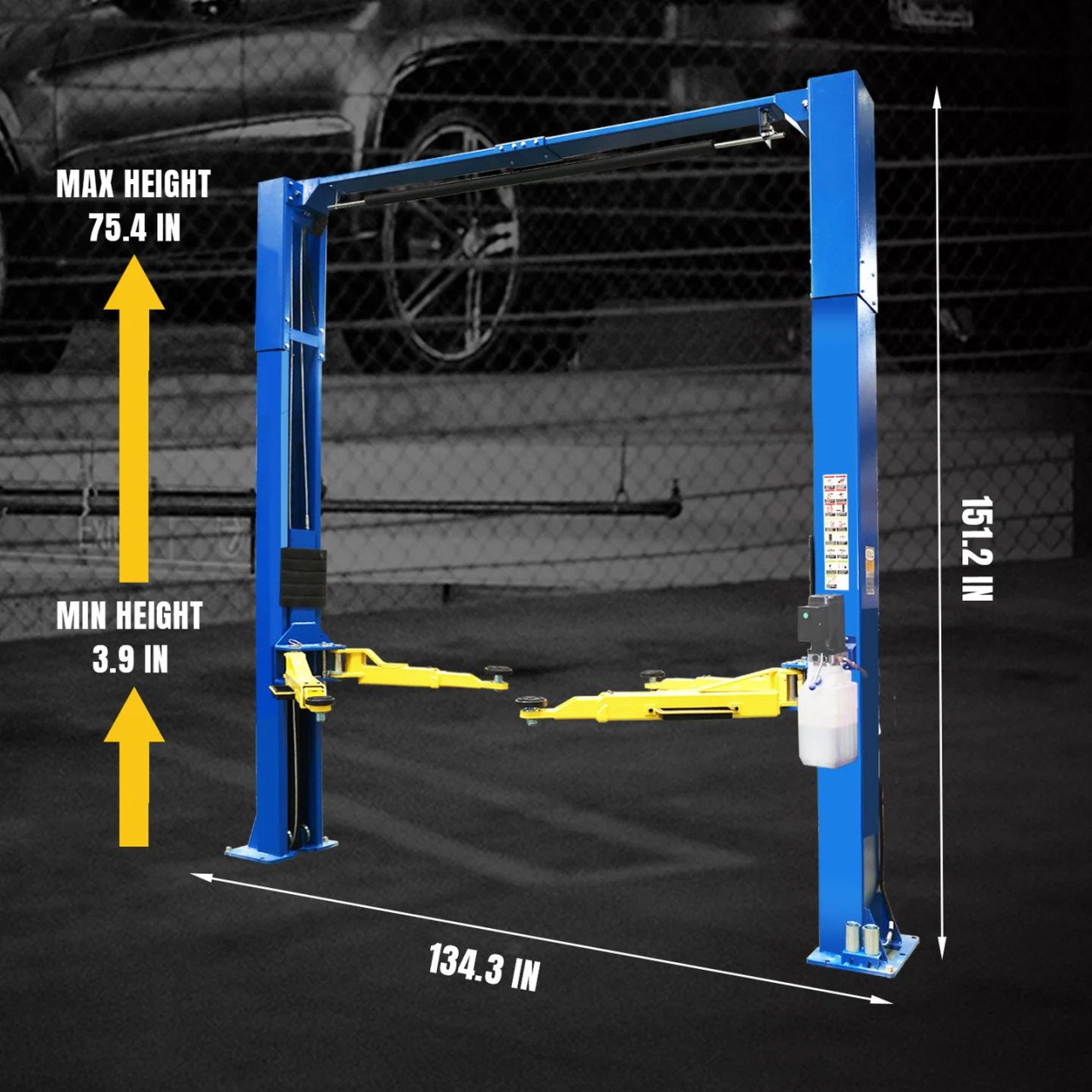

Overall Height
150.79"
Width Overall
134.65"
Max Lift Height
76.77" / 1950mm
Min. Height
4.25" / 110mm
Inside Column
102.76" / 2610mm
Rising Time
45-50s
Chain Length
90.94" / 2310mm (121 links)
Chain Width
1.18" / 30mm
Diameter Dimension of the Steel Cable Wheel
100mm
Voltage
220V / 60hz
Motor
220VAC/60HZ/2.2KW
Shipping Dimensions
118.11" x 17.72" x 34.45"
Shipping Weight
1,437.4 lbs. / 652 kg
Net Weight
1410.96 lbs. / 640 kg
Key Features
- Published product configuration: Torin TRJR-245LD TCE 220V 2 Post Lift 10,000 lb. The lift utilizes a manual single-point safety release, mechanical locking system, and safety latches in each column for enhanced operator protection. A durable chain-driven lifting system and steel wire rope equalizing cables ensure smooth and balanced lifting. Designed
- Exact manufacturer model or part number: TRJR-245LD
- Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
- 1 product manual or technical document linked below
- Condition: New
Product Specifications
| Brand | Torin USA |
|---|---|
| SKU | TRJR-245LD |
| MPN / Model | TRJR-245LD |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 2 Post Lifts |
Before You Order
Confirm that model TRJR-245LD, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Manuals & Technical Resources
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
