Product Overview
Atlas® BP8000 Floor Base-Plate 2 Post Lift 8,000 lbs
IMPORTANT:
(Do this immediately after installation)
The Atlas® BP8000 is a professional-grade floor base-plate two-post lift engineered specifically for low ceiling garages. With a total column height of just 108 inches (9 feet), this 8,000 lb capacity lift delivers full-size vehicle lifting capability in spaces where traditional overhead-style two-post lifts simply won't fit. If you have a ceiling as low as 9 feet 3 inches, the BP8000 opens up possibilities for both professional and home garage installations.
The base-plate design is the key to this lift's versatility. Instead of traditional overhead posts that require significant clearance, the BP8000 uses robust floor-mounted base plates that anchor directly to your concrete slab (minimum 4 inches of concrete with 3000 psi required). This design reduces overall height requirements while maintaining structural integrity and safety—giving you a lift that's ideal for facilities with height constraints but demanding work requirements.
Engineered for Professional Performance
The Atlas BP8000 combines robust construction with advanced safety features to deliver a lifting solution you can trust. The lift features super symmetric arms that provide flexible vehicle positioning, allowing you to adjust pickup points for a wide range of vehicle types—from compact cars to light trucks. With dual hydraulic chain-drive cylinders (one cylinder in each column), the lift delivers smooth, balanced operation and consistent lifting performance across its entire 8,000 lb capacity.
Safety is paramount with the BP8000. The lift is equipped with a single-point lock release for easy, operator-friendly lowering, along with a double safety lock system that provides redundant protection at every lift height. Automatic arm restraints ensure that arms stay securely in position during operation, while self-lubricating HMW polyethylene sliders and bronze bushings reduce friction and ensure long-term reliability with minimal maintenance.

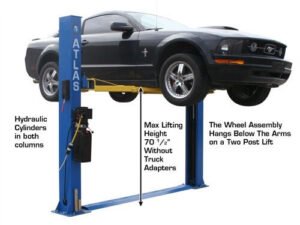

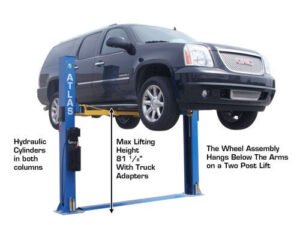

The lift achieves a maximum lift height of 86.5 inches with adapters and 75.5 inches without adapters, with a minimum arm height of just 4 inches perfect for getting under low-profile sports cars and sedans. The drive-through clearance of 99 inches (8 feet 3 inches) provides ample room for positioning vehicles, while the outside column-to-outside column measurement of 124 inches (10 feet 4 inches) accommodates a wide variety of vehicle widths.
Built to Last with Premium Materials
Constructed from 6mm thick steel throughout the columns, carriages, and arms, the BP8000 is engineered for durability and long-term performance in demanding shop environments. The robust 7 1/4" x 11" column size and heavy 0.375-inch diameter cable system ensure that this lift can handle daily use for years to come. A durable powder coat finish protects against corrosion, scratches, and wear, keeping your lift looking professional while standing up to the rigors of the shop.
The lift operates on 220V single-phase power with a 30 amp breaker requirement, making it compatible with most shop and garage electrical systems. The hydraulic system requires 3-5 gallons of AW32/AW46 hydraulic oil, providing smooth, consistent operation across the lift's full range of motion.
Complete Package with Truck Adapters Included
The Atlas BP8000 comes complete with everything you need for installation and operation. Included with your lift is a 12-piece truck adapter set featuring 2-inch, 3-inch, and 6-inch sizes, allowing you to safely lift trucks, SUVs, and higher-clearance vehicles right out of the box. All necessary mounting hardware is also included, so you can get your lift installed and operational quickly.
With an overall width of 132 inches (11 feet) and a base plate width of 11 1/2 inches, the BP8000 provides a stable, secure foundation. The lift weighs 1,290 lbs, providing the mass and stability needed for safe operation while remaining manageable for installation.
Key Highlights
- 8,000 lb capacity with base-plate design for low-ceiling installations
- 108-inch (9 ft) overall height installs in garages with ceilings as low as 9 feet 3 inches
- Super symmetric arms with automatic arm restraints and double lock system for maximum safety
- Maximum lift height of 86.5 inches with adapters, 75.5 inches without adapters
- Free 12-piece truck adapter set (2", 3", and 6" sizes) included with all mounting hardware
Product Features
- 8,000 lb. Capacity
- Super Symmetric Arms
- Base Plate Design
- Single-Point Release
- Double Lock System
- Dual Hydraulic Chain-Drive Cylinders
- Automatic Arm Restraints
- Self-Lubricating HMW Polyethylene Sliders and Bronze Bushings
- Powder Coat Finish
- Free Truck Adapters
Includes
- 12 Piece Truck Adapter Set – 2", 3", & 6" Sizes
- Mounting Hardware
Product Specifications
Specifications
BP8000
Capacity
8,000 lbs
Lifting Time
N/A
Overall Height
108" (9')
Overall Width
132" (11')
Outside Column To Outside Column
124" (10' 4")
Max Lift Height w/Adapters
86.5"
Max Lift Height w/o Adapters
75.5"
Minimum Arm Height
4"
Base Plate Width
11 1/2"
Inside Column
109 5/8" (9' 1 5/8")
Drive Thru
99" (8' 3")
Column Size
7 1/4" x 11"
Column Thickness of Steel
6mm
Carriage Thickness of Steel
6mm
Arms Thickness of Steel
6mm
Cable Diameter
.375"
Base of Lift
17 1/2" x 17 3/4"
Motor/Electrical Requirement
220V single (1) phase / 30 amp breaker is required.
Oil Requirement
3-5 Gallons AW32/AW46
Weight
1,290 LB.
Requires a minimum of 4" of concrete with 3000 psi
Key Features
- Published product configuration: Atlas® BP8000 Floor Base-Plate 2 Post Lift 8,000 lbs IMPORTANT: (Do this immediately after installation) The Atlas® BP8000 is a professional-grade floor base-plate two-post lift engineered specifically for low ceiling garages. With a total column height of just 108 inches (9 feet), this 8,000 lb capacity lift delivers
- Exact manufacturer model or part number: ATTD-BP8000
- Cataloged for Lifts & Hoists: Car Lifts — 2 Post Lifts
- 1 product manual or technical document linked below
- Condition: New
Product Specifications
| Brand | Atlas Automotive Equipment |
|---|---|
| SKU | ATTD-BP8000 |
| MPN / Model | ATTD-BP8000 |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | 2 Post Lifts |
Before You Order
Confirm that model ATTD-BP8000, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
Manuals & Technical Resources
Need more technical details or compatibility information? Contact our team and we will help you find the right fit.
