Product Overview

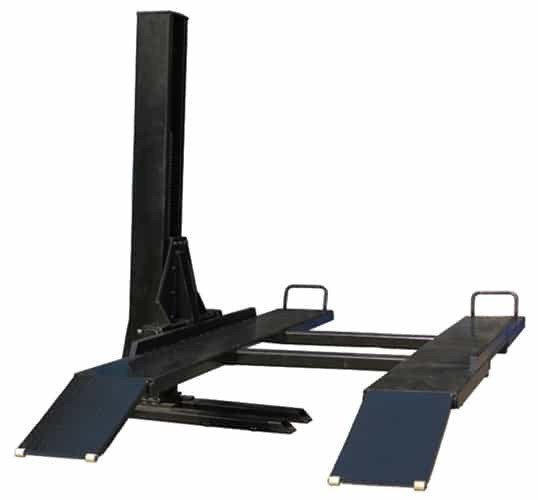

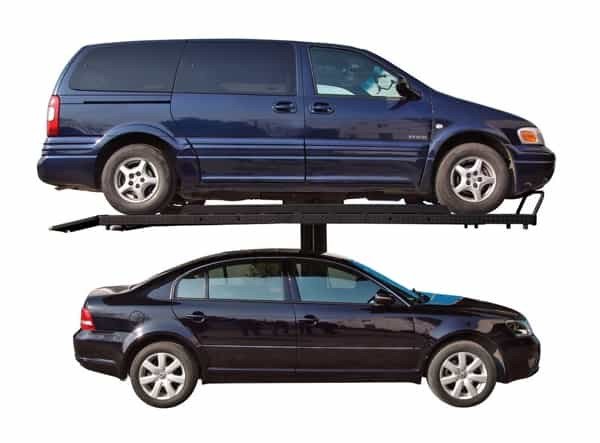

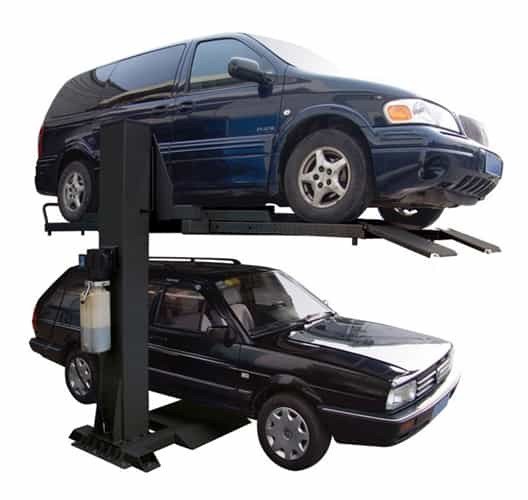

Auto Lift AL-SP-6K-SS 6,000 lb. Single Column Car Storage Lift

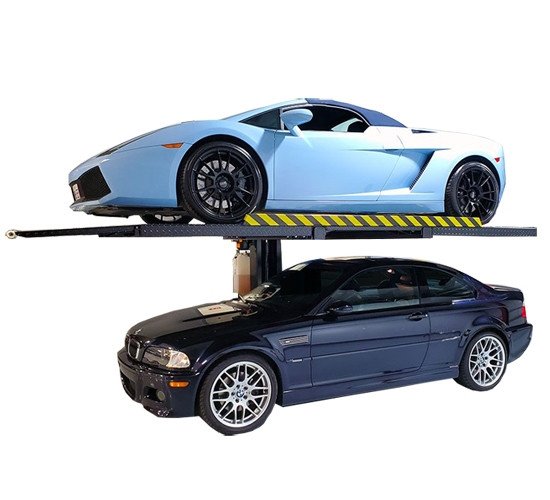

Transform your garage or shop into a two-car space with the Auto Lift AL-SP-6K-SS, a professional-grade 6,000 lb. capacity single column car storage lift engineered for both residential and commercial applications. This innovative parking lift features a large platform with low-profile approach ramps designed to accommodate vehicles with low ground clearance, making drive-on and drive-off operations smooth and effortless. Whether you're a car collector maximizing your garage space or a dealership expanding your lot capacity, the AL-SP-6K-SS delivers robust lifting performance with a surprisingly minimal footprint that allows for multiple installations side-by-side.
Built with commercial-grade components including a heavy-duty hydraulic cylinder, durable leaf chain, and a reliable Duro electric/hydraulic power unit, this single column lift is engineered to handle most passenger vehicles and light trucks with confidence. The low post height of just 110-1/4" makes it ideal for residential garages with standard ceiling heights, while the generous 76-15/16" under-car clearance provides ample working room below the stored vehicle. Installation flexibility is built in—the lift can be configured to operate from either the left or right side, adapting perfectly to your specific garage layout and workflow needs.
Why Choose the Auto Lift AL-SP-6K-SS?
The AL-SP-6K-SS stands out as the ultimate space-saving solution for car enthusiasts, collectors, and commercial operations looking to double their parking capacity without expanding their footprint. Here's what makes this single column storage lift exceptional:
- 6,000 lb. Lifting Capacity: Handles most passenger cars, sports cars, sedans, coupes, and light trucks with ease and reliability
- Low-Profile Design: Drive-over base ramp height of just 3 inches accommodates low-clearance performance vehicles and slammed cars without scraping
- Compact Footprint: Space-efficient design measuring 185-13/16" long × 110-7/16" wide (pump mounted at back) allows multiple units to be installed in a single garage bay
- Residential-Friendly Power: Operates on standard 110 VAC, 1-phase, 20 Amp household electrical service—no special wiring or three-phase power required
- Flexible Installation: Configurable for left or right side operation to match your specific garage layout and access requirements
Professional-Grade Construction You Can Trust
Auto Lift doesn't cut corners when it comes to component quality. The AL-SP-6K-SS features a commercial-grade hydraulic cylinder paired with heavy-duty leaf chain for smooth, reliable lifting operation year after year. The proven Duro electric/hydraulic power unit delivers consistent performance with minimal maintenance requirements. The 18-7/8" wide runways span an impressive 151-15/16" in length, with adjustable clearance between runways ranging from 39-3/8" to 42-1/2" to accommodate different vehicle track widths. The 30-3/4" approach ramps provide a gentle transition angle that protects low front spoilers and air dams during loading.
Whether you're storing a classic car collection, maximizing space in a residential garage, or optimizing inventory capacity at a dealership, this single column lift delivers the performance and durability you need. The compact design and low ceiling requirement make it perfect for standard residential garages, while the robust construction meets the demands of commercial operations.
Product Features
- 6,000 lb lifting capacity
- Can handle most vehicles and light trucks
- Low profile approach ramps for vehicles with low ground clearance
- Lift can be installed to lift from left or right side
- Minimal footprint allows for multiple installations
- Low post height allows for low ceiling residential installations
- Commercial grade hydraulic cylinder and heavy duty leaf chain
- Reliable Duro electric/hydraulic cylinder
Product Specifications
Specifications
AL SP-6K-SS
Capacity
6,000 lbs.
Overall Length
185-13/16"
Overall Width (Pump Mounted/Back)
110-7/16"
Overall Width (Pump Mounted/Side)
106-5/16"
Overall Height
110-1/4"

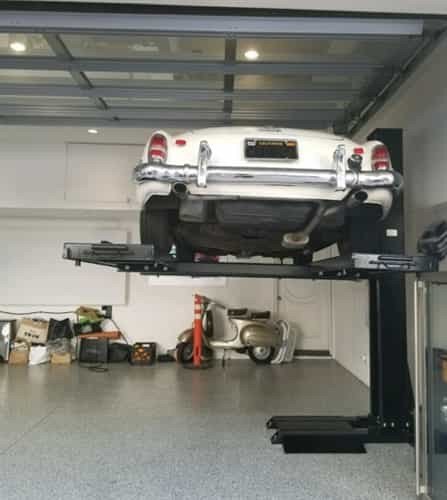

Under Car Clearance
76-15/16"
Drive Over Base Ramp Height
3"
Runway Width
18-7/8"
Runway Length
151-15/16"
Clearance Between Runways
39-3/8” – 42-1/2”
Approach Ramp Length
30-3/4”
Power Supply
110 VAC, 1PH, 20 Amp
Ship Weight
2,610 lbs.
Key Features
- Published product configuration: Auto Lift AL-SP-6K-SS 6,000 lb. Single Column Car Storage Lift Transform your garage or shop into a two-car space with the Auto Lift AL-SP-6K-SS, a professional-grade 6,000 lb. capacity single column car storage lift engineered for both residential and commercial applications. This innovative parking lift features a
- Exact manufacturer model or part number: AL-SP-6K-SS
- Cataloged for Lifts & Hoists: Car Lifts — Specialty Lifts
- 1 product manual or technical document linked below
- Condition: New
Product Specifications
| Brand | Auto Lift |
|---|---|
| SKU | AL-SP-6K-SS |
| MPN / Model | AL-SP-6K-SS |
| Condition | New |
| Division | Lifts & Hoists |
| Primary Category | Car Lifts |
| Collection | Specialty Lifts |
Before You Order
Confirm that model AL-SP-6K-SS, the listed capacity or working range, power requirements, dimensions, and site-delivery needs match your application. Only specifications stated in this listing should be used for purchase planning.
